Honeywell ‎YRLV4300A1014 Programmable Electric Thermostat User Manual

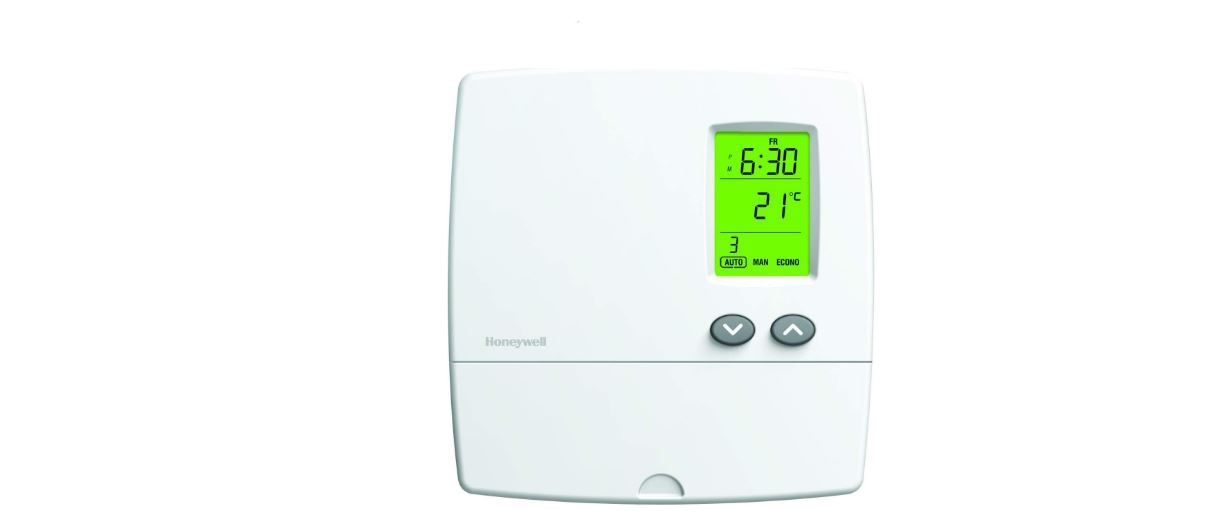

Honeywell ‎YRLV4300A1014 Programmable Electric Thermostat

INTRODUCTION

The programmable electric thermostat Honeywell YRLV4300A1014 is made by Honeywell, a known manufacturer of HVAC (heating, ventilation, and air conditioning) equipment. For household applications, the YRLV4300A1014 thermostat is designed to provide accurate temperature control and energy-saving features. The YRLV4300A1014’s customizable features let customers to create personalized heating and cooling programs depending on their preferences. This helps homes to reduce energy waste and save money on heating and cooling by automatically regulating the temperature at various times of the day. The Honeywell YRLV4300A1014 thermostat has an intuitive interface that makes it simple to operate and set up. Usually, it contains a digital display with information about the time, temperature, and preprogrammed settings. For controlling the temperature, setting the schedule, and using other functions, the thermostat may include buttons or a touch screen. The YRLV4300A1014’s adaptive recovery function is one of its standout characteristics; it enables the thermostat to learn how long it takes to attain the target temperature and modify the heating or cooling system appropriately. Even if the system is not working constantly, this guarantees that the temperature is pleasant at the periods specified in the programming. The YRLV4300A1014 may also include features like vacation mode, which enables users to create a temporary schedule while they are away from home and filter change reminders, which promote HVAC system efficiency by alerting users when the filter needs to be changed. While this description gives a general idea of the Honeywell YRLV4300A1014 thermostat, it’s vital to keep in mind that actual details, features, and specifications may differ. For accurate and current information, it is always advised to reference the product handbook or the manufacturer’s paperwork.

DIMENSION

Specification

ADVANTAGES

Benefits of using a 5-2 Day Programmable Electric Heat Thermostat with TRIAC switching

• Exceptional precision and a backlit display
• Completely quiet operation—perfect for bedrooms
• Temperature fluctuations are eliminated by superior temperature control.

USAGE

Follow these instructions to use the Honeywell Home YRLV4300A1014 programmable electric heater thermostat:

• When installing an electric heater, cut off the power at the circuit breaker to the heater first. Connect the wires to the appropriate terminals on the new thermostat after removing the old one. Be careful to adhere to the installation guidelines given, or, if necessary, seek expert assistance. Install the thermostat on the wall after the wiring is finished.
• Restoring electricity to your electric heater at the circuit breaker is necessary after installation. The thermostat ought should turn on and show the temperature at the moment.
• Setting up the thermostat: You may create a heating schedule with the YRLV4300A1014 thermostat depending on your preferences. Follow these instructions to set the thermostat:
  • Push the thermostat’s “Program” button. The time and date should be shown on the screen.
  • Navigate to the preferred day and hour using the arrow buttons. For instance, you might choose “Monday Morning” or “Saturday Evening.”
  • To access the temperature selection mode after choosing the appropriate day and time, click the “Program” button once again.
  • To change the temperature to the desired setting, use the arrow buttons.
  • To store the temperature setting for that time period, press the “Program” button.
  • Repetition of steps b through e will allow you to create more time slots and temperature settings to fit your schedule.
  • To leave programming mode after programming all the necessary time slots, hit the “Program” button once again.
• The temperature may be changed manually at any moment by using the arrow buttons to raise or lower the desired temperature. Until you adjust it or until the next scheduled time slot, the thermostat will keep the current setting.
• Extra features: The YRLV4300A1014 thermostat could also have extra functions like a hold mode, vacation mode, or override function. For further instructions on how to utilize these features, if they are offered on your model, refer to the product handbook.
• Troubleshooting: Consult the user manual or get help from Honeywell customer service if you run into any problems or have inquiries about how the thermostat works.

Simple to Use

• LED backlighting for simple reading
• Front panel instructions allow for easy programming.
• No need to reprogram your schedule after a power loss with battery-free backup.

• 5-2 Day Programming allows for separate programs for the weekdays and weekends
  • 4 time periods per day
  • Pre-programmed or personalized schedules
  • Selectable 12 or 24-hour format

INSTALLATION

The Honeywell Home YRLV4300A1014 programmable electric heater thermostat installation instructions are as follows:

• Locate the circuit breaker or fuse box that manages power to the electric heater to turn it off. By turning off the associated breaker or removing the fuse, turn off the electricity to the heater.
• The old thermostat should be taken down from the wall if you still have one. Typically, to do this, a cover plate must be removed, and the mounting screws must be undone. Taking note of the wire colors and, if applicable, any labels that go with them, carefully unplug the wires from the terminals.
• Install the new thermostat: Place the mounting plate for the new thermostat on the wall in the appropriate place. Make sure it is straight by using a level. Drill holes into the wall at the locations you marked for the mounting holes. If required, insert plastic anchors into the holes before using the screws included with the thermostat to fasten the mounting plate to the wall.
• Connect the wires: Take the electric heater’s wires and insert them through the mounting plate’s aperture. Match the thermostat’s terminal labels with the relevant wire colors. There will often be terminals with the letters R (red), W (white), and potentially additional letters. For detailed wiring requirements, refer to the manufacturer’s instructions or the wiring schematic included with the thermostat.
• Once the wires are attached, attach the thermostat by gently pressing it into the mounting plate until it snaps into place. Make sure it is firmly fastened.
• Restore power by turning the appropriate breaker or placing the fuse in the circuit breaker or fuse box, then turn on the electric heater.
• Install the thermostat: To install the Honeywell Home YRLV4300A1014 thermostat, follow the setup instructions that came with it. Setting the time, day, preferred temperature, and any further parameters is possible here.

Easy Installation
A 2-wire non-polarized connection allows for a quick and painless installation.
Temperature override is possible with a temporary bypass without modifying the code.

Baseboard electric baseboard thermostat

• Convector heaters with fans
• Ideal for radiant ceilings as well
