Neomitis RTE7D WIRED PROGRAMMABLE ROOM THERMOSTAT
Benefits
Dual optimisation feature.
Automation: flexible programming and easy modifi-cation to combine comfort and savings.
- Available in white (RT7PLUS) and also in black (RT7BPLUS).
- Quick and easy to install.
- Suitable for all heating applications.
- Large and easy to understand display.
- Easy to turn rotary control.
- Boost mode for immediate comfort.
- Energy savings from PID control.
- Wired version, ideal for new build or thermostat replacement.
- Wireless (RF) versions available.
- Service interval capable.
- Program lock capable.
- Automatic summer/winter change over.
In a few words …

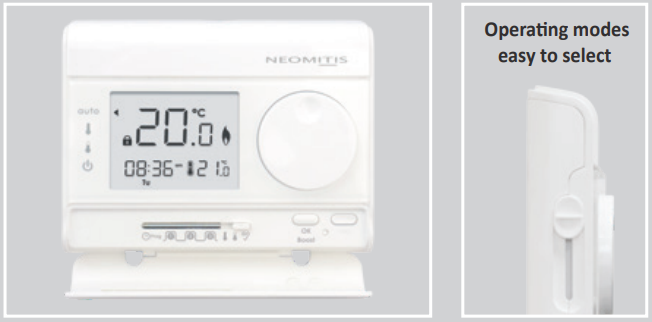

This digital room thermostat has been designed for easy operation and is intended to make your life easier and help you save energy and money. The extra large LCD and ambient temperature digits mean that the display can be read from across the room and the simple rotary dial makes it the perfect for everyone who wants a digital thermostat that is easy to understand.
The slide control operation and simple programming method means that everyone can set their own convenient schedule for each day of the week. Having the ability to customise each day of the week allows for greater efficiency savings. The dual optimisation feature allows you to optimise your programming by favouring comfort or savings.
This digital thermostat is just one of a range of products that can provide the right solution for controlling your heating system in an easy and efficient way, whether it is a new installation or an improvement to an existing one.
Boiler Plus compliant features
Automation:
- Single day or multiday programming.
- Programmable comfort periods.
Dual optimisation:
OPTI ECO or OPTI COMFORT, we design smart products to make your life easier. Optimise your programming by favouring comfort or savings: Depending on various parameters. room inertia, ambient temperature, desired temperature, the thermostat calculates and optimises the programming for each heating period whether set to Comfort or Savings (Eco).
- In OPTI ECO mode the thermostat’s inbuilt algorithm optimises in order to guarantee maximum energy savings throughout the ECO
programme. - In this mode, a slight drop in the temperature level at the beginning and end of the ECO period is allowed to maximize energy savings.
- In OPTI COMFORT mode the processor within the device starts the boiler operation at the optimum time to achieve the set point temperature at the start of the occupancy period without sacrificing comfort. The thermostat’s inbuilt algorithm optimises in order to guarantee maximum energy savings throughout the COMFORT programme.
Features
- White backlit display.
- Room temperature control.
- Operating modes: Auto, Comfort, Eco, Heating on Standby with frost protection.
- Boost function for 1 hour: temporary Comfort temperature.
- Automatic summer/winter change over.
- Programme lock.
- Service interval function.
Technical specifications
- White plastic housing RAL 9016.
- 2x AA (LR6) batteries supplied – 2 years typical life.
- Wall mounting plate supplied.
Type of control:
- 2 point switching (ON/OFF).
- PID (Proportional Integral Derivative) .
- Relay output: 5(2)A.
Environment:
- IP30.
- Operating temperature: 0°C to +40°C.
- Setpoint temperature: +5°C to +30°C.
- Storage temperature: from -10°C to +60°C.
- Humidity: 80% at +25°C (without condensation).
- Manufactured on ISO 9001 V2015 certified site. UKCA and CE standards:
| Safety | EMC | RoHs |
| EN60730-1; EN60730-2-7; EN60730-2-9 | EN60730-1 ; EN60730-2-7 ; EN60730-2-9 | EN IEC 63000 |
| Models | References | Designations | Heights (mm) | Widths
(mm) |
Depths
(mm) |
Gross
weights (Kg) |
| RT7PLUS | RTE7d | Wired 7 day programmable digital room thermostat | 95 | 120 | 29,6 | 0,3 |
| RT7BPLUS | RTE7Bd | Wired 7 day programmable digital room thermostat – black version | 95 | 120 | 29,6 | 0,3 |
NEOMITIS® LIMITED – 16 Great Queen Street, Covent Garden, London, WC2B 5AH UNITED KINGDOM – Registered in England and Wales No: 9543404
Tel: +44 (0) 2071 250 236 –
Fax: +44 (0) 2071 250 267 –
E-mail: [email protected]
Pictures and technical specifications are not contractual and are given as an indication. Specifications may change depending on product development. Néomitis® keeps the right to change without notice. All rights reserved – Photo credits: © Shutterstock © Adobe stock
