Neomitis RTE7D WIRED PROGRAMMABLE ROOM THERMOSTAT Instruction Manual

Neomitis RTE7D WIRED PROGRAMMABLE ROOM THERMOSTAT

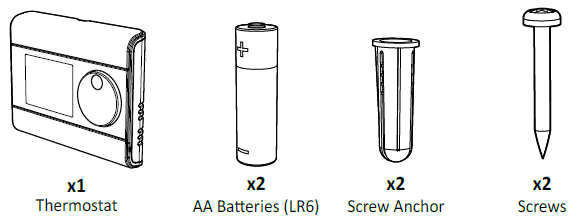

PACK CONTAINS

INSTALLATION

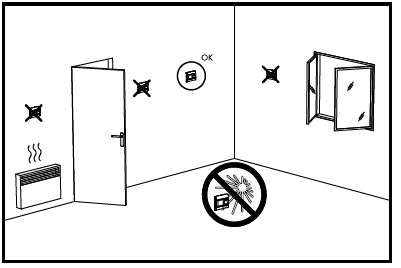

Recommended locations for your thermostat.
To ensure that your thermostat provides accurate readings and controls effectively, it must be installed approximately 1.5 m above floor level on an inside wall, away from direct sunshine and any other sources of heat or cold such as radiators, cold draughts, etc.

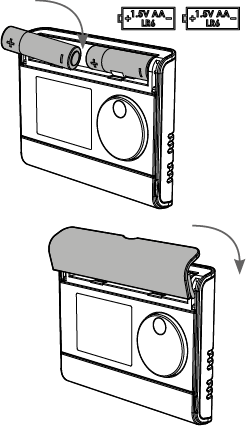

INSTALLING BATTERIES

• Remove the batteries cover which is placed on the front of thermostat
• Insert the 2 batteries AA supplied. Note the correct polarity according to the engraving on the thermostat when inserting the batteries
• Replace the batteries cover

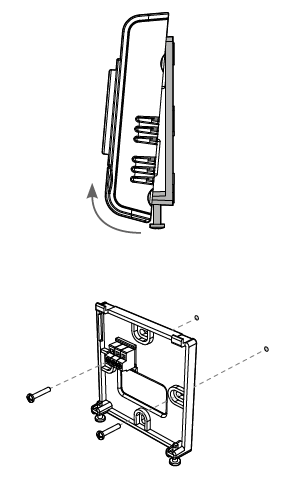

MOUNTING OF WALL MOUTING PLATE

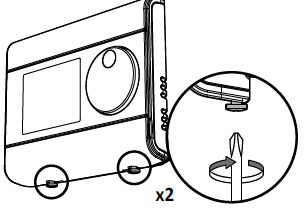

• Unscrew the 2 screws under the thermostat.
• Remove the wall plate from the thermostat.
• Secure the wall plate with the two screws provided using the horizontal and vertical holes

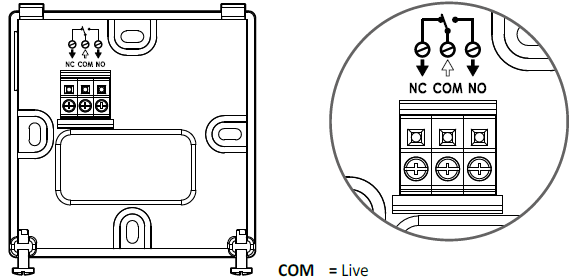

WIRING

All wiring must be in accordance with IEE regulations. This product is for fixed wiring only.

MOUNTING OF THE THERMOSTAT

• Replace the thermostat on the wall mounting plate.
• Secure the thermostat by screwing the both locking screws under the thermostat.

OPTIMISATION EXPLAINED

Historically, most UK heating systems waste vast amounts of energy by firing unnecessarily early for most of the year. Homeowners tend to set their boiler on times based on when they wake up by guessing what time they feel that their boiler should fire in order to reach the requested target temperature; for example turning the boiler on at 6am in order to have a warm room/ home by their wake up time at 7am.

Dual function optimisation , priority to comfort or energy savings, the choice is yours:
Depending on various parameters: room inertia, ambient temperature, desired temperature, the thermostat calculates and optimizes the programming for each heating period whether set to Comfort or Savings (Eco):

In OPTI COMFORT mode, priority to comfort
In OPTI COMFORT mode, the thermostat’s inbuilt algorithm optimises in order to guarantee maximum comfort during the COMFORT programme.

In OPTI ECO mode, priority to energy savings
In OPTI ECO mode, the thermostat’s inbuilt algorithm optimises in order to guarantee maximum energy savings throughout the ECO programme.

PLEASE READ BEFORE PROGRAMMING THE THERMOSTAT
Instead of using a fixed start time, Optimum Start calculates how long the house will take to warm up depending on the temperature of the home, then fires the boiler automatically at the most efficient moment in order to reach your target temperature by your programmed time.

HOW DOES OPTIMUM START WORK?
Optimum Start works on a daily basis. You set the time that you want to be warm and Optimum Start will do the rest; for example – if you wake up at 7:30AM, then set your thermostat’s start time for 7:30AM. Optimum Start ensures that you are warm when you want to be (and not before), reducing wasted energy and saving money (up to 10% of energy costs). To change the optimisation type, refer to the installation instructions/ advanced installer settings.

INSTALLER SETTINGS

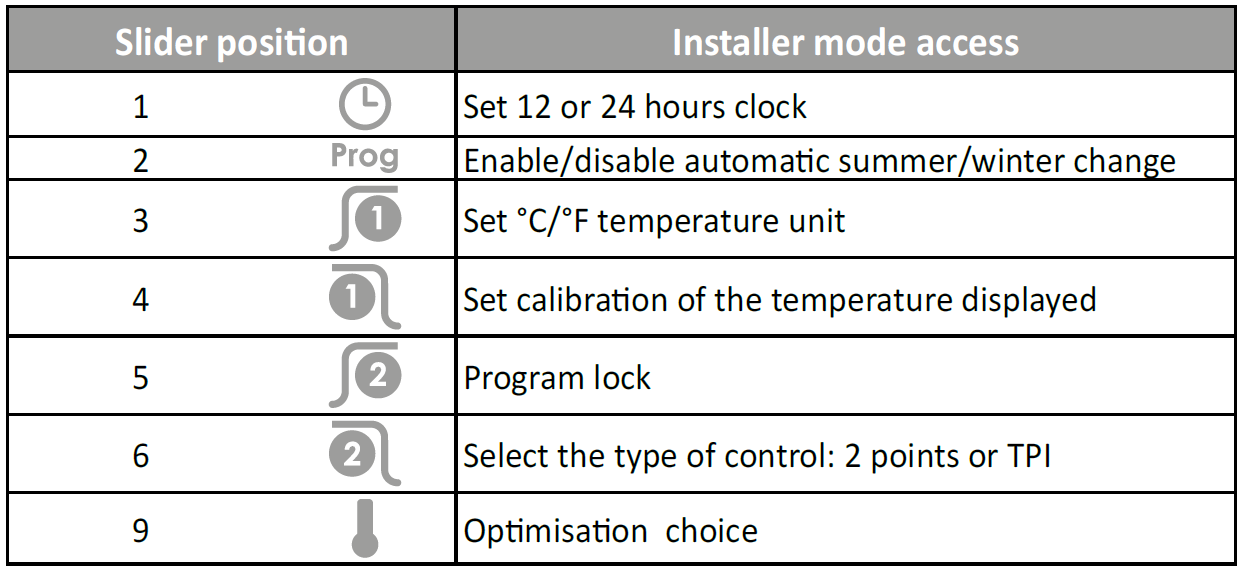

ADVANCED INSTALLER SETTING

Access

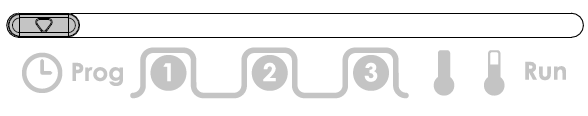

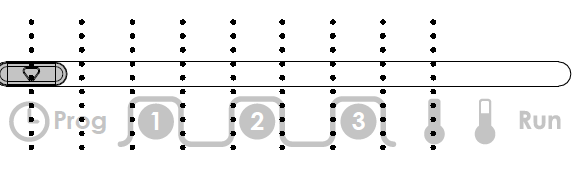

Move the mode slider to the position. Select the Programming slider position and press for 5 seconds to go into the dedicated installer setting.

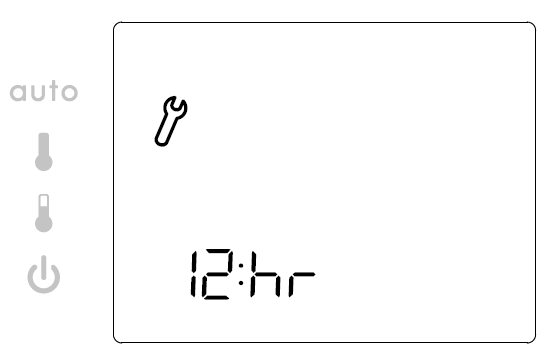

Set 12/24 hours clock

• Rotate the dial to change to “24 hr”.
• Then save by pressing ENTER or move the Programming slider

Enable/disable automatic summer/winter change over

• • The summer/winter change will be performed automatically by the room thermostat.

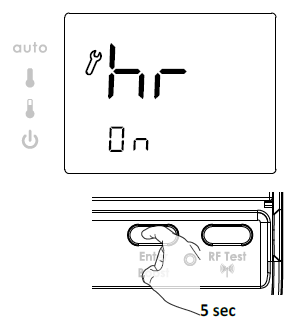

• Press and ho ld for 5 seconds to access the setting mode. ON appears on the display.
• Rotate dial to the left to select “Off”, to the right to select “On”.
• Then save by pressing move the Programming mode



Set °C/°F temperature

• Rotate the dial to change to degree Fahrenheit.
• Then save by pressing ENTER or move the Programming slider

Set calibration

• Rotate the dial to adjust the calibration to the desired value
• Then save by pressing ENTER or move the Programming slider.

Program lock

• Rotate the dial to ON and locked.
• Then save by pressing  ENTER or move the Programming slider.

Select 2 points/TPI

• 2 points = ON/OFF regulation.
• TPI = Proportional control algorithm.

The pre-set control algorithm is TPI.

• Rotate the dial to change to 2 points control algorithm
• Then save by pressing ENTER or move the Programming slider

Optimization feature

Overview

Dual function optimization, priority to comfort or energy savings, the choice is yours:

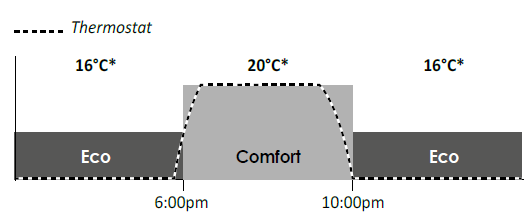

Depending on various parameters: room inertia, ambient temperature, and desired temperature, the thermostat calculates and optimizes the programming for each heating period whether set to Comfort or Savings (Eco):

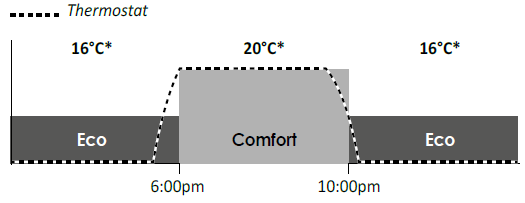

• In OPTI ECO mode, the thermostat’s inbuilt algorithm optimizes in order to guarantee maximum energy savings throughout the ECO programme. In this mode, a slight drop in the temperature level at the beginning and end of the ECO period is allowed to maximize energy savings. The processor within the thermostat stops the boiler operation at the optimum time to slightly reduce the setpoint temperature before the end of the occupancy period. In this mode, a slight drop in the temperature level at the beginning and end of the comfort period is allowed to maximize energy savings.
• In OPTI COMFORT mode, the thermostat’s inbuilt algorithm optimizes in order to guarantee maximum comfort during the COMFORT programme. The processor within the thermostat starts the boiler operation at the optimum time to achieve the setpoint temperature at the start of the occupancy period. In this mode, the priority is given to anticipating and maintaining the comfort temperature during periods of occupancy.

Optimization choice

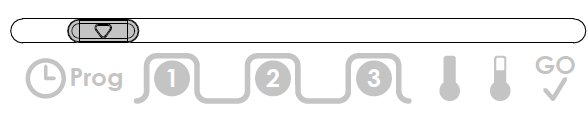

• Move the programming slider to the position

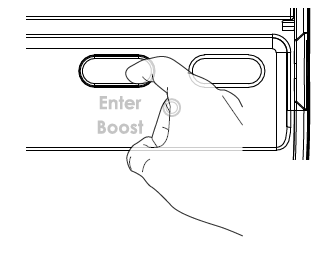

• Press and hold ENTER for 5 seconds to access the setting mode.

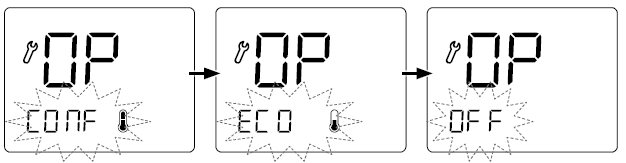

• OP appears on the display, the set mode “CONF” and its corresponding icon flash.
• Turn the dial and select th desired mode:
• OP CONF = optimization feature activated for
• OPTI COMFORT mode, priority t o c comfort
• OP ECO = Optimisation feature activated for
• OPTI E CO mod e, priority to energy efficiency
• OP OFF = Optimisation feature deactivated
• Press ENTER to save, exit setting optimisation feature and go back to the current mode.

TROUBLESHOOTING

Display disappears on thermostat.

• Check batteries.
• Replace the 2 batteries. Only use alkaline 1.5V AA (LR6) batteries.
• Do not use rechargeable batteries.

The heating does not come on or does not go off.

• Your room thermostat may have been set up close to a source of heat or on a cold wall – put it in a recommended location (see the “Installing” section on page 1 for these locations).
• Check that the communication works between the thermostat and the boiler.

You want to change the operating mode but when you move the mode slider nothing happens.

• If the lock symbol is being displayed, then the thermostat is locked.
• Unlock the thermostat by following the instructions for doing so in the “program lock” section (see page 2).

The thermostat is in Auto Mode but programs are not being executed by the boiler:

• Ensure that the thermostat is in good working condition.
• Change the batteries.

The thermostat does not control properly.

• Thermostat sensor may be influenced by a source of heat or cold.
• Check that the communication works between the thermostat and boiler.
• If the problem persists, contact your installer

TECHNICAL SPECIFICATIONS

• Power supply: 2 alkaline 1.5 V AA (LR6) ba tteries.
• Battery life: approx. 2 years.
• Relay outputs: 5(2)A
• Rated impulse voltage: 4000V.
• Micro disconnection: Type 1B.
• Pollution degree: 2.
• Automatic action: 100,000 cycles.
• Class II.

Note: It is recommended to replace annually as part of the normal system service and before leaving the property empty for a prolonged period.

Environment:

• Operation temperature: 0°C to +40°C.
• Manual temperature setting range: from +5°C to +30°C.
• Storage temperature: from -10°C to +60°C.
• Humidity: 80% at +25°C (without condensation)
• Protection rating: IP30. section (see page 2).
• The thermostat is in Auto Mode but programs are not being executed by the boiler:
• Ensure that the thermostat is in good working condition.
• Change the batteries.
• The thermostat does not control properly.
• Thermostat sensor may be influenced by a source of heat or cold.
• Check that the communication works between the thermostat and boiler.
• If the problem persists, contact your installer.

UKCA declaration of conformity: We, Neomitis Ltd, hereby declare under our sole responsibility that the products described in these instructions comply with statutory instruments 2016 No.1101 (Electrical Equipment safety Regulations), ), 2016 No.1091 (Electromagnetic Compatibility Regulations) , 2012 n°3032 (ROHS) and following designated standards:

• 2016 No.1101 (Safety): EN 60730-1:2011, EN 60730-2-7:2010/ AC:2011, EN 60730-2-9:2010, EN 62311:2008
• 2016 No.1091 (EMC): EN 60730-1:2011 / EN 60730-2-7:2010/AC:2011 / EN 60730-2- 9:2010
• 2012 n°3032 (ROHS): EN IEC 63000:2018

Neomitis Ltd: 16 Great Queen Street, Covent Garden, London, WC2B 5AH UNITED KINGDOM – [email protected]

EU declaration of conformity
We, Imhotep Creation, hereby declare under our sole responsibility that the products described in these instructions comply with the provisions of Directives and harmonized standards listed below: –

• Article 3.1a (Safety): EN60730-1:2011/ EN60730-2-7: 2010/EN60730-2-9: 2010/ EN62311:2008
• Article 3.1b (EMC): EN60730-1:2011/ EN60730-2-7: 2010/ EN60730-2-9: 2010
• RoHS 2011/65/UE, amended by Directives 2015/863/UE & 2017/2102/UE : EN IEC 63000:2018
• Imhotep Creation: ZI Montplaisir – 258 Rue du champ de courses – 38780 Pont-Evêque – France – [email protected] Neomitis Ltd and Imhotep Creation belong to Axenco Group.

Control class and energy contribution, according to ERP 2009/125/EC and related regulations

Class IV – PID Room Thermostat, for use with on/off heating devices. Electronic room thermostat that controls both the cycle time of the thermostat and the ratio between on and off periods during the same cycle of the heating device, depending on the room temperature. PID control reduces the average water temperature, improves the accuracy of room temperature control, and increases system efficiency. The symbol , affixed on the product indicates that you must dispose of it at the end of its useful life at a special recycling point, in accordance with European Directive WEEE 2012/19/EU. If you are replacing it, you can also return it to the retailer from which you buy the replacement equipment. Thus, it is not ordinary household waste. Recycling products enables us to protect the environment and to use less natural resources.

NEOMITIS

• NEOMITIS® LIMITED – 16 Great Queen Street, Covent Garden, London, WC2B 5AH UNITED KINGDOM
• Registered in England and Wales No: 9543404
• Tel: +44 (0) 2071 250 236 – Fax: +44 (0) 2071 250 267 – E-mail: [email protected]
