WIRED DIGITAL 7-DAY PROGRAMMABLE ROOM THERMOSTAT

OVERVIEW

Thank you for purchasing our RT7PLUS, 7-day programmable digital room thermostat. It is by listening to your requirements we have created and designed our products to be easy to operate and install. It is this ease of operation that is intended to make your life easier and help you save energy and money.

CONTROLS AND DISPLAY

Thermostat

Programming sliders sequences:

Time/date Day to be programed Comfort period setting Comfort temperature Eco temperature Run.

LCD Display

SETTINGS

• To start: insert the two AA batteries provided into the battery compartment. Once batteries are fitted all symbols will be displayed on the LCD screen as shown for two seconds. 2- After 2 seconds, the LCD will show: – The ambient temperature (°C) solid. To start: insert the two AA batteries provided into the battery compartment. Once batteries are fitted all symbols will be displayed on the LCD screen as shown for two seconds.
• After 2 seconds, the LCD will show: – The ambient temperature (°C) solid.

OPTIMISATION EXPLAINED

WHAT IS OPTIMISATION – OPTIMUM START?
Historically, most UK heating systems waste vast amounts of energy by firing unnecessarily early for most of the year. Homeowners tend to set their boiler on times based on when they wake up by guessing what time they feel that their boiler should fire in order to reach the requested target temperature; for example, turning the boiler on at 6 am in order to have a warm room/ home by their wake up time at 7 am. Dual function optimization, priority to comfort or energy savings, the choice is yours: Depending on various parameters: room inertia, ambient temperature, desired temperature, the thermostat calculates and optimizes the programming for each heating period whether set to Comfort or Savings (Eco):

In OPTI COMFORT mode, priority to comfort

In OPTI ECO mode, priority to energy savings

HOW DOES OPTIMUM START WORK?
Optimum Start works on a daily basis. You set the time that you want to be warm and Optimum Start will do the rest; for example – if you wake up at 7:30 AM, then set your thermostat’s start time for 7:30 AM. Optimum Start ensures that you are warm when you want to be (and not before), reducing wasted energy and saving money (up to 10% of energy costs). To change the optimisation type, refer to the installation instructions/ advanced installer settings

PROGRAMMING

SET DATE AND CLOCK

• Move the Programming slider to the position. The default year 2019 is flashing. Turn the dial clockwise to increment the year. Turn the dial counter-clockwise to decrement the year
• Press to ENTER confirm and go to next setting.
• The default month 01 is flashing. Turn the dial clockwise to increment the month. Turn the dial counter-clockwise to decrement the month. 01 = January; 02 = February; 03 = March; 04 = April; 05 = May; 06 = June; 07 = July; 08 = August; 09 = September; 10 = October; 11 = November; 12 = December.
• Press ENTER to confirm and go to next setting
• The default day 01 and the corresponding day underlining are flashing. Turn the dial clockwise to increment the day. Turn the dial counter-clockwise to decrement the day. Mo = Monday ; Tu = Tuesday ; We = Wednesday ; Th = Thursday ; Fr = Friday ; Sa = Saturday ; Su = Sunday
• Press ENTER to confirm and go to the next setting.
• The default time of 12.00 is flashing. To set the current time, turn the dial clockwise, to increment the time, and turn the dial counter-clockwise, to decrement the time.
• Press ENTER or slide the programming slider to any other position to confirm/finish this setting.

SET THE PROGRAM DAY

• Move the Programming slider to the position. The current day setting is flashing. The default day is Monday
• Option 1: Single-day programming. Rotate the dial to the day required, eg Monday, press. Underscore will become solid. Move the Program slider to any other position to confirm/finish this setting
• Option 2: Multiday programming. Select the first day by pressing enter then turn the dial to right, to add additional days to be programmed and press to confirm each additional day.
• Move the Program slider to any other position to confirm/finish this setting

SET THE PROGRAM COMFORT PERIOD

• To set the first Comfort start time, move the Programming slider to the position. The default time is 6:30 am.
• Turn the dial to set the time. Move the Program slider to the next position to confirm/finish this setting.
• To set the first Comfort end time, move the Programming slider to the position. The default time is 8:30 am.
• Turn the dial to set the time. Move the Program slider to the next position to confirm/finish this setting.
• Repeat for the second comfort period, and for the third comfort period.

Comfort period	Default times
Comfort period 2	Start at 12:00 pm	End at 02:00 pm
Comfort period 3	Start at 05:00 pm	End at 10:00 pm

TEMPERATURES SETTING

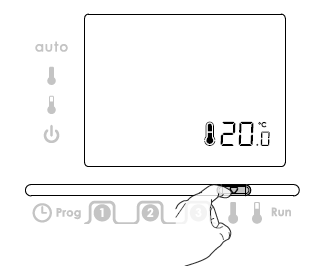

• To set the Comfort temperature, move the Programming slider to the position. The default temperature is 20°C (68°F).
• Turn the dial to set the temperature between 5°C and 30°C, in increments of 0.5°C. Move the Program slider to the next position to confirm/finish this setting.
• To set the Economy temperature, move the Programming slider to the position. The default temperature is 16°C (61°F).
• Turn the dial to set the temperature between 5°C and 30°C, in increments of 0.5°C. Move the Program slider to the next position to confirm/finish this setting. NOTE: This is the temperature that the unit will work to outside of your comfort periods
• Move the program mode slider to the position to confirm and finish all previous settings.

OPERATING

Mode sliders sequences:

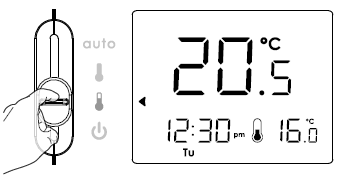

Auto mode Comfort mode Economy mode Standby

• AUTO: Automatic mode. The unit is controlled by the time and temperature program that have been selected (refer to the “programming” section on page 2).
• COMFORT: Permanent comfort mode. The unit is controlled continuously to the comfort temperature setpoint. The default temperature setting is 20°C (68°F). Refer to the section temperatures setting to change the value on page 3.
• ECO: Permanent eco mode. The unit is controlling continuously the eco temperature setpoint. The default temperature setting is 16°C (61°F). Refer to the section temperatures setting to change the value on page 3.
• STANDBY: Permanent standby mode with frost protection. The unit is controlled continuously at the frost protection temperature factory set. i.e 8°C. The ambient temperature will be displayed. Use it when you will be away from your home for a long time to protect your installation against frost.

MANUAL: A TEMPORARY CHANGE

MANUAL: Indicates when the temperature has been moved from the setpoint. This temperature will operate until the next switching time. This is only active when the controller is in AUTO or COMFORT mode.

BOOST

• • Boost mode is a temporary mode that allows you to operate at a comfortable temperature for 1 hour. At the end of 1 hour, the device will revert to its prior setting.
  • BOOST will work from any running mode. BOOST is entered by pressing / the button.



FACTORY SETTINGS

BOOST is canceled by any press of a button, or movement of a dial or slider. When BOOST is running the time and day disappear. The minute array will count down from 60 – 0 to indicate the time left in BOOST mode

Note: To restore factory settings, press and hold down this part for more than 3 seconds using the tip of a pen.

Settings	Factory settings
Comfort temperature	20°C
Eco temperature	16°C
Comfort period 1	Start at 06:30 am	End at 08:30 am
Comfort period 2	Start at 12:00 pm	End at 02:00 pm
Comfort period 3	Start at 05:00 pm	End at 10:00 pm

TROUBLESHOOTING

• The boiler is not heating: –
  • Check that the Thermostat is calling for heat if yes then the thermostat would appear to be working check that the boiler has not switched itself off. If no increase set the temperature.
  • Check the position of the batteries. Remove them for 30 seconds and reinsert them. If the problem persists, replace the 2 batteries.
• Nothing in the display: –
  • Check the position of the batteries. Remove them for 30 seconds and reinsert them. If the problem persists, replace the 2 batteries.
• The room temperature is not high enough, and the boiler is not providing enough heat: –
  • Check the active operating mode (see page 4) – the room thermostat may be in an Eco, Standby, or Auto Mode entailing a temperature drop. –
  • Check the active desired temperature and increase it if needed (see page 3).
• The temperature in the room is lower than the setpoint temperature
  • Check the programming. The thermostat could be in a scheduled Eco period.
  • Ensure that the time displayed is the same as the current time.
• You made a mistake while setting:
  • You just need to restore factory settings, as explained in the “Factory settings” section (see page 4). This will reverse any changes you might have made.
• The system is not heating but is on: –
  • If an indicator light is on but the system remains cold, then you should contact your installer.
• The thermostat is programmed and you observe a delay between the active mode Comfort or Eco and your requirement: –
  • The optimization function can generate slight offsets to guarantee the level of comfort at the right time or to save energy by slightly anticipating an Eco passage.
• Heating comes on before the programmed start time and comes off after the programmed end time: –
  • The thermostat may be set to OPTI Comfort mode. The thermostat will start the boiler at the optimum time to achieve the set point temperature at the start of the occupancy period.
  • (On cold days your heating may come on earlier than expected in order for the programmed occupied temperature to be achieved).
  • To change the optimization type, refer to the installation instructions.
• The heating does not come on at the programmed start time and comes off before the programmed end time: –
  • The thermostat may be set to OPTI ECO mode. The thermostat will stop the boiler at the optimum time to slightly reduce the set point temperature before the end of the occupancy period. (This helps you to save money on your heating bills).
  • To change the optimization type, refer to the installation instructions

TECHNICAL SPECIFICATIONS

Please refer to the installation instructions for any information about batteries life, standards, and product environment

NOTE

In some instances, the unit may have been set with the service interval function enabled. By Law in rented accommodation, your gas boiler should be inspected/serviced annually to ensure it is working correctly. This option is designed to remind the end user to contact the relevant person to have the annual service carried out on the boiler. This function will be enabled and programmed by your Installer, maintenance Engineer, or Landlord. If it has been set to do so, the unit will display a message on the screen to remind you that a boiler service is due. The Service Due Soon countdown will be indicated up to 50 days before the Service is due to allow time to arrange for an engineer to attend, normal functions will continue during this stage. At the end of this service due soon period, the unit will go to Service Due OFF at which point only the 1hour boost will operate on TMR7 and PRG7, if the unit is a thermostat RT1/RT7PLUS, it will operate at 20°C during this hour. If PRG7 RF, Thermostat has no function.
