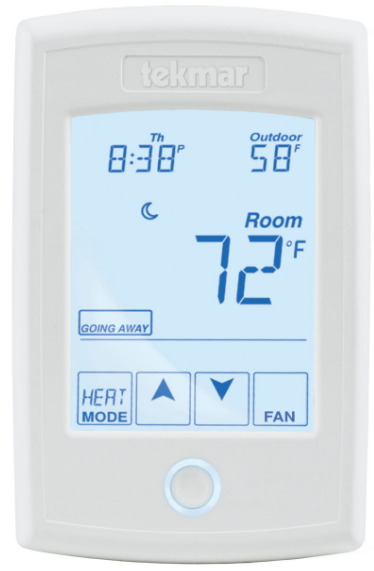

Tekmar 554 Thermostat
NOTICE
The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.
Location
Remove Mounting Base
Install Mounting Base
Switch Settings
Wiring
tekmarNet4 Wiring Example
tekmarNet2 Wiring Example
Install the Thermostat
User Interface
Critical Settings
The following settings are essential to the successful operation of the system.
- Step 1: Set switch setting #1 and tekmarNet® system control located in the mechanical room to Unlock to change the Access level to Installer. Return to the Lock setting once installation has been completed.
- Step 2: Press and hold the “Home” button for 3 seconds to enter programming menus.
- Step 3: Touch NEXT to locate the Setup Menu and touch ENTER.
| Setup Menu Settings | Range | Default |
| SENSOR 1
Select the type of sensor connected to the auxiliary sensor input 1. |
OFF, ROOM, FLOR (floor), COIL, DUCT |
OFF |
| SENSOR 2
Select the type of sensor connected to the auxiliary sensor input 2. |
OFF, ROOM, FLOR
(floor), OUT (outdoor) |
OFF |
| ROOM SENSOR
Select if the built-in room temperature sensor is on or off. |
OFF or ON |
ON |
| W TERMINAL UNIT
Select the terminal unit type of the first stage of heat W. |
NONE, HRF1, HRF2, CONV, COIL, FURN, OTHR | HRF1 (tekmarNet® System Control) OTHR (standalone) |
More Information
This User Brochure contains standard information on how to make adjustments to an installed product. More detailed information can be found in this product’s Installation and Operation Manual (521_D) at www.tekmarControls.com
Product design, software, and literature are Copyright ©2014 by tekmar Control Systems Ltd.,
A Watts Water Technologies Company. Head Office: 5100 Silver Star Road, Vernon, B.C.
Canada V1B 3K4, 250-545-7749, Fax. 250-545-0650 Web Site: www.tekmarControls.com
