Sinope TH1500ZB Smart Double Pole Thermostat Installation Guide

Sinope LOGO

Sinope TH1500ZB Smart Double Pole Thermostat

Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- PRO

INSTALL YOUR THERMOSTAT

  • Unlock and lift the thermostat cover.Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 1
  • Use the provided connectors to connect the load/line wires located on the back of the thermostatSinope -TH1500ZB- Smart -Double -Pole- Thermostat- 2
  • Use the screws to secure the thermostat to the electrical box.Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 3
  • Replace the cover and lock.Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 4
  • Power up the thermostat.Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 5

USER SETTINGS

All the parameters of your thermostat can be programmed through Neviweb or the interface of your compatible Zigbee gateway. However, if your thermostat is not connected to you gateway and you wish to change the temperature format, you need to:Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 6

  • Get the setpoint to its minimum and hold theSinope -TH1500ZB- Smart -Double -Pole- Thermostat- 8 button for 10 seconds to access the menu.
  • Press the Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 7button to change the setting,
  • Press the Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 7buttons simultaneously to save and go to the next parameter. Continue to press until the end of the list to exit the menu.

ADD YOUR THERMOSTAT TO THE GT130 GATEWAY AND NEVIWEB

  • If you do not have an account yet, download the Neviweb app for iOS or Android to create an account and add your device.Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 9

Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 10

  • Tap theSinope -TH1500ZB- Smart -Double -Pole- Thermostat- 11, then select “Add Device”.Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 12
  • Follow the steps of the Installation Wizard.

CONNECT YOUR THERMOSTAT TO THE GT130 GATEWAY OR A COMPATIBLE ZIGBEE SYSTEM

  • Initiate the connectivity session by pressing the RF signal button on the GT130 gateway. The indicator light will start flashing.
  • Compatible Zigbee gateway: refer to the installation guide for the latter.Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 14
  • Connect your thermostat to the network by pressing briefly and simultaneously on the Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 7buttons.
  • On the thermostat display:Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 13
  • Blinks: Connecting
  • Remains lit: Connected
  • If the connectivity fails, theSinope -TH1500ZB- Smart -Double -Pole- Thermostat- 13 symbol will disappear from the display. Refer to our Website to troubleshoot the unit
  • Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 15Connect all your thermostats the same way, by going to the next closest thermostatSinope -TH1500ZB- Smart -Double -Pole- Thermostat- 16
  • When all your devices are connected, close the connectivity session of your GT130 gateway or your compatible Zigbee gateway.Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 14

DISCONNECT YOUR THERMOSTAT FROM THE GT130 GATEWAY OR A COMPATIBLE ZIGBEE SYSTEM
To disconnect your thermostat from the GT130 gateway or a compatible Zigbee gateway, press the Sinope -TH1500ZB- Smart -Double -Pole- Thermostat- 7buttons simultaneously during 10 seconds. The symbol will disappear from the displaySinope -TH1500ZB- Smart -Double -Pole- Thermostat- 15

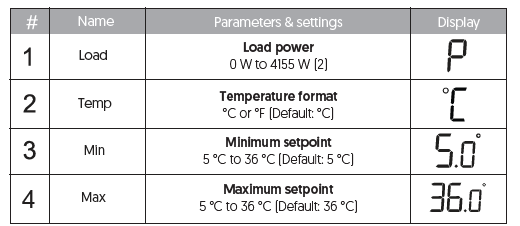

SETTINGS WHICH CAN BE MODIFIED ON THE DEVICE DIRECTLYSinope -TH1500ZB- Smart -Double -Pole- Thermostat- 19

TECHNICAL SPECIFICATIONS

  • Operating voltage: 120/208/240/277Vac, 50/60 Hz
  • Maximum load:
  • 1800 W @ 120 V / 15 A
  • 3120 W @ 208 V / 15 A
  • 3600 W @ 240 V / 15 A
  • 4155 W @ 277 V / 15 A
  • Setpoint range: 5 °C to 36 °C (41 °F to 97 °F)
  • Display range: 0 °C to 50 °C (32 °F to 99 °F)
  • Resolution: ± 0.5 °C (± 1 °F)
  • Storage: -20 °C to 50 °C (-4 °F to 122 °F)
  • Operation: 0 °C to 50 °C (32 °F to 122 °F)
  • Protocol: Zigbee 3.0
  • Frequency: 2.4 GHz
  • Transmission power: +20 dBm
  • Receiver sensitivity: -108 dBmSinope -TH1500ZB- Smart -Double -Pole- Thermostat- 18

warranty

3-year limited warranty
SINOPÉ TECHNOLOGIES INC. warrants the components of their products against defects in material and workmanship for a 3 year period from the date of purchase, under normal use and service, when proof of purchase of such is provided to the manufacturer. This warranty does not cover any transportation costs that may be incurred by the consumer. Nor does it cover a product that has been improperly installed, misused or accidentally damaged. The obligation of Sinopé Technologies Inc., under the terms of this warranty, will be to supply a new unit and this releases the manufacturer from paying the installation costs or other secondary charges linked to replacing the unit or the components.

Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. HomeKit is a trademark of Apple Inc. Neviweb® is a registered trademark of Sinopé Technologies Inc. in Canada and the United States. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google Inc. The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance®

FCC

  • this device does not cause interference, and
  • this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

  •  Reorient or relocate the receiving antenna.
  •  Increase the separation between the equipment and the receiver.
  •  Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

REFERENCE:

DOWNLOAD MANUALS:

Sinope TH1500ZB Smart Double Pole Thermostat Installation Guide

OTHER MANUALS:

Sinope TH1500ZB Smart Double Pole Thermostat Product Specifications Guide
