Siemens RDF300.02 Flush Mount Room Thermostat Product Specifications Guide

Heated or cooled with 2-pipe fan coil units
Heated or cooled with 2-pipe fan coil units with an electrical heater
Heated and cooled with 4-pipe fan coil units
Heated or cooled with the compressor in DX-type equipment
Heated or cooled with the compressor in DX-type equipment with an electrical heater
Heated and cooled with the compressor in DX-type equipment

The RDF300… / RDF400… / RDF600… control:

One 1- or 3-speed fan
One or 2 on/off valve actuators
One on/off valve actuator and one 1-stage electrical heater
One 3-position valve actuator
One 1-stage compressor in DX type equipment or one 1-stage compressor with an electrical heater

The RDF340… controls:

One 1- or 3-speed fan
One or 2 DC 0…10 V valve actuators
One DC 0…10 V valve actuator and one modulating electrical heater (DC 0…10 V)

Used in systems with:

Heating or cooling mode
Automatic heating/cooling changeover
Manual heating/cooling changeover
Heating and cooling mode (e.g. 4-pipe system)

Functions

Maintain room temperature via built-in temperature sensor or external room temperature / return air temperature sensor
Automatic or manual changeover between heating and cooling mode
Select applications via DIP switches
Select operating mode via the operating mode button on the thermostat
1- or 3-speed fan control (automatic or manual)
Display current room temperature or setpoint in °C and/or °F
Minimum and maximum setpoint limitation
Key lock (automatic and manual)
2 multifunctional inputs, freely selectable for:
- Operating mode switchover contact (key card)
- Automatic heating/cooling changeover sensor
- External room temperature or return air temperature sensor
- Dewpoint sensor
- Electrical heater enable
- Alarm input
Advanced fan control function, i.e. fan kick, fan start, selectable fan operation (enable, disable or depending on heating or cooling mode)
Purge function together with 2-port valve in a 2-pipe changeover system
Reminder to clean filters
Floor heating temperature limit
Reload factory settings for commissioning and control parameters
7-day time program: 8 programmable timers to switch over between Comfort and Economy mode (RDF400.01 / RDF600T)
Backlit LCD (RDF300.02 / RDF300.02/VB / RDF400.01 / RDF600 / RDF600T)
Optional infrared remote control ( RDF400.01 / RDF600T)

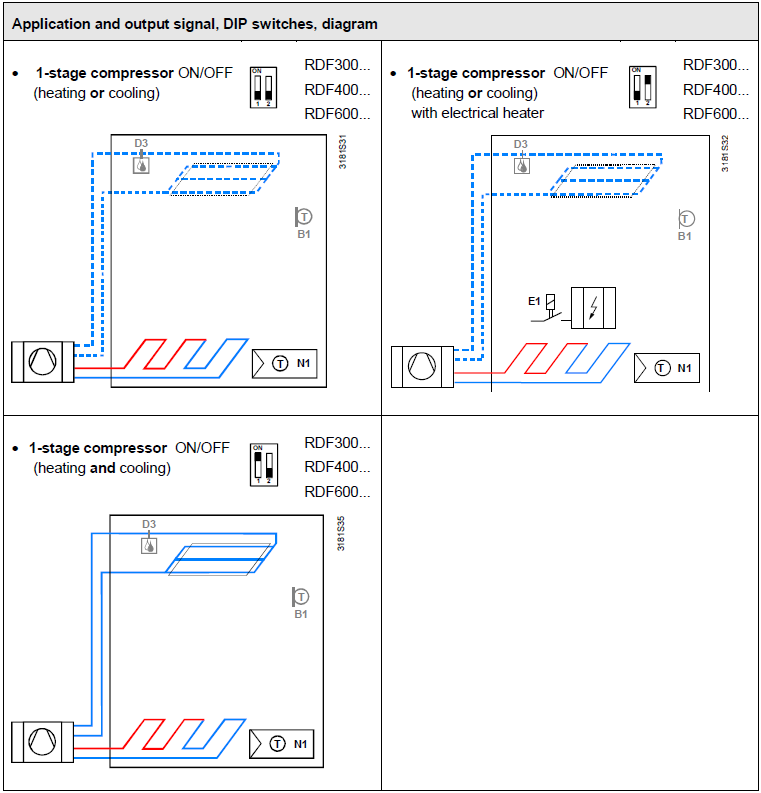

Applications

The thermostat supports the following applications, which can be configured by DIP switches on the inner side of the thermostat’s front. Depending on the type, on/off or modulating control outputs are available.

Applications for fan coil systems

V1: Heating or heating/cooling valve actuator
V2: Cooling valve actuator
E1: Electrical heater
M1: 3-speed or single-speed fan
B1: Return air temperature sensor or external room temperature sensor (optional)
B2: Changeover sensor (optional)

Applications for Universal systems

V1: Heating or heating/cooling valve actuator
V2: Cooling valve actuator
E1: Electrical heater
B1: Return air temperature sensor or external room temperature sensor (optional)
B2: Changeover sensor (optional)
D3: Dewpoint sensor

Applications for heat pump systems

N1: Thermostat
- Terminal Y10/Y11: Heating (H&C) or Heating/Cooling
- Terminal Y20/Y21: Cooling (H&C)
E1: Electrical heater
B1: Return air temperature sensor or external room temperature sensor (optional)
D3: Dewpoint sensor

Type summary

Product number	Stock number	Features								Color
		Operating Voltage	Control outputs			Time program	Backlit LCD	Infrared receiver 1)	Suitable conduit box 2)
		Operating Voltage	on/off	3pt	DC 0..10 V	Time program	Backlit LCD	Infrared receiver 1)	Suitable conduit box 2)
RDF300	RDF300	AC 230 V	ü	ü					square	White
RDF300.02	RDF300.02	AC 230 V	ü	ü			ü		square	White
RDF300.02/VB	S55770-T427	AC 230 V	ü	ü			ü		square	Black
RDF400.01	RDF400.01	AC 230 V	ü	ü		ü	ü	ü	square	White
RDF340	RDF340	AC 24 V			ü				square	White
RDF600	S55770-T291	AC 230 V	ü	ü			ü		round	White
RDF600T	S55770-T292	AC 230 V	ü	ü		ü	ü	ü	round	White

The infrared remote control is to be ordered as a separate item
Square conduit box e.g. ARG71.
1. Round conduit box min 60 mm diameter and min 40 mm depth

Ordering

When ordering, indicate both product number / SSN number and name: E.g. RDF600 / S55770-T291 room thermostat
Order the IRA211 (S55770-T166) infrared remote control separately (for RDF400../RDF600…).
Order valve actuators separately.

Equipment combinations

On/off actuators

Designation	Product no.	Data Sheet *)
Cable temperature sensor or changeover sensor, cable length 2.5 m NTC (3 kn at 25 °C)	QAH11.1	1840
Room temperature sensor NTC (3 kn at 25 °C)	QAA32	1747
Cable temperature sensor, cable length 4 m NTC (3 kn at 25 °C)	QAP1030/UFH	1854
Condensation monitor	QXA21..	A6V10741072
Electromotor ON/OFF actuator	SFA21…	4863
Electromotor ON/OFF valve and actuator (only available in AP, UAE, SA and IN)	MVI…/MXI…	A6V11251892
Zone valve actuators (only available in AP, UAE, SA and IN)	SUA…	4832
Thermal actuator (for radiator valve)	STA23…	4884
Thermal actuator (for small valves 2.5 mm)	STP23…	4884

3-position actuators

Designation	Product no.	Data Sheet *)
Electrical actuator, 3-position (for radiator valve)	SSA31…	4893
Electrical actuator, 3-position (for small valve 2.5 mm)	SSP31…	4864
Electrical actuator, 3-position (for small valve 5.5 mm)	SSB31…	4891
Electrical actuator, 3-position (for 2- and 3-port valves / V…P45)	SSC31…	4895
Electromotoric actuator, DC 0…10 V (for valves 5.5 mm)	SAS61..	4581
Electromotoric actuator, DC 0…10 V (for valves 5.5 mm)	SAT61..	4584
Electrical actuator, DC 0…10 V (for radiator valves)	SSA61..	4893
Electrical actuator, DC 0…10 V (for 2- and 3-port valves/V…P45)	SSC61..	4895
Electrical actuator, DC 0…10 V (for small valves 2.5 mm)	SSP61..	4864
Electrical actuator, DC 0…10 V (for small valves 5.5 mm)	SSB61..	4891
Electromotor actuator, DC 0…10 V (for valves 5.5 mm)	SAS61..	4581
Electromotoric actuator, DC 0…10 V (for valves 5.5 mm)	SAT61..	4584
Electrothermal actuator, AC 24 V, NC, DC 0…10 V, 1 m	STA63	4884
Electrothermal actuator, AC 24 V, NO, DC 0…10 V, 1 m	STP63	4884

*) The documents can be downloaded from http://siemens.com/bt/download.

Accessories

Designation	Product no.	Data Sheet
Changeover mounting kit (50 pcs/package)	ARG86.3	N3009
Plastic mounting spacer for flush-mounted thermostats RDF3.. RDF400… for increasing the headroom in the conduit box by 10 mm	ARG70.3	N3009
Conduit box for flush-mounted thermostat RDF3.. RDF400…	ARG71 / S55770-T137	N3009

Mechanical design

The thermostat consists of 2 parts:

Front panel accommodating the electronics, operating elements and built-in room temperature sensor.
Mounting base with the power electronics.

The rear of the mounting base contains the screw terminals Slide the front panel in the mounting base and snap on.

Operation and settings

RDF300…/RDF340… RDF600

Operating mode selector / Protection
Change fan operation
Adjust setpoint and control parameters

RDF400… RDF600T

Change operating mode selector
Change fan operation
Adjust setpoint, control parameters and time of day
Auto Timer program
Protection
Set time of day and weekday
Confirm
Infrared receiver

Display

Operating mode
- Protection
- Auto Timer mode *
- Comfort
- Economy
Display room temperature, setpoints and control parameters.
- A symbol used to display the current room temperature
Heating/cooling mode
- Cooling mode
- Heating mode,
- Electrical heater active
Fan mode
- Auto fan active
- Fan speed low, medium, high
Additional user information (RDF3xx) or current time of day (RDF400 / RDF600T)
Weekday 1..7 (1 = Monday/7 = Sunday)*
Key lock active
Condensation in room (dewpoint sensor active)
Indicate fault or reminder

only on RDF400… / RDF600T

Mounting and installation

Mount the room thermostat on the conduit box. Do not mount on a wall in niches or bookshelves, behind curtains, above or near heat sources, or exposed to direct solar radiation. Mount about 1.5 m above the floor.

Mounting/dismounting

Devices must be mounted on clean, dry indoor place without direct airflow from a heating / cooling device, and not be exposed to dripping or splashing
RDF3… / RDF400…: In case of limited space in the conduit box use the mounting bracket ARG70.3 to increase the headroom by 10mm
Before removing the front cover, disconnect the power supply.

Wiring: See the mounting instructions enclosed with the thermostat:

M3076… for RDF3…, RDF4… ; M3063 for RDF600… .
Wiring, protection and earthing must be installed in compliance with local regulations.

Warning

No internal line protection for supply lines to external consumers (Q1, Q2, Q3, Yxx)
Risk of fire and injury due to short-circuits!

Adapt the line diameters as per local regulations to the rated value of the installed overcurrent protection device.
Use only valve actuators rated for AC 230 V on RDF300… / RDF400… / RDF600..
The AC 230 V mains supply line must have an external fuse or circuit breaker with a rated current of no more than 10 A.
Isolate the cables of SELV inputs X1-M/X2-M if the conduit box carries AC 230 V mains voltage.
Inputs X1-M or X2-M of different units (e.g. summer/winter switch) may be connected in parallel with an external switch. Consider overall maximum contact sensing current for switch rating.
No metal conduits
No cables provided with a metal sheath
Disconnect from supply before opening the cover

Commissioning

Set the thermostat application via the DIP switches before snapping the front panel on the mounting base.
After power is applied, the thermostat carries out a reset during which all LCD segments flash indicating that the reset was correct. After the reset, which takes about 3 seconds, the thermostat is ready for commissioning by qualified HVAC staff.
The control parameters of the thermostat can be set to ensure optimum performance of the entire system (see basic documentation P3076).

Note: After powerfail the thermostat restarts in the same mode as before.

Control sequence: The control sequence may need to be set via parameter P01 depending on the application. The factory setting for the 2-pipe application is “Cooling only”; and “Heating and Cooling” for the 4-pipe application.
Compressor-based application: When the thermostat is used with a compressor, the minimum output on-time (parameter P48) and off-time (parameter P49) for Y11/Y21 must be adjusted to avoid damaging the compressor and shortening its life.
Calibrate sensor: Recalibrate the temperature sensor if the room temperature displayed on the thermostat does not match the room temperature measured (after min. 1 hour of operation). To do this, change parameter P05.
Setpoint and range limitation: We recommend to review the setpoints and setpoint ranges (parameters P08…P12) and changing them as needed to achieve maximum comfort and save energy.

Disposal

The device is considered electrical and electronic equipment for disposal in terms of the applicable European Directive and may not be disposed of as domestic garbage.

Dispose of the device through channels provided for this purpose.
Comply with all local and currently applicable laws and regulations.

Technical data

*) The documents can be downloaded from http://siemens.com/bt/download.
1) No condensation is allowed.

Connection terminals

RDF300…/RDF400… /RDF600…

L, N: Operating voltage AC 230 V
Q1: Control output “Fan speed 1 AC 230 V”
Q2: Control output “Fan speed 2 AC 230 V”
Q3: Control output “Fan speed 3 AC 230 V”
Y11,Y21: Control output “Valve” AC 230 V (N.O., for normally closed valves), output for compressor or output for electrical heater
X1, X2: Multifunctional input for temperature sensor (e.g. QAH11.1) or potential-free switch
M: Measuring neutral for sensor and switch

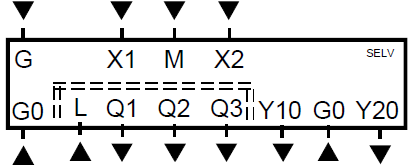

RDF340…

G, G0: Operating voltage thermostat AC 24 V
L: Operating voltage for fan AC 230 V
Q1: Control output “Fan speed 1 AC 230 V”
Q2: Control output “Fan speed 2 AC 230 V”
Q3: Control output “Fan speed 3 AC 230 V”
Y10,Y20: Control output for DC 0…10 V actuator
X1, X2: Multifunctional input for temperature sensor (e.g. QAH11.1) or switch
M: Measuring neutral for sensor and switch

Connection diagrams

RDF300…, RDF400…, RDF600…

N1: Room thermostat RDF300… / RDF400… / RDF600
M1: 3-speed fan
M2: 1-speed fan
V1…V3: Valve actuator
E1: Electrical heater
S1, S2: Switch (keycard, window contact, etc.)
B1, B2: Temperature sensor (return air temperature, external room temperature, changeover sensor, etc.)
C1, C2: Compressor

RDF340…

For US installations use Class 2 rated power supplies. For other installations use circuit breakers with rated current of no more than 10 A.

N1: Room thermostat RDF340…
M1: 3-speed fan
M2: 1-speed fan
V1, V2: Valve actuator
YR: DC 0…10 signal converter/current valve
E1: Electrical heater
S1, S2: Switch (keycard, window contact, etc.)
B1, B2: Temperature sensor (return air temperature, external room temperature, changeover sensor, etc.)

Dimensions

Dimensions in mm

RDF3… RDF400…

RDF600…

Issued by

Siemens Switzerland Ltd
Smart Infrastructure
Global Headquarters
Theilerstrasse 1a CH-6300 Zug
Tel: +41 58 724 2424
www.siemens.com/buildingtechnologies
