Salus RT510BC Electronic Room Thermostat Quick Guide

Salus RT510BC Electronic Room Thermostat

Introduction

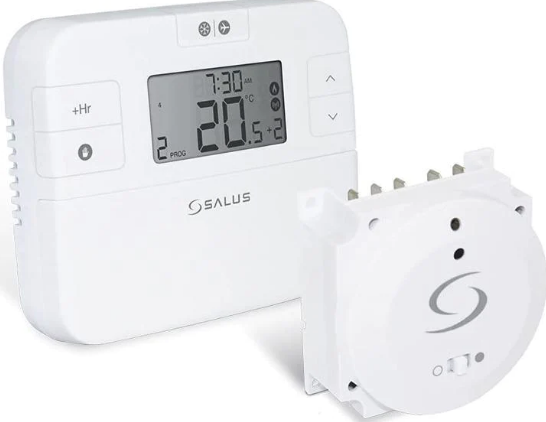

The RT510BC+ thermostat will switch your heating system on or off, as needed, in accordance with the time and temperature set by you. It can be used with the RXBC605 integral plug-in RF boiler control. The RF boiler control is a direct replacement for the basic time clock or blanking plate usually supplied with the boiler. Installing the RF boiler control takes minutes. Once installed, you will benefit from all the control features of the RT510BC+ thermostat.

Product Compliance
This product complies with the essential requirements and other relevant provisions of the following EU Directives: EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU and RoHS 2011/65/EU. Full text of the EU Declaration of Conformity is available on www.saluslegal.com

Safety Information
Use in accordance with the regulations. Indoor use only. Keep your device completely dry. Disconnect your device before cleaning it with a dry cloth. This accessory must be fitted by a competent person, and installation must comply with the guidance, standards, and regulations applicable to the city, country or state where the product is installed. Failure to comply with the relevant standards could lead to prosecution.
Always isolate the AC Mains supply before installing or working on any components that require 230 VAC 50Hz supply.

Box Content

RXBC605 Installation

1. Remove the front panel from the boiler.
2. Do not remove the boiler loop.
3. Replace the front panel ensuring a good seal is made.
4. Connect the electrical plug.
5. Pull out the mechanical timer.
6. Push-fit boiler control into housing.
7. Power up the boiler and check the correct operation.

RXBC605 Wiring Terminals

Terminal	Identifier	Description
1	N	Neutral
2	L	Live input (230V AC)
3	COM	Common terminal (volt free)
4	N.O.	Normally Open

RXBC605 User Controls

RXBC605 Switch Position

1. AUTO mode. When the switch on the Boiler Control is in the AUTO (normal) position, the Boiler Control will automatically receive the RF signal from the transmitter and control the boiler based on the programming of the transmitter.
2. MANUAL mode. The user can also move the switch to the MANUAL position; when in this mode, the boiler will be always turned on and the LED indicator will also be lit constantly. The manual mode is only to be used as a temporary control if problems develop with the communication from the thermostat.

When the thermostat is operating in NORMAL mode, if the Boiler Control has not received a signal from the transmitter after 1 hour, the Boiler Control will turn off the boiler, and the LED indicator will flash constantly (two times every second). Once the Boiler Control receives a valid ON or OFF signal, the Boiler Control will control the heating system accordingly.

RT510BC+ (Thermostat) Button Functions

RT510BC+ (Thermostat) Dip Switch Settings

The DIP Switches can be found on the rear of your thermostat. For all plug-in boiler receiver applications ensure SW1 is set to RAD.

Control feature	ITLC	SPAN
Operation	ITLC Internal Temperature Load Compensation for improved efficiency.	When Span is selected on DIP switch № 2, the DIP switch № 1 is not functional.

Test the Pairing Process

During test pairing, boiler control should flash confirming pair. If not, please follow Pairing Process.

Pairing Process

1. Press the SYNC button for 3 seconds until LED starts flashing.
2. The LG+5V is ready to be paired with your thermostat.
3. Begin the pairing process
4. End the pairing process

Setting Time and Date

1. Press the buttons together for 3 sec.
2. Press UP or DOWN to select the hour format and then press SELECT to confirm your option.
3. Press UP or DOWN to select the hour and then press SELECT to confirm your option.
4. Press UP or DOWN to select the minutes and then press SELECT to confirm your option.
5. Press SET to return to the Main Screen.
6. Continue with the same steps for setting the Day.

Programming

You can create personalized programs for your controller. You have the option to choose between a 5-2 days program or a daily one by using the parameter d04 from Installer mode.

5-2 Days Programme	24h Programme
Weekdays 6 sets of time/channel Weekends 6 sets of time/channel   Total: 12 settings/week	24h 6 sets of time/channel     Total: 42 settings/week

1. Press SET to change your programs.
2. Press UP or DOWN to select Weekday/Weekend/ Day and press SELECT.
3. Press UP or DOWN to set the hour and press SELECT to confirm your option.
4. Press UP or DOWN to set the minutes and press SELECT to confirm your option.
5. Press UP or DOWN to set the temperature and press SELECT to confirm your option.
6. Follow the same procedure for the next set of times.
   After you have done all the changes, please press SET to confirm all your choices and to return to the Main Screen.

Review the Setpoint (desired) temperature

1. Actual room temperature
2. Setpoint (desired) temperature

Temporary Override

Permanent Override

Boost function

1. Press +Hr to activate the Boost function.

1. Press +Hr to set boost hours and then press UP or DOWN to set the boost temperature for your boost period.

Frost protection

1. Press the FROST button once to activate the function.
2. Frost Mode ON.
3. Press the FROST button once to deactivate the function.
4. Frost Mode OFF.
   The Frost protection temperature can be reviewed by pressing the UP button once, but can only be changed in Installer Mode.

Holiday Mode

Installer Mode

dxx	Function	Parameter	Default value
d01	Temperature display increments	0.1°C or 0.5°C	0.5°C
d02	Temperature offset	+/- 3.0°C	0.0°C
d03	Frost Protection setpoint temperature	5.0°C – 17.0°C	5.0°C
d04	Programmer selection	5/2 or 24 hr (7d)	52d

Reset function RT510TX+
Remove the batteries without pressing any button. Wait 2 minutes and insert the batteries again. Your device will be restarted.
NOTE:
If you do not notice the “low battery” symbol displayed on the screen in time, it will shut down. In this case, after removing the old batteries, it is necessary to wait 5 minutes before inserting the new batteries. Otherwise, it is possible that a condenser will remain partially discharged and it can prevent the thermostat from restarting.

When you want to change the batteries your device will use the internal memory to back up your settings. You have 30 seconds to change the batteries before losing your settings.
