SALUS EP310 Three channel programmable Thermostat Installation Manual

SALUS EP310 Three channel programmable Thermostat

Product compliance

This product complies with the essential requirements and other relevant provisions of the following EU Directives: 2014/30/EU, 2014/35/EU and 2011/65/EU. Please check www.saluslegal.com for the full information.

Safety Information
Use in accordance with the EU and national regulations. For indoor use only. Keep your device completely dry. This product must be installed by a competent person and in accordance with all the EU and national regulations.
Always isolate the AC Mains supply before installing or working on any components that require 230 VAC 50Hz supply.

Box content

The box includes the EP310 controller, 2X screws and plugs and the Installer Manual-Quick Guide.

Introduction

The EP310 three channels programmable controller is a stylish wired timer that can be used for two central heating zones and also for the hot water. Each output will control one zone, meaning that you can create personalized schedules for each channel.
The EP310 programmable controller will switch ON and OFF your central heating system and/or hot water in your home as needed. It works by controlling the heating boiler according to a series of programmed settings that take effect at different times of the day.
By using the EP310 controller you can manage the commands sent to your boiler, motorized valves used in your system or to your thermostat. You can set the EP310 programmable controller to a 12 or 24 hour format, the Daylight saving Time (DST) being automatically enabled. The program mode is also selectable between a 5-2 (Monday-Friday and Saturday-Sunday) or 24 hour format. For each of the programs you can create three settings per day.
Being a complex programmable controller, the EP310 gives you the possibility to override your programs by using the Boost function. This can be enabled for up to 9 hours.
For the periods when you are away you can use the Holiday function, which will turn off the relay. The Holiday Mode can be set for a period of maximum 31 days.
When connected to a system with a non-programmable (digital) thermostat, it can turn the boiler ON or OFF and control the heating and/or hot water in your system in a programmed manner.
The heating system and the hot water will be controlled with the EP310, meaning that this will send the command of turning the relay on or off when needed, according to the programs created.
The EP310 programmable controller does not detect or adjust the temperature in your house, it is just sending the commands to the boiler, motorized valve or the thermostat to turn ON or OFF the relay, depending on the program settings.
The programs can be set individually for each channel, or, you can program them together if you want your heating and hot water to be controlled in a coordinated manner.

Features

• Three Channel Programmer for Central Heater and Hot Water
• 12 or 24 hour clock format
• 5+2 or 24 h individual programs with 3 settings per day
• Boost function
• Holiday function
• Advance function
• Memory backup

Installation

Wiring and terminal description

Terminal	Description	Backplate
N	Mains Neutral
L	Mains Live
1	Hot Water Off
2	Central Heating Off
3	Hot Water On
4	Central Heating 1 On
5	Central Heating 2 On
6	Central Heating 2 Off
	Earth Parking (no electrical connection)

Wall mounting

Jumper settings
The jumpers are found on the rear of your controller and can be used to change the settings for the program type or internal backup memory battery. If you want to change the position of your jumpers, please note that you will need to reset your device. The default position for the jumpers set a 5+2 program type and keep the internal backup battery off.

Note: Changes to the jumper settings should only be made by the engineer carrying out the installation or another qualified person. The installer should select the jumper positions required if changes need to be made to the factory default settings. These jumpers are found on the rear of the controller.

Button functions and LCD icons

Key	Function
Mode	Press to select ON/ONCE/AUTO/ ADV/OFF.
+1Hr	Press to enter/cancel Boost override function by setting Boost hours.
Select	Press to select the setting of clock/ date/week day, etc.
Set	Press to confirm the setting.
Up arrow	Press to increase clock/day, press and hold to enter fast advance.
Down arrow	Press to decrease clock/day, press and hold to enter fast advance.
	Press to activate backlight.
0	Hardware reset.
	Press and hold button for 3 seconds to activate Holiday mode.
Select + Set	Press and hold buttons to enter clock setting mode.

1. Days of the week
2. Clock
3. Heating zone 1 On
4. Heating zone 2 On
5. Hot water On
6. Boost hours
7. AM/PM
8. Holiday Mode
9. DST On/Off
10. Program number
11. Mode Indicator
12. Hot Water panel
13. Heating Zone 2 panel
14. Heating Zone 1 panel

Operations

Initial power up
After power up or after RESET is pressed, the programmer is reset to factory default settings. During system reset, all LCD icons and segments are turned on for 2 seconds and all keys are blocked. After 2 seconds and all keys are released, the programmer is initialized. First, the software version is shown, after that, the typical reset display is shown. The time should be 12:00am.

Default settings

Function	Status after Reset
Operation Mode	Normal mode
Clock	12:00 AM
AM/PM indicator	AM
Date	January 1, 2016
Daylight Saving Time(DST)	On
Program	Factory default 5+2
Program Number indicator	Off
SET indicator	Off
PROG indicator	Off
Mode indicator(s)	“Off“
Output Relay	Off
CH/HW indicator(s)	Off

Setting time and date

The first thing you will have to do is to set the time and date on your controller. First you will need to set up the time and then the date. To enter clock setting mode, press and hold Select and Set buttons for 3 seconds. Please follow the instructions below.

When Daylight saving time is enabled, the clock will automatically change from Greenwich Mean Time (GMT) to British Summer Time (BST) on the last Sunday in March. The clock will automatically change back to GMT on the last Sunday in October.

Operating Modes
EP310 can operate in 5 different modes, applicable to CH1, CH2, HW or CH+HW. The operations modes are the same for CH and HW and can be set individually, or together. If you want to choose the mode for the CH1(central heating in zone 1), press the 1 Mode key. To control the central heating in zone 2 (CH2) press 2 Mode key. If you want to choose the mode for the HW, press the Mode Key. EP310 is a complex controller that can control 2 different heating zones and the hot water separately.

Operation Mode	Function
ON	Continuously on
ONCE	On for 1 period a day, from Program 1 ON to Program 3 OFF
AUTO	Automatic program control
ADV	When device is in Auto or Once mode, press the MODE button for 3 sec for selecting Advance (ADV). This will move the unit into the next program. When the ADV function ends the device will return to normal program.
OFF	Continuously off

For activating the functions described above, press the MODE button. The operating mode is cycled in the below sequence:

ON Mode

Pressing the Mode key once activates the ON Mode. In ON mode, the controller gives the boiler the ON command, so the heating or/and the hot water will run continuously.

Once Mode

Pressing the Mode key twice activates the ONCE Mode. In ONCE mode, the controller gives the boiler the command to run only for one period per day (from program 1 ON to program 3 OFF)

Auto Mode

Pressing the Mode key 3 times activates the AUTO. In AUTO mode, the controller gives the boiler the ON/OFF command depending on your schedule.

OFF Mode

Pressing the Mode key 4 times activates the OFF Mode. In OFF mode, the controller gives the boiler the OFF command, so the heating or the hot water will be turned off.

ADV Mode

Note: In ONCE or AUTO mode, by long pressing the MODE button, the controller will switch automatically to ADV. You can cancel the ADV by long pressing the MODE key. The device will then return to ONCE or AUTO mode. You can’t select ADV by pressing Mode key.

When in Auto mode selecting ADV, the controller will simply toggle the current auto setting (ON or OFF). For example, if the current program is set as:

08:00 ON 09:00 OFF 10:00 ON 11:00 OFF

Selecting ADV between 8:00 and 8:59 will change the output to OFF, from 9:00 onwards back to AUTO (which is also OFF). Selecting ADV between 9:00 and 09:59 will change the output to ON, from 10:00 onwards back to AUTO (which is also ON). If the ADV puts the relay ON then the boost would apply immediately at the next OFF change, if the ADV put the relay OFF then the boost would apply immediately and turn the relay ON.

08:00 OFF 10:00 ON 12:00 OFF 14:00 ON

If ADV occurs at 08:30 and the relay is ON from 08:30 to 12:00. During this period, if at 08:45 +1Hr (Boost) is pressed, the relay will be ON from 08:30 to 12:00. Boost is applied immediately from 08:45 to 09:45. If ADV occurred at 10:30 the relay will be ON from 10:00, OFF from 10:30 (ADV) to 14:00 if no +1Hr Override. During ADV, if at 10:45 +1Hr (Boost) is pressed relay ON again at 10:45 (boost starts), OFF at 11:45 (Boost ends) until ends at 14:00, then ON again at 14:00.

Programming the EP310

2 types of programs can be set:

• 5+2 (Mon to Fri same and Sat, Sun same)
• Different programs for each 24h.
  There are 3 different time sets for each day.

5-2 Days Program	Individual Days Program
Weekdays	1 Day
3 sets of time/channel	3 sets of time/channel
Weekends
3 sets of time/channel
Total: 12 settings/week	Total: 63 settings/week

EP310 is a 3 channel controller, that gives the possibility to control both Central Heating in 2 different zones and Hot Water. You can choose which one you would like to control, by simply pressing the 1 Mode key for Central Heating in zone 1, the 2 Mode key for Central Heating in zone 2 or Mode key for hot Water, or you can use them together, as by your needs. You can program the schedules for these outputs individually or for the all 3. When you program them altogether, there will be the same program time for both CH1, CH2 and the HW. If you choose to program them individually, you can have different program times for each.

5+2 Program

Programming CH1, CH2 and HW individually

The sequences followed by the controller when programming CH1, CH2 and HW individually goes at it follows:

• Weekday CH1 (program 1-3) Weekday CH2 (program 1-3) Weekday HW (program 1-3)
• Weekend CH1 (program 1-3) again.Weekend CH2 (program 1-3) Weekend HW (program 1-3) and all over

Note: To save your settings and exit to home screen in normal mode, press Set at any time.

Programming CH1, CH2 and HW together
The programming principle is exactly the same, but you can only set the same Start/End time for the CH1, CH2 and HW. The programming sequence goes as it follows: Weekday CH1+CH2+HW Weekend CH1+CH2+HW and all over again. To program them together, follow the steps:

Setting different programs for each 24h

Note: Don’t forget to move the jumpers to 24h in order to have the individual program active. After that please follow the same instructions as for the 5-2 days program.

Programming CH1, CH2 and HW individually

Please continue by following the same steps for program nr 2 and 3. After you finish programming CH1 for Monday, the controller will ask you to do the same thing for the CH2 and after that for the HW. Then it will go to Tuesday, Wednesday etc. You can choose different or similar end/start time.

The sequences followed by the controller when programming CH1, CH2 and HW individually goes at it follows:

• Monday CH1 (program 1-3) Monday CH2 (program 1-3) Monday HW (program 1-3)
• Tuesday CH1 (program 1-3)  Tuesday CH2 (program 1-3) Tuesday HW (program 1-3)
• Wednesday CH1 (program 1-3) Wednesday CH2 (program 1-3) Wednesday HW (program 1-3) etc

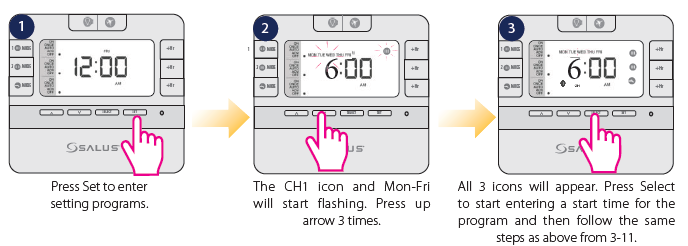

Programming CH1, CH2 and HW together
The programming principle is exactly the same, but you can only set the same Start/End time for the CH1, CH2 and HW. The programming sequence goes as it follows: Monday CH1+CH2+HW Tuesday CH1+CH2+HW

Wednesday CH1+CH2+HW etc and all over again. To program them together, follow the steps:

Note: To save your settings and exit to home screen in normal mode, press Set at any time.

Functions

Temporary Override

Boost Override (+1Hr override)
Boost Override (+1Hr override) is available in ONCE/AUTO/OFF modes. Boost mode can be activated even in ADV mode. When boost mode is activated , ADV is canceled. Press +1Hr at current mode to activate the Boost Override (+1Hr override) setting mode. Boost mode increases the time of the active program by 1-9 hours. The new setting hour “+x” (x=last boost hour+1 hour) is displayed. Subsequent press of +1Hr will increase the duration by 1 hour. Maximum duration is 9 hours. If the number rolls back to blank, this will disable the Boost Override.

Boost Override (+1Hr override) for CH1 and CH2

Boost Override (+1Hr override) for Hot Water

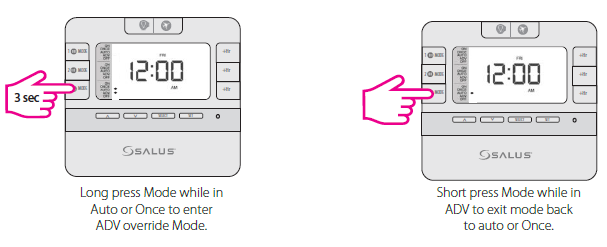

ADV Override

ADV only works in AUTO or ONCE mode. During ADV, press MODE once to cancel ADV and go back to AUTO /ONCE mode after LCD backlight is turned off. +1Hr override and ADV cannot co-exist in same channel. During ADV mode, when +1Hr is pressed, override mode will cancel ADV mode then change to Boost mode. If +1Hr override (Boost) is running, then ADV is selected, ADV will be activated and the previous +1Hr override will be cancelled.

ADV Override for Heating CH1, CH2

ADV Override for Hot Water

Holiday Override
During the period of holiday override, relay should be always Off. Press and hold  at current mode for 3 seconds to activate the Holiday Override setting mode. The plane icon will be displayed on the LCD and the user’s only option will be to set the number of holiday days (up to 31). To exit Holiday Override and turn On the relay, long press the key.

Enter Holiday Mode

Exit Holiday Mode

LCD Backlight
If AC is powered, LCD backlight is activated when or any key is pressed. The backlight will be turned off in 15 seconds after all keys are released.

Factory Reset

If you want to return to the factory settings please press the Reset button once (use a pin for this action).

Technical Info

Product Specification
Model:	EP310
Type:	Surface Mounted Wired Three Channel Programmable Timer
Memory Backup	Lithium battery (CR2032 x1pc)
Power control
Rating	230V/50Hz/3(1)A
Relay	SPDT
Protection Rating:	IP 30
Environment
Operating Temperature/ Humidity:	0°C ~ 50°C, 10% – 90% non-condensing
Storage Temperature/ Humidity	-20°C~- 60°C, 10% – 90% non-condensing
Programs
Program	5-2 or 24hr individual program (selectable by jumper), 3 settings/day, with holiday override.
Boost Override	Yes, max 9 hours(selectable by software)
Holiday Override	Yes, max 31 days (selectable by software)
Clock
Clock Format	12 or 24 hour (selectable by software)
Clock Accuracy	+/-1 min/month
Daylight Saving Time (DST)	Yes, Clock automatically adjusted if DST is enabled.

Warranty

SALUS Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of two years from the date of installation. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.

• Customer Name: …………………………………………….
• Customer Address: ………………………………………….
• Post Code: ………………………………………………………
• Tel No: ………………………………………………………….
• Email: ……………………………………………………………
• Company Name: ……………………………………………..
• Tel No: …………………………………………………………
• Email: ……………………………………………………………
• Installation Date: …………………………………………..
  Installer Name: ……………………………………………..
• Installer Signature: ………………………………………..

SALUS Controls Plc Units 8-10 Northfield Business Park
Forge Way, Parkgate, Rotherham
S60 1SD, United Kingdom

Sales:

• T: +44 (0) 1226 323961
• E: [email protected]

Technical:

• T: +44 (0) 1226 323961
• E: [email protected]
• www.salus-controls.com

SALUS Controls is a member of the Computime Group
Maintaining a policy of continuous product development, SALUS Controls plc reserves the right to change the specification, design, and materials of products listed in this brochure without prior notice.
For the latest PFD Instruction Manual, go to www.salus-manuals.com
