Pro1 Technologies T855SH Non-Programmable Thermostat Installational Manual

Pro1 Technologies T855SH Non-Programmable Thermostat

Installation Tips

Wall Locations

The thermostat should be installed approximately 4 to 5 feet above the floor. Select an area with average temperature and good air circulation.

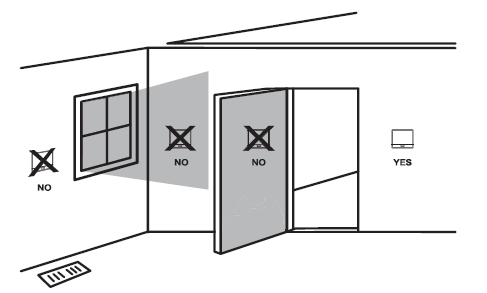

Do not install thermostat in these locations:

• Close to hot or cold air ducts
• That are in direct sunlight
• With an outside wall behind the thermostat
• In areas that do not require conditioning
• Where there are dead spots or drafts (in corners or behind doors)
• Where there might be concealed chimneys or pipes

Thermostat Application Guide

Description
Gas or Oil Heat	Yes
Electric Furnace	Yes
Heat Pump (No Aux. or Emergency Heat)	Yes
Heat Pump (With Aux. or Emergency Heat)	Yes
Multi-Stage Systems	Yes
Heat Only Systems	Yes
Cool Only Systems	Yes
Millivolt	Yes
Wired Remote Sensing	Yes
Any HVAC system up to 3H/2C with standard low voltage controlled humidifier.	Yes
Any HVAC system up to 3H/2C with standard low voltage controlled de-humidifier.	Yes

Power Type

• Battery Power
• Hardwire (Common Wire)
• Hardwire (Common Wire) with
• Battery Backup

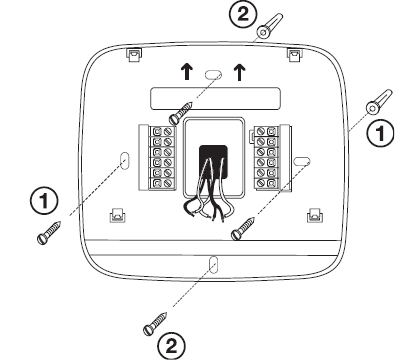

Subbase Installation

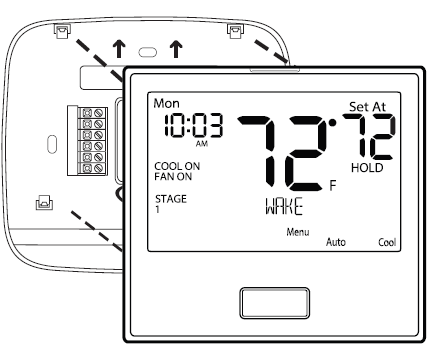

Mount Thermostat

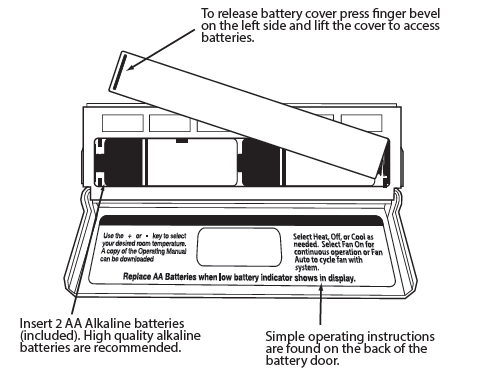

Battery Installation

Battery installation is recommended even if the thermostat is hardwired (C terminal connected). When the thermostat is hardwired and batteries are installed, the thermostat will activate a compressor delay of 5 minutes when it detects a power outage from the hardwired power supply

Important:
High quality alkaline batteries are recommended. Rechargeable batteries or low quality batteries do not guarantee a 1-year life span.

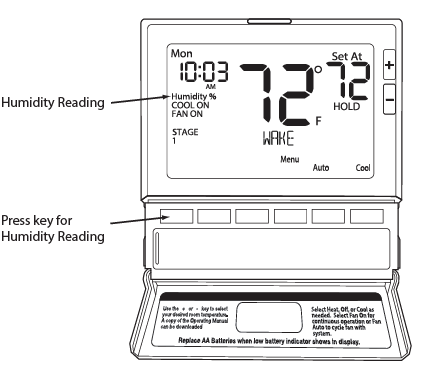

Getting to know your thermostat

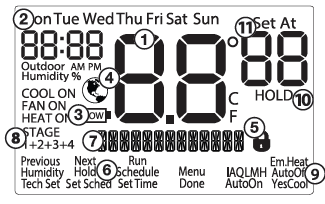

• Displays the current room temperature
• Time and day of the week / Sensor / Humidity
• Low Battery Indicator: Replace batteries when this indicator is shown.
• Energy Efficient Globe: Indicates you are making energy efficient choices.
• Keypad Lockout: Lock the thermostat
• Program Menu Options: Show different options during programming.
• Program Time Periods – Residential: Uses 4 time periods – WAKE, RETURN, LEAVE & SLEEP. Commercial: Uses 2 or 4 time periods that appear in the text field – Occupied & Unoccupied.
• Staging Indicators: +1 will appear in the display when second stage of heat or cool is on. +2 will appear for the third stage of heat.
• System Operation Indicators: If these or the Fan indicator are flashing, it means that the system is in a delay of some type (compressor delay, cooling fan delay, staging delay).
• Hold: is displayed when the thermostat program is permanently overridden.
• Filter Change & Other RemindersSetpoint: Displays the user selectable setpoint temperature.

Wiring

• If you are replacing a thermostat, make note of the terminal connections on the thermostat that is being replaced.
• In some cases the wiring connections will not be color coded. For example, the green wire may not be connected to the G terminal.
  Loosen the terminal block screws.
• Insert wires then retighten the terminal block screws.
• Place non-flammable insulation into the wall opening to prevent drafts.

Wiring Tips

• C Terminal
  • The C (common wire) terminal does not have to be connected when the thermostat is powered by batteries.
• Wire Specifications
  • Use shielded or non-shielded 18-22 gauge thermostat wire.
• Note:
  • In many heat pump systems with no emergency heat relay, a jumper can be installed between E and W2 to turn thermostat into a single stage control for Emergency Heat Operation.

Terminal Designations

Terminal	2 Heat 2 Cool Conventional System	2 Heat 1 Cool Heat Pump System	4 Heat 2 Cool Heat Pump System	5 Heat 3 Cool Heat Pump System
RC	Transformer power (cooling)	Transformer power (cooling)	Transformer power (cooling)	Transformer power (cooling)
RH	Transformer power (heating)	Transformer power (heating)	Transformer power (heating)	Transformer power (heating)
C	Transformer common	Transformer common	Transformer common	Transformer common
B	Reversing valve / configurable terminal	Reversing valve / configurable terminal	Reversing valve / configurable terminal	Reversing valve / 3rd stage of heat & cool
O	Reversing valve / configurable terminal	Reversing valve / configurable terminal	Reversing valve / configurable terminal	Reversing valve / 3rd stage of heat & cool
G	Fan relay	Fan relay	Fan relay	Fan relay
W/E	First stage of heat	Emergency Heat	First stage of auxiliary heat	First stage of auxiliary heat (4th stage of heat)
Y	First stage of cool	First stage of heat & cool	First stage of heat & cool	First stage of heat & cool
Y2	Second stage of cool	N/A	Second stage of heat & cool	Second stage of heat & cool
W2	Second stage of heat	Auxiliary heat	Second stage of auxiliary heat	Second stage of auxiliary heat (5th stage of heat)
S1/S2	Remote Sensor	Remote Sensor	Remote Sensor	Remote Sensor
H	Humidify	Humidify	Humidify	Humidify
D	Dehumidify	Dehumidify	Dehumidify	Dehumidify

This thermostat is shipped from the factory to operate a conventional heating and cooling system. This thermostat may also be configured for a heat pump system. See the “heat pump” configuration step on page 17 of this manual to configure the thermostat for heat pump applications.

Getting to know your thermostat

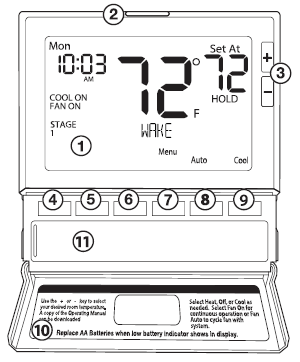

• LCD Display
• Glow in the dark light button Setpoint buttons
• Program buttons
• Menu button
• Fan button
• System button
• Button/battery access door Battery cover

Important

The low battery icon is displayed when the AA battery power is low. Whenever the thermostat detects low battery voltage from the AA batteries, the low battery icon will begin flashing on the screen for 21 days (if the batteries are not changed). If the batteries are not changed 22 days after the thermostat detects low battery voltage, the thermostat screen will only show the flashing battery icon until buttons are pressed. If the batteries are not changed 43 days after the thermostat detects low battery voltage, the thermostat screen will only show the flashing battery icon until buttons are pressed and the set points will offset to 85°F/29°C in cooling and 55°F/13°C in heating. At this stage, set point changes can be made temporarily but, the set points will change back to defaulted values after a 4-hour period. The thermostat will continue to perform this low battery flashing, temperature offset condition until the internal voltage threshold is reached. When the thermostat internal voltage threshold is reached, all relays will be opened and the thermostat will become inoperable until new batteries are installed.

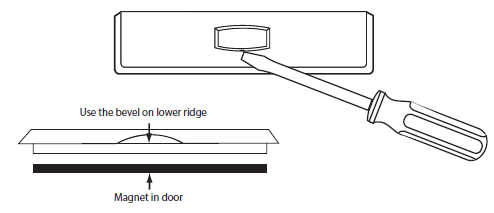

About The Badge
All of our thermostats use the same universal magnetic badge. Visit the company website to learn more about our free private label program.

Wiring Diagrams

Technician Setup Menu

• This thermostat has a technician setup menu for easy installer configuration. To set up the thermostat for your particular application:
• Press the MENU button.
• Press and hold the TECH SET button for 3 seconds. This 3 second delay is designed so that homeowners do not accidentally access the installer settings.

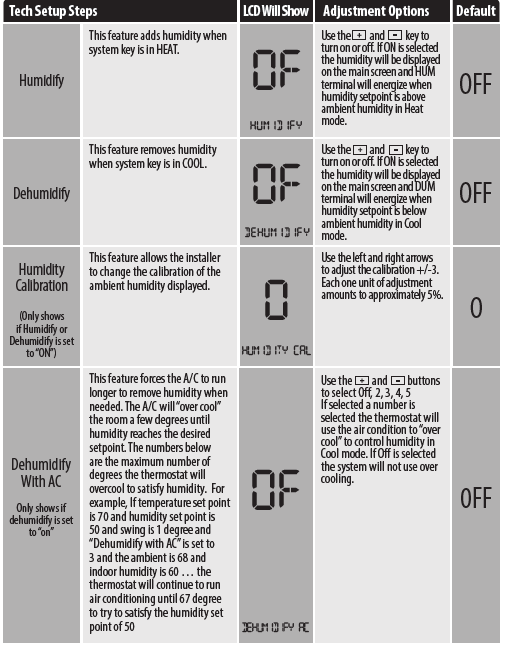

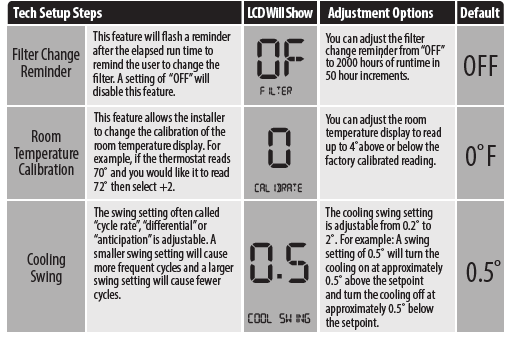

• Configure the installer options as desired using the table below. Use the or keys to change settings and the NEXT or PREV key to move from one step to another.
• Note: Only press the DONE key when you want to exit the Technician Setup options.
• Press the DONE key to exit.




Swing Setting Tip
The second stage will turn on at 2x the swing setting. The second stage will turn off when 1x the swing is reached. For example, if the swing setting is .5 degrees for heating and the thermostat is set at 70˚F, the first stage will turn on at approximately 69.5˚F. The second stage will turn on at 69˚F. The second stage will turn off at 69.5˚F and the first will turn off at 70.5˚F. If the third stage is used, it will turn on at 68.5˚F and turn off at approximately 69˚F.

Automatic Humidity Adjusting Index

When The Outdoor Temperature Is:	On 1	On 2
> +40˚F	45%	50%
+30˚F to 40˚F	40%	45%
+20˚F to 29˚F	35%	40%
+10˚F to 19˚F	30%	35%
0˚F to 9˚F	25%	30%
-1˚F to -10˚F	20%	25%
-11˚F to -20˚F	15%	20%
<-20	10%	15%

Comfort Temperature Index

Ambient Temperature 50	20%-25% 50	26%-35% 50	36%-45% 50	46%-55% 50	56%-65% 50	66%-75% 50	76%-85% 50	86%-90% 50
51	50.6	50.7	50.7	50.9	51	51	51	51.2
52	51.2	51.5	51.5	51.7	52	52	52	52.5
53	52.3	52.5	52.5	52.8	53	53	53	53.5
54	52.9	53.3	53.3	53.6	54	54	54	54.8
55	53.5	54	54	54.5	55	55	55	56
56	54.1	54.6	54.7	55.3	56	56	56	57
57	54.7	55.2	55.4	56.2	56.9	56.9	56.9	57.9
58	55.8	56.3	56.6	57.3	58.1	58.1	58.1	59.1
59	56.4	56.9	57.3	58.2	59	59	59	60
60	57	57.5	58	59	60	60	60	61
61	58	58.5	59.1	60.1	60.9	60.9	61.1	61.9
62	58.9	59.4	60.1	61.1	61.9	61.9	62.1	62.9
63	60.1	60.6	61.4	62.4	63.1	63.1	63.4	64.1
64	61	61.6	62.4	63.4	64.1	64.1	64.4	65.1
65	62	62.5	63.5	64.5	65	65	65.5	66
66	62.7	63.3	64.3	65.3	65.9	65.9	66.5	66.9
67	63.4	64.1	65.1	66.1	66.8	66.8	67.6	67.8
68	64.6	65.4	66.4	67.4	68.2	68.2	68.9	69.2
69	65.3	66.2	67.2	68.2	69.1	69.1	70	70.1
70	66	67	68	69	70	70	71	71
71	67.2	68.2	69.1	70.1	71.1	71.4	72.4	72.6
72	68.3	69.3	70.3	71.3	72.3	72.8	73.8	74.3
73	69.7	70.7	71.7	72.7	73.7	74.2	75.2	75.8
74	70.8	71.9	72.9	73.9	74.9	75.6	76.6	77.4
75	72	73	74	75	76	77	78	79
76	72.9	73.9	74.9	76.1	77.1	78.6	79.6	80.6
77	73.8	74.7	75.7	77.2	78.2	80.2	81.2	82.7
78	75.2	76.3	77.3	78.8	79.8	81.8	82.8	84.3
79	76.1	77.1	78.1	79.9	80.9	83.4	84.4	86.2
80	77	78	79	81	82	85	86	88
81	77.9	79.1	80.3	82.3	83.6	86.6	88.3	91
82	78.7	80.2	81.7	83.7	85.1	88.1	90.6	94.1
83	80.3	81.8	83.3	85.3	86.9	89.9	92.4	96
84	81.1	82.9	84.7	86.7	88.4	91.4	94.7	99
85	82	84	86	88	90	93	97	102
86	82.8	85.1	87.3	89.5	92	95.8	100.5	106.4
87	83.7	86.1	88.6	91.1	94.1	98.5	104	110.9
88	85.3	87.9	90.4	92.9	96	100.5	106.1	113.1
89	86.2	88.9	91.7	94.5	98	103.2	109.5	117.6
90	87	90	93	96	100	106	113	122

System Mode

• PTAC (conventional)
• PTAC (Heat Pump)
• Heat Pump
• Conventional

1	1	1	1
2	2, 1	1	1
2	5, 4, 3, 2, 1	2	3, 2, 1
2	2, 1	2	3, 2, 1

Setting the Humidity

HUM Terminal

OPTIONS	HUM terminal energizes when the ambient humidity is…
1	Below the humidity setpoint and heat or fan is energized.
2	Below the humidity setpoint and heat is energized.
3	Below the humidity setpoint. It will also energize the fan during a call for humidity.
4	Below the humidity setpoint.

DHM Terminal

OPTIONS	DHM terminal energizes when the ambient humidity is…
1	Above the humidity setpoint and cool or fan is energized.
2	Above the humidity setpoint. It will also energize the fan during a call for dehumidity.
3	Above the humidity setpoint.
4	Above the humidity setpoint and the compressor is not running.

Setting Target Humidity Setpoint

• Follow the steps below to change your target humidity setpoint. Press the HUMIDITY key
• Use the or key to select the target humidity setpoint.
• Press DONE when completed.

Setting Target Humidity Setpoint

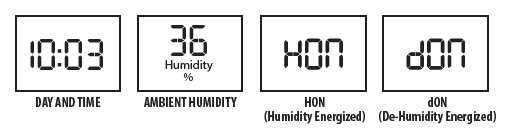

• Ambient humidity will flash in the time field when Humidify or De-Humidify is set to ON.
• HON will also flash when the Humidity terminal is energized. dON will also flash when the De-Humidify terminal is energized.

Recommended Heating Settings

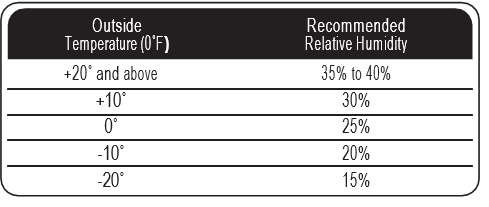

• Increasing Humidity The table below shows recommended indoor humidity levels in relation to outdoor temperatures during heating (adding humidity).
• Recommended Cooling Settings: Consult your professional HVAC technician for recommended settings for your climate.

Set Time

• Press the MENU button.
• Press SET TIME.
•  Day of the week is flashing. Use the key to select the current day of the week.
•  Press NEXT.
•  The current hour is flashing. Use the key to select the current hour. When using 12-hour time, make sure the correct a.m. or p.m. choice is selected.
•  Press NEXT.
•  Minutes are now flashing. Use the key to select current minutes.
•  Press DONE when completed

Programming

All our programmable thermostats are shipped with an energy saving default program. You can customize this default program by following the instructions in the set program schedule section starting on page 24 Your thermostat can be programmed to have each day of the week programmed uniquely (7 days), all the weekdays the same with a separate program for Saturday and a separate program for Sunday (5+1+1), or non-programmable. For the 7-day and 5+1+1 programming modes, there are three time period options

•  “4” Residential (WAKE, LEAVE, RETURN, SLEEP)
•  “2C” Commercial (OCCUPIED, UNOCCUPIED)
• “4C” Commercial (OCCUPIED 1, UNOCCUPIED 1, OCCUPIED 2, UNOCCUPIED 2)

Set Program Schedule For Four Time Periods

• Select HEAT or COOL with the system switch.
• Note: You have to program heat and cool each separately.
• Press the MENU button (If menu does not appear first press RUN SCHED).
• Press SET SCHED. Note: Monday-Friday is displayed and the WAKE/OCC1 icon is shown. You are now programming the WAKE/OCC1 time period for the weekday setting.
• Time is flashing. Use the key to make your time selection for the weekday WAKE/OCC1 time period.
• Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the FAN key.
• Press NEXT.
• The setpoint temperature is flashing. Use the key to make your setpoint selection for the weekday WAKE/OCC1 period.
• Press NEXT.
• Repeat steps 4 through 7 for the weekday LEAVE/UNOCC1 time period, for the weekday RETURN/OCC2 time period, and for the weekday SLEEP/UNOCC2 time period

Saturday: Repeat steps 4 through 7 for the Saturday WAKE/OCC1 time period, for the Saturday LEAVE/UNOCC1 time period, for the Saturday RETURN/OCC2 time period, and for the Saturday SLEEP/UNOCC2 time period

Sunday: Repeat steps 4 through 7 for the Sunday WAKE/OCC1 time period, for the Sunday LEAVE/UNOCC1 time period, for the Sunday RETURN/OCC2 time period, and for the Sunday SLEEP/UNOCC2 time period

Set Program Schedule For Two Time Periods

• Select HEAT or COOL with the SYSTEM key.
• Note: You have to program heat and cool each separately.
• Press the MENU button (If menu does not appear first, press RUN SCHED).
• Press SET SCHED. Note: Monday-Friday is displayed and the OCCUPIED text is shown. You are now programming the OCCUPIED time period for that day.
• Time is flashing. Use the key to make your time selection for the weekday OCCUPIED time period.
• Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the fan key.
• Press NEXT.
• The setpoint temperature is flashing. Use the key to make your setpoint selection for the weekday OCCUPIED period.
• Press NEXT.
•  Repeat steps 4 through 7 for the weekday UNOCCUPIED time period

Saturday: Repeat steps 4 through 7 for the Saturday WAKE/OCC1 time period, for the Saturday LEAVE/UNOCC1 time period, for the Saturday RETURN/OCC2 time period, and for the Saturday SLEEP/UNOCC2 time period

Sunday: Repeat steps 4 through 7 for the Sunday WAKE/OCC1 time period, for the Sunday LEAVE/UNOCC1 time period, for the Sunday RETURN/OCC2 time period, and for the Sunday SLEEP/UNOCC2 time period

• Select HEAT or COOL with the SYSTEM key.
• Note: You have to program heat and cool each seperately.
• Press the MENU button (If menu does not appear first press RUN SCHED).
• Press SET SCHED. Note: Monday is displayed and the OCCUPIED text is shown. You are now programming the OCCUPIED time period for that day.
• Time is flashing. Use the key to make your time selection for that day’s OCCUPIED time period.
• Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the fan key.
• Press NEXT.
• The setpoint temperature is flashing. Use the key to make your setpoint selection for that day’s OCCUPIED period.
• Press NEXT.
• Repeat steps 4 through 7 for that day’s UNOCCUPIED time period.

Custom Program

Day of the Week	Events	Time	Setpoint Temperature (HEAT)	Setpoint Temperature (COOL)
Weekday	Wake/OCC1
	Leave/UNOCC1
	Return/OCC2
	Sleep/UNOCC2
	Occupied
	Unoccupied
Saturday	Wake/OCC1
	Leave/UNOCC1
	Return/OCC2
	Sleep/UNOCC2
	Occupied
	Unoccupied
Sunday	Wake/OCC1
	LeaveUNOCC1
	Return/OCC2
	Sleep/UNOCC2
	Occupied
Unoccupied

To customize your 7 day 4 time period Program schedule, follow these steps:

• Select HEAT or COOL with the SYSTEM key.
• Note: You have to program heat and cool each separately.
• Press the MENU button (If menu does not appear first, press RUN SCHED).
• Press SET SCHED. Note: Monday is displayed and the WAKE/OCC1 icon is shown. You are now programming the WAKE/OCC1 time period for that day.
•  Time is flashing. Use the key to make your time selection for that day’s WAKE/OCC1 time period.
• Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the FAN key.
• Press NEXT.
• The setpoint temperature is flashing. Use the key to make your setpoint selection for that day’s WAKE/OCC1 period.
• Press NEXT.
• Repeat steps 4 through 7 for that day’s LEAVE/UNOCC1 time period, for that day’s RETURN/OCC2 time period, and for that day’s SLEEP/UNOCC2 time period

Default Programming

Day of the Week	Events	Time	Setpoint Temperature (HEAT)	Setpoint Temperature (COOL)
Weekday	Wake/OCC1	6 AM	70˚F (21˚C)	75˚F (24˚C)
	Leave/UNOCC1	8 AM	62˚F (17˚C)	83˚F (28˚C)
	Return/OCC2	6 PM	70˚F (21˚C)	75˚F (24˚C)
	Sleep/UNOCC2	10 PM	62˚F (17˚C)	78˚F (26˚C)
Saturday	Wake/OCC1	6 AM	70˚F (21˚C)	75˚F (24˚C)
	Leave/UNOCC1	8 AM	62˚F (17˚C)	83˚F (28˚C)
	Return/OCC2	6 PM	70˚F (21˚C)	75˚F (24˚C)
	Sleep/UNOCC2	10 PM	62˚F (17˚C)	78˚F (26˚C)
Sunday	Wake/OCC1	6 AM	70˚F (21˚C)	75˚F (24˚C)
	LeaveUNOCC1	8 AM	62˚F (17˚C)	83˚F (28˚C)
	Return/OCC2	6 PM	70˚F (21˚C)	75˚F (24˚C)
	Sleep/UNOCC2	10 PM	62˚F (17˚C)	78˚F (26˚C)

Day of the Week	Events	Time	Setpoint Temperature (HEAT)	Setpoint Temperature (COOL)
Weekday	OCCUPIED	8 AM	70˚F (21˚C)	78˚F (26˚C)
	UNOCCUPIED	6 PM	62˚F (17˚C)	83˚F (28˚C)
Saturday	OCCUPIED	8 AM	70˚F (21˚C)	78˚F (26˚C)
	UNOCCUPIED	6 PM	62˚F (17˚C)	83˚F (28˚C)
Sunday	OCCUPIED	8 AM	70˚F (21˚C)	78˚F (26˚C)
	UNOCCUPIED	6 PM	62˚F (17˚C)	83˚F (28˚C)

Features

Filter Change & Other Reminders: If the filter change reminder is enabled, you will see a reminder in the display when your air filter needs changed. The reminder will be shown in the display after your system has run long enough to require an air filter change.

Resetting The Filter Change Reminder: When the reminder is displayed, you should change your air filter and reset the reminder by holding down the 3rd button from the left side of the thermostat for 3 seconds.

Temporary & Permanent Hold Feature

• Temporary Hold: The thermostat will display HOLD and RUN SCHED on the bottom of the screen when you press the or
  key. If you do nothing, the temperature will remain at this setpoint temporarily for 4 hours. The program setpoint will then replace the temporary setpoint.
• Permanent Hold: With a temporary hold set, If you press the HOLD key at the bottom of your screen, you will see HOLD appear below the setpoint temperature in the display. The thermostat will now permanently stay at this setpoint and can be adjusted using the
  or keys.
• To Return To Program: Press the RUN SCHED key at the bottom of the screen to exit temporary and permanent holds.

Remote Sensor Operation

• Option #1 – Indoor / Local Temperature Sensor “ON”:
  •  The displayed room temperature will display the average temperature of the thermostat and all remote sensors.
  • By pressing the far left (Prev Step) button, the average temperature of just the remote sensor(s) will be displayed briefly in the clock field.
• Option #1 – Indoor / Local Temperature Sensor OFF”:
  • The displayed room temperature will only show the average temperature of the remote sensor(s).
• Option #2 – Outdoor:
  • The outdoor temperature will alternate briefly with the clock display.
• Option #3 (Floor)
  • By pressing the far left (Prev. Step) button, the temperature of the floor sensor will be displayed briefly in the clock field.

Specifications

• The display range of temperature … 41˚F to 95˚F (5˚C to 35˚C)
• The control range of temperature… 44˚F to 90˚F (7˚C to 32˚C)
• Load Rating……………………………………….. 1 amp per terminal, 1.5 amp maximum all terminals combined
• Swing (cycle rate or differential) …… The heating is adjustable from 0.2˚ to 2.0˚
• Cooling is adjustable from 0.2˚ to 2.0˚
• Power source …………………………………….18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire
• Battery power from 2 AA Alkaline batteries
• Operating ambient …………………………. 32˚F to +105˚F (0˚C to +41˚C)
• Operating humidity ………………………… 90% non-condensing maximum
• Dimensions of thermostat …………….. 4.7” W x 4.3” H x 0.9” D

Pro1 Technologies

• P.O. Box 3377
• Springfield, MO 65808-3377
• Toll-Free: 888-776-1427
• Web: www.pro1iaq.com
• Hours of Operation: M-F 9 AM – 6 PM Eastern

Reference

Download Manual:

Pro1 Technologies T855SH Non-Programmable Thermostat Installational Manual

OTHER MANUALS

Pro1 Technologies T855SH Non-Programmable Thermostat Operational Manual

Pro1 Technologies T855SH Non-Programmable Thermostat Product Specifications Guide

Pro1 Technologies T855SH Non-Programmable Thermostat Installational Manual
