Pro1 Technologie T721i Thermostat Operation Manual

Pro1 Technologie T721i Thermostat

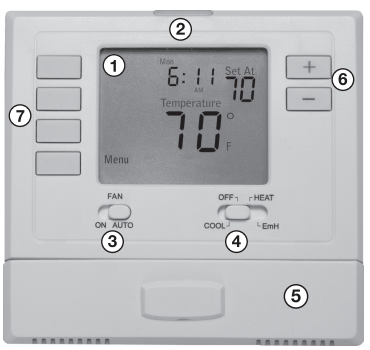

Getting to know your thermostat

1. LCD
2. Glow in the Dark Light Button
3. Fan Switch
4. System Switch
5. Easy Change Battery Door
6. Setpoint Buttons
7.  User Buttons

Important:
The low battery indicator is displayed when the AA battery power is low. If the user fails to replace the battery within 21 days, the screen will only show the low battery indicator but maintain all functionality. If the user fails to replace the batteries after an additional 21 days (days 22-42 since first “low battery” display) the set points will change to SS° F(Heating) and 8S° F(Cooling). If the user adjusts these setpoints away from these it will hold for 4 hours then return to either SS° F or8S F. After day 42 the batteries must be replaced immediately to avoid freezing or overheating because the thermostat will shut the unit off until the battery is changed.

Battery door information

THERMOSTAT OPERATION

Easy-to-use controls

Caution:

When the battery icon appears replace your AA batteries immediately. Failure to do so may result in your heating & cooling system becoming inoperable.

1. LCD Display:
   See page 2 for details about this display readout.
2. Glow in the Dark Light Button:
   The glow in the dark light button will self-illuminate for several hours after exposure to ambient light. This button turns on the display light when pressed.
3. Fan Switch:
   Select ON or AUTO. ON will run the fan continuously. AUTO will cycle the fan on only when the heating or cooling system is on.
4. System Switch:
   Selects the operation mode of your HVAC system. Selecting HEAT turns on the heat mode. Selecting COOL turns on the air conditioning mode. Selecting OFF turns both heating and cooling off. Selecting EmH locks out your compressor and turns on the secondary heat mode.
5. Temperature Setpoint Buttons:
   Press the buttons to select the desired room temperature.
6. User Buttons:
   Use these buttons to set the time. Refer to the next page for instructions.

SET TIME

Follow the steps below to set the current time:

1. Press MENU
2. Press SET TIME
3. Day of the week will be flashing.
   Use the key to select the current day of the week.
4. Press NEXT STEP
5. The current hour is flashing.
   Use the key to select the current hour. When using 12-hour time, make sure the correct a.m. or p.m. choice is selected.
6. Press NEXT STEP
7. Minutes are now flashing.
   Use the key to select current minutes.
8. Press DONE when completed.

Important:
You will see a TECH SET option after the MENU key is pressed.
This TECH SET key is for installer configuration and should NOT be changed unless you consult your Professional Heating and Air Conditioning Technician.

MORE INFORMATION

Filter Change Reminder

If your installing contractor has configured the thermostat to remind you when the air filter needs changed, you will see FILT in the display when your air filter needs changed. FILT will be shown in the display after your system has run long enough to require an air filter change.
Resetting the filter change reminder: When the FILT reminder is displayed, you should change your air filter and reset the reminder by holding down the second button from the top left side of the thermostat for 3 seconds.

Understanding Thermostat Staging

Your thermostat will control two stages of heating. The thermostat will try to maintain your comfort setting using the first stage for energy efficiency. The second stage of heating will only be used if your thermostat cannot maintain your comfort setting using only one stage. When the second stage is used you will see + 1 in the display.

WARRANTY INFORMATION

Warranty Registration:

Your new thermostat has a 5-year limited warranty. You must register your warranty within 60 days of installation. You can register your new thermostat in 2 ways.

1. Go to the company website, select warranty registration and fill out a short registration form.
2. Complete the form below and mail it to the address shown.

Name:
Thermostat Model:
Address:
Date Installed:
Complete the form and mail it to:
City:
State: Thermostat Warranty Registration PO Box 3377
Zip: Springfield, MO 65804

REFERENCE:
