Meitay-tec MTS-X500 Touch Screen Thermostat
Description
Room Panel, Flush mounted with touchscreen and backlit display for the CTU series communication controllers.
- 12VDC powered from the CTU controller
- White or Black with an optional colored frame
- ºC/ºF scale
Optional configurations:
- Humidity
- CO2
- Lights c ontrol
Features & Benefits
- System modes – Cool, Heat, fan only, Auto
- 3 fan speeds + Auto speed. Support also VFS
- Fan on demand option
- Temperature readings from the main controller (CTU) or from the room panel – selectable
- Touch, backlit display with adjustable dimming time and level
- Flush mount installation with standard GEWISS GW24403 / CARLON B114r boxes or similar
- Optional extention cable for wall mounting
- Optional colored frame
- Optional IR receiver for remote control
Note: the system modes, fan speeds and fan on demand option – depend on main controller (CTU) type.
Ordering codes
P/N Description

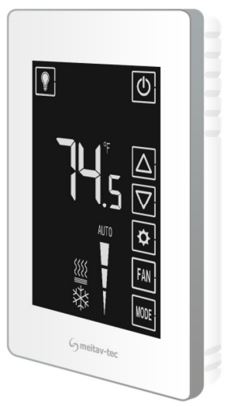

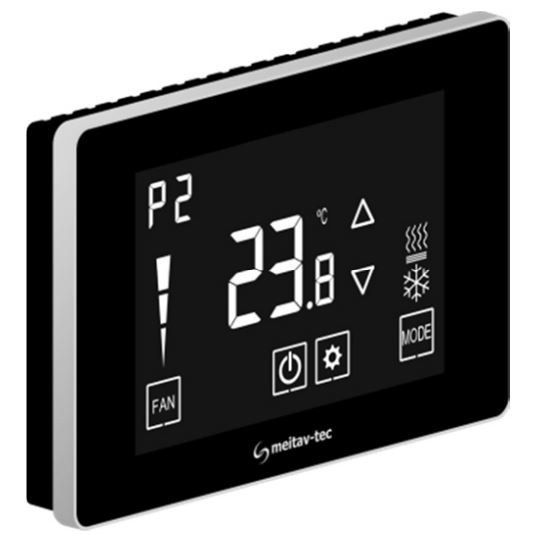

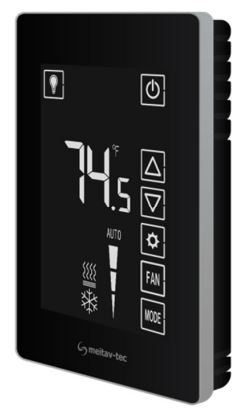

- MTS/X500 Horizontal panel, Black color
- MTSV/X500 Vertical panel, Black color

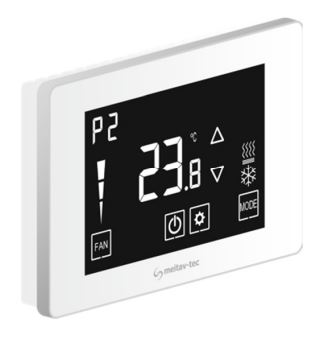

- MTS/W/X500 Horizontal panel, White color
- MTSV/W/X500 Vertical panel, White color
Options
- /HU after the P/N Includes Humisity sensor (example: MTS/W/X500/HU – Horizontal, White w/Humidity sensor)
- /CO2 after the P/N Includes CO2 sensor (example: MTSV/X500/CO2 – Vertical, black w/CO2 sensor)

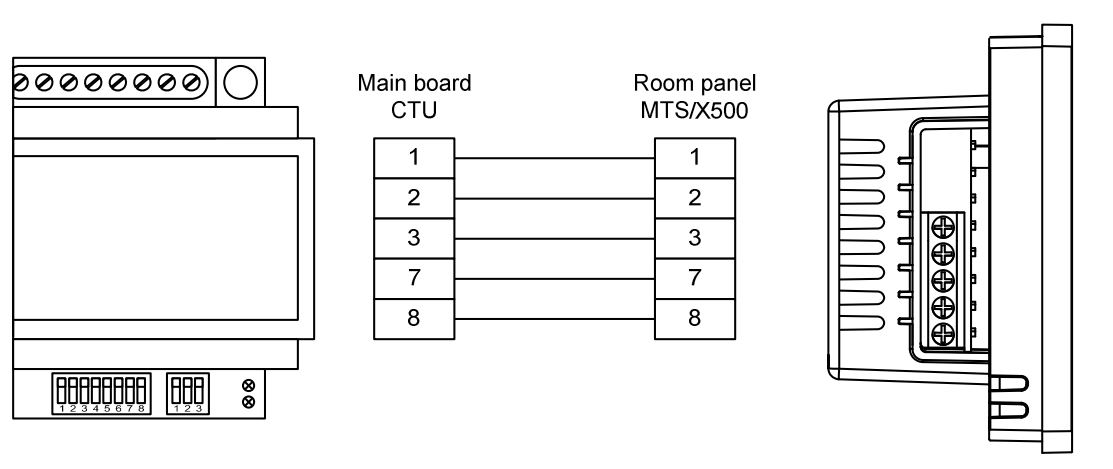

Wiring diagrams
Technical specifications
- Operating voltage 12VDC
- Temp. readings scale
- 10ºC÷30ºC
- 41ºF÷95ºF
- Temperature sensor type NTC 50K@25ºC
- Operating temp./Humidity
- 0ºC÷50ºC / 80%RH
- 32ºF÷122ºF / 80%RH
- Storage temp./Humidity
- 10ºC÷60ºC / 80%RH
- 14ºF÷140ºF / 80%RH
- Plastic-type PC/ABS
- Flammability UL94V-0

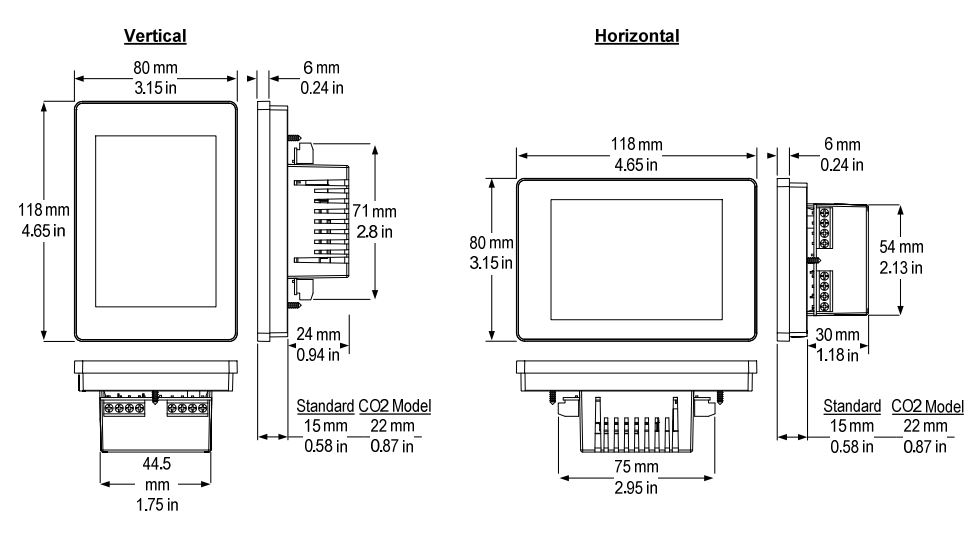

Dimensions
The performance specifications are nominal and conform to acceptable industry standards. For applications at conditions beyond these specifications, consult the local Meitav-tec office or representative. Meitav-tec shall not be liable for damages resulting from the misapplication or misuse of its products.
This document is subject to change without any notice.
© Copyright 2016 Meitav-tec Ltd’. All rights reserved.
