LUXPRO PSDH121+ Non-programmable Thermostat
Product Highlights
- Large back-lit display
- Dual powered: system or battery
- Horizontal or vertical mount
- 5 year warranty
Product Features
- Easy installation
- Horizontal or vertical mount
- Easy-view back light
- Optional wall plate model# WP567
- Dual powered (2AA) Alkaline Batteries (included)
- Adjustable compressor delay
- Display option: fahrenheit or celsius temperature
- Emergency heat-mode switch
- Low battery indicator
- Adjustable temperature swing
- 9-step temperature swing
- Temperature calibration
- High & low adjustable temp limits
Installation
Compatible With
- For most 24V heat pump systems
- 1 or 2-stage heat/1 stage cool heat pumps
Not Compatible With
- Multi-stage gas or oil furnaces
- Hydronic hot water systems
- 120V/240V line voltage systems (without transformer)
- Conventional (non-heat pump) systems
SPECIFICATIONS

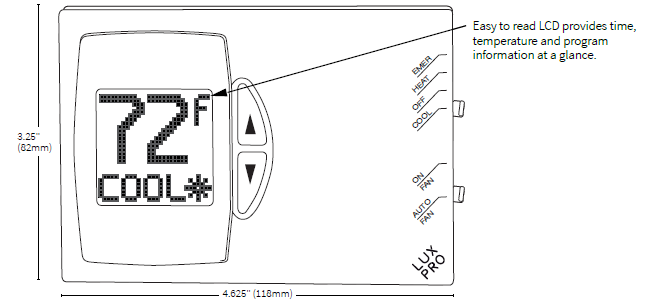

| Dimensions | 4.625″ (118mm) wide x 3.25″ (82mm) tall x .875″ (22.5mm) deep |
| Heat/Cool Terminals | E, Y, B, O, W2, R, G, C |
| Electrical Ratings | 1.5 AMPS at 24 VAC |
| Temperature Control Range | ■ Temp control 45° F to 90° F (7° to 32° C)
■ Display range: 23° F to 99° (-5° C to 37° C) ■ Temp differential: adjustable from .25° F to 2.25° F accuracy +- 1° over a range of 50° F to 90° F. |
| Environmental Limits | ■ Moisture and Dust: meets IP20
■ Operating Humidity: 20% to 90% (non-condensing) ■ Operating temperature: 32°F to 95°F (0°C to 35°C) ■ Storage temperature: -4°F to 130°F (-20°C to 54°C) ■ Electrical Immunity: meets relevant CE specifications |
| Compatibile With | ■ For most 24V heat pump systems
■ 1 or 2-stage heat/1 stage cool heat pumps |
| Not Compatible With | ■ Multi-stage gas or oil furnaces
■ Hydronic hot water systems ■ 120V/240V line voltage systems (without transformer) ■ Conventional (non-heat pump) systems |
| Packaging | ■ Master Carton: Master Carton: 10 units
■ UPC: 0 21079 03121 4 |
LUX PRO
- 4747 South Broad Street I Building 101 – Suite 330
- Philadelphia, PA 19112
- P: 856.234.7905
- F: 856.234.7825
- LuxProProducts.com
