INSTEON 2441ZTH Wireless Thermostat Owners Manual

INSTEON 2441ZTH Wireless Thermostat

About Insteon Thermostat
Insteon Thermostat is a 7-day programmable Insteon-compatible thermostat. Insteon Thermostat includes a humidity sensor and 2-stage heating plus 2-stage cooling capabilities. Expand the system by creating extra temperature zones in your home. Simply add one or more Insteon Wireless Thermostats as accessories to your system. Additionally, a Waterproof Temperature Sensor can be added and extended up to 100 feet for remote temperature sensing.

Insteon Thermostat – Features and Benefits

• Installs and joins scenes with other Insteon devices in minutes
• Saves energy and money by remotely controlling and automating your home’s heating and AC
• Communicates wirelessly over radio frequency (RF)
• Can automatically remotely control Insteon devices when Insteon Thermostat reaches a specified temperature or humidity level or switches to A/C or heat
• Reports change in thermostat modes, temperature, humidity, setpoints, and fan to compatible automation controllers or software
• Fine-tunes thermostat setpoints by single degrees from any Insteon controller with specific Up and Down buttons
• Stores setup state in memory so settings aren’t lost during power outages
• Two-year warranty
• Controllable via the web and smartphone app (iOS/Android/Windows Phone) using Insteon Hub

What’s in the Box?

• Insteon Thermostat
• Two mounting screws
• Two anchors
• Quick Start Guide
• Wire ID label stickers

Insteon Thermostat Button Overview

1. The up/Down buttons adjust the temperature setpoint based on the current mode.
2. Mode allows the user to select the current operational mode of the HVAC system. It cycles between Off, Heat, Cool, Auto, and Time of Day.
3. The energy (Leaf) button is designed as a quick access option that saves energy (and money). When pressed, it will set back the setpoint by a specified value. The default value is 4° from the current setting. To change the default offset value you must use software such as HouseLincTM.
4. Hold overrides a preprogrammed mode to stay in the current settings mode.
5. Fan cycles between Auto and Always On – there is no indicator for Auto Fan.
6. Master makes this device the master temperature controller when you have one or more zone thermostats. Pressing and holding “Master” does not alter any scene or screen settings; it just defines this Insteon Thermostat as the master temperature controller.
7. Time/Sensor allows you to set the day and time. It cycles among hour, minute, day, and time programming.
8. The program allows you to set up the various preprogrammed modes (Wake, Leave, Return, and Sleep). It also allows you to set up various features and calibrate the temperature and humidity.
9. The set is for adding and removing Insteon Thermostat to and from Insteon scenes. It functions like the Set button on other Insteon devices.

Insteon Thermostat Operation and Programming

Mode Button Operation

Off Mode

1. No setpoints are shown.
2. Up/Down arrows do not do anything.

Heat Mode

• Only the Heat setpoint is shown.
• Up/Down arrows change the Heat setpoint.

Cool Mode

• Only a Cool setpoint is shown.
•  Up/Down arrows change the Cool setpoint.

Auto Mode:

• Both Cool and Heat setpoints are shown.
• Up/Down arrows increase or decrease values by the same amount.

Time of Day Mode:

• The program mode is active as indicated by the return annotation.
• The Time of Day annotation is not displayed in the other four modes (Off, Heat, Cool, or Auto).
• Both Cool and Heat setpoints are shown.
• Up/Down arrows increase or decrease values by the same amount.
• When the thermostat moves to the next time period, the setpoints will be adjusted accordingly.

Note:

• To adjust the gap between the setpoints in Auto mode, press Mode to select Heat and set the temperature you desire. Press Mode to select Cool and set the temperature you desire.
• Press Mode to return to Auto; the settings will reflect your changes.
• If you set Heat and Cool to the same temperature, Heat will automatically move down 2° (the minimum allowable gap).

Energy Button Operation

The Energy button is designed to be a quick, efficient energy-saving option. When you press the Energy (leaf) button, Insteon Thermostat will adjust the Heat and Cool setpoints by a specified value. The default value is 4° from the current setting. The default value can be changed via software such as HouseLinc.

• When you exit Energy mode, it will revert back to the 4° that was changed upon entry.
• The unit remains in Energy mode until the Energy button is pressed again.
• Up/Down arrows adjust the temperature setpoint based on the mode you are

From Off Mode

• The energy button does nothing because the system is off (at maximum energy savings already).
• When “Energy” appears on the screen for Auto, Cool, and Heat Modes, the 4° setback is engaged.

From Heat Mode

• Heat setback as specified.
• The default setback is 4° less.

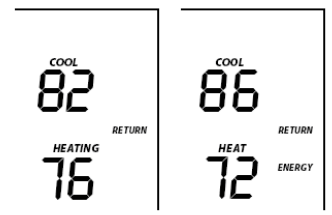

• Notice that “Heating” is active on the left, but not on the right since the setpoint is lower than the actual temperature; the element reads “Heat.”

From Cool Mode

• Cool setback as specified.
• The default setback is 4° more.

From Auto Mode

• Both Heat and Cool setpoints changed as specified.
• The default setback is 4° more for Cooling and 4° less for Heating.
• Notice that “Heating” is active on the left, but not on the right since the setpoint is lower than the actual temperature; the element reads “Heat.”

From Time of Day Mode

• Both Heat and Cool setpoints changed as specified.
• The default setback is 4°.
• Notice that “Heating” is active on the left, but not on the right since the setpoint is lower then the current temperature; the element reads “Heat.”

Note: Onscreen text displaying “Heat” changes to “Heating” and “Cool” changes to “Cooling” to indicate An HVAC system is active. The status LED, if enabled, under the door also indicates the current active state: Cooling = green, Heating = red. At the time of activation, either the Heating or Cooling text will blink for 3 seconds and then remain steady during the active cycle.

Set Button Operation
The Set button adds and removes Insteon Thermostat from Insteon scenes. It functions like the Set button on other Insteon devices

Time/Sensor Button Operations

• The Time/Sensor button allows the user to set the current day and time.
• It cycles among hour, minute, day, and 12/24-hour format.
• Up/Down arrows cycle through the available options.
• Go to the next Time/Sensor step by pressing Time/Sensor button again.
• Exit Time/Sensor setup by:
  • Timing out (4 minutes)
  • Pressing the Mode button
• Note: Colored elements indicate LCD elements that should be blinking during the setting procedure.

The first press of Time/Sensor:
Hours settings

• Up/Down arrows cycle through time in 1-hour increments.
• Pressing and holding Up/Down arrows cycles through faster.
  Note: AM/PM changes automatically as needed.

a second press of Time/Sensor:
Minutes settings

• Up/Down arrows cycle through time in 1- minute increments.
• Pressing and holding Up/Down arrows cycles through faster.

A third press of Time/Sensor

Day settings

• Up/Down arrows cycle through each day of the week as shown.

Fourth press of Time/Sensor
Clock Format setting (12- or 24-Hour clock)

• The entire “time” blinks.
• Up/Down arrows cycle between 12- and 24-hour clock format.
  Note: AM/PM is not displayed when in 24-Hour format.
• Press Time/Sensor a fifth time to exit

Program Button Operation

• The Program button allows you to set up the various preprogrammed modes (Wake, Leave, Return, and Sleep).
• Go to the next step by pressing Program again.
• Exit Program setup by:
  • Timing out (4 minutes)
  • Pressing the Mode button
• Note: Colored text below indicates the element that should be blinking during the setting procedure.

The first press of the Program
Selects from available pre-program modes
Up/Down arrows cycle through Wake, Leave, Return, and Sleep.
NOTE:

• Energy is not a part of this option.
• Once a preprogrammed mode is selected, that item remains displayed throughout to indicate the mode you are programming.
• The current mode settings are displayed on the thermostat at each setup step.

A second press of the Program
Day setting

• Up/Down buttons cycle among all week, weekdays, weekend days, and each day, as shown.

A third press of the Program:
Start Time

• Up/Down arrows cycle through time in 15-minute increments. Note: when pressing the Down arrow, if you come within 15 minutes of another preprogrammed mode time, you will not be able to increase the time any further.
• Pressing and holding Up/Down arrows cycles faster.
  Note: AM/PM changes automatically as needed.

Note: The start of one program mode is also the end of the previous program mode.

Fourth press of the Program:
Cool setpoint
Up/Down arrows cycle through temperature.

Fifth press of the Program:
Heat setpoint
Up/Down arrows cycle through temperature.

Sixth press of the Program

Day Modes	Start Time	Thermostat Mode	Heat Setting	Cool Setting
Wake	6:00AM	Auto	65°F (18°C)	75°F (24°C)
Leave	8:30AM	Auto	60°F (16°C)	80°F (27°C)
Return	5:00PM	Auto	65°F (18°C)	75°F (24°C)
Sleep	11:00PM	Auto	60°F (16°C)	80°F (27°C)

Restarts the process to program another Mode/Day
NOTE: The four modes come preprogrammed. The defaults are for all days:

Fan and Hold Button Operations
Fan button operations

• The Fan button cycles between Auto and Always On.
• On the display, it simply indicates the text “Fan Always” when selected. There is no indication for Fan Auto.

Hold button operations

• The Hold button overrides a preprogrammed mode until Hold is turned off.

NOTE:

• While Hold is enabled, the next preprogrammed time that comes in Time of Day Mode will be ignored.
• While Hold is enabled, the preprogrammed time notations are not shown (i.e. Wake, Leave, Return, and Sleep).
•  Hold can be remotely enabled/disabled from an Insteon controller.

Master Button Operation

First press and hold
Makes the local Insteon Thermostat the master temperature controller

• To perform this, press and hold the Master button for 3 seconds.
• Insteon Thermostat beeps once.
• Release.
• Note: This is only valid if at least one Insteon Thermostat Zone Thermostat is linked to Insteon Thermostat.

Before pressing the Master button

• Notice that the left remote sensor is currently the Master temperature controller.

After pressing and holding the Master button:

• Notice that the left remote sensor is no longer the Master temperature controller.
• The local Insteon Thermostat is now the Master controlling temperature.

Note: If no Insteon scene is programmed to an Insteon Wireless Thermostat, pressing and holding for 3 seconds will cause the Master segment to display while the button is being held.

Installation

CAUTIONS AND WARNINGS
Read and understand these instructions before installing and retaining them for future reference.
IMPORTANT: HOW DO I KNOW THIS WILL WORK WITH MY SYSTEM?

1. Your existing HVAC can operate 2 stages of Heat and Cool.
2. Your existing thermostat operates on 24V.
3. Your system is not a 120/240V electric radiant heater.
4. Your existing thermostat is not millivolt controlled.
5. Your existing thermostat has 5 or more wires connected.

Insteon Thermostat is designed to operate on a minimum 5-wire, 24V HVAC unit. If you have only 4 wires you can purchase the “Add-A-Wire” adapter item #304AAW from www.smarthome.com. If you have a conventional heating and cooling system, use Insteon Wired Thermostat 2441TH If you have a heat pump heating and cooling system, use Insteon Wired Thermostat for Heat Pumps
2732-242
Note: Installation should be performed only by a qualified HVAC Technician or a homeowner who is familiar and comfortable with electrical circuitry. If you have any questions regarding installation, consult an HVAC Technician or call the Insteon Support Line at 800-762-7845.

Tools Needed

• Flathead screwdriver
• Wire cutter/stripper

Installation
Proper installation of the Insteon Thermostat will be accomplished by following these step-by-step instructions

1. Do not remove wires from the existing thermostat until instructed.
2. If you have an A/C, turn off the A/C breaker.
   • Confirm A/C is off by turning on the air and observing that the compressor/fan does not come on.
3. Turn off the breaker/fuse to the furnace.
   •  If the thermostat no longer functions, move to the next step.
   • If the thermostat still functions, it is probably running off battery power. Try to turn on the heat.
   • If the heat doesn’t turn on, move to the next step.
   • Otherwise, turn off the heat and wait until the furnace fan stops, then try another breaker until the heat no longer runs.
4. Remove the cover from the existing thermostat to gain access to wires (may need to detach from the wall).
5. If necessary, take photos of wiring connections to help with reconnections.
6. If possible while still connected, attach the “C” label to the wire connected to “C” on your thermostat. Otherwise, label the C wire once disconnected.
7. Disconnect your C wire from the thermostat.
8. Repeat for all your other wires, being careful to not pull off wire stickers or mar paint or wallpaper.
9. Remove the existing thermostat back from the wall.
10. Remove 3” of the outer jacket from the wires exposing the individually colored wires. This ensures the outer insulation does not press against the internal components of the Insteon
    Thermostat upon closing the unit.
    Note: if your system has 4 wires, you will need the “Add-a-Wire” adapter. See Cautions and Warnings above.)

Be careful not to tear off the labels that you previously attached to the wire ends.

• If you do not have 3” after stripping away the outer jacket, you can extend the inner wires by splicing on a new longer conductor.
• Thermostat” cabling is available at most home improvement centers. It comes in different wire configurations, but with the same gauge. If the wire you have now is 5- a conductor cable, buy a 5-conductor thermostat wire and connect it to a matching color- color.
• If wires are longer than 3”, trim them back, or make sure you can push the excess back into the wall. Be careful not to cut off the wire designation label.
• Slide all wires through a large hole in the back of the Insteon Thermostat.
• Mount Insteon Thermostat to the wall.
• To ensure accurate temperature readings:
  • Carefully slide wires through provided black grommet (draft shield). See diagram.
  • Peel off the protective backing.
  • Rotate to the most convenient orientation for the wire entrance.
• Apply to round grommet placing indentation.

Wire Connections – Conventional Systems
If the terminal designations on your old thermostat do not match those on Insteon Thermostat, refer to the chart below or the wiring diagram that follows

Wire color from furnace/AC unit              Function                Install on Insteon Thermostat connector Wire colors may vary
Black or blue	Common 24V	24V COM
Red	Power 24V	24 RH
White	Heat 1	W1
Brown	Heat 2	W2
Green	Fan	G
Yellow	Cooling 1	Y1
Light blue	Cooling 2	Y2

The diagram below shows the inside of the Insteon Thermostat wall mount case

• Insert C wire into terminal C and tighten using a small screwdriver (either flathead or Philips).
•  Be aware that incorrect connections may cause non-operation or Heat, Cool, and Fan to be wrongly triggered.
•  Repeat for other wires matching terminal designations.
•  Close the front of the Insteon Thermostat onto the back mounting plate.
• Press firmly until you feel the connecting pins fully seat into their receptacles. You should also feel and hear a click as the door latches.
• Turn the breaker(s) back on.
• Allow 10 seconds for Insteon Thermostat to boot up.
• When the screen displays the current temperature, Insteon Thermostat is powered and functional.

Wire Connections – Heat Pump Systems

Wire color from Heat Pump unit                 Function                Install on Insteon Thermostat connector Wire colors may vary
Black or blue	Common 24V	24V COM
Red	Power 24V	24 RH
Orange or Brown	Reversing Valve	O/B
White	Auxiliary Heat	AUX
Green	Fan	G
Yellow	Compressor Stage 1	Y1
Blue	Compressor Stage 2	Y2

The diagram below shows the inside of the Insteon Thermostat for the Heat Pumps wall mount case

Adjusting the Reversing Valve Function

This setting tells the heap pump which mode to operate (making heat or cooling) when the compressor is activated. Most residential heat pumps operate in the “O” mode where the thermostat will energize the valve during cooling. By default, the Insteon Thermostat is set to “O” mode. Commercial systems and many models made by Rheem and Rudd operate in the “B” mode where the reversing valve is energized during heating. If your system is making heat when it is set to cooling (or visa-versa, making cool air in the heat mode), follow these steps to change the O/B setting:

1.  Press the MODE button to turn the system OFF
2. Press and hold the PROGRAM button for 3 seconds or more to enter the User Setup Mode.
3. Press the MODE repeatedly button to advance to screen 10
4. Press the UP or DOWN button to change between “O” and “B” modes
5. Press PROGRAM to exit.

Test Operation

Heating Mode Test

1. Press Mode once to enter Heat mode.
2. Tap the Up arrow several times until the setpoint is 2° above the current temperature. Insteon Thermostat will call for heat and the “Heat” segment will change to “Heating.”
   The “Heating” segment will flash for 3 seconds, then remain steady when active. Status LED will display red if enabled (off by default). Allow the furnace to operate long enough to begin blowing warm air.
3. Tap the Up or Down arrows until you reach a desirable heat temperature setpoint (if this is below ambient, Heating will go inactive).
   Note: The fan stays controlled by the HVAC and may continue running for a couple of minutes. Insteon The thermostat has a default 5-minute delay between Heat and Cool settings.

Cooling Mode Test

1. Tap the Mode button again to enter Cool mode.
2. Tap the Down arrow several times until the setpoint is 2° below the current temperature.
3. Insteon Thermostat will call for cooling and the “Cool” segment will change to “Cooling.” The “Cooling” segment will flash for 3 seconds, then remain steady when active. Status LED will display green. Allow A/C to operate long enough to begin blowing cool air.
4. Tap the Up or Down arrows until you reach a desirable cool temperature setpoint (if above ambient, Cooling will go inactive).

Note: The fan will turn on and off with Cooling.

Auto Mode Test

1. Tap Mode once to enter Auto mode.
2.  Note that your Heat and Cool setpoints are both as set in previous steps unless you did not have a minimum 2° gap between settings.
3. Tap the Up arrow once to increase both Heat and Cool setpoints by 1°.
4. Tap the Down arrow once to decrease both Heat and Cool setpoints by 1°.
5. Tap Mode once to enter Time of Day mode. Indicated by Auto at the bottom and relevant time of day (Wake, Leave, Return, Sleep) to the right of Heat/Cool set temps.
6. Tap Mode once more to return to Off mode.

Additional Modes for Insteon Thermostat for Heat Pumps
Emergency or Supplemental Heat Mode will instantly force the thermostat to activate the extra heating strips or fuel backup many systems have. This may be needed when the outdoor temperature is in The 30s or below freezing (4C to 0C) and the heat pump can’t produce enough warm air. It may also be used when the outdoor compressor is not working properly. To activate this mode:

1. Put the Thermostat into Heat mode by pressing the MODE button.
2. Adjust the Thermostat to the desired temperature
3. Press the UP and DOWN Buttons simultaneously for two seconds
4. The thermostat will beep three times and the “HEAT” icon will blink
5. Press the MODE button once to exit the Emergency or Supplemental Heat Mode. The thermostat will beep three times

Adding an Insteon Wireless Thermostat
Insteon Thermostat can synchronize with an Insteon Wireless Thermostat to provide a portable thermostat wherever you want temperature control. You can add up to two Insteon Wireless Thermostats.

1. Press and hold the Set button on Insteon Wireless Thermostat. Insteon Wireless Thermostat Set LED will blink green and the unit will beep.
2. Press and hold the Insteon Thermostat Set button. Insteon Thermostat will beep, then double-beep. Insteon Wireless Thermostat will double-beep.
3. Test the scene by pressing and holding the Master button on the Insteon Thermostat
   • Adding an Insteon Wireless Thermostat Insteon Thermostat can synchronize with an Insteon Wireless Thermostat to provide a portable thermostat wherever you want temperature control. You can add up to two Insteon Wireless Thermostats.
   • Press and hold the Set button on Insteon Wireless Thermostat. Insteon Wireless Thermostat Set LED will blink green and the unit will beep.
   • Press and hold the Insteon Thermostat Set button. Insteon Thermostat will beep, then double-beep. Insteon Wireless Thermostat will double-beep.
   • Test the scene by pressing and holding the Master button on the Insteon Thermostat

Insteon Programming
Add Insteon Thermostat as an Insteon Controller
Insteon Thermostat can be set up to control other Insteon devices or trigger software events when there is a change. The following Insteon Thermostat changes can be configured as a controller:

• Group 1 – Cooling mode change (scene control)
• Group 2 – Heating mode change (scene control)
• Group 3 – Dehumidification, high humidity setpoint (scene control)
• Group 4 – Humidification, low humidity setpoint (scene control)
• Group EF – Broadcast on any change (notification group for linked software controllers)1

NOTE: An Insteon Wireless Thermostat can also be added to a scene as a controller for Groups 1 – 4. When it is added as a controller of an Insteon Thermostat, the setpoints between Insteon Wireless Thermostat and Insteon Thermostat will always be matched. When it is not added as a controller to an Insteon Thermostat, the setpoints are local only. Insteon Wireless Thermostat will send group commands based on local temperature or humidity level and the setpoint shown on the display, regardless of whether it’s added as a controller to an Insteon Thermostat.
Note: Humidity levels are taken from the local device only; they are not shared or matched among thermostats.

1. Press and hold Insteon Thermostat’s Set button until it beeps. Insteon Thermostat will beep. Insteon Thermostat Set LED will blink green.
2. Tap the Up or Down arrows to select from Groups 1-4 to add to a scene.
   • Group 1 – Cooling mode change (default)
   • Group 2 – Heating mode change
   • Group 3 – Dehumidification, high humidity setpoint
   • Group 4 – Humidification, low humidity setpoint
3. Adjust the scene responder (such as OutletLinc with a connected humidifier) to the state you want when the scene is activated (e.g., 50%, 25%, or even Off).2
4. Press and hold the responder’s Set button until it double-beeps or its LED flashes. Insteon Thermostat will double-beep upon completion. The  LED will return to the previous state.
5. Confirm scene addition was successful by raising or lowering Insteon Thermostat’s setpoint to activate the particular mode. After Insteon Thermostat changes to the active mode set in step 2 above, the responder will toggle between the scene’s on-level and off.
6. To add more responders to the scene, repeat steps 1-5 for each additional responder

Group FE is a hexadecimal representation of Group 254 and can only be configured using the software. If the responder is a multi-scene device such as a KeypadLinc, tap the scene button you wish to control until its LED is in the desired scene state (on or off).LCD display when using Up or Down arrows to select from the 4 controller groups

Removing Insteon Thermostat as an Insteon Controller
If you want to remove Insteon Thermostat from a scene as a controller, follow the instructions below. Whenever possible, use software for managing scene memberships.
Note: If you choose to remove Insteon Thermostat from use, it is important that you remove scene memberships from all responders. Follow the instructions below for each responder of which Insteon The thermostat is a member.

1. Press and hold Insteon Thermostat’s Set button until it beeps.
   • Insteon Thermostat Set LED will blink green.
   • Insteon Thermostat will beep.
2. Press and hold Insteon Thermostat’s Set button again to put it in scene mode.
   • Insteon Thermostat Set LED will blink red.
   • Insteon Thermostat will beep.
   • LCD display indicates the group from which you are removing the scene.
3. Tap the Up and Down arrows to select the appropriate group to remove from:
   • Group 1 – Cooling mode change, default
   • Group 2 – Heating mode change
   • Group 3 – Dehumidification, high humidity setpoint
   • Group 4 – Humidification, low humidity setpoint
4. Press and hold the responder’s Set button. Insteon Thermostat will double-beep upon completion. The LED will return to the previous state.

Upon entering Remove from a Scene mode (defaults to Cooling mode). LCD display when using Up or Down arrows to select from the 4 controller Groups.

Add Insteon Thermostat as an Insteon Responder
Add a scene to an incoming ON command

1. Set Insteon Thermostat to desired state (mode, setpoint, fan state, energy button state).
2. Put the controller in linking mode (press and hold the controller Set button until it beeps).
3. Press and hold Insteon Thermostat’s Set button.
4. Insteon Thermostat Set LED will blink green and the unit will beep.

Insteon Thermostat will double-beep
The LED will return to the previous state. Add a scene to an incoming OFF command

1. Set Insteon Thermostat to desired state.
2. Put the controller in linking mode (press and hold the controller Set button).
3. Simultaneously press and hold Insteon Thermostat’s Set button and Down arrow. Insteon Thermostat Set LED will blink green and the unit will beep. Insteon Thermostat will double-beep. The LED will return to the previous state

Remove Insteon Thermostat as an Insteon Responder
If you want to remove Insteon Thermostat from a scene, follow the instructions below. Whenever possible, use software for managing scene memberships.
Note: If you choose to remove Insteon Thermostat from use, it is important that you remove scene memberships from all controllers. Otherwise, controllers will retry commands repetitively, creating network delays. Follow the instructions below for each scene controller of which Insteon Thermostat is a member. Removing a scene from an incoming ON command

1. Press and hold the controller’s scene button until the controller beeps.1 Controller’s LED will blink.
2. Press and hold the controller’s scene button again until the controller beeps again. Controller’s LED will continue blinking.
3. Press and hold Insteon Thermostat’s Set button. Insteon Thermostat Set LED will blink green and the unit will beep. Insteon Thermostat will double-beep. The LED will return to the previous state. Controller’s LED will stop blinking.
4. Confirm scene removal was successful by tapping the controller scene button you just removed. Insteon Thermostat will no longer respond.

Removing a scene from an incoming OFF command

1. Press and hold the controller’s scene button until the controller beeps. Controller’s LED will blink.
2. Press and hold the controller’s scene button until the controller beeps again Controller’s LED will continue blinking.
3. Simultaneously press and hold Insteon Thermostat’s Set button and Down arrow. Insteon Thermostat Set LED will blink green and the unit will beep. Insteon Thermostat will double-beep. The LED will return to the previous state. Controller’s LED will stop blinking.
4. Confirm scene removal was successful by tapping the controller scene button you just removed. Insteon Thermostat will no longer respond.

User Setup Mode Overview
Press and hold the Program button for 3 seconds or more to enter the User Setup Mode.

User Setup Mode
Press and hold the Program button to access the following options:

• Press Mode to step between menu items (sub-mode number will appear on top of the screen).
• Sub-mode 01: Display LED on-time select (default is 10 seconds)
• Sub-mode 02: Humidity low setpoint (default is 30%)
• Sub-mode 03: Humidity high setpoint (default is 90%)
• Sub-mode 04: Temperature format select (default is Fahrenheit)
• Sub-mode 05: Beep on button press (default is Off)
• Sub-mode 06: Status LED (default is Off)
• Sub-mode 07: Button lock (default is Off)
• Sub-mode 08: Programming lock (default is Off)
• Sub-mode 09: Activation delay (default is 5 minutes)

Press the Up or Down arrow to change the setting

• Sub-mode 01: LED backlight ON time (10–second default)
• Tap the Up or Down arrow to step between Off, 10 sec, 60 sec, and On
• Use HouseLinc software to set the LED backlight ON-time in 1-second intervals

Sub-mode 02: Humidity low setpoint (humidification, 30% default)

• Up arrow = Increase humidity % setpoint
• Down arrow = Decrease humidity % setpoint
• Range = 0 to 79%

Sub-mode 03: Humidity high setpoint (dehumidification, 90% default)

• Up arrow = Increase humidity % setpoint
• Down arrow = Decrease humidity % setpoint
• Range = 20 to 90%

Sub-mode 04: Temperature format select (C or F, F default)

• Up arrow = C
• Down arrow = F

 Sub-mode 05: Beep on button press (enable/disable, OFF default)

• Up arrow = ON
• Down arrow = OFF

Sub-mode 06: Status LED (enable/disable, OFF default)

• Up arrow = ON
• Down arrow = OFF

Sub-mode 07: Button lock (disables front button presses, OFF default) For high-traffic common area locations, such as a business lobby.

• Up arrow = ON
• Down arrow = OFF

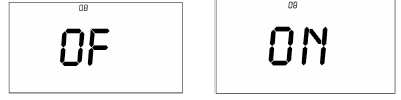

Sub-mode 08: Programming lock (locks out Set button programming operations, OFF default)

•  Up arrow = ON
• Down arrow = OFF

Sub-mode 09: Delay between consecutive AC modes (5-minute default)

• Up arrow = Adds 1-minute increments
•  Down arrow = Decreases 1-minute increments
• Range = 2-20 minutes

Temperature and Humidity Calibration Mode
Note: Use a calibrated temperature or humidity source when adjusting Insteon Thermostat

1. Press and hold the Program button, and tap Time/Sensor to enter Temperature Calibration Mode.
2. Tap Mode to step between temperature calibration and humidity calibration.
   Temperature Calibration
   • The top left number (77 in the example) is the current reading according to the temperature sensor.
   • The top right number (14 in the example) is the current offset (represents 1.4).
   • These numbers can change while this screen is displayed even though the primary temperature does not change. They are floating point calculations.
3. Tap the Up or Down arrows to adjust the displayed temperature to match the calibrated source.
   • Each press results in a 1° F (0.5° C) change.
   • The calculation using the example numbers below is 78 = 77 + 1.4.
   • The offset range is from –10 to +10 actual degrees.

Humidity Calibration Mode

1.  Once in Setup Mode for temperature calibration (step 1 above), tap the Mode button to step between temperature calibration and humidity calibration.
2. Press the Up or Down arrow to select the current humidity level.
   • The top left number (40 in the example) is the current reading according to the humidity sensor.
   • The top right number (-92 in the example) is the current offset (represents -9.2).
   • These numbers can change while this screen is displayed even though the primary humidity level does not change. They are floating point calculations.
   • Each press results in a 1% humidity change.
   • The calculation using the example numbers below is (31 = 40 – 9.2) and 42 = 40 + 1.7.
   • The offset is from -10 to +10.
3. Press Program to exit calibration mode.

Advanced 2-Stage Heating or Cooling Systems
Two-stage air conditioners offer a more efficient, energy-saving way to cool your home. Two-stage cooling means that the air conditioner has a compressor with two levels of operation. A 2-stage unit produces more even heating and cooling temperatures. Insteon Thermostat’s second stage of heat or cool engages under the following conditions:

• Insteon Thermostat’s setpoint is set at 5°(F or C) or more below ambient in Cool mode and 5°(F or C) or more above ambient in Heat mode.
• Heat mode setpoint is 80°, ambient is 72° = first and second stage engaged
• Cool mode setpoint is 78°, ambient is 84° = first and second stage engaged
• Insteon Thermostat has been active in Heat or Cool for longer than 10 minutes and did not reach the setpoint.
• Heat mode ran for 10 minutes and did not reach setpoint = second stage engaged.
• Cool mode ran for 10 minutes and did not reach setpoint = second stage engaged.
  Note: It is possible for Insteon Thermostat to occasionally engage and disengage from the second stage during a single heating or cooling cycle as variables are met.

Factory Reset
If you want to reset Insteon Thermostat to its factory default settings, follow the instructions below.
Note: If you choose to reset Insteon Thermostat to its factory default settings, it is important that you remove scene memberships from all controllers. Otherwise, controllers will retry commands repetitively, creating network delays. Follow the instructions in Removing Insteon Thermostat as an Insteon Responder above for each scene controller of which Insteon Thermostat is a member. Factory reset changes:

• Insteon is reset (all scene memberships are removed)
• The day/time is changed to 12:00 AM Monday
• Programming times, temperatures, and other settings are reset to their default values
• Factory reset does not change:
• Temperature offset
• Humidity offset

Factory Reset

1. Press and hold Insteon Thermostat’s Set button until it beeps. Insteon Thermostat will beep. Insteon Thermostat Set LED will blink green.
2. Press and hold Insteon Thermostat’s Set button again until it beeps. Insteon Thermostat will beep. Insteon Thermostat Set LED will blink red.
3. Double-tap the Set button.
4. Press and hold the Set button again for about 10 seconds. Insteon Thermostat will emit a long beep and its display will blink all segments.
5. When blinking/buzzing stops, release the Set button and wait 10 seconds. Insteon Thermostat will perform a series of self-tests, then return to normal operations. Insteon Thermostat display will return to normal

Specifications

General
Product name	Insteon Thermostat
Brand/manufacturer	Insteon
Manufacturer product number	2441TH US 2732-422 EU 2732-522 AUS/NZ
UPC	813922-010824 US/Can 813922-012859 EU 813922-012866 AUS/NZ
Warranty	2 years, limited
Insteon
Insteon powerline mesh repeater	No
Insteon RF mesh repeater	Yes
Insteon controller	Yes
Insteon responder	Yes
Maximum links/scenes	400
LED	Red when Heating is active, green when Cooling is active Off when neither mode is active Blinks red or green during setup
LED brightness	LED can be enabled or disabled locally or via software
Local control	Yes
Commands supported as controller	On	Off
Commands supported as responder	On	Off

	Beep
Software configurable	Yes
RF range	Up to 150-Feet (50m) open air
Phase bridge detect beacon	No, RF only device
Insteon device category	0x05 (all frequencies)
Insteon device subcategory	2441TH (915 MHz)	0x0B
	2732-422 (869 MHz)	0x0F
	2732-522 (921 MHz)	0x10
	2732-242 (915 MHz)	0x13
	2732-442 (869 MHz)	0x14
	2732-542 (921 MHz)	0x15
X10
X10 address	N/A
X10 transmitter	N/A
X10 receiver	N/A
X10 status response	N/A
X10 resume dim	N/A
X10 minimum transmit level	N/A
X10 minimum receive level	N/A
X10 messages repeated	N/A
Mechanical
Mounting	Wall mount
Wire Connections Conventional Thermostat	Common 24V
	Power 24V
	Heat 1
	Heat 2
	Fan
	Cooling 1
	Cooling 2
Wire Connections Heat Pumps	Common 24V
	Power 24V
	O/B Reversing Valve
	Auxiliary Heat
	Fan
	Compressor Stage 1
	Compressor Stage 2
Screw clamp connections	Yes, 10 position
Case color	White
Set button	1
Plastic	UV stabilized ABS
Beeper	Yes

Beep on button press	Optional (off by default)
LED	1 dual-color red/green
Dimensions	5.7” x 3.6” x 1.1” (14.5cm x 9.1cm x 2.8cm)
Weight	0.46 lbs, 7.4oz., 208g
Operating environment	Indoors
Operating temperature range	4o to 40o C (39o to 104o F)
Operating humidity range	0-90% relative humidity
Storage temperature range	-20 o to 70 o C (-4 o to 158 o F)
Electrical
Voltage	24VAC
Frequency	50/60 Hz Note: This is an RF device. Frequency shown because AC provided from HVAC system.
Load type(s)	HVAC
Maximum load	N/A
Minimum load	N/A
User replaceable fuse	No
Hardwired remote control	N/A
Retains all settings without power	Yes, saved in non-volatile EEPROM
Energy Consumption	1.25 Watts (52.10mA) – LED Backlight on, transmitting Insteon commands to other devices
Standby power consumption	< 0.7 Watts (26.92mA) – LED backlight off, not receiving or transmitting Insteon commands
Certifications	FCC ID Pat 15B & 15C and IC: RSS-210 Issue 8 (US/Can) ETSI EN 300 220-1 & 220-2, ETSI EN 301 489-1 & 489-3 (Eu) AS/NZ 4268 (C-Tick N16509)
FCC I.D.	SBP2441T
Marks	WEEE, RoHS (All models) C-Tick N16509 (Aus/NZ model)
Safety approval(s)	N/A, low voltage device

Troubleshooting

Problem	Possible cause	Solution
After screwing into wall, Insteon Thermostat’s front face pops open and has a hard time staying closed.	The protective shielding on the cable jacket was not stripped back enough, interfering with components.	Strip back protective shielding so face snaps in securely.
The A/C is not working after installing Insteon Thermostat.	You may have accidentally shorted the common wire, which shorted the transformer.	Replace the common wire.

After powering up or a factory reset, Insteon Thermostat displays a two-digit error code instead of the ambient temperature.	It didn’t boot up fully.	Open Insteon Thermostat and tap the reset button. Close the unit and wait for it to reboot. If problem persists, call the Insteon Support Line.
I replaced my Insteon Thermostat with a new one, but now SmartLinc and Insteon app don’t recognize it.	SmartLinc and the Insteon app communicate via Insteon I.D.s. They are still trying to communicate to the old thermostat’s I.D.	Update the Insteon I.D. on both SmartLinc and the Insteon app with your new thermostat’s I.D.
I’ve set my thermostat to Off but my furnace or AC unit continues to run for several minutes.	Insteon Thermostat for Heat Pumps cycles your heating and cooling system for a minimum of four minutes to prevent damage to your system.	This is normal behavior for Insteon Thermostat for Heat Pumps.

DECLARATION OF CONFORMITY

Hereby, Insteon declares that this device is in compliance with the essential requirements and other relevant provisions of the following Directives:

1. Electromagnetic Compatibility Directive 2004/108/EC
2. Hazardous Substance Directive 2005/95/EC

Technical data and copies of the original Declaration of Conformity are available and can be obtained from Insteon; 16542 Millikan Ave, Irvine, CA, USA. User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) This document contains important information for users with regard to the proper disposal and recycling of Insteon products. Consumers are required to comply with this notice for all electronic products bearing the following symbol: Environmental Information for Customers in the European Union European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.

It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

DECLARATION OF CONFORMITY TO R&TTE DIRECTIVE 1999/5/EC for the European Community, Switzerland, Norway, Iceland, and Liechtenstein Product category: general consumer (category 3). English: This equipment is in compliance with the essential requirements and other relevant provisions of the European R&TTE Directive 1999/5/EC

Certification and Warranty

FCC and Industry Canada Compliance Statement
This device complies with FCC Rules Part 15 and Industry Canada RSS-210. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

The digital circuitry of this device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio and television reception. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause such interference, which can be verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of the following measures:

• Re-orient or relocate the receiving antenna of the device experiencing the interference
• Increase the distance between this device and the receiver
• Connect the device to an AC outlet on a circuit different from the one that supplies power to the receiver
• Consult the dealer or an experienced radio/TV technician

WARNING: Changes or modifications to this device not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Limited Warranty
Seller warrants to the original consumer purchaser of this product that, for a period of two years from the date of purchase, this product will be free from defects in material and workmanship and will perform in substantial conformity to the description of the product in this Owner’s Manual. This warranty shall not apply to defects or errors caused by misuse or neglect. If the product is found to be defective in material or workmanship, or if the product does not perform as warranted above during the warranty period, Seller will either repair it, replace it, or refund the purchase price, at its option, upon receipt of the product at the address below, postage prepaid, with proof of the date of purchase and an explanation of the defect or error. The repair, replacement, or refund that is provided for above shall be the full extent of Seller’s liability with respect to this product. For repair or replacement during the warranty period, call the Insteon Support Line at 800-762-7845 with the Model # and Revision # of the device to receive an RMA# and send the product, along with all other required materials to:
Insteon
ATTN: Receiving
16542 Millikan Ave.
Irvine, CA 92606-5027
Limitations

The above warranty is in lieu of and Seller disclaims all other warranties, whether oral or written, express or implied, including any warranty or merchantability or fitness for a particular purpose. Any implied warranty, including any warranty of merchantability or fitness for a particular purpose, which may not be disclaimed or supplanted as provided above shall be limited to the two-year of the express warranty above. No other representation or claim of any nature by any person shall be binding upon Seller or modify the terms of the above warranty and disclaimer. Home automation devices have the risk of failure to operate, incorrect operation, or electrical or mechanical tampering. For optimal use, manually verify the device state. Any home automation device should be viewed as a convenience, but not as a sole method for controlling your home.

In no event shall Seller be liable for special, incidental, consequential, or other damages resulting from possession or use of this device, including without limitation damage to property and, to the extent permitted by law, personal injury, even if Seller knew or should have known of the possibility of such damages. Some states do not allow limitations on how long an implied warranty lasts and/or the exclusion or limitation of damages, in which case the above limitations and/or exclusions may not apply to you. You may also have other legal rights that may vary from state to state. U.S Patent No. 7,345,998, International patents pending © Copyright 2012 Insteon, 16542 Millikan Ave., Irvine, CA 92606, 800-762-7845, www.insteon.com

REFERENCE:

DOWNLOAD MANUALS:

INSTEON 2441ZTH Wireless Thermostat Owners Manual

OTHER MANUALS:

INSTEON 2441ZTH Wireless Thermostat Quick Start Guide

INSTEON 2441ZTH Wireless Thermostat Owners Manual
