HONEYWELL HR92 Wireless Radiator Controller Thermostat

OVERVIEW

Honeywell HR92 is a wireless radiator controller with a modern ergonomically-design and provides features for convenience and energy saving. The controller use two-way communication based on a frequency of 868MHZ which can be easily integrated in heating systems evohome and other applications.

User-friendly

Large adjustable display. The display is switched On as soon as the button is pressed or the wheel is rotated.
Display of information by using symbols and line of text example zone name.
Manual setpoint override possible at any time

Mounting

Fast installation due to the simple lock mechanism closing the device at the radiator valve. Easily to bound into the system BINDING information and Radio frequency communication check is displayed on the display.

Energy saving features:

With the auto-window function, the radiator valve is closed when ventilating the room.
Optional the HR92 can be connected with external wired window contact HCA30, cable ACS90 is required.
Basic operating settings (parameters) are selectable

Example:

Select local language
Switch backlight display On/Off
Change sensitivity of the window reaction time
Valve stroke
Temperature offset
Window function Auto or external window contact

MAIN FEATURES

New attractive design with high gloss polished surface
User friendly because of large, adjustable backlight display it can be easily viewed or folded away flat.
Local language selection
Displays zone name
Fast mounting and taking into operation through simple commissioning. Fits on the most common radiator valves of the type M30x1,5
Connection of external wired window contact
Anti-theft protection for batteries and device
Basic operating settings

Operating Elements And Display

Displays that the room temperature is received from the central controller
Displays that the room setpoint was changed manually
Operation lock
Battery status
Temperature display/parameter information
Text display, 9 characters
Info button, for displaying the room (zone) information; Function button for binding and configuring
Adjustment dial
Radio signal (field strength)
Radio communication display
Radio communication error

SPECIFICATION

ELECTRICAL DATA

Power supply: Battery or chargeable batteries
Battery Type: LR6, AA, AM3
- 2X ALKALINE 1,5V
Alternative:
- 2x Lithium 1,5V
- 2x NiMH 1,2V rechargeable batteries
Display Backlight display: Text based display 9 characters 30x26mm (BxH)

ENVIRONMENTAL AND STANDARDS

Environmental temperature : 0 ….. +50 ºC
Storage temperature: -20 …+55 ºC
Humidity: 10 … 90 % relative humidity

TEMPERATURE CONTROL

Internal Sensor
Sensor: NTC

MECHANICAL DATA

Dimensions (HxWxD): 60 x 54 x 96 mm
Material: PC
IP Class: IP 30
Valve connection: M30 x 1,5

OPTION

Power Module für external
Power supply: APS90 (9…24V AC/DC)
Vandalism protection: AVS90
External window contact: HCA30
Connection cable 2,0m
(for ext. Window contact HCA30) : ACS90
Front Cap Chromed: AFA90 (VPE 3pcs)

HR92 Single Packs EAN CODE

HR92 5025121383943
HR92UK 5025121382564
HR92 WE 5025121383929

HR92 Four Packs

HR924UK pack 5025121382557contains 4x HR92UK
HR924WE pack 5025121382236 contains 4x HR92WE

Installation

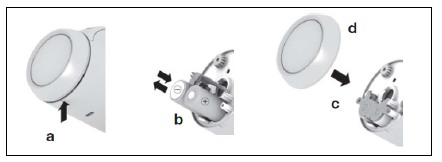

Insert Batteries
- 2x 1,5V Typ: LR6, AA,AM3
- Set language
- BIND HR92 with room controller if not yet bound Remove Thermostat
Remove Thermostat

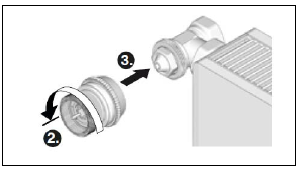

Remove valve baseplate
Put the Valve baseplate on the valve use adaptor if necessary
Connect the valve baseplate with the controller

HR92 with wired external Window contact HCA30

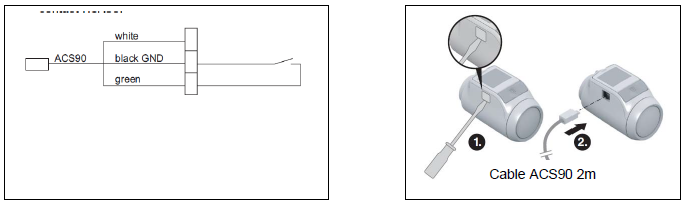

Wiring diagram cable ACS90 with window contact HCA30

Options

The radiator controller and the batteries can be secured against stealing by using the supplied screws
The white front cap can be replaced with chromed cap
The display can be fixed with display holder (angle 40°)
