Honeywell Home RTH3100C Non-Programmable Digital Thermostat User Guide

Honeywell Home RTH3100C Non-Programmable Digital Thermostat

Installation is Easy

1. Label wires and remove your old thermostat
2. Install and wire your new thermostat
3. Set your new thermostat to match your heating/cooling system

Do you need assistance? We are here to help.
Call 1-800-468-1502 for wiring assistance before returning the thermostat to the store.
For use with Heat Pump Systems ONLY.

ATTENTION: MERCURY RECYCLING NOTICE
This product does not contain mercury. However, this product may replace a product that contains mercury. Mercury and products containing mercury should not be discarded in household trash.
For more information on how and where to properly recycle a thermostat containing mercury in the United States, please refer to the Thermostat Recycling Corporation at  www.thermostat-recycle.org.
For mercury thermostat recycling in Canada, please refer to Switch the Stat at www.switchthestat.ca

NOTICE: To avoid possible compressor damage, do not run air conditioner if the outside temperature drops below 50°F (10°C).

Customer Assistance

For assistance with this product, please visit http://yourhome.honeywell.com.
Or call Honeywell Customer Care toll-free at 1-800-468-1502.
To save time, please note your model number and date code before calling.
Pull at the bottom to remove the thermostat from the wallplate.
Turn the thermostat over to find the model number and date code.

Installation

1. Turn Off Power to the Heating/Cooling System
2. Remove Old Thermostat
   Remove old thermostat but leave the wallplate with wires attached.
3. Label Wires with Tags
   Label the wires using the supplied wire labels as you disconnect them. If any wires are not attached to the terminals in your old thermostat, do not connect them to your new thermostat.
   Wrap the bare metal ends of each unused wire with electrical tape, so it cannot touch and short out other wires.
4. Separate Wallplate from New Thermostat
   Remove wallplate from the new thermostat and mount onto wall.
5. Mount Wallplate
   Mount the new wallplate using the included screws and anchors.
   Drill 3/16-in. holes for drywall
   Drill 3/32-in. holes for plaster
6. Connect Wires
   • Match each labeled wire with the same letter on the terminal.
   • Use a screwdriver to loosen screw terminals, insert wires, then tighten screws.
   • Push any excess wire back into the wall opening.

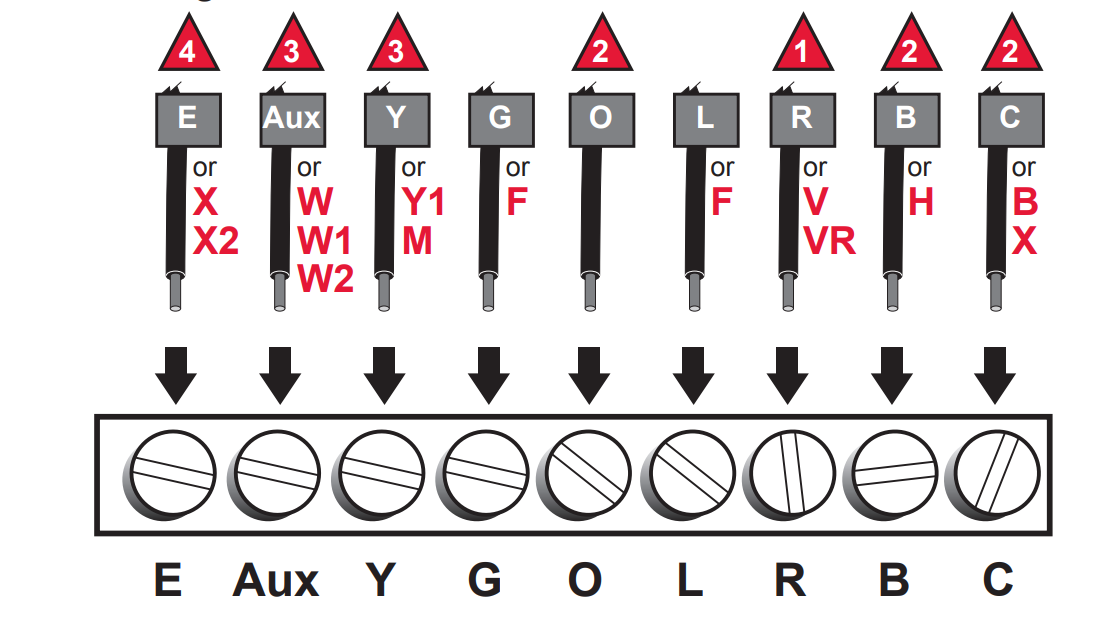

     If labels do not match the letters on the thermostat, check “Alternate Wiring” on page 6 and connect to the terminal as shown (see notes, below).
     We are here to help. Call 1-800-468-1502 for wiring assistance.
     Alternate Wiring
   • If the old thermostat had both V and VR wires, contact a heating/cooling contractor for help.
   • If the old thermostat had both O and B wires, attach the B wire to the C terminal. If another wire is attached to the C terminal, call 1-800-468-1502 for help.
   • If the old thermostat had W1, W2 and Y wires, contact a heating/cooling contractor for help.
   • If no wire matches the E terminal on the new thermostat, use a small piece of wire to connect terminals E and Aux.
7. Install Batteries
8. Install Thermostat onto Wallplate
   Install the thermostat onto the wallplate on the wall.
9. Turn Power Back On
   Turn the power back on to the heating/cooling system.

System Setup

Enter System Setup
Next, you must set the thermostat to control the heating and cooling system in your home. To enter the system setup, press and hold both the s and t buttons until the display changes (approximately 5 seconds).
Changing Settings

1. Press t to change the setting.
2. Press s to advance to the next function.
3. Press and hold s and t to exit and save settings.

Function	Description Press the T button to	Setting
6	select your auxiliary heating system and optimize its operation	3 Heat pump
8	select your emergency heating system and optimize its operation	9 Electric furnace: Use this setting if you have any type of electric heating system.
14	select Fahrenheit or Celsius temperature display	0   Fahrenheit temperature display (°F) 1   Celsius temperature display (°C)

About your new thermostat

Your new Honeywell thermostat has been designed to give you many years of reliable service and easy-to-use, push-button climate control.

• One-touch temperature controls
• Large, clear backlit display is easy to read, even in the dark
• Switchable fan control (auto or continuous fan)
• Displays both room temperature and temperature setting
• Built-in compressor protection

Thermostat controls

Display screen

• Cool on: Cooling system is on.
• Heat on: Heating system is on.
• Em: Emergency heat is on.
• Aux: Auxiliary heat is on.
  When Cool On/Heat On is flashing, compressor protection is engaged (see page 10).

Built-in compressor protection

This feature helps prevent damage to the compressor in your air conditioning or heat pump system.
Damage can occur if the compressor is restarted too soon after shutdown. This feature forces the compressor to wait 5 minutes before restarting.
During the wait time, the display will flash the message Cool On or Heat On. When the safe wait time has elapsed, the message stops flashing and the compressor turns on.

Battery replacement

Batteries are optional if your thermostat was wired for AC power when installed. Install fresh batteries immediately when the REPLACE BATT warning begins flashing.
Even if the warning does not appear, you should replace batteries once a year, or before leaving home for more than a month.
Batteries provide backup power to the display during power interruptions. All settings are permanently stored in memory and do not require battery power.

Accessories/replacement parts

To order, please call Honeywell Customer Care toll-free at 1-800-468-1502.
Cover plate*………………..Part No. 50002883-001
*Use to cover marks left by old thermostats.

Troubleshooting

If you have difficulty with your thermostat, please try the following suggestions.
Most problems can be corrected quickly and easily.

• Display is blank
  Make sure fresh AAA alkaline batteries are correctly installed.
• Heating or cooling system does not respond
  • Set system switch to Heat. Make sure the temperature is set higher than the Inside temperature.
  • Set system switch to Cool. Make sure the temperature is set lower than the Inside temperature.
  • Wait 5 minutes for the system to respond.
• Temperature settings do not change
  Make sure heating and cooling temperatures are set to acceptable ranges:
  • Heat: 40° to 90°F (4.5° to 32°C).
  • Cool: 50° to 99°F (10° to 37°C).
• “Cool On” or “Heat On” is flashing
  Compressor protection feature is engaged. Wait 5 minutes for the system to restart safely, without damage to the compressor.
• “Heat On” is not displayed
  Set the System switch to Heat, and set the temperature level above the current room temperature.
• “Cool On” is not displayed
  Set the System switch to Cool, and set the temperature level below the current room temperature.
  For assistance with this product, please visit honeywellhome.com or call Resideo Customer Care toll-free at 1-800-468-1502.

1-Year Limited Warranty

Resideo warrants this product, excluding battery, to be free from defects in workmanship or materials, under normal use and service, for a period of one (1) year from the date of first purchase by the original purchaser. If at any time during the warranty period the product is determined to be defective due to workmanship or materials, Resideo shall repair or replace it (at Resideo’s option).
If the product is defective,

1. return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or
2. call Resideo Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be returned to the following address:

Resideo Return Goods, 1985 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Resideo that the defect was caused by damage that occurred while the product was in the possession of a consumer.
Resideo’s sole responsibility shall be to repair or replace the product within the terms stated above. RESIDEO SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY RESIDEO MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Resideo Customer Care, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-468-1502.
Resideo Technologies, Inc.
1985 Douglas Drive North, Golden Valley, MN 55422
1-800-468-1502
www.resideo.com 33-00110ES—05 M.S. Rev. 10-21 | Printed in United States
©2020 Resideo Technologies, Inc. All rights reserved.
The Honeywell Home trademark is used under license from Honeywell International, Inc.
This product is manufactured by Resideo Technologies, Inc. and its affiliates. Todos los derechos reservados.
La marca comercial Honeywell Home se utiliza bajo licencia de Honeywell International, Inc.
Este producto es fabricado por Resideo Technologies, Inc. y sus afiliados.
