Comfortheat MWD5 WiFi THERMOSTAT General Wiring Diagram

Contents hide
1 Comfortheat MWD5 WiFi THERMOSTAT
2 WIRING
3 REFERENCE:

Comfortheat

Comfortheat MWD5 WiFi THERMOSTAT

Comfortheat- MWD5- WiFi -THERMOSTAT  -PRO

WIRING

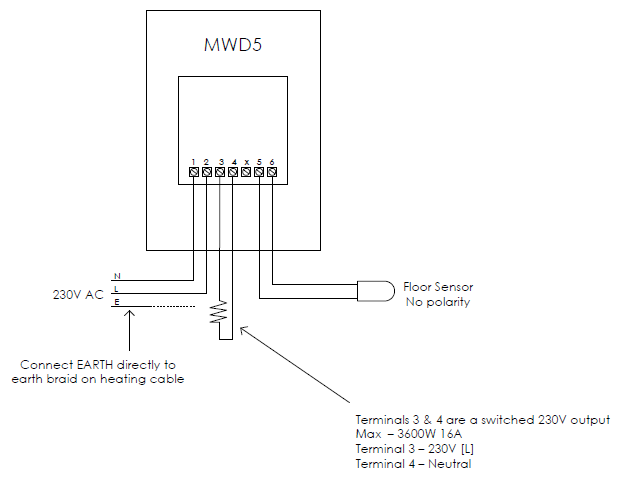

WIRING OF MWD5 (WiFi) THERMOSTATComfortheat- MWD5- WiFi -THERMOSTAT - 1

MWD5 (WiFi) THERMOSTAT AND CONTACTOR

Comfortheat- MWD5- WiFi -THERMOSTAT - 2

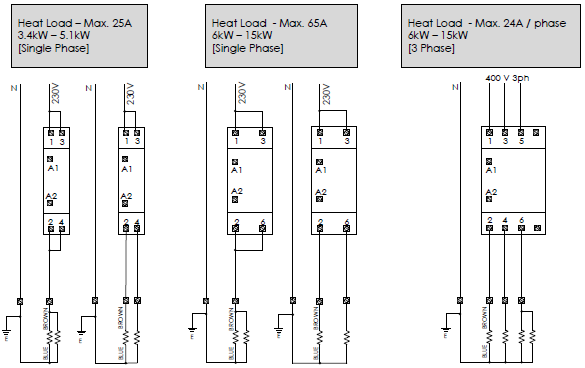

CONTACTOR WIRING DETAILS

Comfortheat- MWD5- WiFi -THERMOSTAT - 3

REFERENCE:

DOWNLOAD MANUALS:

Comfortheat MWD5 WiFi THERMOSTAT General Wiring Diagram

OTHER MANUALS:

Comfortheat MWD5 ELECTRIC Programmable Thermostat User Manual

Comfortheat MWD5 HYDRONIC Programmable Thermostat Operating Manual

Comfortheat MWD5 Programmable Thermostat User Manual
