Comfortheat MTC2 THERMOSTAT Wiring Diagram

Contents hide
1 Comfortheat MTC2 THERMOSTAT
2 WIRING OF MTD2 THERMOSTAT
3 WIRING OF MTD2 THERMOSTAT AND CONTACTOR
4 REFERENCE:

Comfortheat

Comfortheat MTC2 THERMOSTAT

Comfortheat-MTC2-THERMOSTAT-PRODUCT

WIRING OF MTD2 THERMOSTAT

Heating load less than 3600W

Comfortheat-MTC2-THERMOSTAT-FIG-1

NOTE: The earth screen of all heating cables is to be connected to EARTH

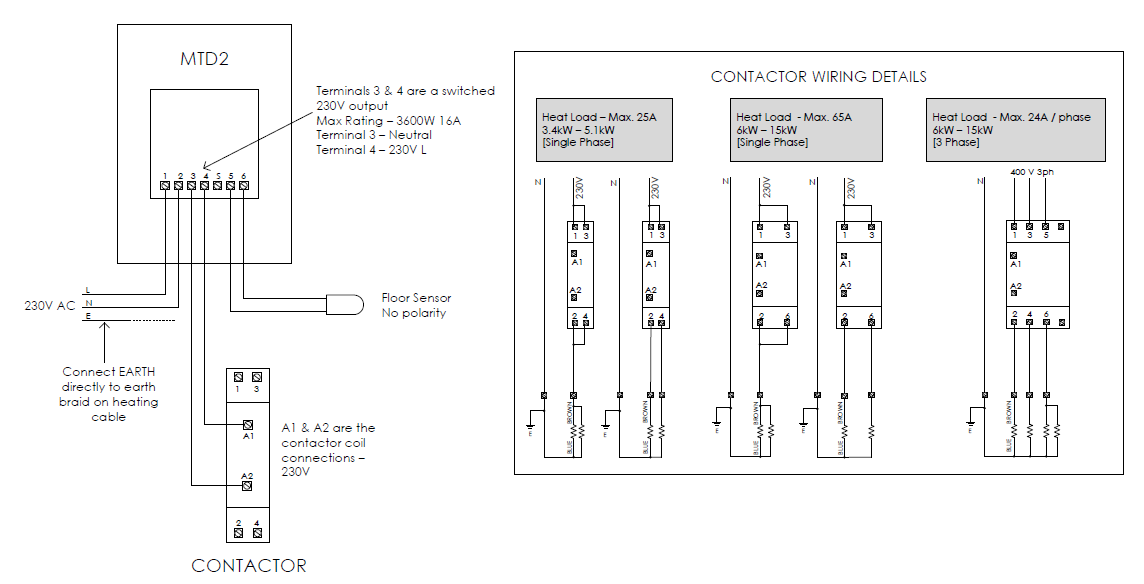

WIRING OF MTD2 THERMOSTAT AND CONTACTOR

Where the floor heating load exceeds 3400W a contactor needs to be installed

Comfortheat-MTC2-THERMOSTAT-FIG-2

NOTE: The earth screen of all heating cables is to be connected to EARTH

ComfortHeat Australia Pty Ltd 8/11 Ponderosa Parade Warriewood NSW 2102 p: 02 9979 8600  [email protected]  www.comfortheat.com.au
