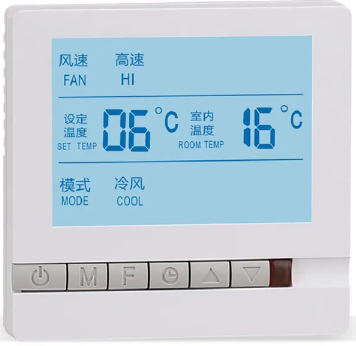

Zhilande TZ-103 Digital Programable Thermostat
Specification
- Warranty: 1 Year
- Place of Origin: Zhejiang, China
- Model Number: TZ-103
- Equipment Temperature: 20-90℃
- Temperature Control Accuracy: 5℃
- Temperature Sensor: NTC
- Maximum Current: 16A
- After-sale Service: Online technical support
- Brand Name: zhilande
- Temperature Setting Range Indoor: ±5-35℃
- Overheat Protection Temperature: 75℃(Adjustable)
- Rating Load: 3000w
Introduction
Zhilande TZ-103 Digital Programmable Thermostat is an electronic device used to control the temperature of a heating or cooling system in residential or commercial buildings. It is designed to be programmable, meaning users can set different temperature schedules for different times of the day or week. The thermostat is equipped with a large LCD display screen that shows the current temperature, set temperature, and time. It also has several control buttons that allow users to adjust the settings as needed. The Zhilande TZ-103 Digital Programmable Thermostat can be used for a variety of heating or cooling systems, including HVAC systems, central air conditioning, electric heating, and more. It is a convenient and energy-efficient way to manage indoor temperature and improve comfort in any space.
What Is In The Box
- Thermostat
- User manual
- Screws
- External sensor
Installation
- Turn off the power: Before installing your new thermostat, turn off the power to your heating and cooling system. This can be done by switching off the circuit breaker or removing the fuse.
- Remove the old thermostat: Remove the cover of your old thermostat and unscrew it from the wall plate. Carefully disconnect the wires from the thermostat terminals and label them to ensure proper connection to the new thermostat.
- Install the wall plate: Mount the new wall plate to the same location as the old thermostat. Make sure the plate is level and secure it to the wall with screws.
- Connect the wires: Connect the wires from the heating and cooling system to the corresponding terminals on the new thermostat. Refer to the installation manual for specific instructions on wiring.
- Attach the thermostat: Attach the thermostat to the wall plate by aligning it with the slots and pressing gently until it snaps into place.
- Power on and test: Turn on the power to the heating and cooling system. Set the temperature on the new thermostat and verify that the system turns on and off as expected.
How To Work
- Set the current time and day: The first step is to set the current time and day on the thermostat. This can be done by pressing the “Set” button and following the instructions in the user manual.
- Set the desired temperature: Use the “Up” and “Down” buttons to set the desired temperature for each period of the day (morning, day, evening, and night).
- Set the schedule: The thermostat allows you to set a different temperature for each period of the day, based on your preferences and lifestyle. Use the “Set” button to switch between periods, and then adjust the temperature using the “Up” and “Down” buttons.
- Override the schedule: If you need to change the temperature outside of the programmed schedule, you can do so by pressing the “Up” or “Down” button until the desired temperature is reached. The thermostat will maintain this temperature until the next programmed period.
- View the current temperature: The thermostat displays the current temperature in the room. You can view it at any time by pressing the “Display” button.
- Set the fan mode: The thermostat allows you to set the fan mode to “Auto” or “On”. In “Auto” mode, the fan will turn on and off with the heating or cooling system. In “On” mode, the fan will run continuously.
- Adjust the backlight: The thermostat has a backlight that can be adjusted for brightness and duration. You can adjust the backlight settings by pressing the “Set” button and following the instructions in the user manual.
FAQS
Q: What is the temperature range of the Zhilande TZ-103 thermostat?
A: The temperature range of the Zhilande TZ-103 thermostat is 5℃-35℃ (41℉-95℉).
Q: Can the Zhilande TZ-103 thermostat be used for both heating and cooling systems?
A: Yes, the Zhilande TZ-103 thermostat can be used for both heating and cooling systems.
Q: Is the Zhilande TZ-103 thermostat programmable?
A: Yes, the Zhilande TZ-103 thermostat is programmable, allowing users to set temperature schedules for different times of the day or week.
Q: What is the power supply of the Zhilande TZ-103 thermostat?
A: The Zhilande TZ-103 thermostat is powered by two AA batteries.
Q: Does the Zhilande TZ-103 thermostat have a backlight?
A: Yes, the Zhilande TZ-103 thermostat has a backlight for easy reading in low light conditions.
Q: What type of heating systems is the Zhilande TZ-103 thermostat compatible with?
A: The Zhilande TZ-103 thermostat is compatible with a wide range of heating systems, including gas boilers, electric heating, and floor heating.
Q: Can multiple Zhilande TZ-103 thermostats be connected to the same heating system?
A: Yes, multiple Zhilande TZ-103 thermostats can be connected to the same heating system.
Q: Can the Zhilande TZ-103 thermostat be controlled remotely?
A: No, the Zhilande TZ-103 thermostat cannot be controlled remotely.
Q: Does the Zhilande TZ-103 thermostat have a vacation mode?
A: Yes, the Zhilande TZ-103 thermostat has a vacation mode for when you are away from home.
Q: Does the Zhilande TZ-103 thermostat have a lock function?
A: Yes, the Zhilande TZ-103 thermostat has a lock function to prevent unauthorized changes to the settings.
Q: Can the Zhilande TZ-103 thermostat display temperature in Celsius and Fahrenheit?
A: Yes, the Zhilande TZ-103 thermostat can display temperature in both Celsius and Fahrenheit.
Q: Is the Zhilande TZ-103 thermostat easy to install?
A: Yes, the Zhilande TZ-103 thermostat is easy to install and comes with a user manual and installation guide.
Q: Can the Zhilande TZ-103 thermostat learn your temperature preferences?
A: No, the Zhilande TZ-103 thermostat cannot learn your temperature preferences.
Q: Does the Zhilande TZ-103 thermostat have a filter change reminder?
A: No, the Zhilande TZ-103 thermostat does not have a filter change reminder.
Q: Does the Zhilande TZ-103 thermostat have a battery indicator?
A: Yes, the Zhilande TZ-103 thermostat has a low battery indicator to remind you when the batteries need to be replaced.
