Wenzhi WZ-X107 Smart WiFi Thermostat User Manual


Wenzhi WZ-X107 Smart WiFi Thermostat



state-of-the-art thermostat that offers intelligent control and practical administration of your heating and cooling systems is the Wenzhi WZ-X107 Smart WiFi Thermostat. It provides an increased degree of comfort and energy efficiency in your home or business thanks to its WiFi connection and smart features. Using smartphone or tablet and the WZ-X107 thermostat, you can remotely manage and keep an eye on your HVAC system. You may quickly access and change the temperature settings from any location by connecting to your home’s WiFi network, offering convenience and flexibility. The WZ-X107 thermostat’s customizable scheduling functionality is one of its primary features. To accommodate your everyday habits and preferences, you may establish personalized temperature schedules. By automatically altering the temperature depending on your preferred settings at various times of the day, you are able to maximize the use of energy. Additionally, the thermostat has advanced algorithms that analyze your consumption habits and change the temperature as necessary to maximize ENERGY saving while maintaining the highest level of comfort. It may adjust automatically to your lifestyle in order to maintain comfortable home climate. The WZ-X107 thermostat offers smooth interaction with voice assistants like Amazon Alexa or Google Assistant thanks to a WiFi connection. This gives you the option to operate the thermostat with voice commands, providing pleasant hands-free experience. With digital display and an intuitive user interface, the thermostat’s settings are simple to read and manage. You can efficiently monitor and control the environment in your house or place of business thanks to the real-time temperature information it gives. The WZ-X107 thermostat is simple to install and works with the majority of common HVAC systems. However, if you have questions regarding the installation procedure or need help making electrical connections, it is advised that you speak with professional. In conclusion, the Wenzhi WZ-X107 Smart WiFi Thermostat is cutting-edge home automation tool that puts energy-saving temperature management at your fingertips. Its WiFi connection, customizable scheduling, and smart features provide comfort, convenience, and the possibility for energy savings for more pleasant and effective home or office environment.

Package includes

  • 1 X thermostat
  • 2 X screws
  • 1 X English user manual
  • 1 X 3 meters external sensor (Only GB WiFi included)


  • Material: PC
  • Power Supply:95V-240V / 50-60Hz
  • Current Load:3A (Water Heating or gas boiler), 16A (Electric Heating)
  • Setting Temperature Range:5-60 ℃
  • Control Accuracy: ±1℃
  • Model Number: WZ-X107
  • Wattage: 3A/16A
  • Brand Name: Wenzhou
  • Origin: Mainland China
  • Certification: CE

Product Description

  • Single-stage heating and single-stage cooling control
  • Low energy consumption
  • Flexible working frequency band
  • Temperature remote control.
  • Works With Alexa and Google Home.
  • Safer and better protect your privacy
  • Supports 7-day programming
  • The new version supports Bluetooth + wifi, which enables faster network configuration.
  • Touch control

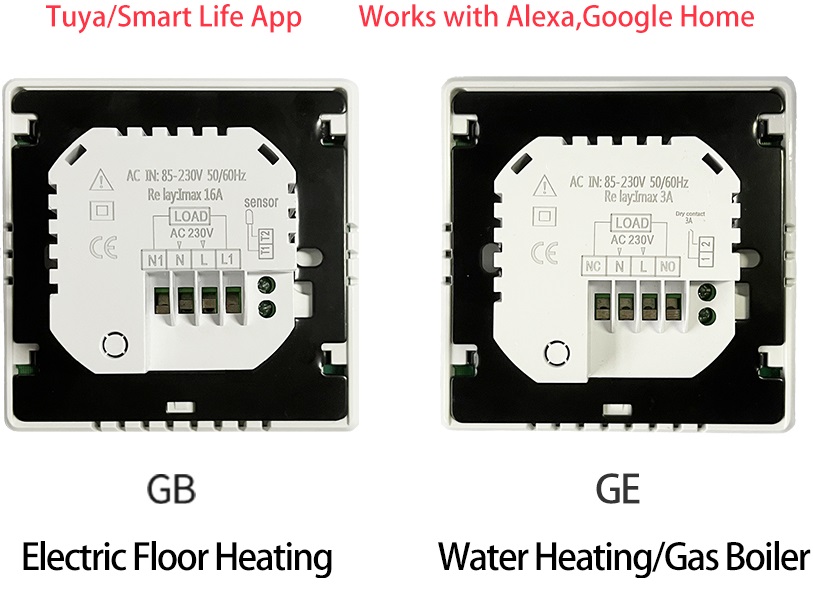

    Note: GE(water heating or gas boiler) do not have 3 meters external sensor



  • Please confirm that this product is suitable for your heating equipment before installation;
  • Be sure to keep the power off before installation or maintenance;

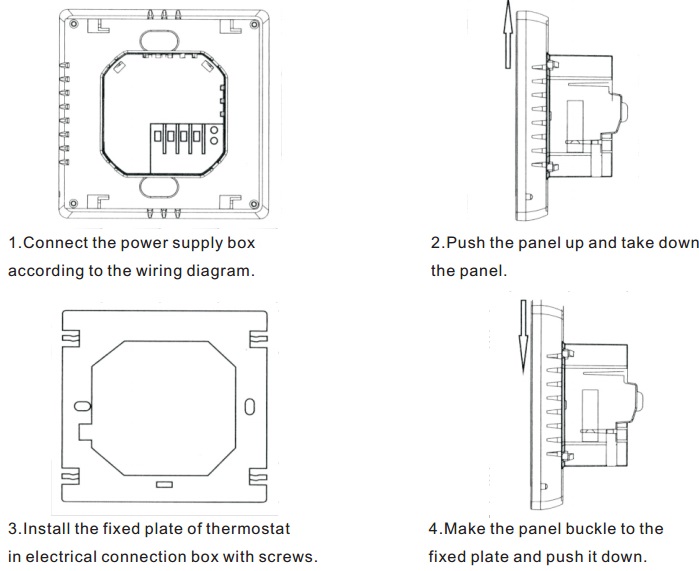

  • Please strictly follow the wiring diagram for wiring installation;
  • Please confirm that the fastener is suitable for this product when installed on the wall;
  • Do not pull the cable hard, otherwise, the product will be damaged;
  • If a hard plastic wire is used in the installation process, it must be bent to an appropriate angle in advance;
  • Please arrange professional installation;
  • Please contact the after-sales service for equipment failure, please do not try to repair it yourself;
  • After installation, please check this manual again to ensure normal and safe use, and keep this manual properly

Wifi thermostat controller







The Wenzhi WZ-X107 Smart WiFi Thermostat is designed to provide convenient control and management of your heating and cooling system. Here is a brief overview of how to use the thermostat:

  1. Installation: Follow the manufacturer’s instructions to install the Wenzhi WZ-X107 thermostat. This typically involves wiring it into your existing heating and cooling system. If you are not comfortable with the installation process, it is recommended to seek professional assistance.
  2. WiFi Connection: Connect the thermostat to your home’s WiFi network using the provided instructions. This allows you to control the thermostat remotely through a mobile app or web interface.
  3. Mobile App Setup: Download and install the compatible mobile app for the Wenzhi WZ-X107 thermostat on your smartphone or tablet. Follow the app’s instructions to set up and connect the thermostat to the app.
  4. Control and Adjustments: Once the thermostat is installed and connected, you can use the mobile app or web interface to control and adjust the temperature settings. The app usually provides an intuitive interface for temperature adjustments.
  5. Scheduling: Set up temperature schedules according to your preferences. You can program different temperature levels for various times of the day to ensure comfort and energy efficiency.
  6. Remote Access: Utilize the mobile app to remotely control the thermostat when you are away from home. This allows you to adjust the temperature before you arrive back home, ensuring a comfortable environment.
  7. Energy Monitoring: Some smart thermostats, including the Wenzhi WZ-X107, offer energy monitoring features. Use the app or web interface to track and analyze your heating and cooling usage to optimize energy efficiency.
  8. Voice Control: The Wenzhi WZ-X107 thermostat may be compatible with voice assistants such as Amazon Alexa or Google Assistant. If supported, you can control the thermostat using voice commands.
  9. Additional Features: Explore the additional features of the Wenzhi WZ-X107 thermostat, such as vacation mode, adaptive learning, or humidity control, if available. Familiarize yourself with these features to make the most of your thermostat’s capabilities.
  10. Maintenance and Filter Replacement: Regularly check and replace air filters as recommended by the manufacturer. Some smart thermostats provide reminders for filter replacement and maintenance tasks. Follow the manufacturer’s instructions for maintenance and filter replacement procedures.
  11. Troubleshooting: If you encounter any issues with the thermostat or have questions about its functionality, consult the user manual or contact the manufacturer’s support for troubleshooting guidance.

It’s important to note that specific instructions and features may vary depending on the exact model and version of the Wenzhi WZ-X107 thermostat. For detailed usage instructions and guidelines, refer to the manufacturer’s documentation that comes with the thermostat.


What is the Wenzhi WZ-X107 Smart WiFi Thermostat?
The Wenzhi WZ-X107 is a smart thermostat that allows you to control and manage your heating and cooling system remotely using a WiFi connection.

How does the Wenzhi WZ-X107 thermostat connect to WiFi?
The thermostat connects to your home’s WiFi network using a 2.4GHz wireless connection.

Can I control the Wenzhi WZ-X107 thermostat remotely?
Yes, you can control the thermostat remotely using the Wenzhi mobile app on your smartphone or tablet.

Does the Wenzhi WZ-X107 thermostat support voice control?
Yes, the thermostat is compatible with voice assistants like Amazon Alexa and Google Assistant, allowing you to control it using voice commands.

What features does the Wenzhi WZ-X107 thermostat offer?
The thermostat offers features such as programmable scheduling, temperature presets, energy-saving mode, vacation mode, and smart alerts for filter replacement or maintenance.

Does the thermostat have a touchscreen display?
Yes, the Wenzhi WZ-X107 thermostat features a touchscreen display for easy control and configuration.

Is the thermostat compatible with multi-stage heating and cooling systems?
Yes, the thermostat is compatible with most multi-stage heating and cooling systems, providing flexibility for various HVAC setups.

Can I monitor my energy usage with the Wenzhi WZ-X107 thermostat?
Yes, the thermostat provides energy usage reports, allowing you to track and analyze your heating and cooling consumption over time.

Does the Wenzhi WZ-X107 thermostat support geofencing?
Yes, the thermostat supports geofencing, which allows it to automatically adjust the temperature based on your location, saving energy when you’re away from home.

Can I integrate the Wenzhi WZ-X107 thermostat with other smart home devices?
Yes, the thermostat is compatible with popular smart home platforms such as SmartThings and IFTTT, enabling integration with other devices and automation.

Does the thermostat have a battery backup?
Yes, the Wenzhi WZ-X107 thermostat has a built-in battery backup that maintains its settings during power outages.

Is the Wenzhi WZ-X107 thermostat easy to install?
The thermostat is designed for relatively easy installation and comes with installation instructions. However, it’s recommended to consult a professional if you are unfamiliar with HVAC wiring.

Can I control multiple Wenzhi WZ-X107 thermostats in different zones of my home?
Yes, you can control multiple Wenzhi WZ-X107 thermostats individually using the mobile app, allowing you to manage different heating and cooling zones in your home.

Can I adjust the temperature remotely while I am away from home?
Yes, you can remotely adjust the temperature using the Wenzhi mobile app, allowing you to create a comfortable environment before you arrive home.

Does the Wenzhi WZ-X107 thermostat have a warranty?
The warranty coverage for the Wenzhi WZ-X107 thermostat may vary depending on the manufacturer and the seller. It is advisable to refer to the product documentation or contact the manufacturer for specific warranty information.


Wenzhi WZ-X107 Smart WiFi Thermostat User Manual
