Vive Comfort TP-P-705 Programmable Thermostat

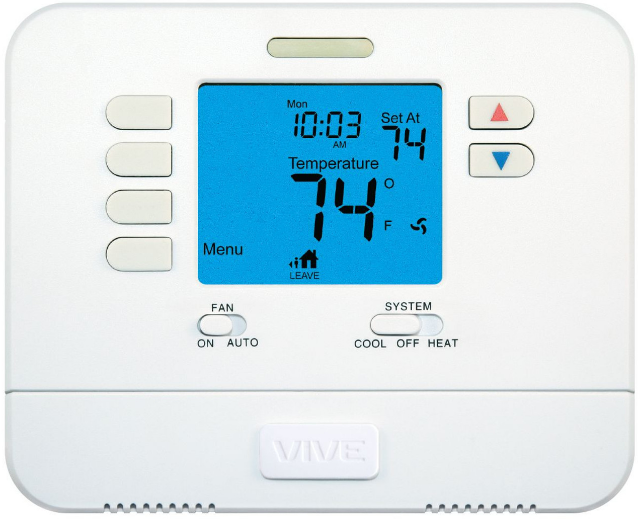

Thermostat Operation

1. LCD Display
2. Temperature Setpoint Buttons
3. Fan Switch
4. System Switch
5. Glow in the dark light button
6. User Buttons

1. LCD Display
   See page 4 for details about this display read out.
2. Fan Switch
   Select ON or AUTO. ON will run the fan continuously. AUTO will cycle the fan on only when the heating or cooling system is on.
3. System Switch
   Selects the operation mode on your HVAC system.
   Selecting HEAT turns on the heat mode. Selecting COOL turns on the cool mode. Selecting OFF turns both heating and cooling off.
4. Temperature Setpoint Buttons
   Press the + or – buttons to select the desired room temperature.
5. Glow in the dark light button
   The glow-in-the-dark light button will self-illuminate for several hours after exposure to ambient light. This button turns on the display light when pressed.
6. User Buttons
   Use these buttons to set up your programming options. Refer to the next page for detail.

Caution:
When the battery icon appears replace your AA batteries immediately. Failure to do so may result in your heating & cooling system becoming inoperable. Freezing or overheating can occur.

Thermostat Quick Reference

IMPORTANT:

The low battery icon is displayed when the AA battery power is low. Whenever the thermostat detects low battery voltage from the AA batteries, the low battery icon will begin flashing on the screen for 21 days (if the batteries are not changed). If the batteries are not changed 22 days after the thermostat detects low battery voltage, the thermostat screen will only show the flashing battery icon until the buttons are pressed. If the batteries are not changed 43 days after the thermostat detects low battery voltage, the thermostat screen will only show the flashing battery icon until buttons are pressed and the set points will offset to 85°F/29°C in cooling and 55°F/13°C in heating. At this stage, set point changes can be made temporarily but, the set points will change back to defaulted values after a 4-hour period. The thermostat will continue to perform this low battery flashing, temperature offset condition until the internal voltage threshold is reached. When the thermostat’s internal voltage threshold is reached, all relays will be opened and the thermostat will become inoperable until new batteries are installed.

Battery Door Information

Temporary and Permanent Hold Feature

• Temporary Hold: The thermostat will display HOLD and RUN SCHED on the left of your screen when you press the or key. If you do nothing, the temperature will remain at this setpoint temporarily until next time period. Your program setpoint will then replace your temporary setpoint.
• Permanent Hold: If you press the HOLD key at the left of your screen, you will see HOLD appear below the setpoint temperature in the display. The thermostat will now permanently stay at this setpoint and can be adjusted using the or keys.
• To return to the program: Press the RUN SCHED key at the left of your screen to exit either temporary or permanent hold.

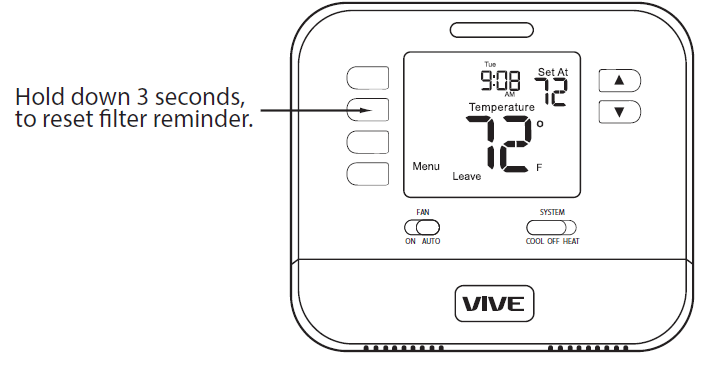

Filter Change Reminder

If your HVAC contractor has configured the thermostat to remind you when the air filter needs to be changed, you will see FILT in the display when your air filter needs to be changed. Resetting the filter change reminder: When FILT reminder is displayed, you should change your air filter and reset the reminder by holding down the second button from the top left side of the thermostat for 3 seconds.

Programming The Thermostat

Set Time

1. Press TIME
2. The day of the week will be flashing. Use the key to select the current day of the week.
3. Press PROGRAM
4. The current hour is flashing. Use the key to select the current hour. Make sure the correct a.m. or p.m. choice is selected.
5. Press PROGRAM
6. Minutes are now flashing. Use the  key to select current minutes.
7. Press the TIME button in order to go back a step.
8. Press HOLD/RUN when completed.

Set Program Schedule 5+1+1 or 7 Day

To customize your program schedule, follow these steps

Weekday:

1. Select HEAT or COOL with the system switch.
   Note: You have to program heat and cool each separately.
2. Press PROGRAM
3. Monday-Friday is displayed and WAKE is shown. You are now programming the wake-time period for the weekday setting.
4. Time is flashing. Use thekey to make your time selection for the weekday WAKE time period.
5. Press PROGRAM
6. The setpoint temperature is flashing. Use thekey to make your setpoint selection for the weekday wake period.
7. Press PROGRAM
8. Repeat steps 4 thru 7 for the weekday LEAVE time period, for the weekday RETURN time period, and for the weekday SLEEP time period.

Saturday:

Repeat steps 4 through 7 for the Saturday WAKE time period, LEAVE time period, RETURN time period, and the Saturday SLEEP time period.

Sunday:

Repeat steps 4 through 7 for the Sunday WAKE time period, LEAVE time period, RETURN time period, and for the Sunday SLEEP time period.

You can also use these time saving functions. You must be in Set Sched Programming Mode (Press Menu >> Press Set Sched) for the following functions to work:

1. To copy ALL time periods and temperatures of current system and day to ALL days, Press and Hold 2nd button down on left until the Days and Time flash.
2. To copy ALL time periods (only times) for ALL days to the opposite system (Heat to Cool / Cool to Heat), Press and hold the Glow in the Dark Light button down until Set Time and Time flash.

Warranty Information

Warranty Registration

Your new thermostat has a 2 year limited warranty. You must register your thermostat within 60 days of installation. Without this registration the warranty period will begin on date of manufacture. For warranty issues please contact the HVAC professional that installed this product. You can register your new thermostat in 2 ways:

• Online
  Go to the company website, select warranty registration and fill out a short registration form.
• Mail
  Complete the form below and mail it to the address shown.

Warranty Registration

• Name:
• Address:
• City:
• State:
• Zip:
• Thermostat Model:
• Date Installed:

Complete the form and mail it to:
Thermostat Warranty Registration

• Online
• Mail
• Pro1iaq
• P.O. Box 3377
• Springfield, MO 65808-3377

www.vivecomfort.com
