Vive Comfort TP-P-705 Programmable Thermostat
Wall Locations
The thermostat should be installed approximately 4 to 5 feet above the floor. Select an area with average temperature and good air circulation.
Installation Tip
Pick an installation location that is easy for the user to access. The temperature of the location should be representative of the building.
Do not install thermostat in locations:
- Close to hot or cold air ducts
- That are in direct sunlight
- With an outside wall behind the thermostat
- In areas that do not require conditioning
- Where there are dead spots or drafts (in corners or behind doors)
- Where there might be concealed chimneys or pipes
Subbase Installation
- Horizontal Mount
- Vertical Mount
Mount Thermostat
Align the 4 tabs on the subbase with corresponding slots on the back of the thermostat, then push gently until the thermostat snaps in place
All of our products are mercury-free. However, if the product you are replacing contains mercury, dispose of it properly. Your local waste management authority can give you instructions on recycling and proper disposal.
Battery Installation
Battery installation is recommended even if thermostat is hardwired (C terminal connected). When the thermostat is hardwired and batteries are installed, the thermostat will activate a compressor delay of 5 minutes when the thermostat detects a power outage from the hardwired power supply.
Important:
High quality alkaline batteries are recommended. Rechargeable batteries or low quality batteries do not guarantee a 1-year life span.

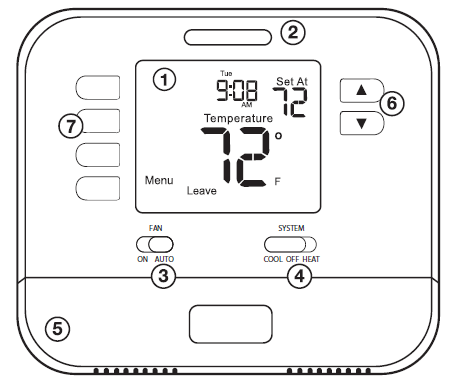

Getting to know your thermostat
- LCD Display
- Glow in the dark light button
- Fan Switch
- System Switch
- Easy change battery door
- Temperature Setpoint Buttons
- User Buttons

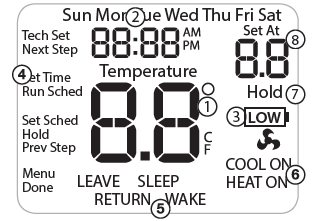

Indicates the current room temperature- Time and day of the week
- Low Battery Indicator: Replace batteries when this indicator is shown.
- Button Options
- Program Time Periods: This thermostat has 4 programmable time periods per day.
- System Operation Indicators: The COOL ON, HEAT ON or
icon will display when the COOL, HEAT, or (fan) is on. - Note: The Compressor delay feature is active if these are flashing.
- Hold is displayed when the thermostat program is permanently overridden.
- Setpoint: Displays the user-selectable setpoint temperature.
Important
The low battery indicator is displayed when the AA battery power is low. If the user fails to replace the battery within 21 days, the screen will only show the low battery indicator but maintain all functionality. If the user fails to replace the batteries after an additional 21 days (days 22-42 since first “low battery” display) the setpoints will change to 55˚F (Heating) and 85˚F (Cooling). If the user adjusts the setpoint away from either of these, it will hold for 4 hours and then return to either 55˚F or 85˚F. After day 63 the batteries must be replaced immediately to avoid freezing or overheating because the thermostat will shut the unit off until the batteries are changed.
Wiring
- If you are replacing a thermostat, make note of the terminal connections on the thermostat that is being replaced. In some cases, the wiring connections will not be color coded. For example, the green wire may not be connected to the G terminal.
- Loosen the terminal block screws. Insert wires then retighten terminal block screws.
- Place non-flammable insulation into the wall opening to prevent drafts.
Terminal Designations
- C Common wire from secondary side of cooling system transformer
- O Heat pump changeover valve energized in cooling
- B Heat pump changeover valve energized in heating
- W Heat relay
- RH Transformer power for heating
- RC Transformer power for cooling
- G Fan relay
- Y Compressor relay
Wiring Tips
- RH & RC Terminals For single transformer systems, leave the jumper wire in place between RH and RC. Remove jumper wire for two transformer systems.
- Heat Pump Systems If wiring to a heat pump, use a small piece of wire (not supplied) to connect terminals W and Y.
- C Terminal The C (common wire) terminal does not have to be connected when the thermostat is powered by batteries.
- Wire Specifications Use shielded or non-shielded 18-22 gauge thermostat wire.
Features
Temporary and Permanent Hold Feature
- When cool or heat is turned on, the thermostat will display HOLD and RUN SCHED on the left of your screen when you press the
button. - Temporary Hold: At this time if you do nothing, the temperature will remain at this setpoint temporarily until next time period.
- Permanent Hold: If you press the HOLD key on the left of your screen, you will see HOLD appear below the setpoint temperature in the display.
- The thermostat will now permanently stay at this setpoint and can be adjusted using the Vive- Comfort -TP-P-705- Programmable- Thermostat- 3keys.
- To Return to Running Schedule: Press the RUN SCHED button on the left of your screen to exit either temporary or permanent hold.
Filter Change Reminder
- If your installing contractor has configured the thermostat to remind you when the air filter needs to be changed, you will see FILT in the display when your air filter needs to be changed.

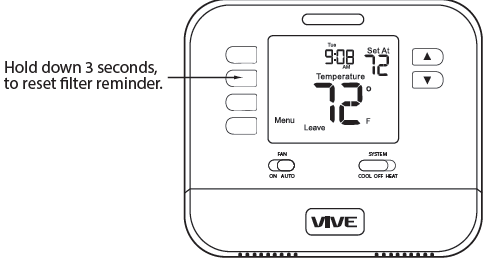

- Resetting the filter change reminder: When FILT reminder is displayed, you should change your air filter and reset the reminder by holding down the second button from the top left side of the thermostat for 3 seconds.
About The Badge
All of our thermostats use the same universal magnetic badge. Visit the company website to learn more about our free private label program.
Wiring Diagrams

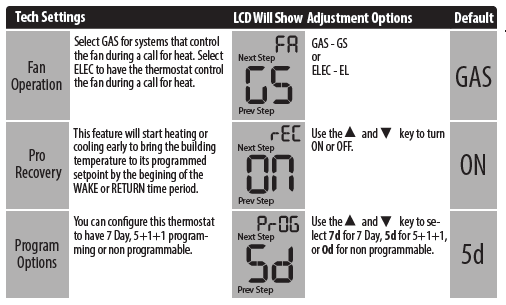

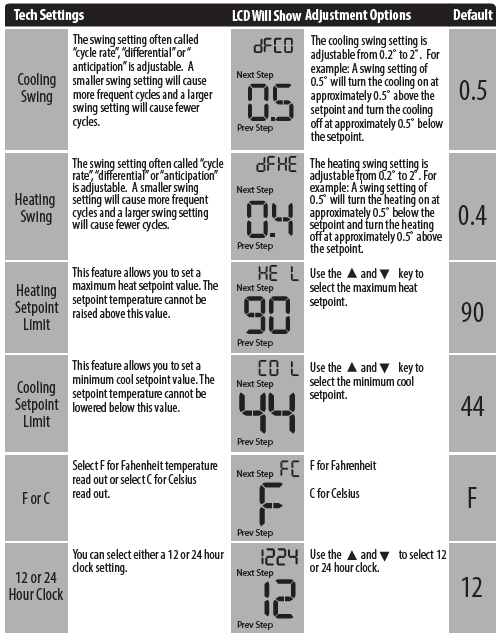

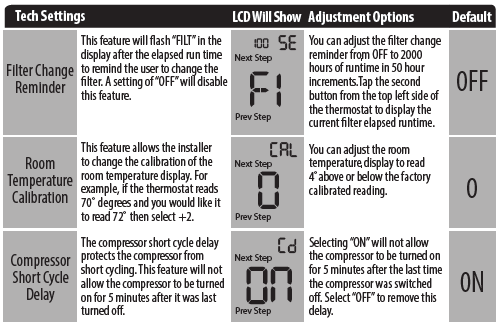

Tech Settings
Technician Setup Menu
- Press the MENU button
- Press and hold TECH SET button for 3 seconds. This 3 second delay is designed so that homeowners do not accidentally access the installer settings.
- Configure the installer options as desired using the table below.
- Use the or keys to change settings and the NEXT STEP or PREV STEP key to move from one step to another. Note: Only press the DONE key when you want to exit the Technician Setup options.
Set Time
- With system switch set to OFF, press the MENU button
- Press SET TIME
- Day of the week will be flashing. Use the key to select the current day of the week.
- Press NEXT STEP
- The current hour is flashing. Use the key to select the current hour. When using 12-hour time, make sure the correct a.m. or p.m. choice is selected.
- Press NEXT STEP
- Minutes are now flashing. Use the key to select current minutes.
- Press DONE when completed.
All of our programmable thermostats are shipped with an energy saving pre-program. You can customize this default program by following the steps on page 15. Your thermostat can be programmed to have all the weekdays the same, a seperate program for Saturday, and a seperate program for Sunday or 7 days individually. There are four time periods for each program (WAKE, LEAVE, RETURN, SLEEP).
Set Program Schedule 5+1+1 or 7 Day
- Select HEAT or COOL with the system switch. Note: You have to program heat and cool each separately.
- Press the MENU button (If menu does not appear first press RUN SCHED)
- Press SET SCHED. Note: Monday-Friday or (Monday if in 7 Day) is displayed and the WAKE icon is shown. You are now programming the wake time period for that day.
- Time is flashing. Use the key to make your time selection for that day’s WAKE time period.
- Press NEXT STEP
- The setpoint temperature is flashing. Use the or key to make your setpoint selection for that day’s WAKE time period.
- Press NEXT STEP 8. Repeat steps 4 thru 7 for that day’s LEAVE time period, RETURN time period and SLEEP time period.
You can also use these time-saving functions. You must be in Set Sched Programming Mode (Press Menu >> Press Set Sched) for the following functions to work
- To copy ALL time periods and temperatures of the current system and day to ALL days, Press and Hold 2nd button down on left until the Days and Time flash.
- To copy ALL time periods (only times) for ALL days to the opposite system (Heat to Cool / Cool to Heat), Press and hold the Glow in the Dark Light button down until Set Time and Time flash.
