Vive Comfort TP-N-771 Non-Programmable Thermostat Operational Manual

Vive Comfort TP-N-771 Non-Programmable Thermostat

Thermostat Operation

• LCD Display
• Glow in the dark light button
• Fan Switch
• System Switch
• Temperature Setpoint Buttons
• Easy change battery door
• LCD Display
  • See page 6 for details about this display read out.
• Glow in the dark light button
  • The glow in the dark light button will self illuminate for several hours after exposure to ambient light. This button turns on the display light when pressed.
• Fan Switch
  • Select ON or AUTO. ON will run the fan continuously. AUTO will cycle the fan on only when the heating or cooling system is on.
• System Switch
  • Selects the operation mode of your HVAC system. Selecting ON turns on either the heating or cooling. Selecting OFF turns off heating or cooling. Your thermostat is configured for either heat
    or cool.
• Temperature Setpoint Buttons
  • Press the + or – buttons to select the desired room temperature.
• Easy Change Battery
  • Door See page 4 for details.

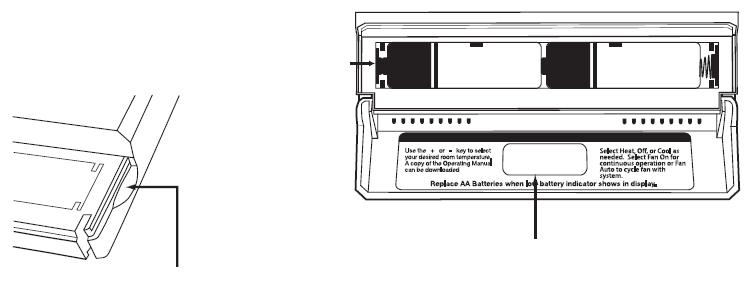

Battery Door Information

• Replace with 2 AA Alkaline Batteries. High quality Alkaline batteries are recommended.
• Simple operating instructions are found on the back of the battery door.
• Use the finger bevel on the lower portion of the thermostat to open the easy access battery door.

Important:

The low battery icon is displayed when the AA battery power is low. Whenever the thermostat detects low battery voltage from the AA batteries, the low battery icon will begin flashing on the screen for 21 days (if the batteries are not changed). If the batteries are not changed 22 days after the thermostat detects low battery voltage, the thermostat screen will only show the flashing battery icon until the buttons are pressed. If the batteries are not changed 43 days after the thermostat detects low battery voltage, the thermostat screen will only show the flashing battery icon until buttons are pressed and the set points will offset to 85°F/29°C in cooling and 55°F/13°C in heating. At this stage, set point changes can be made temporarily but, the set points will change back to defaulted values after a 4-hour period. The thermostat will continue to perform this low battery flashing, temperature offset condition until the internal voltage threshold is reached. When the thermostat’s internal voltage threshold is reached, all relays will be opened and the thermostat will become inoperable until new batteries are installed.

Warranty Information

Warranty Registration
Your new thermostat has a 5 year limited warranty. You must register your thermostat within 60 days of installation. Without this registration, the warranty period will begin on date of manufacture. For warranty issues please contact the HVAC professional that installed this product. You can register your new thermostat in 2 ways:

Online
Go to the company website, select warranty registration and fill out a short registration form.

Vive

• P.O. Box 3377
• Springfield, MO 65808-3377
• Toll Free : 888-776-1427
• Web: www.vivecomfort.com
• Hours of Operation: M-F 9 AM – 6 PM Eastern
