Vimar 21514.F.70 Home FAN Thermostat

Touch screen home automation system thermostat for room temperature control (heating and air conditioning), class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, can be interfaced with an actuator with proportional analog outputs 01466.1 to make a class V modulating room thermostat (contribution 3%), 1 input for electron-ic temperature sensor 20432, 19432 or 14432 or wired temperature sensor 02965.1, 1 programmable digital input, RGB LED backlighting – 2 modules.

F – with 3-speed and proportional FAN COIL control
S – with STAR control to recall a configurable scenario
H – with MAKE-UP ROOM and DO NOT DISTURB control

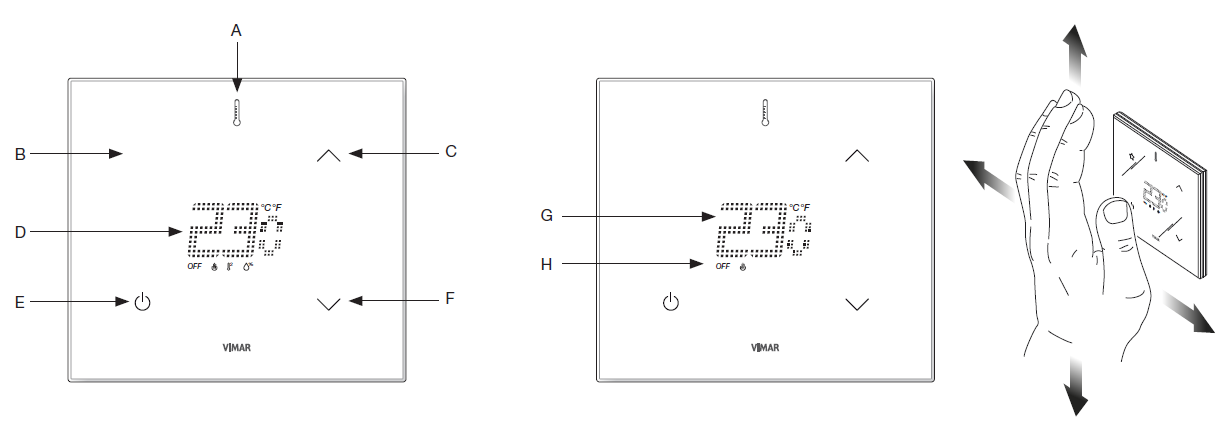

The thermostat is integrated with the By-me home automation system for temperature control in 2- or 4-pipe systems (heating/air conditioning) and neutral zone (4-pipe systems only), with the function to activate a second source that makes it possible to reach the desired thermal comfort faster. The thermostat has an RGB back-lit display with 4 keys to control the temperature set point, to turn the temperature control system on/off, and, depending on the type of device (.F or .S or . H) for the specific function that identifies it.

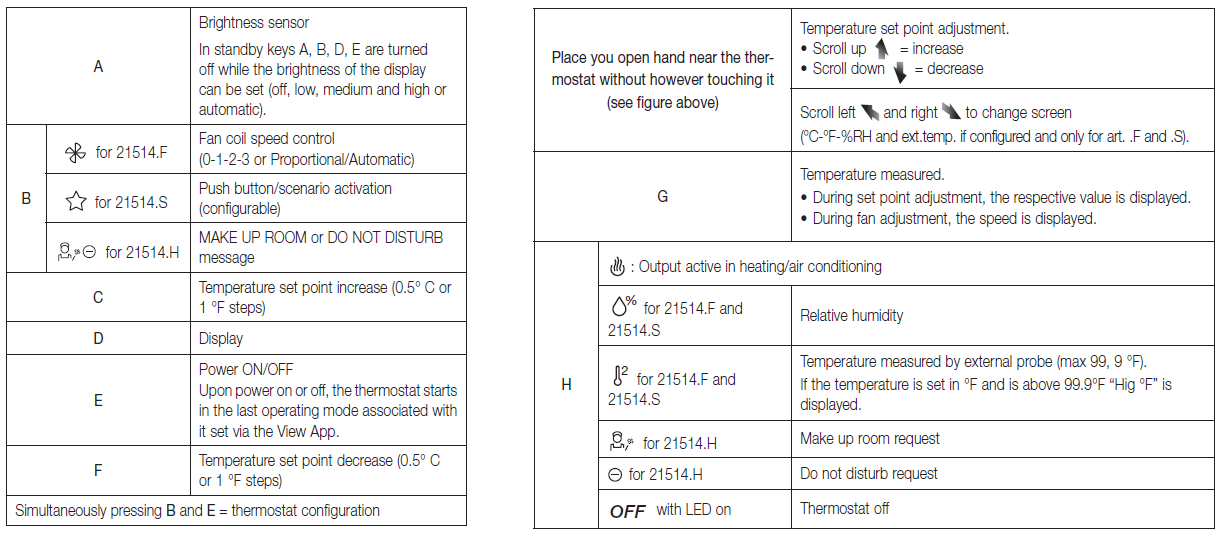

CHARACTERISTICS

Rated supply voltage: 29 V BUS.
Absorption: 50 mA.
Terminals:
- 2 terminals (+ and -) for the bus
- 2 terminals for external temperature probe (art. 02965.1 and 20432-19432-14432) Maximum length of the external sensor connection cable: 60 m.
- 2 for potential-free digital input (SELV) (function programmable via the View Pro App). The maximum length of the connection cable on the voltage-free contact input: is 30 m.For the inputs, use a twisted cable with a minimum cross-section of 0.5 mm2 (art. 01840).
Hysteresis: adjustable from 0.1°C to 1°C.
Temperature measurement precision:
- built-in sensor: measurement range from 0 to 40°, ±0.5 °C between 15 °C and 30 °C, ±0.8 °C at the extremes;
- auxiliary external sensor: like the built-in sensor. Beyond the operating temperature of the device, the error of the auxiliary external sensor increases up to a max of 2.5°C @ 80°C.
Management of 2- and 4-pipe systems.
Heating, and air conditioning with the management of the neutral zone (only with 4 pipes).
Operation via a dedicated ON/OFF hot/cold valve By-me actuator with actuator 01471 and proportional type (0-10 V, 4-20 mA) with actuator 01466.1.
Fan coil management (3 speeds/proportional, ON/OFF valves).
Selectable PID or ON/OFF control algorithm:
- the ON/OFF algorithm is the control which, on exceeding the set temperature increased by the threshold value (and vice versa for air conditioning), the heating is switched off to then be turned back on when the room temperature drops below the set temperature.
- PID is a sophisticated algorithm capable of keeping the temperature in the setting more stable and it works by switching the system on and off so as to be like a gradual increase or decrease in the system’s thermal (or refrigerating) power; ideal for use in floor heating systems, the algorithm needs to be properly calibrated according to the type of environment and system.
Boost function: control of an auxiliary actuator to speed up the heating or air conditioning of the environment.
Mild season function: available from the supervisor only for systems configured with 4 pipes; when active, the secondary output is controlled with its own parameters.
Input for external sensor (art. 02965.1-20432-19432-14432) with the following functions:
- Replacement of the internal sensor.
- Average with the internal one.
- Screed temperature limitation.
- Display on touch screen only.
Open window management function with delayed power on and off management.
Remote manageable device.
Devices can be interfaced natively with third-party systems (KNX systems).
Possibility of using an offset to correct the reading of the temperature measured according to a possible sample thermometer in order to compensate for errors due to special installations (North-facing wall, proximity to hot/cold water pipes, etc.).
Relative humidity display when associated with the related sensor (only for art. .F and .S).
Settable RGB back-lit display.
Operating temperature: 0°C – +40°C (indoor use).
ErP classification (EU Reg. 811/2013):
- ON/OFF: class I, contribution 1%;
- PID: class IV, contribution 2%;
- with an actuator with proportional analog outputs 01466.1: class V, contribution 3%.
Configurable with the View Pro App.
Controllable via View App, Amazon Alexa, and Google Assistant voice assistants.

To guarantee correct operation, you need to make sure the power supply unit of the BUS line has the earthing terminal correctly connected to the earthing of the wiring system.

CONFIGURATION
For all the details, see the By-me Plus system instruction manual.
The View App can be used to set:

Time schedules (times and temperature levels T1, T2, and T3)
Setpoint for all operating modes (Manual, Reduction, Absence, Protection)
Timed manual operation time: from 0.5 to 23.5 hours (with 0.5-hour steps); default = 1 hour

INSTALLATION RULES

Installation and configuration must be carried out by qualified persons in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed.

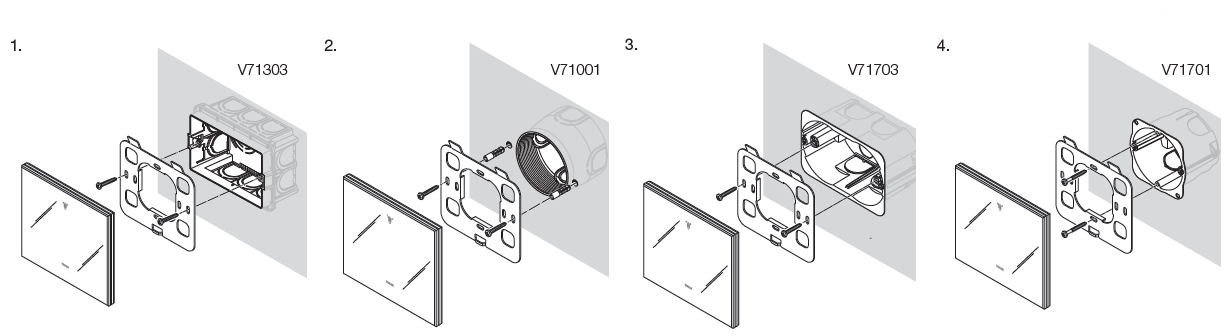

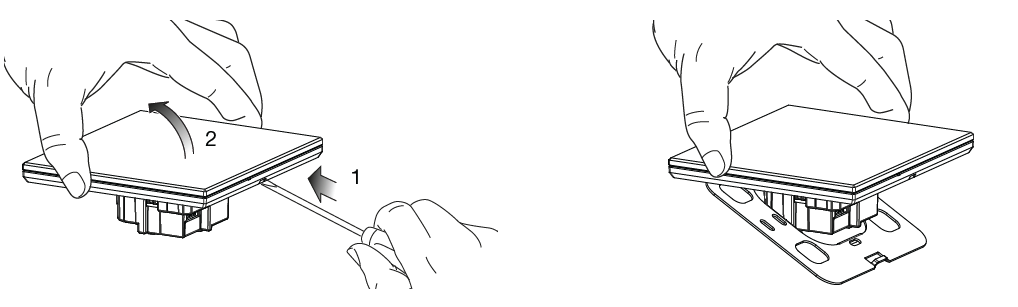

The device must be surface mounted using the respective metallic mounting frame, at a height of 1.5 m above floor level, in a suitable position for the correct detection of the room temperature, avoiding installation in recesses, behind doors and curtains, areas affected by heat sources or subject to the flow of forced heating/cooling ventilation sources or affected by atmospheric factors. Avoid in particular installations on perimeter walls or in association with devices that generate heat (e.g. dimmers or lamps).

REGULATORY COMPLIANCE
LV Directive. EMC directive. RoHS directive. Standards EN 60669-2-5, EN 50491, EN IEC 63000. Temperature control device regulation (EU) no. 811/2013.
REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.
