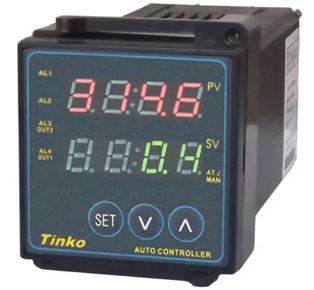

Tinko CTM-4 Temperature Controller Thermostat



Tinko CTM-4 Temperature Controller Thermostat is multipurpose tool for precise and dependable temperature regulation. The Tinko CTM-4 provides accurate temperature control and monitoring for wide range of applications, including industrial processes, HVAC systems, incubators, and more. The thermostat’s user-friendly interface makes it simple to adjust the temperature and other control settings. An electronic readout of the current temperature is frequently included for easy, real-time monitoring. For precise temperature regulation and minimal temperature swings, the CTM-4 thermostat uses cutting-edge control algorithms like PID (Proportional-Integral-Derivative). The Tinko CTM-4 Temperature Controller Thermostat’s relay output makes it easy to regulate the operation of supplementary heating and cooling systems. The temperature measurements can be fine-tuned in accordance with standard by using the calibration feature. It’s possible that the CTM-4 thermostat could come with extra features like alarm capabilities that send notifications or switch to different output when the temperature goes outside predetermined threshold. This aids in keeping everything secure and under control, avoiding any harm that could come from temperature fluctuations. Tinko CTM-4 Temperature Controller Thermostat is versatile due to its compact and long-lasting construction. For convenient access during operation and monitoring, it is typically mounted on control panels, equipment enclosures, or walls. Tinko CTM-4 Temperature Controller Thermostat provides consistent and precise temperature regulation, enhancing the efficacy and accuracy of temperature-dependent processes and systems in the hands of industry professionals, laboratory technicians, and HVAC specialists alike.

General Specifications

Power Supply
Input Signal

Thermocouple (K, E, J, N, T, B, S);

RTD (Pt100, Pt1000, Cu50, Cu100);
Current (DC.0~20mA, DC.4~20mA);
Voltage (DC.0~250mV, DC.0~10V);
Resistor (0~80Ω, 0~400Ω).

Control Output
Relay contact, AC250V/3A;
SSR Drive (Voltage pulse);
SCR Drive (zero-crossing);
DC.4~20mA, DC.0~10V.
Alarm Mode
Absolute, Deviation, Range
Aux Output
Micro-printer drive, DC24V feedback
Panel Size (mm)


Using commercial-grade CPU with excellent noise suppression; Various forms of input signals and outputs are accessible; There are variety of uses for single-loop, double-loop, and programmable controllers. There is lot of room for application, and the robust and reliable performance is backed up by good communication, micro-printer interface, and power feedback.


Here are some broad strokes for using your Tinko CTM-4 Temperature Controller Thermostat:

  • Connecting the thermostat’s power source (often an AC outlet) to the thermostat’s terminals will supply power to the device. Verify that the voltage provided is adequate for the thermostat.
  • If your thermostat has temperature sensor input, connect it to the appropriate terminals on the device.
  • Connect the sensor to the thermostat correctly by following the manual’s instructions. Adjust the thermostat’s temperature by using its control interface (buttons or touch panel).
  • This is the desired setting for the thermostat to keep the room at all times. Choose your mode of operation. Find out if the thermostat will be used for cooling, heating, or both.
  • The user interface of several models allows for switching between many modes. Select the option that works best with your program.
  • Additional variables, such as temperature differential, hysteresis, and control parameters (if available), may be configurable on the thermostat.
  • To learn how to access and adjust these parameters, consult the user manual.
  • Once the appropriate temperature has been established and the relevant parameters have been adjusted, the thermostat will begin controlling the temperature.
  • Using the attached sensor, will keep an eye on the temperature and, if necessary, turn on the heating or cooling to keep things comfortable.
  • Keep an eye on the thermostat’s screen to see what the temperature is currently set at. Maintain the set temperature and pay attention to any warnings or alarms that may suggest changes.
  • Changing the thermostat’s settings is as simple as using the device’s interface to alter the desired temperature or other variables. This can be done even if the thermostat is already set.
  • In the event of malfunction or unusual behavior, please consult the user handbook for assistance. Thermostat error messages, power supply, and sensor connections should all be checked.
  • Tinko CTM-4 Temperature Controller Thermostat models and versions may differ in terms of available features and the exact steps required to operate them.
  • Read the manual that came with your thermostat for particular instructions on how to operate it.


Exactly what is the Tinko CTM-4 Thermostat Temperature Controller?

If you need precise temperature regulation, go no further than the Tinko CTM-4 Temperature Controller Thermostat. It is widely utilized in HVAC and other temperature-dependent systems due to the fine regulation it affords.

How does the Tinko CTM-4 Temperature Controller Thermostat work, and what are its primary features?

The Tinko CTM-4 Temperature Controller Thermostat may have these main characteristics:

  • Temperature readings are displayed digitally.
  • Modifiable temperature control
  • Temperature and humidity settings
  • Functioning temperature-based alarm
  • Using the PID controller, temperatures may be precisely maintained.
  • Relay is an output used to activate other machines.
  • Accurate temperature calibration function
  • Simple, straightforward, and user-friendly interface
  • Minimalist, sturdy construction

What is the function of the Tinko CTM-4 Thermostat Controller?

Both internal and external temperature sensors can be used with the Tinko CTM-4 Temperature Controller Thermostat. It compares the measured temperature to the desired setpoint and uses a control algorithm, typically PID (Proportional-Integral-Derivative), to adjust the output accordingly. Thermostats have relay outputs that are used to operate appliances like space heaters and air conditioners when the internal temperature deviates from the setpoint.

What is proportional, integral, and derivate (PID) control, and why is it useful in thermostat controller?

In temperature regulation, the PID control algorithm ensures precise and steady regulation. PID is an acronym for proportional, integral, and derivative regulation. The output is modified by the proportional term according to the deviation of the actual temperature from the target temperature. The derivative term predicts future changes in temperature, whereas the integral term aids in eliminating steady-state mistakes. PID regulation reduces temperature swings and guarantees consistent temperatures.

Can you tell me what sort of temperature range this thermostat, the Tinko CTM-4, can handle?

Tinko CTM-Temperature Controller Thermostat models can differ in the range of temperatures they can handle. However, normal temperatures can vary from below freezing to far above boiling (-58 degrees to 302 degrees Fahrenheit).

Is it possible to control both the heating and cooling systems with the Tinko CTM-4 Temperature Controller Thermostat?

Generally speaking, the Tinko CTM-4 Temperature Controller Thermostat can be used for both heating and cooling. You can alter the control settings to suit your preferences.

Does the Tinko CTM-4 Temperature Controller Thermostat have an alarm function?

Alarms are common feature of the Tinko CTM-4 Temperature Controller Thermostat. You can set temperature thresholds, and when the measured temperature exceeds or falls below these thresholds, the thermostat triggers an alarm or activates a separate relay output to indicate temperature deviations.

Can you adjust the Tinko CTM-4 thermostat’s settings?

Yes, the Tinko CTM-4 Temperature Controller Thermostat often offers a calibration function. This allows you to adjust the temperature readings to match a reference temperature source, ensuring temperature accuracy.

Is the Tinko CTM-4 Temperature Controller Thermostat easy to install?

The installation process may vary depending on the specific model and application requirements. However, the Tinko CTM-4 Temperature Controller Thermostat is typically designed for easy installation. It often involves connecting the appropriate power source, temperature sensor, and output devices (heaters, coolers, etc.) according to the provided instructions.

Can the Tinko CTM-4 Temperature Controller Thermostat be used in industrial applications?

Yes, the Tinko CTM-4 Temperature Controller Thermostat is suitable for various industrial applications. It can be used in manufacturing processes, HVAC systems, environmental chambers, food processing, laboratory equipment, and other temperature control systems where precise temperature regulation is required.

Does the Tinko CTM-4 Temperature Controller Thermostat have any safety features?

The specific safety features may vary depending on the model. However, some Tinko CTM-4 Temperature Controller Thermostats may include features such as high/low-temperature limits, sensor failure detection, and user-defined temperature safety limits to prevent overheating or other hazardous conditions.

Can the Tinko CTM-4 Temperature Controller Thermostat store temperature data or provide historical records?

The Tinko CTM-4 Temperature Controller Thermostat typically focuses on real-time temperature control rather than long-term data storage or historical recordkeeping. However, some advanced models may offer additional features like data logging or communication interfaces to external devices for data collection.

Is the Tinko CTM-4 Temperature Controller Thermostat programmable?

The Tinko CTM-4 Temperature Controller Thermostat may not have extensive programmability in terms of complex sequences or schedules. However, it often provides configurable settings and parameters through its user interface to adapt to specific temperature control requirements.

Can the Tinko CTM-4 Temperature Controller Thermostat be used in conjunction with other control systems?

Yes, the Tinko CTM-4 Temperature Controller Thermostat can often be integrated into larger control systems. It may have communication interfaces, such as RS485 or Modbus, to enable connectivity with other devices or systems for centralized control and monitoring.

Where can I purchase the Tinko CTM-4 Temperature Controller Thermostat?

The availability of the Tinko CTM-4 Temperature Controller Thermostat may vary depending on your location and preferred retailers. You can check with local industrial suppliers, electronics stores, or online marketplaces that specialize in temperature control devices.
