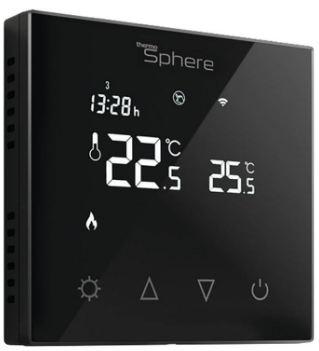

ThermoSphere SCP-W TOUCHSCREEN PROGRAMMABLE Thermostat

INTRODUCTION

Simple, programmable controls for electric underfloor heating. Set up and adjust an automatic heating schedule and and make adjustments to advanced settings.

Specifically designed for accurate control of electric underfloor heating systems.
Built-in ambient temperature sensor.
External floor temperature sensor probe.
Boost the temperature manually until the next scheduled heating event.
Smart adaptive start learns how long your floor takes to heat up and reduces energy consumption.
Open window sensor monitors the room temperature and switches off automatically if a door or window is opened.
Designed with touch-sensitive controls for easy use.
7 day, 6 event heating schedule.

Box Contents

1 x ThermoSphere Programmable Control.
1 x Installation guide.
1 x 3m floor temperature sensor probe.
1 x 2m sensor conduit.
2 x Fixing screws.

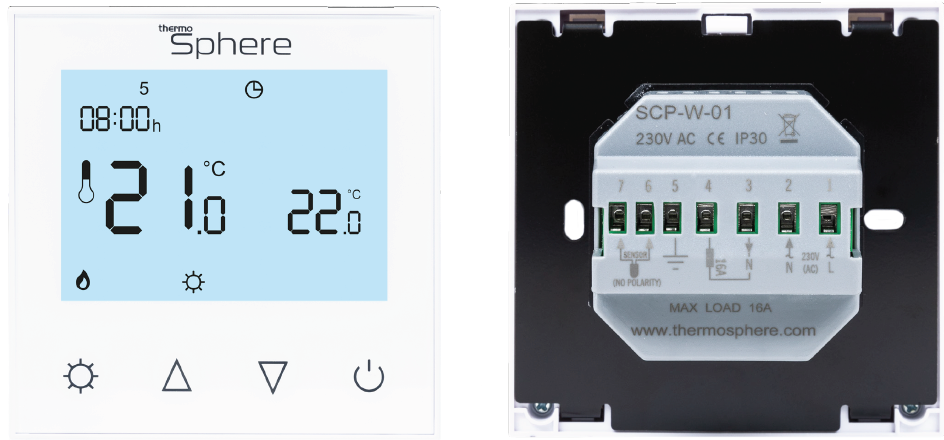

OVERVIEW

Technical data

Code	SCP-W-01
Supply voltage	230V 50/60Hz
Maximum load	16A (3600W)
Temperature range	5 – 80°C (0.5°C increments)
Size	W 85 x H 85 x D 16mm
Protection rating	IP30
Mounting	45mm deep back box
Sensor Rating	NTC 10kW @ 25°C
Warranty	3 years
