ThermoSphere DC-W-01 Dual-Touch Thermostat Product Specification Guide

ThermoSphere-logo

ThermoSphere DC-W-01 Dual-Touch Thermostat

ThermoSphere DC-W-01 Dual-Touch Thermostat pro

Box Contents

  • 1 x ThermoSphere Dual Control.
  • 1 x Installation guide.
  • 1 x 3m floor temperature sensor probe.
  • 1 x 2m sensor conduit.
  • 2 x Fixing screws

INSTRUCTION

Control your electric underfloor heating and towel rail or mirror demister with the same thermostat

  • Install as either landscape or portrait and choose from eight coloured backgrounds.
  • Smart adaptive start learns how long your floor takes to heat up and reduces energy consumption.
  • Open window sensor monitors the room temperature and switches off automatically if a door or window is opened.
  • Built in ambient temperature sensor and external floor temperature sensor

Technical data



Technical data



Code



DC-W-01



Supply voltage



230/240 V 50/60Hz



Primary relay 16A (3600W)



Secondary relay 5A (1125W)



Max combined load 20A (4600W)


Temperature range



5 – 35°C



Size



W 129 x H 88 x D 48 mm



Protection rating



IP30



Mounting



45mm deep back box



Sensor Rating

NTC 10kW @ 25°C


Warranty



3 years

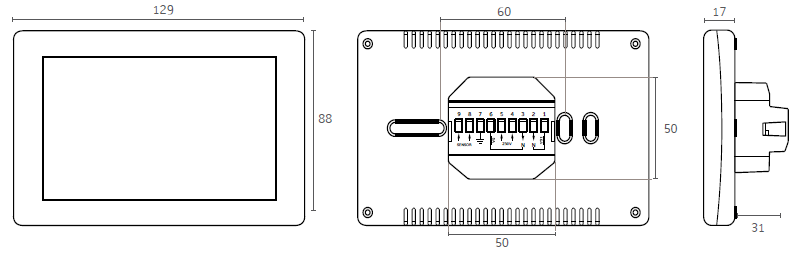

Product dimensions

ThermoSphere DC-W-01 Dual-Touch Thermostat 1

Reference

Download Manual:

ThermoSphere DC-W-01 Dual-Touch Thermostat Product Specification Guide
