Tehero AC-002AL Programmable Thermostat User Manual

The Tehero AC-002AL Smart Home Programmable Thermostat is a WiFi-enabled thermostat that can be controlled using a smartphone app or through voice commands with compatible smart home devices. It is designed to help you save energy and money by allowing you to program and adjust the temperature of your home based on your schedule and preferences. The thermostat features a sleek touchscreen display and supports multiple programming options, including 7-day, 5+2-day, and single-day modes. It is compatible with most heating and cooling systems and can be easily installed in place of your existing thermostat. Series of LCD screens AC-002 To maintain the correct room temperature, Wi-Fi thermostats are frequently used in settings such as homes, apartments, schools, hotels, hospitals, offices, and others. The AC-002 series FCU room thermostat is frequently used in Fan Coil Unit systems to regulate fans and motorized zone valves for central heating and cooling. Its primary applications include 2 pipe systems and 4 pipe systems. Among the choices that are offered are WiFi, Modbus, keycards, external sensors, etc.

What Is In The Box

Thermostat
User Manual
Screw
External Sensor

Description

Features

WiFi room thermostat with Google Home voice control Tuya WiFi thermostat
Reduces the costs energy saving.
Thermostat Remote Control,Control your devices from ANYWHERE with your mobile phone.
No need to control it manually.
Share your device to your family members. Smart WiFi thermostat makes your life smart and easy.
Extends the life of your HVAC system by alerting you when it’s time to perform key maintenance tasks.

Thermostat voice-activated heating and cooling system of air conditioning
Integrate your HVAC system with Google Home, Amazon Echo, and Tmall Genie to make life easier and more intelligent. Your time zone, address, and language are synchronized across all setting languages.

Product Size

Special 86 86mm and Euro 60mm Euro size
This Thermostat is standard 86 68mm and Euro 60 mm Round size, widely matched many project other socket and media outlet installation box size

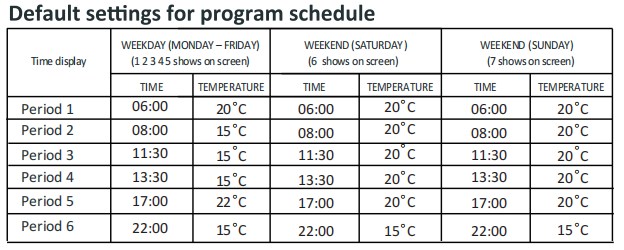

Default settings for the program schedule

Thermostat with a 5+1+1,6 program schedule
Your concern about forgetting to turn on or off your devices is removed by a thermostat with a timer schedule or programmable features. Make a plan for the evening. then avoid returning to a hot or cold home.

How To Work

Install the thermostat – The thermostat should be installed in a central location in the room, away from direct sunlight, drafts, or other sources of heat.
Connect the thermostat to the HVAC system – The thermostat should be connected to the heating and cooling system of the home or office. Follow the manufacturer’s instructions for proper wiring.
Power on the thermostat – Turn on the power to the thermostat and wait for the display to light up.
Set the desired temperature – Use the touch screen display to set the desired temperature. The thermostat will compare the current temperature to the desired temperature and activate the heating or cooling system accordingly.
Create a schedule – The thermostat allows the user to set a schedule for the heating and cooling system. This can be done by setting different temperatures for different times of the day or week.
Connect to Wi-Fi – The thermostat can be connected to Wi-Fi and controlled remotely using a mobile app on a smartphone or tablet.
Utilize additional features – The Tehero AC-002AL Smart home Programmable Thermostat has additional features such as vacation mode, fan control, and voice control compatibility. These features can be utilized to further customize the heating and cooling experience.

USAGE

Install the thermostat according to the manufacturer’s instructions.
Connect the thermostat to your Wi-Fi network.
Use the touch screen to set the desired temperature and schedule.
The thermostat will automatically adjust the temperature based on the schedule.
Use the app on your phone to remotely control the thermostat and adjust the temperature as needed.
The thermostat also has a variety of features, including vacation mode, fan control, and voice control compatibility.

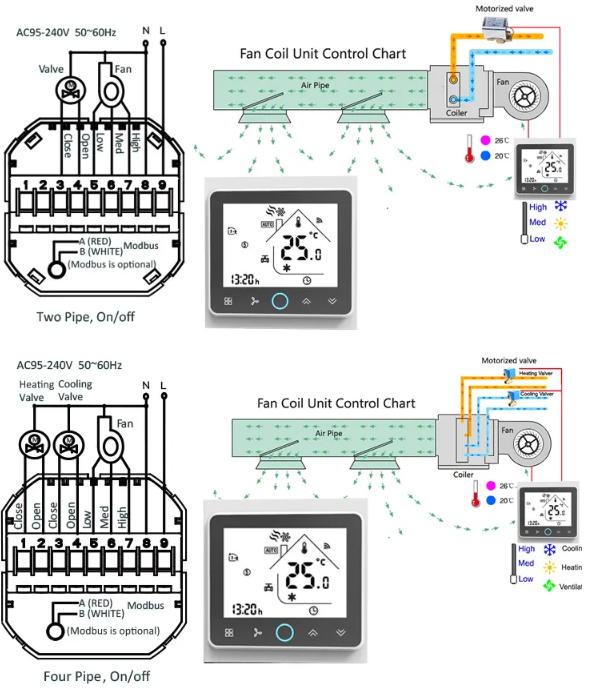

Wiring Diagram

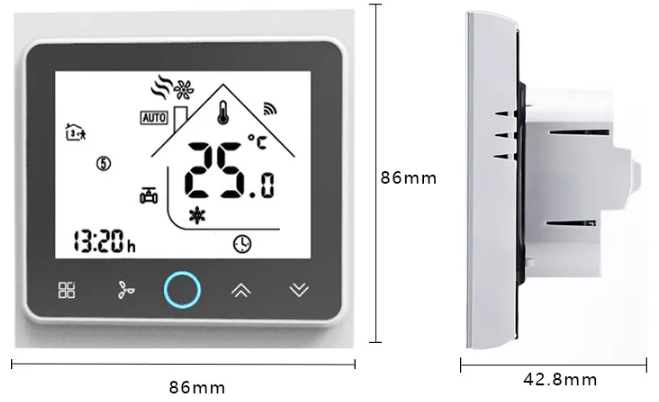

Dimension

FAQS

What type of heating and cooling systems is the Tehero AC-002AL compatible with?
The thermostat is compatible with most heating and cooling systems, including gas, electric, and heat pumps.

Is the Tehero AC-002AL thermostat programmable?
Yes, the thermostat supports multiple programming options, including 7-day, 5+2-day, and single-day modes.

Can the Tehero AC-002AL be controlled remotely?
Yes, the thermostat is Wi-Fi-enabled and can be controlled using a smartphone app.

Does the Tehero AC-002AL support voice control?
Yes, the thermostat can be controlled using voice commands with compatible smart home devices.

Is the Tehero AC-002AL easy to install?
Yes, the thermostat can be easily installed in place of your existing thermostat.

Does the Tehero AC-002AL have a touchscreen display?
Yes, the thermostat features a sleek touchscreen display.

What is the temperature range that the Tehero AC-002AL can control?
The thermostat can control temperatures between 40°F and 90°F (5°C to 32°C).

Does the Tehero AC-002AL have a vacation mode?
Yes, the thermostat has a vacation mode that allows you to set a specific temperature range while you’re away.

Can the Tehero AC-002AL display both Fahrenheit and Celsius?
Yes, the thermostat can display temperatures in both Fahrenheit and Celsius.

Is the Tehero AC-002AL energy-efficient?
Yes, the thermostat is designed to help you save energy and money by allowing you to program and adjust the temperature of your home based on your schedule and preferences.

What is the warranty for the Tehero AC-002AL?
The warranty for the thermostat is typically 1 year, but it may vary depending on the retailer or manufacturer.

Is the Tehero AC-002AL compatible with Amazon Alexa?
Yes, the thermostat is compatible with Amazon Alexa for voice control.

Can the Tehero AC-002AL be programmed for different zones in the home?
No, the thermostat is designed to control the temperature of the entire home, not individual zones.

Does the Tehero AC-002AL have a filter replacement reminder?
No, the thermostat does not have a filter replacement reminder.

Is the Tehero AC-002AL compatible with Apple HomeKit?
No, the thermostat is not compatible with Apple HomeKit.
