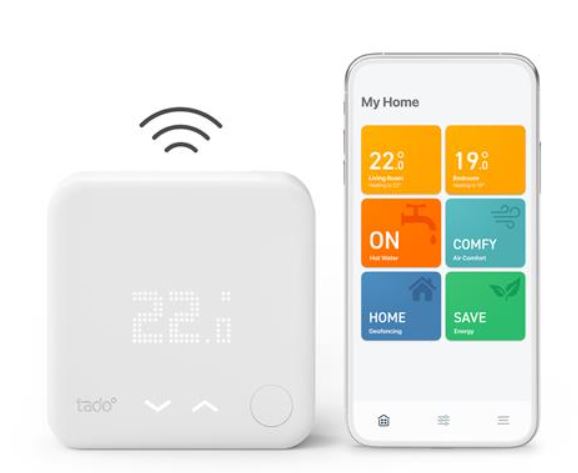

tado° V3P-SK-WTS01WRP01IB01-TC-UK Wireless Smart Thermostat Product Specifications Guide

Geofencing helps you save energy when nobody is home.
Weather Adaptation integrates weather information to assist in reducing your energy bill.
Air Comfort helps you keep a healthy climate at home.

Additional features

Multi-Room Control Control multiple heating zones and rooms separately.
Smart Schedule Have a detailed automatic schedule as well as full manual control.
Easy Installation Quickly set up with the online step-by-step installation assistant.
Tailored for your home Automatically learns how fast your home warms up and cools down, so it always chooses the right time to start heating.
Open Window Detection notices an open window to prevent unnecessary heating.
Insightful Reports display temperature and humidity profiles, heating activity and energy savings.
Boiler Health Monitoring keeps you covered, notifying you when your boiler requires a technician.
Hot water control Control your hot water with tado°.**
Auto updates Always get access to new features with the latest software.
Control from anywhere Allows you to access the current room temperature and humidity from anywhere, at any time.
Wireless Flexibility to place the Smart Thermostat anywhere in the house, in combination with an Extension Kit.

Note: Savings of up to 31% are based on a scientific study by Fraunhofer Institute for Building Physics (IBP Report 527, Germany). **Availability of this feature depends on your system compatibility; an Extension Kit may be required.

Smart Thermostat – Starter Kit

Inside the box:

tado° Smart Thermostat
3 AAA batteries
Labels for wiring
2 wall mounting screws
2 wall plugs
2 sticky pads

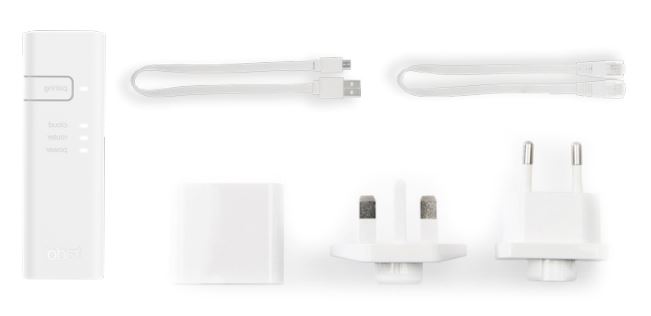

tado° Internet Bridge
UK power supply
EU power supply
USB cable
Ethernet cable

Packaging:

Dimensions (H × W × D): 174 × 174 × 70 mm
Weight: 473 g
EAN: 4260328611456

Master Box:

Content: Smart Thermostat – Starter Kit (10 pcs.)
Dimensions (H × W × D): 370 × 370 × 204 mm
Weight: 5230 g

Smart Thermostat

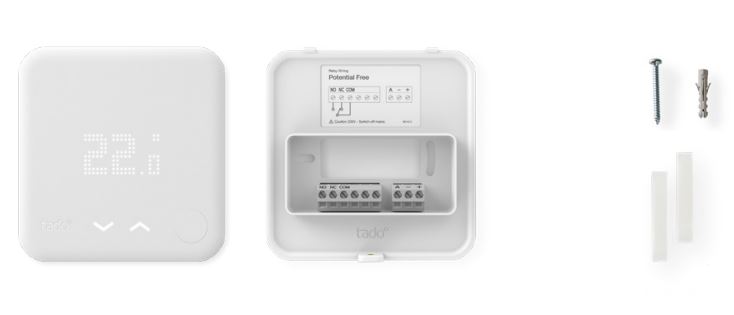

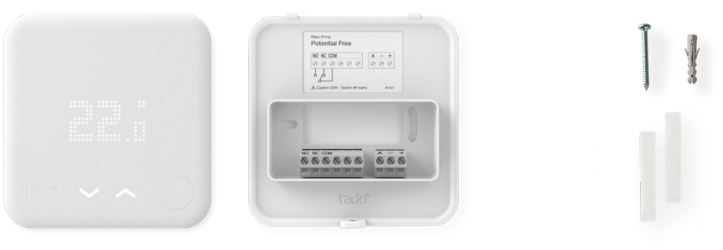

Inside the box:

tado° Smart Thermostat
3 AAA batteries
Labels for wiring
2 wall mounting screws
2 wall plugs
2 sticky pads

Packaging:

Dimensions (H × W × D): 174 × 174 × 35 mm
Weight: 279 g
EAN: 4260328610404

Master Box:

Content: Smart Thermostat (10 pcs.)
Dimensions (H × W × D): 370 × 196 × 204 mm
Weight: 3090g

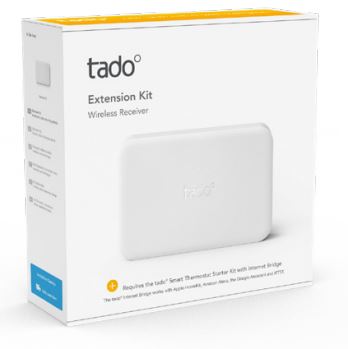

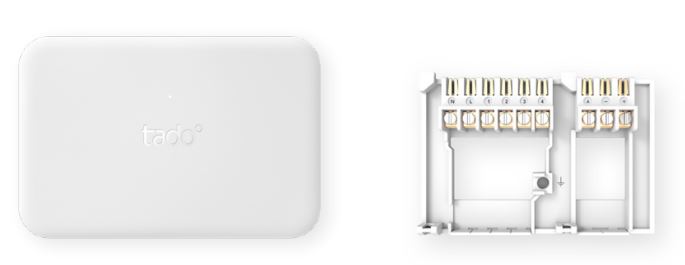

Extension Kit

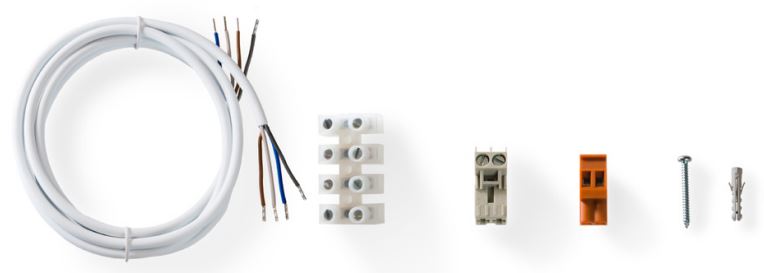

Inside the box:

tado° Extension Kit
Cable
Luster terminal
Euroblock plug
RAST5 plug
2 wall mounting screws
2 wall plugs
Labels for wiring

Packaging:

Dimensions (H × W × D): 174 × 174 × 57 mm
Weight: 487 g
EAN: 4260328610084

Master Box:

Content: Extension Kit (6 pcs.)
Dimensions (H × W × D): 370 × 196 × 204 mm
Weight: 3222 g

Trim Plate
When upgrading to tado°, potential plastering or paintwork may be avoided with the tado° Trim Plate for the Smart Thermostat or Extension Kit, separately available on tado.com/trim-plate.

Smart Radiator Thermostat – Starter Kit

Inside the box:

tado° Smart Radiator Thermostat
2 AA batteries
Set of adapters

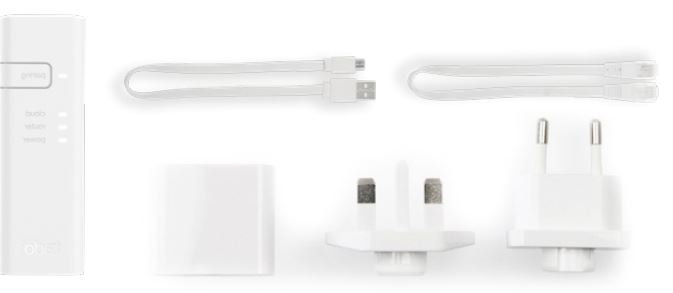

tado° Internet Bridge
UK power adapter
EU power adapter
USB cable
Ethernet cable

Packaging:

Dimensions (H × W × D): 174 × 174 × 70 mm
Weight: 524 g

Master Box:

Content: Smart Radiator Thermostat – Starter Kit (10 pcs.)
Dimensions (H × W × D): 370 × 370 × 204 mm
Weight: 5740 g

Smart Radiator Thermostat

Inside the box:

tado° Smart Radiator Thermostat
2 AA batteries
Set of adapters

Packaging:

Dimensions (H × W × D): 174 × 87 × 70 mm
Weight: 323 g

Master Box:

Content: Smart Radiator Thermostat (10 pcs.)
Dimensions (H × W × D): 370 x 196 × 204 mm
Weight: 3530 g

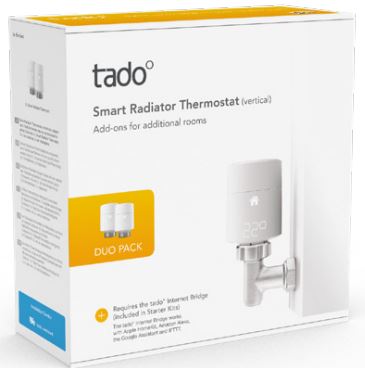

Smart Radiator Thermostat – Duo Pack

Inside the box:

2× tado° Smart Radiator Thermostat
2× 2 AA batteries
2× set of adapters

Packaging:

Dimensions (H × W × D): 174 × 174 × 70 mm
Weight: 604 g

Master Box:

Content: Smart Radiator Thermostat – Duo Pack (10 pcs.)
Dimensions (H × W × D): 370 × 370 × 204 mm
Weight: 6540 g

Smart Radiator Thermostat – Quattro Pack

Inside the box:

4× tado° Smart Radiator Thermostat
4× 2 AA batteries
4× set of adapters

Packaging:

Dimensions (H × W × D): 174 × 174 × 141.5 mm
Weight: 1119 g

Master Box:

Content: Smart Radiator Thermostat – Quattro Pack (4 pcs.)
Dimensions (H × W × D): 370 × 370 × 204 mm
Weight: 4976 g

Specifications

General

Sensors: temperature/humidity / ambient light
Environmental certifications: German engineered, production certified:
ISO 14001 / ISO 9001 / BS OHSAS 18001 /RoHS recyclable packaging
Internet connection: via a tado° Internet Bridge connected to an ethernet port of the home’s internet router
Radio communication (between devices): 868 MHz (6LoWPAN)
Warranty: 2 year limited warranty
Data encryption: TLS 1.2 (SSL), 2048-bit Extended Validation Certificate /TLS 1.2 (SSL), 256-bit elliptic curve encryption /AES-CCM encryption
Product material and finish: PC + ABS plastics / white, matte
Languages: English / German / French / Italian /Spanish / Dutch

Smart Thermostat

Power supply: 4.5 VDC (3 AAA batteries, 1200 mAh)
Interface: LED matrix 10 × 19 LEDs, 32 × 20 mm /buttons: 2× capacitive touch, 1× mechanical
Dimensions (H × W × D):
- Smart Thermostat 104 × 104 × 19 mm
- Internet-Bridge 81 × 27 × 22 mm
- Extension Kit 102 × 150 × 28 mm

Smart Radiator Thermostat

Power supply: 3 VDC (2 AA batteries, 2400 mAh)
Interface: LED display, mechanical control ring
Dimensions:
- (L × D) Smart Radiator Thermostat 78 × 52 mm
- (H × W × D) Internet-Bridge 81 × 27 × 22 mm

Compatibility

The Smart Thermostat works with almost all heating systems:

combi, system and heat-only boilers
conventional and condensing boilers
hydronic underfloor systems
air source and ground source heat pumps (heating only)
zoned systems (one tado° Smart Thermostat per zone)
switched live systems
potential-free (dry-contact) systems
systems with low-voltage analog and digital bus interfaces

The Smart Radiator Thermostat works with most thermostatic radiator valves:

Connection thread: M30 x 1.5
Adapters for other valve types are included

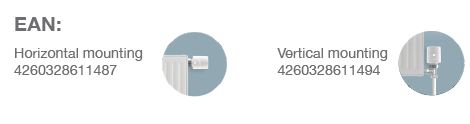

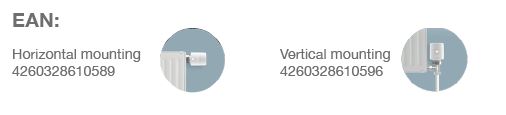

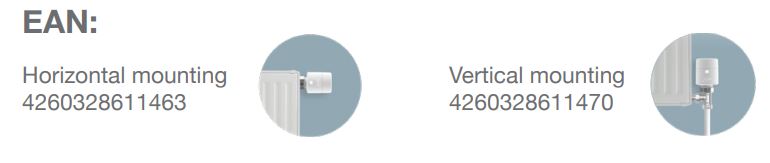

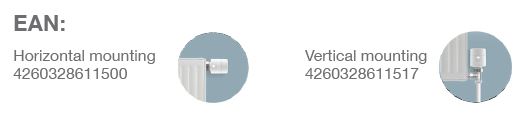

Available for both vertical and horizontal valves

Setup

In setups with both Smart Thermostats and Smart Radiator Thermostats, information from all individual rooms is integrated to determine the optimal boiler settings. This intelligent behavior saves energy and provides even more comfort.

Smart Radiator Thermostats control one radiator each. Multiple devices may be synchronized together.
The Smart Thermostat replaces a wired room thermostat or connects wirelessly to the boiler in combination with an Extension Kit.

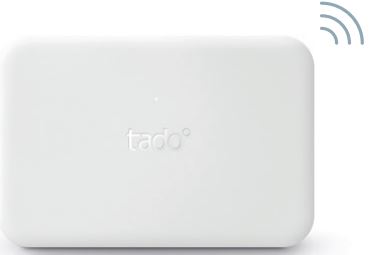

The Extension Kit connects to a boiler via cable, enabling wireless communication and control with a Smart Thermostat. It can also replace an existing UK programmer for hot water control.

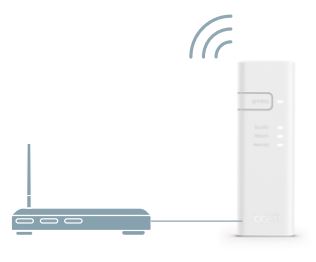

The Internet Bridge securely connects the tado° system to the internet via a router, allowing all tado° devices to be controlled with the tado° app. Each household requires only one Internet Bridge.

App

For iOS 10, Android 5, or above
Free download and app updates

Integrations

Use of the Works with Apple HomeKit logo means that an electronic accessory has been designed to connect specifically to iPod touch, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Amazon, Alexa, and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Google is a trademark of Google LLC.

www.tado.com
