Source1 S1-TBSU306-S Programmable Digital Thermostat Owners Manual

CAUTION
Follow the Installation Instructions before proceeding. Set the thermostat mode to “OFF” prior to changing settings in setup or restoring Factory Defaults.

This Source 1 thermostat has the ability to receive updates to its firmware. Periodically firmware updates are released by the manufacturer to add features and/or performance enhancements. This manual was produced reflecting the most current firmware/feature set at the time of publication, firmware rev. 12. Firmware releases after rev. 12 may not be adequately depicted in this manual. Please refer to the appropriate website or contact your place of purchase to learn about changes to the thermostat after firmware release 12.

Glossary of Terms

Auto-Changeover: A mode in which the thermostat will turn on the heating or cooling based on room temperature demand.
Cool Setpoint: The warmest temperature that the space should rise to before cooling is turned on (without regard to deadband).
Deadband: The number of degrees the thermostat will wait, once a setpoint has been reached, before energizing heating or cooling.
Dehumidify: To reduce the amount of moisture in the air. Differential: The forced temperature difference between the heat setpoint and the cool setpoint.
Heat Setpoint: The coolest temperature that the space should drop to before heating is turned on (without regard to headband).
Humidify: To increase the amount of moisture in the air.
Icon: The word or symbol that appears on the thermostat display.
Mode: The current operating condition of the thermostat (i.e. Off, Heat, Cool, Auto, Program On).
Non–Programmable Thermostat: A thermostat that does not have the capability of running Time Period Programming.
Programmable Thermostat: A thermostat that has the capability of running Time Period Programming.
Reheat: Running the cooling and 2nd stage strip heaters at the same time in order to dehumidify the air without cooling down the room temperature.
Temperature Swing: Same as Deadband.
Time Period Programming: A program that allows the thermostat to automatically adjust the heat setpoint and/or the cool setpoint based on the time of the day

Get To Know Your Thermostat

Display Features

Program icon—Indicates that Time Period Programming is running or is enabled to be set.
Clock with Day of the Week—Indicates the current time and day. This clock is also used to program the time period schedules.
Outdoor icon—Indicates the temperature displayed is from the optional outdoor sensor.
Room Temperature Display—Indicates the current room temperature and displays the outdoor temperature when selected.
Mode Indicators Selects the operational mode of the equipment.
- HEAT – Indicates the heating mode.
- COOL – Indicates the air conditioning mode.
- HEAT & COOL – Indicates the system will automatically change-over between heat and cool modes as the temperature varies.
- OFF – Indicates heating and cooling are turned off.
The scrolling display will be used to help you easily navigate the setup screens in the thermostat

2nd and 3rd Stage icons Indicates what stage of cooling or heating is currently energized.
Setup Step icon Indicates the step number when the thermostat
Morning, Day, Evening & Night icons Indicates the day part of the time period program. is in the setup mode.
Desired Set Temperature Indicates desired room temperature(s). Also displays the highest and lowest temperatures for the day.
Wi-Fi icons One dot indicates the thermostat recognizes the wireless module. The full icon indicates the thermostat is currently connected to the Local access point, via the optional Wi-Fi Module.
icon Indicates the keypad has been locked.

Fan On icon – Indicates constant, continuous fan operation. When Fan On is not lit – indicates the fan will only operate when necessary to heat or to cool.
Lo icon Indicates the lowest recorded outdoor temperature for the day.*
AuxHeat icon Indicates 2nd stage electric strip heat is being used when the thermostat is programmed for Heat Pump operation. Only the Aux icon will appear during Cool to Dehumidify to indicate Reheat operation.
Hi icon Indicates the highest recorded outdoor temperature for the day.*

Quick Start

During Setup and Programming:

Press the WARMER or COOLER buttons to modify the selection.
Press the MODE button to advance and confirm through the setup steps.

Setting the Clock and Day

Not available when Wi-Fi module is present
Press the SET CLOCK button. Adjust the clock using the WARMER or
COOLER buttons. Press MODE to advance to the day setting. Adjust the day using the WARMER or COOLER buttons. Press the SET CLOCK button to confirm settings.
TIP: To adjust the time by hours, press and hold the FAN button while pressing the WARMER or COOLER buttons.

Selecting the Heat or Cool Mode

Select mode by pressing the MODE button.
Heating Only—Only the heating operation will be controlled by the thermostat in this mode.
Cooling Only—Only the cooling operation will be controlled by the thermostat in this mode.
Heating or Cooling (Auto-Changeover)—AUTO will automatically select heat or cool based on room temperature demand.
OFF—OFF indicates both heating and air conditioning systems are turned off.

Selecting your desired temperature

AUTO-CHANGEOVER MODE— Pressing the WARMER or COOLER buttons in Auto mode will adjust both the heat and cool setpoints simultaneously. Toadjust heat and cool setpoints individually, choose HEAT mode to adjust the heat setpoint and COOL mode to adjust the cool setpoint, then return to AUTO mode.

HEAT OR COOL MODE—Pressing the WARMER or COOLER buttons in Heat or Cool mode will adjust only the heat or cool setpoints individually displayed.
Using the Fan Button FAN ON indicates constant fan operation. Pressing the FAN button toggles this feature. If you don’t see FAN ON, the fan is in auto mode and will only turn on during a heat or cool demand.

Using the Override Button

Unoccupied Operation— During programmed, unoccupied periods, pressing the OVERRIDE button will force the thermostat into Occupied 1 setting for 30 minutes. Each press of the OVERRIDE button will add another 30 minutes of time for up to 4 hours. If the maximum time has been set, the next press of the OVERRIDE button will reset the timer and return the thermostat to the correct time period program for the day
Occupied Operation—During programmed, occupied periods, pressing the OVERRIDE button will force the thermostat into an unoccupied period for the rest of the day. During this forced unoccupied period, the OVERRIDE button will operate as described above.

Viewing the Temperature Sensors
Press ACCESSRY STATUS to view the current values of optional outdoor and remote/supply temperature sensors. If connected to a Skyport® account, the temperature for the location you set up in the account will be shown if you don’t have a wired sensor connected. The high/low outdoor temperature will also be shown (resets at midnight). Press MODE to move between sensors and enter the actual Wi-Fi accessory status section. Setup step #44 selects the use of the wired temperature sensor. Press ACCESSRY STATUS again to return to the main screen.

Viewing the Indoor Humidity Sensor
Press the HUMIDITY button, then the mode button to display the current humidity measured at the thermostat. The room’s relative humidity is displayed in the top left corner. The humidification setpoint appears in the larger, center display and can be adjusted using the WARMER or COOLER buttons. Press the MODE button again to view and adjust the dehumidification setpoints. Press the HUMIDITY or MODE button again to confirm settings and return to normal operation.

Installation Instructions

Assemble tools: Flat-blade screwdriver, wire cutters, and wire strippers.
Make sure your Heater/Air Conditioner is working properly before beginning installation of the thermostat.
Carefully unpack the thermostat. Save the screws, any brackets, and instructions.
Turn off the power to the Heating/Air Conditioning system at the main fuse panel. Most residential systems have a separate breaker for disconnecting power to the furnace.
Remove the cover of the old thermostat. If it does not come off easily, check for screws.
Loosen the screws holding the thermostat base or subbase to the wall and lift away.
Use a smart phone or mobile device to take a photo of the wiring for future reference.
Disconnect the wires from the old thermostat. Tape the ends of the wires as you disconnect them, and mark them with the letter of the terminal for easy reconnection to the new thermostat.
Keep the old thermostat for reference purposes, until your new thermostat is functioning properly

Wire Connections
If the terminal designations on your old thermostat do not match those on the new thermostat, see the chart below or the wiring diagrams that follow.

Wire from the old thermostat terminal marked	Function	Install on the new thermostat connector marked
G or F	Fan	G
Y1, Y	Cooling	Y1
W1, W	Heating	W1/0/B
Rh, R, M, Vr, A	Power	R
C	Common	C
O/B	Rev. Valve	W1/O/B*
W2	2nd Stage Heat	W2
Y2	2nd Stage Cooling	Y2
W3	3rd Stage Heat	W3
H, Hum	Humidity	HUM
D, Dehum	Dehumidity	DEHUM
Ck1	Dry Contact Switch	DRY CONTACT
CKGND	Dry Contact Switch	DRY CONTACT

The Thermostat Backplate

To remove the thermostat backplate: Gently separate the display from the base by pulling ﬁrst from one side, then the other until the two pieces unsnap.

Check Dip Switches
Ensure which switch is correct for your system. Dip switches are located on the back of the thermostat

When GAS/EL or HP is set for GAS/EL:
This switch (GAS or ELEC) controls how the thermostat will control the Fan (G) terminal in heating mode. When GAS is chosen, the thermostat will not energize the Fan (G) terminal in heating. When ELEC is chosen, the thermostat will energize the fan in heating.

When GAS/EL or HP is set for HP:
This switch (GAS or ELEC) defines the Aux Heat type. When GAS is chosen, the auxiliary heat will not be allowed to run during heat pump operation. When using a Dual Fuel system, set this switch for GAS. When ELEC is chosen, up to two stages of auxiliary strip heat will be allowed to run.

For Heat Pump Only

When the GAS/EL or HP dip switch is configured for HP, this dip switch (O or B) must be set to control the appropriate reversing valve. If O is chosen, the W1/O/B terminal will energize in cooling. If B is chosen, the W1/O/B terminal will energize in heating.
This dip switch configures the thermostat to control a conventional gas/electric system or a heat pump. If your system is anything other than a heat pump, leave this switch set for GAS/EL.

Wiring Diagrams

Sample Wiring Diagrams
Conventional Heating and Cooling Systems

Heat Pump Systems

Humidification or Dehumidification

Dry Contact and Aux Output

Test Operation

Press MODE to view the version numbers of the thermostat.
Press MODE again to view the jumper settings and current state of the Dry Contact terminal.
Press MODE again and the scrolling display will read TURN ON EQUIPMENT?” Press WARMER for Yes or COOLER for No.
If Yes is chosen, press WARMER to turn on heat or COOLER to turn on Cooling. The scrolling display will read NOTHING ON. Next:
Press WARMER to turn on and cycle up through the heating stages.
Press COOLER to turn the heating stages off. Press MODE to exit.
Press COOLER to turn on and cycle down through the cooling stages.
Press WARMER to turn the cooling stages off. Press MODE to exit.
Press MODE until CALIBRATE SENSORS? appears on the scrolling display.
Press WARMER for Yes or COOLER for No. Press MODE to select which sensor to calibrate. Use WARMER or COOLER to modify your selection.
Press MODE until CONTROL HUM? appears on the scrolling display. Press WARMER for On or COOLER for Off. Press MODE to continue.
Press MODE until CONTROL DEHUM? appears on the scrolling display.
Press WARMER for On or COOLER for Off. Press MODE to continue.
Press MODE until CONTROL AUX OUT? appears on the scrolling display.
Press WARMER for On or COOLER for Off. Press MODE to exit.

Backlight Operation

How to Change Settings in the Setup Screens
To enter Advanced Setup, press the SETUP button, then press MODE. Use the WARMER or COOLER buttons to adjust the value of your selection. Press MODE to advance to the next setup step. Press SETUP again to leave the setup screens

Backlight

Off – Backlight turns on with any button press and turns off after 8 seconds.
On – Backlight is on continuously

Backlight Intensity Level (setup step 4)
The backlight can be adjusted between Off and seven levels of brightness.

Night Dimmer (setup step 5) –
Selecting On allows for automatic dimming of the display at night.

Night Dimmer Brightness (setup step 6)
OFF through seven levels of brightness.

Night Dimmer Start Time (setup step 7) – 12:00 am to 12:00 am
Night Dimmer Stop Time (setup step 8) – 12:00 am to 12:00 am

Language (setup step 20)

Setup step instructions on the scrolling display can be set for English, Spanish, or French.
Press the SETUP button, then press MODE repeatedly until the Language setup step appears.
Use the WARMER or COOLER buttons to make selection. Press MODE to advance to the next step.
Press SETUP to leave the setup screens.

Scrolling Screen & Display Options

Scrolling Display Method (setup step 21)
This option allows the user to choose how the scrolling text is displayed. Options are:

Press the SETUP button, then press MODE repeatedly until the Scrolling Method setup step appears. Use the WARMER or COOLER buttons to make selection. Press MODE to advance to the next step. Press SETUP to leave the setup screens

Example of “Whole Words Centered”:

User Setup

Holiday
The Holiday feature allows the thermostat to use temporary, energy saving settings without having to change regular programming. Holiday setup/programming at the local thermostat is limited to the number of days employing Holiday settings. When the optional Wi-Fi module is detected in the thermostat, local Holiday programming at the thermostat of the Holiday setup is not allowed. In this case Holiday setup and programming is accomplished with the Skyport Web App. Skyport gives the user extensive control over Holiday settings. Press the HOLIDAY button to enter Holiday programming (no Wi-Fi Module detected). If there is not a Holiday period active: Use the WARMER and COOLER buttons to choose the number of days desired to run the Holiday feature. To confirm your setting press the HOLIDAY button again. When the thermostat is programmed for Holiday operation, and the thermostat is in the Program On mode (running an Occupied/Unoccupied time period schedule), Holiday settings will take effect at 12:00AM of the next day. The thermostat will use the unoccupied mode and setpoints (see page 25) during the holidays. If the Holiday button is pressed during an active Holiday period: The active Holiday period may be cancelled by pressing the Mode button

Emergency Heat
The Emergency Heat function is only available if your thermostat is set to control a Heat Pump. To initiate the Emergency Heat feature, Press the EMERGCY HEAT button. During Emergency Heat operation the thermostat will turn on the fan and auxiliary stages of heat when there is a demand for heat. The compressor used for heating and all stages of cooling will be unavailable. To exit Emergency Heat, press the EMERGCY HEAT button.

Wireless Module
The ACCESSORY STATUS button allows the user to view the status of wired and wireless accessories. For many of the wireless devices this status includes: Battery Level, Signal Strength, and Last Time Updated. If there is an optional wireless module installed, the ACCESSORY SETUP button allows the user to link or connect wireless devices to the thermostat, or the thermostat to the network

Wi-Fi Module
Please follow the instructions included with the Wi-Fi module to connect to an Access Point or view status. The general instructions are below.

Wi-Fi Module
If the is present on the display then the thermosat is connected to the Wi-Fi Access Point. If just the “dot” of this icon appears, then just the Wi-Fi module is recognized. Press the ACCESSORY STATUS button, until you see the scrolling message starting with, PRESS THE WARMER. After that, press WARMER to view the Wi-Fi status/settings or press COOLER to view connected Wi-Fi sensors. Press the MODE button to step through the connected sensors or the Wi-Fi status screens listed below.

Wi-Fi status (connecting, connected, etc.)
Signal strength
Access point name
IP address
MAC address
Skyport status (connecting, connected with, etc.)
Local API status (Enabled, Disabled)
Module version

Service Filter

These setup steps allow the user to monitor equipment runtimes and program service alerts. Service alerts are displayed in the scrolling marquee

Service Filter Runtime

Current Service Filter Runtime Hours (Setup Step 9) – This counter keeps track of the number of hours of fan runtime in the Heating mode, Cooling mode, and in stand-alone Fan operation. Press FAN to reset.
Current Service Filter Calendar Days (Setup Step 10) – This counter displays the total number of calendar days that have elapsed since the counter was reset to help the user track Fan runtime. Press FAN to reset.
Set Service Filter Runtime Hours (Setup Step 16) – This timer allows the user to specify the number of hours the fan will run before the “Replace Filter” alert will be displayed. Press COOLER continuously until 0 is displayed to disable this alert.
Set Service Filter Calendar Days (Setup Step 17) – This timer allows the user to specify the number of calendar days that will elapse before the “Replace Filter” alert will be displayed. Press COOLER continuously until 0 is displayed to disable this feature. Press the SETUP button, then press MODE repeatedly until the desired setup step appears. Use the WARMER or COOLER buttons to make selection. Press MODE to advance to the next step. Press SETUP to leave the setup screens

Heating and Cooling System Runtime – Energy Watch

Current Heat Runtime Hours (Setup Step 11) – This counter keeps track of the number of hours the system has run in Heating. Press FAN to reset.
Current Aux Heat Runtime Hours (Setup Step 12) – This counter keeps track of the number of hours the system has run in Auxiliary Heating. This setup step is only available when the thermostat jumpers are configured for Heat Pump and Electric Heat. Press FAN to reset.
Current Cool Runtime Hours (setup step 13) – This counter displays the number of hours the system has run in Cooling. Press FAN to reset.

UV Lamp Runtime

Current UV Lamp Calendar Days (setup step 14) – This counter displays the total number of calendar days that have elapsed since last reset to help the user track UV lamp runtime. Press FAN to reset.
Set UV Lamp Calendar Days (setup step 18) – This timer allows the user to specify the number of calendar days the UV Lamp will operate before the “Replace UV Lamp” alert will be displayed. Press COOLER continuously until 0 appears to disable this alert.

Humidifier Runtime

Current Humidifier Calendar Days (setup step 15) – This counter displays the total number of calendar days that have elapsed since last reset to help the user track the Humidifier run-time. Press FAN to reset.
Set Humidifier Calendar Days (setup step 19) – This timer allows the user to specify the number of calendar days the Humidifier will run before the Service Humidifier alert will be displayed. Press COOLER continuously until 0 appears to disable this alert.

Selecting Your Time Period Schedule (setup step 1)
This thermostat may be configured to be programmable or non programmable.

7 Day Program – Allows all seven days to be programmed independently.
Non Program – No advanced time period programming available.
1 Day Program – Allows one 24 hour day to be programmed. This same schedule will be repeated every day the program is set to run.
5/1/1 Day Program – Allows weekdays, Saturday, and Sunday to be programmed independently.

Selecting Your Available Modes (setup step 2)

Auto-Changeover – Allows the thermostat to turn on heating or cooling based
on room temperature demand. Also allows the manual selection of HEAT only or COOL only and OFF.
Heat and Cool – Allows the thermostat to turn on heating or cooling depending on which one has been manually selected. Auto-Changeover is not available when this mode is selected.
Heat Only – Allows the thermostat to only turn on HEAT or OFF modes.
Cool Only – Allows the thermostat to only turn on COOL or OFF modes.

Programming a Daily Time Period Schedule* *not available when Wi-Fi module is present

To enter Time Period Programming screens. Press and hold PROGRAM until the scrolling prompt appears.
- OFF – Time Period Program is off.
- RUN – Time Period Program is running.
- HOLD TO SET – Press and hold PROGRAM to make Time Period Programming changes.
- Select Day of Week to program –
- Press the WARMER or COOLER buttons to choose the day of the week to be.
- Press MODE to advance to the next step.

Program Button

Programming a Daily Schedule

This thermostat features four programmable time periods per 24 hour day: Morning, Day, Evening, and Night. The start time for each time period is adjustable. The stop time for each time period is the start time for the next period. Each time period, or day part may be individually disabled.

Set the Unoccupied Mode – Press the Warmer or Cooler buttons to choose the mode for the Unoccupied period. The thermostat is in Unoccupied when the Time Period Schedule is running and there is not an active Occupied period.

The choices are: Off, Heat only, Cool only and AUTO changeover.

Adjust the Unoccupied Cool Setpoint – Press the Warmer or Cooler buttons to adjust the Cooling setpoint for times when the thermostat is in Unoccupied.
Adjust the Unoccupied Heat Setpoint – Press the Warmer or Cooler buttons to adjust the Heating setpoint for times when the thermostat is in Unoccupied.
Select the number of Occupied time periods – Press the Warmer or Cooler buttons to choose the maximum number (up to 3 maximum) of Occupied time periods in a day.
Select the Mode for the Occupied period – Press the Warmer or Cooler buttonsto choose the mode for the occupied period. The choices are: Off, Heat only, Cool only, and AUTO changeover.
Adjust the Occupied Cool Setpoint – Press the Warmer or Cooler buttons to adjust the Cooling setpoint for comfort.
Adjust the Occupied Heat Setpoint – Press the Warmer or Cooler buttons to adjust the Heating setpoint for comfort.

The following steps determine when the Occupied period(s) will be active.

Enable Occupied 1 – Press the Warmer or Cooler buttons to enable (On) or to disable (Off) Occupied 1 on Monday.
Adjust the Start Time for Occupied 1 – Press the Warmer or Cooler buttons to adjust the start time for Occupied 1 on Monday.
Adjust the Stop Time for Occupied 1 – Press the Warmer or Cooler buttons to adjust the stop time for Occupied 1 on Monday.
Upon pressing MODE after the above step, you will be prompted to Save and Exit or Copy this Occupied schedule to another day.
To save and exit – Press the Program button.
To Copy Monday’s settings/schedule to Tuesday – Press Up and then Mode. Press Mode again to copy the Monday Settings/schedule to subsequent days.
To Program Another Day – Press Down and then press the Mode button to select the day to program. Repeat the above steps for each day you would like to program.

Deadband Settings

1st Stage Deadband (setup step 28) – Specifies the minimum temperature difference between the room temperature and the desired setpoint before the first stage of heating or cooling is allowed to turn on. (1 – 6 degrees) For example, if the heat setpoint is 68˚ and the 1st Stage deadband is set to 2 degrees, the room temperature will need to reach 66˚ before the heat turns on.
2nd Stage Deadband (setup step 29) – Specifies the additional minimum temperature difference after the first stage turns on before the second stage is activated. (0˚ – 10˚)
3rd Stage Deadband (setup step 30) – Specifies the additional minimum temperature difference after the second stage turns on before the third stage is activated. (0˚ – 10˚)
4th Stage Deadband (setup step 31) – (Two Stage heat pump only) – Specifies the additional minimum temperature difference after the third stage turns on before the final stage of strip heat is activated. (0˚ – 10˚)
Minutes Between 1st and 2nd Stage (setup step 32) – Specifies the minimum time (in minutes) after the first stage turns on before the second stage can turn on. (0 – 60)
Minutes Between 2nd and 3rd Stage (setup step 33) – Specifies the minimum time (in minutes) after the second stage turns on before the third stage can turn on. (0 – 60)
Minutes Between 3rd and 4th Stage (setup step 34) – Specifies the minimum time (in minutes) after the third stage turns on before the final stage can turn on. (0 – 60)
Second Stage Turnoff Point (setup step 35) – Specifies whether second stage will turn off at first stage deadband or remain on until the room temperature demand is satisfied. Choose between Deadband or Setpoint.
Third Stage Turnoff Point (Setup Step 36) – Specifies whether third stage will turn off at second stage deadband or remain on until the room temperature demand is satisfied. Choose between Deadband or Setpoint.
Fourth Stage Turnoff Point (Setup Step 37) – Specifies whether fourth stage will turn off at third stage deadband or remain on until the room temperature demand is satisfied. Choose between Deadband or Setpoint.

Minutes of Fan Purge (setup step 38) When this feature is activated, the fan will turn on during an unoccupied period at a preset amount of time prior to Occupied 1. This preoccupancy fan purge timer may be set from zero to three hours, in 15 minute increments. Zero means this feature is turned off.

Fan Off Delay in Seconds (setup step 39) This feature allows the user to increase the cooling or electric strip heating efficiency of the system. The thermostat may be programmed to continue running the fan after a call for cooling or electric strip heating has been satisfied. This delay can be set for 0, 30, 60, 90, or 120 seconds. If set to 0, the fan will not run after a call for cooling or electric strip heating has been satisfied.

Comfort Recovery (setup step 41) With Comfort Recovery on, the thermostat will attempt to reach the Occupied 1 setpoint temperature at the exact time programmed into the thermostat. Comfort Recovery, only works when the thermostat enters the Occupied mode from the Unoccupied mode. For example, if the Occupied program is set for 6am at 72°F heating and 75°F cooling, the thermostat will turn the system on before 6am in an effort to bring the temperature to its correct setting at exactly 6am. The thermostat learns from experience, so please allow 4-8 days after a program change or after initial installation to give Comfort Recovery time to adjust. If used with a heat pump, electric strip heat will be disabled while Comfort Recovery is active.

Humidity and Dehumidity (setup steps 47-53, 68-70)

Humidity Only With Heat (Setup Step 47) – When this step is set to ON, Humidity will not run without a demand for Heat.
Fan With Humidity Demand (Setup Step 48) – Specifies if the fan should be turned on with a demand for Humidity.
Fan with Dehumidify Demand (Set up Step 49) – Specifies if the fan should be turned on with a demand for Dehumidify.
Cool To Dehumidify (Setup Step 50) – Specifies if the cooling equipment is allowed to turn on exclusively to lower room humidity. (If set to OFF the following two steps will not appear.)
Max Occupied Dehum Overcool (Setup Step 51) – Specifies how many degrees below the Cool setpoint the air conditioning will run to satisfy a Cool to Dehumidify demand during occupied periods. (0˚ – 5˚)
Max Unoccupied Dehum Overcool (Setup Step 52) – Specifies how many degrees below the Cool setpoint the air conditioning will run to satisfy a Cool to Dehumidify demand during unoccupied periods. (0˚ to 20˚).
Reheat Operation With Cool To Dehumidify (Setup Step 53) – Specifies if electric strip heat is allowed to turn on during a Cool to Dehumidify demand to help maintain desired room temperature. This step is not available if Electric Heat is not present.
Humidity Polarity (setup step 68) Humidity Normally Open – means no voltage is sent to the HUM output when there is no demand for humidity.
Humidity Normally Closed – means voltage is sent to the HUM output when there is no demand for humidity.
Dehumidify Polarity (setup step 69) Dehumidify Normally Open – means no voltage is sent to the DEHUM output when there is no demand to dehumidify.
Dehumidify Normally Closed – means voltage is sent to the DEHUM output when there is no demand to dehumidify.
Dehumidify Only with Cooling (setup step 70) When set to ON, Dehumidify will only turn on with a 1st stage cooling demand.

Dry Contact Operation (setup step 66 – 67)

Dry Contact Polarity (setup step 66) Open (Normally Open) – The dry contact is open until the connected device closes the circuit.
Closed (Normally Closed) – The dry contact is closed until the connected device opens the circuit.

Dry Contact Use (setup step 67)

CONDENSATE PAN – If CONDENSATE PAN is selected when the dry contact is active, the thermostat will lockout the compressor terminal(s) and “CONDENSATE PAN OVERFLOW” will appear on the display.
OCCUPIED – If OCCUPIED is selected, when the dry contact is active, the thermostat will be forced into the programmed occupied mode / setpoints and the ‘occupied’ icon will blink. This setting is useful for allowing a twist timer to force occupied settings. FDD – If FDD is selected when the dry contact is active, “EQUIPMENT FAULT” will appear on the display.
HOLIDAY – If HOLIDAY is selected, when the dry contact is active, the thermostat will be forced into the programmed unoccupied mode/setpoints and the ‘unoccupied’ icon will blink.
DOOR SWITCH – If DOORSWITCH is selected, when the dry contact is active for more than 3 minutes, the thermostat set points will switch to OF (off), the equipment will turn off, and DOOR OPEN will appear on the display.

Skyport (setup step 71) Set to ON to allow access to Skyport services or to OFF to not allow access to Skyport services.
Local API (setup step 72) Set to ON to allow third-party software to interface with your thermostat such as home automation software.
Wired Sensor Type (setup step 44) Specifies the use of the connected, wired sensor. The choices are: Remote, Supply, Outdoor. Only the remote option allows control of the sensor.

Control To Temp Source (setup step 45)
This feature allows the user to specify which temperature sensor source(s) to be used to measure room temperature for control

Thermostat: Uses the internal thermostat sensor only.
Wired Remote: Uses external temperature sensor wired to the REMOTE/ OUTDOOR contacts.
Wireless Remote: Uses one wireless remote temperature sensor. Choose which linked sensor to use in the subsequent step.
Average of Wireless Remotes: Averages the temperatures of all linked wireless remote sensors.
Average Thermostat and Wired Remote: Averages the temperatures of the wired remote sensor and the thermostat.
Average All Sensors: Averages the temperatures of the wired remote, any linked wireless remotes and the thermostat.
Wireless Remote To Use (setup step 46) Specifies which single wireless remote sensor is to be used for control. This step only appears when prior step setting is Wireless Remote.
Fahrenheit or Celsius (setup step 55) This feature allows the thermostat to display temperature in Fahrenheit or Celsius.

Auxiliary Output

The thermostat is equipped with a programmable auxiliary output. This output can be configured to be controlled from a variety of sources.

Aux Output Polarity (setup step 66)
Specifies if the Auxiliary output will be Open (Normally Open) or Closed (Normally Closed).

Aux Output (setup step 67)
Specifies which source will control the Aux output.

Choices are:

Time – Uses the internal clock of the thermostat.
Temp – Uses one of three temperature sources.
External – The Auxiliary Output is controlled from an external accessory source.
Free Cooling – Drives a damper to bring fresh air in from outdoors.
Venting – Drives a damper to exhaust inside air to the outside.

Auxiliary Output Programming By Time
If TIME is selected for the Aux Output, the following setup steps will appear:

Aux Output Program Days (Setup Step 68) – Specifies if the Aux Output will be single day (1 DAY), weekday/weekend (5/2 DAY), or seven day (7 DAY) programmable.
Day Of Week To Program (Setup Step 69) – Specifies which day of week to program.
Aux Output Start Time (Setup Step 70) – Specifies the time of each day when the Aux output will turn on.
Aux Output Stop Time (Setup Step 71) – Specifies the time of each day when the Aux output will turn off.
Copy (Setup Step 72) – This step only appears if Aux Output Days (setup step 68) is set for 7 programmable output days.

Auxiliary Output Programming By Temp

If TEMP is selected for the Aux Output, the following setup steps will appear:
Aux Output Temp Source (Setup step 73) – Specifies what temperature source will be monitored for controlling the programmable output.

The options are:

Thermostat – Temperature is monitored from the thermostat sensor.
Outdoor Sensor – Temperature is monitored from the Outdoor temperature sensor.
Wired Remote – Temperature is monitored from a wired sensor connected to the Remote Sensor terminals.
External – The Auxiliary Output is controlled from an external accessory source.

Aux Output Trigger Point Temp
Specifies the temperature from the above selected source above which the Aux Output is triggered. A non-adjustable two degree deadband is applied to avoid frequent triggering. The ‘N.O.’ (Normally Open) or ‘N.C.’ (Normally Closed) function (Setup Step 66) can be altered to make the output trigger below the set temperature. Temps are adjustable from 0 – 120 degrees Fahrenheit.

Press Fan To Clear All Messages
This feature allows the user to clear all current error messages from the display.

Overview

Source 1 thermostats support the handling of specific signals from the utility provider. The utility generated signals carry pricing information and/or setback actions that alter the comfort settings of the thermostat in order to reduce energy usage on demand. This is known as Automated Demand Response or ADR for short. You must register to participate in a utility sponsored program, if offered by your local utility, to take advantage of this feature.

Skyport Cloud Services

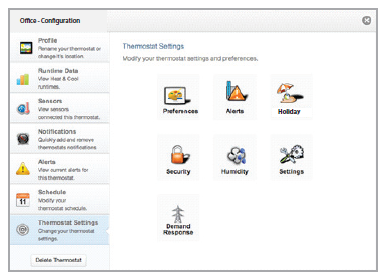

From the web application the user will select Thermostat Settings from the left column. Then the Demand Response button is selected

Automated Demand Response
The Demand Response configuration page, shown below, is where the thermostat is configured to respond to the energy provider’s signals. It also sets operational parameters for the thermostat. The left column of the ADR configuration page allows or prevents access by the utility. Here communication with the utility and your thermostat may be turned On or Off.

Selecting the Overview tab of the ADR page will cause a summary of ADR events to be displayed

ADR (Setup step 85)
Controls whether you want the thermostat to possibly respond to signals from the utility provider. Select ON to allow this and to have steps 86-92 appear.

ADR Action (Setup step 86)
Allows the user to determine what action is taken when an ADR event is received.

Observe Setpoint Offsets – will offset the heat and cool setpoints by the amounts specified in setup steps 91 and 92

Observe Static Setpoints – will set the heat and cool setpoints to the values specified in setup steps 89 and 90

Event Min Heat Setpoint (Setup step 88)
Specifies the range of allowable setpoint adjustments to be enforced when any ADR signal has been received from the utility. Since you might be paying more for energy while an event is active, you can impose tighter limits on setpoint ranges that are only enforced during the event.

Static Cool Setpoint (Setup step 89)
Specifies the setpoints that will come into use during an event when the ADR ACTION is set to OBSERVE STATIC SETPOINTS

Heat Setpoint Offset (setup step 92)
Specifies how much the current setpoints in effect prior to an event will be altered during an event when the ADR ACTION is set to OBSERVE SETPOINT OFFSETS. The heat setpoint can be automatically lowered by -1 to -10 degrees while the cool setpoint can be automatically raised by 1 to 10 degrees.

DISPLAY INDICATIONS WHEN AN ADR EVENT IS HAPPENING
After setting your desired values for use during an ADR event, the scrolling display will give a little information when an event is pending or active. For instance, when an ADR event has been sent to your thermostat, you might see ADR STARTS at 4:15 to notify you of a pending event. Once active, you might see ADR STOPS at 5:30. When an event is active, you can press any of COOLER, WARMER or MODE buttons, followed by the WARMER to opt out of the event.

Locking/Unlocking the Keypad

To prevent unauthorized use of the thermostat, the front panel buttons may be disabled. To disable, or ‘lock’ the keypad, press and hold the MODE button. While holding the MODE button, press the WARMER and COOLER buttons together. The icon will appear on the display, then release the buttons.

Resetting the Thermostat to the Factory Default Settings (for default values see page 43-45)
If, for any reason, you desire to return all the stored settings back to the factory default settings, follow the instructions below.

Press and hold SETUP for 10 seconds. All icons will appear on the display.
After all the icons appear, release SETUP. Press and hold FAN for 5 seconds. DEFAULTS will appear on the display
After DEFAULTS appears, release FAN. Press SETUP to return to normal operation.

Technician Setup

To enter Technician Setup, press and hold the SETUP button for 10 seconds. After all the icons appear, press MODE. The version number of the thermostat will appear in the scrolling text. Press MODE to advance to the next step. Use the WARMER or COOLER buttons to adjust the value of your selection. To leave Technician Setup, press SETUP

Technician Setup contains the following options:

View the version number of the thermostat.
View the jumper setting of J1 (Gas/Electric or Heat Pump), J2 (Reversing
Valve: RV=O or RV=B), and J3 (Fan: Gas or Electric) jumpers located on the back of the thermostat. (Remove thermostat from backplate for access)
View the state of the Dry Contact and Fault terminals.
Turn on equipment outputs for testing.
Calibrate thermostat, remote, and humidity sensors.
Control HUM output (On or Off)
Control DEHUM output (On or Off)
Control AUX output (On or Off)

Advanced Setup Table

Step# Description		Pg#	Range	Df
1	Prog Mode	25	Non, 1 Day, 5/2 Day, 7 Day	7
2	Available Modes	25	Heat/Cool/Auto/Off, Heat/Cool /Off, Heat/Off, Cool/Off	Heat/Cool/ Auto/Off
3	Backlight	17	On, Off	Off
4	Backlight Level	17	Off thru 7 levels of brightness	Level 5
5	Night Dimmer	17	On/Off	Off
6	Night Dimmer Brightness	17	Off thru 7 levels of brightness	2 (20%)
7	Night Dimmer Start Time	17	12A-12A	8:00P
8	Night Dimmer Stop Time	17	12A-12A	6:00A
9	Current Service Filter Runtime Hours	21	0-1999 Hours	0
10	Current Service Filter Calendar Days	21	0-720 Days	0
11	Current Heat Runtime Hours	22	0-1999 Hours	0
12	Current Aux Heat Runtime Hours	22	0-1999 Hours	0
13	Current Cool Runtime Hours	22	0-1999 Hours	0
14	Current UV Lamp Calendar Days	22	0-720 Days	0
15	Current Humidifier Calendar Days	22	0-720 Days	0
16	Set Service Filter Runtime Hours	21	0-1950 hours	0
17	Set Service Filter Calendar Days	21	0-720 Days	0
18	Set UV Lamp Calendar Days	22	0-720 Days	0
19	Set Humidifier Calendar Days	22	0-720 Days	0
20	Language	17	English, Espanol, Francais	English
21	Scrolling Method	18	“L-R Slow, L-R Fast, Word L-R Slow, Word L-R Fast, Whole Word L Slow, Whole Word R Slow, Whole Word Ctr. Fast, Whole Word Ctr. Slow”	“Whole Words Center Fast”
22	Setpoint Limits	26	No, Use	No
23	Max Heat Setpoint	26	35 – 99 Degrees	74
24	Min Cool Setpoint	26	35 – 99 Degrees	70
25	Cycles Per Hour	26	No Limit, 2, 3, 4, 5, 6	6
26	Compressor Minimum Off Minutes	26	0, 3, 5 Minutes	5
27	Min. Heat/Cool Setpoint Difference	26	0 – 6 Degrees	2
28	Number of Heat Stages	26	0 – 3	2
29	Number of Cool Stages	26	0 – 2	1
30	Number Of Compressor Stages	26	1, 2	1
31	Number of Aux Stages	26	0, 1, 2	0
32	1st Stage Deadband	27	1 – 6 Degrees	2
33	2nd Stage Deadband	27	0 – 10 Degrees	2
34	3rd Stage Deadband	27	0 – 10 Degrees	2
35	4th Stage Deadband	27	0 – 10 Degrees	2

Step# Description		Pg#	Range	Df
36	Minutes Between 1st and 2nd Stage	27	0 – 60 Minutes	2
37	Minutes Between 2nd and 3rd Stage	27	0 – 60 Minutes	2
38	Minutes Between 3rd and 4th Stage	27	0 – 60 Minutes	2
39	2nd StageTurnoff Point	27	Deadband, Setpoint	Deadband
40	3rd StageTurnoff Point	27	Deadband, Setpoint	Deadband
41	4th Stage Turnoff Point	27	Deadband, Setpoint	Deadband
42	Fan Program	28	On, Off	Off
43	Minutes of Fan Runtime	28	0-60	0
44	Fan Program Start Time	28	12:00A – 12:00A	7:00A
45	Fan Program Stop Time	28	12:00A – 12:00A	9:00A
46	Wired Sensor Type	28	Remote, Supply	Remote
47	Control to Temp Source	31	Thermostat, Wired Remote, Wireless Remote, Average of Wireless Remotes, Average Thermostat and Wired Remote, Average All Sensors. *Option only if prior step = “Remote”	Thermostat
48	Wireless Remote to Use	31	list of wifi sensors currently linked to thermostat. * This step only appears if prior step = “Wireless Remote”	first linked sensor in list
49	Humidity Only With Heat	29	On, Off	Off
50	Fan With Humidity Demand	29	Fan On, Fan Off	Fan Off
51	Fan With Dehumidify Demand	29	Fan On, Fan Off	Fan Off
52	Humidity Setpoints	29	Auto, Manual	Manual
53	Cool To Dehumidify	29	On, Off	Off
54	Maximum Dehum Overcool	29	0 – 20 Degrees	2
55	Reheat Operation W/Cool To Dehum.	29	On, Off	Off
56	Lockout Heatpump with Outdoor Temp	30	On, Off	Off
57	Lockout Temp	30	0 – 75 Degrees	35
58	Lockout Aux Heat with Outdoor Temp	30	On, Off	Off
59	Aux Heat Lockout Temp	30	20 – 75 Degrees	75
60	Dualfuel	30	On, Off	Off
61	Dualfuel Changeover on Outdoor Temp	31	On, Off	Off
62	Dualfuel Balance Point	31	0 – 60 Degrees	35
63	Dualfuel Changeover Delay in Seconds	31	0 – 90 Seconds	30
64	Fan Off Delay	28	0 – 120 Seconds	0
65	F/C	31	Fahrenheit (F), Celsius (C)	F
66	Aux Output Polarity	32	Open, Closed	Open

Step# Description		Pg#	Range	Df
67	Aux Output	32	Time, Temp, External, Free Cooling, Venting	Time
68	Aux Output Program Days	32	1 Day, 5/2 Day, 7 Day	1
69	Day Of Week To Program	32	Sunday – Monday (S – M)	MTWTFSS
70	Aux Output Start Time	32	12am – 12am	7am
71	Aux Output Stop Time	32	12am – 12am	9pm
72	Copy	32	Yes, No	No
73	Aux Output Temp Source	33	Thermostat, Outdoor, Remote, External	Remote
74	Aux Output Trigger Point Temp	33	0 – 120 Degrees	65
75	Free Cooling with A/C	34	With A/C, Without A/C	With A/C
76	Free Cooling Usuable Temp	34	40 – 80 Degrees	65
77	Comfort Recovery	28	On, Off	Off
78	Dry Contact Polarity	34	Open, Closed	Open
79	Dry Contact Use	34	Condensate, Vacation, FDD	Vacation
80	Humidity Polarity	29	Open, Closed	Open
81	Dehumidify Polarity	29	Open, Closed	Open
82	Dehumidify only with Cooling	29	On, Off	On
83	Skyport	33	On, Off	On
84	Local API	33	On, Off	Off
85	ADR	38	On, Off	On
86	ADR Action	38	Observe Setpoint Offset, Observe Static Setpoints	Observe SP Offsets
87	Event Max Cool Setpoint	38	65 – 90	90
88	Event Min Heat Setpoint	38	50 – 85	50
89	Static Cool Setpoint	38	65 – 85	82
90	Static Heat Setpoint	38	65 – 85	60
91	Cool Setpoint Offset	39	1 to 10	4
92	Heat Setpoint Offset	39	-1 to -10	-4
93	Press Fan To Clear All Messages	33

Troubleshooting

SYMPTOM: The air conditioning does not attempt to turn on.
CAUSE: The compressor timer lockout may prevent the air conditioner from turning on for a period of time.
REMEDY: Consult the Owner’s Manual in the Installer Setup section to defeat the Cycles Per Hour (page 26).
SYMPTOM: The display is blank.
CAUSE: Lack of proper power.
REMEDY: Make sure the power is on to the furnace and that you have 24vac between R & C.
SYMPTOM: The air conditioning does not attempt to turn on.
CAUSE: The cooling setpoint is set too high.
REMEDY: Lower the cooling setpoint or lower the cooling set-point limit. See Setpoint Limits (page 26).
SYMPTOM: The heating does not attempt to turn on.
CAUSE: The heating setpoint is set too low.
REMEDY: Raise the heating setpoint or raise the heating set-point limit. See Setpoint Limits (page 26).
SYMPTOM: When controlling a residential heat pump, and asking for cooling, the heat comes on.
CAUSE: The thermostat reversing valve jumper is set for B.
REMEDY: Set the reversing valve jumper for O.
SYMPTOM: When calling for cooling, both the heat and cool come on.
CAUSE: The thermostat equipment jumper is configured for HP and the HVAC unit is a Gas/Electric.
REMEDY: Set the equipment jumper for Gas.
SYMPTOM: When the Program button is pressed, the display reads “DISABLED”.
CAUSE: Program mode is set to NON PROGRAM.
REMEDY: Set Program Mode (Setup 1) to 1, 5/2, or 7 Day. See Selecting Your Program Mode (page 25).

Warranty

One-Year Warranty – This Product is warranted to be free from defects in material and workmanship. If it appears within one year from the date of original installation, whether or not actual use begins on that date, that the product does not meet this warranty, a new or remanufactured part, at the manufacturer’s sole option to replace any defective part, will be provided without charge for the part itself provided the defective part is returned to the distributor through a qualified servicing dealer. THIS WARRANTY DOES NOT INCLUDE LABOR OR OTHER COSTS incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of either defective parts or replacement parts. Such costs may be covered by a separate warranty provided by the installer. THIS WARRANTY APPLIES ONLY TO PRODUCTS IN THEIR ORIGINAL INSTALLATION LOCATION AND BECOMES VOID UPON REINSTALLATION. LIMITATIONS OF WARRANTIES – ALL IMPLIED WARRANTIES (INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY) ARE HEREBY LIMITED IN DURATION TO THE PERIOD FOR WHICH THE LIMITED WARRANTY IS GIVEN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU. THE EXPRESSED WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON WHATSOEVER. ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED DURING NORMAL WORKING HOURS. ALL REPLACEMENT PARTS, WHETHER NEW OR REMANUFACTURED, ASSUME AS THEIR WARRANTY PERIOD ONLY THE REMAINING TIME PERIOD OF THIS WARRANTY.

THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR:

Normal maintenance as outlined in the installation and servicing instructions or owner’s manual, including filter cleaning and/or replacement and lubrication.
Damage or repairs required as a consequence of faulty installation, misapplication, abuse, improper servicing, unauthorized alteration or improper operation.
Failure to start due to voltage conditions, blown fuses, open circuit breakers or other damages due to the inadequacy or interruption of electrical service.
Damage as a result of floods, winds, fires, lightning, accidents, corrosive environments or other conditions beyond the control of the Manufacturer.
Parts not supplied or designated by the Manufacturer, or damages resulting from their use.
Manufacturer products installed outside the continental U.S.A., Alaska, Hawaii, and Canada.
Electricity or fuel costs or increases in electricity or fuel costs for any reason whatsoever including additional or unusual use of supplemental electric heat.
ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY NATURE WHATSOEVER. Some states do not allow the exclusion of incidental or consequential damages, so the above may not apply to you.

Technical Specifications

S1-TBSU306-S Thermostat Controllers

Power Requirements		20 – 30 VAC 50/60 Hz, 3.0 VA @ 24V nominal.
Output Rating		W1, W2, W3 = 0.2A max, 0.01A min, 3A inrush, 20 – 30 VAC Y1, Y2, G = 0.4A max, 0.01A min, 3A inrush, 20 – 30 VAC HUM, DEHUM, AUX = 0.1A max, 0.01A min, 3A inrush, 20 – 30 VAC
Local Temperature Sensor Type		Thermistor, NTC 10K @ 25˚C
Remote Temperature Sensor Type		Thermistor, NTC 10K @ 25˚C
Wire Size		16 AWG (100 ft max) to 24 AWG (36 ft max)
Temperature Adjustment Range		35˚ to 99˚ deg F (2˚ to 36˚ deg C)
Accuracy		35˚ to 65˚ deg F +/- 3˚ degF, greater than 65˚ to less than 80 degF +/- 2 degF, 80˚ to 99˚ deg F +/- 3˚ degF, greater than 99˚ to 104˚ deg F +/- 5˚ deg F
Humidity		+/- 10% RH from 30-70% RH, 50˚- 90˚ F
Deadband		Adjustable 1˚ to 6˚ deg first stage, 0˚ – 10˚ deg 2nd & 3rd stages
Ambient Conditions	Operating	35˚ to 104˚ deg F (2˚ to 40˚ deg C), 5 – 95% RH non-condensing, 86˚ deg F max dew point
	Storage	-22˚ to 122˚ deg F (-30˚ to 50˚ deg C), 5-95% RH non-condensing, 86˚ deg F max dew point
Compliance		UL/cUL listed, file E468676, NEC Class 2
Dimensions		4.4” H x 5.2” W x 1.0”D
Shipping Weight		0.34 kg

REFERENCE:

DOWNLOAD MANUALS:

Source1 S1-TBSU306-S Programmable Digital Thermostat Owners Manual

Tagged Owner’s Manual, Programmable Digital Thermostat, S1-TBSU306-S, S1-TBSU306-S Thermostat, Source1, Source1 S1-TBSU306-S

Source1 S1-TBSU306-S Programmable Digital Thermostat Owners Manual
