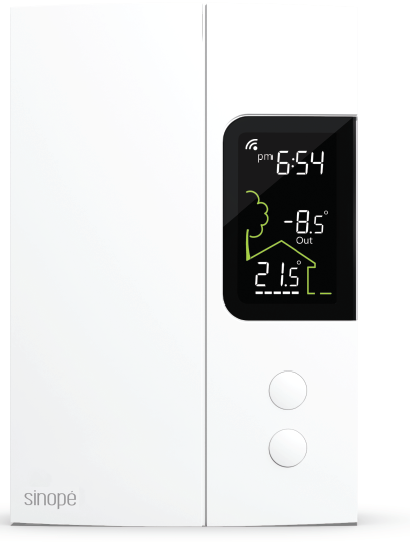

Sinope TH1123WF Smart Thermostat for Electric Heating
FEATURES
- Backlit display
- Detects the connected load
- Lockable buttons
- Personalization of the minimum and maximum temperatures available for thermostat control
- Indoor, outdoor, and setpoint temperatures featured on the
- thermostat display
- Temperature displayed in °C or °F
COMMUNICATION
- Protocol: Wi-Fi
- Standard: IEEE 802.11 b/g/n
- Frequency: 2.4 GHz
CERTIFICATION
STANDARDS
Conforms to CSA-C828-19
Also available
- Smart Thermostat for
- Electric Heating (4000 W)
- Scenes: activate personalized ambiances according to the time of the day, events or activity
- Schedules: set a different schedule for each day of the week, up to 8 periods per day
- Energy reports: see your consumption and savings in real-time
- Geofencing: trigger actions based on your presence
- Voice assistants: works with Amazon Alexa and Google Assistant
TECHNICAL SPECIFICATIONS
- Operating voltage: 120/208/240 Vac, 60 Hz
- Bilateral triode switch (triac)
Maximum load
- 12.5 A / 3000 W @ 240 Vac
- 12.5 A / 1500 W @ 120 Vac
- 12.5 A / 3000 W @ 240 Vac
- 12.5 A / 1500 W @ 120 Vac
Minimum load:
Baseboard, convertor, and radiant ceiling
- 2 A / 500 W @ 240 Vac
- 2 A / 250 W @ 120 Vac
- Fan-forced convector
- 4.16 A / 1000 W @ 240 Vac
- 4.16 A / 500 W @ 120 Vac
- Maximum one fan-forced convector per thermostat
- Resistive load only
- Setpoint range: 5 °C to 30 °C (41 °F to 86 °F)
- Display range: 0 °C to 50 °C (32 °F to 99 °F)
- Storage: -20 °C to 50 °C (-4 °F to 122 °F)
- Operation: 0 °C to 50 °C (32 °F to 122 °F)
- Resolution: ± 0.5 °C (± 1 °F)
- 3-year warranty
