Secure SEC_SES301 Z-Wave thermostat
Z-Wave® Commissioning Notes
- SES 301 is a battery-powered temperature sensor that uses Z-Wave® technology low signals to transmit temperature data to a Controller.
- SES 301 does not need any wiring, but we recommend that it should be installed by a qualified electrician with current approval under Part P of the UK Building Regulations (2005).
- Install the two AAA batteries supplied with the unit, taking care to observe the polarity markings.
- Include the SES 301 onto a network. Put the Controller in Include mode and press the butt inside the unit for 2 seconds. The Controller will show when the unit is linked.
- Choose the position where the unit is to be mounted. Avoid locations alongside or behind large metal surfaces that could interfere with the low-power radio signals between the unit the Controller.

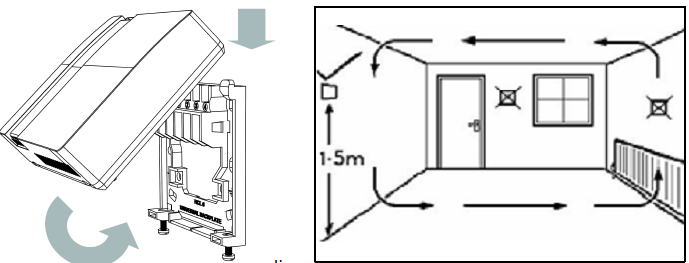

- The SES 301 should be mounted on an internal wall, around 1.5 m above floor level and in a position away from draughts, direct heat, and sunlight.
- Make be sufficient space around the unit to allow easy access to the two retaining screws on the base of the wall plate.
- Fit the wall plate to the wall and then fit the SES 301 on to the wall plate. Secure I by tightening the two captive screws.
If the unit needs to be excluded from a network, put the Controller in Exclusion mode and press the button on SES 301 for more than 2 seconds. The Controller indicates when the process is completed
The device classes supported are given below.
| Z-Wave Device Classes | Implemented Device Class |
| Generic | Multilevel sensor |
| Specific | Routing Multilevel sensor |
| Basic | Routing Slave |
| Command Classes Supported | Description |
| Manufacturer Specific | Secure Controls (UK) Manufacturer ID |
| Version | Provides the version number of the software |
| Multilevel Sensor | Supports Multilevel Sensor GET and Multilevel Sensor REPORT. The report carries the measured temperature as a 2-byte signed number (in °C or °F) with a precision of 1 decimal place. The report
can be requested (or sent unsolicited) to the nodes in Group 1. |
| Battery Level | Supports GET and REPORT, for battery level in the range 0-100%. Low Battery Warning is reported (with parameter = 0xFF) to the nodes
in Group 2 if the battery voltage is less than 2.5 volts. |
| Wake Up(Ver 2) | Wake Up Capabilities Report, supports wake up intervals in steps of 10s, with a default setting to 24 hrs, any received out of range wake up
interval will be ignored. |
| Basic | Mapped to the Multilevel Sensor Command Class as follows:
o Basic SET: Not Supported o Basic GET: Multilevel Sensor Get o Basic REPORT: Multilevel Sensor Report |
| Association | Two association groups are supported:
Group 1 – Nodes to receive unsolicited multilevel sensor report. Group 2 – Nodes to receive unsolicited low battery warnings report. Each group contains a maximum of 4 nodes |
| Configuration | Two single-byte configurations are supported for the temperature sensor functionality
1. Configuration Parameter Number 1, temperature scale: a. 0 to 127 (0x00-0x7F) = Celsius b. -128 to -1 (0x80-0xFF) = Fahrenheit c. Default value is 0 2. Configuration Parameter Number 2, delta temperature: a. Can set in the range 1 to 100, in 0.1 degree steps b. Default value is 10 (1.0 ºC). |
Technical Information
| Technical Information | |||
| Dimensions (WxHxD) | 86 x 86 x 30 mm | Power supply | 2 x AAA alkaline cells |
| Measurement accuracy | ±0.5 °C | Transmitter frequency | 868 MHz |
| Pollution control degree | 2 | Design standard | EN 60730-2-9 |
| Enclosure protection | IP30 | Operating range | 0 °C to +40 °C |
| Enclosure material | Flame-retardant thermoplastic | ||
