Sauter NRFC413MF111 Digital Thermostat
INSTRUCTION

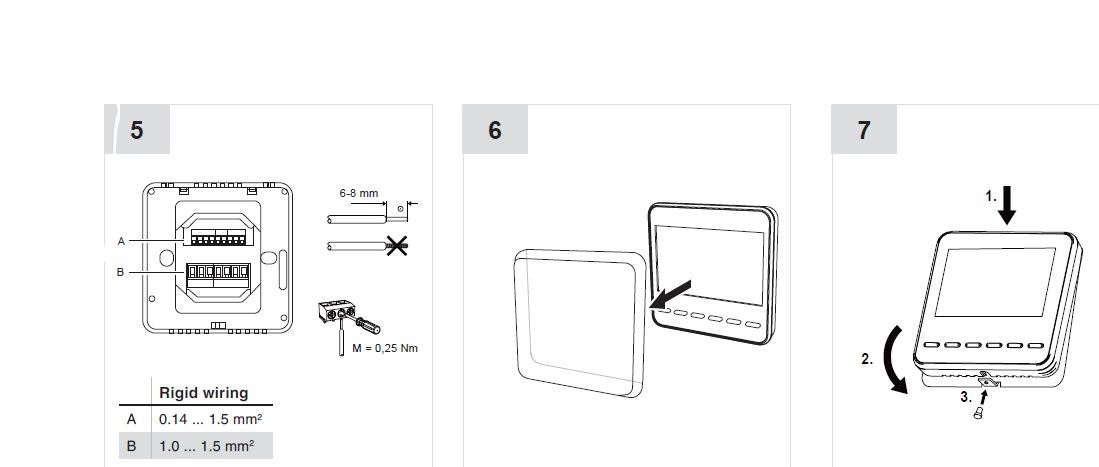

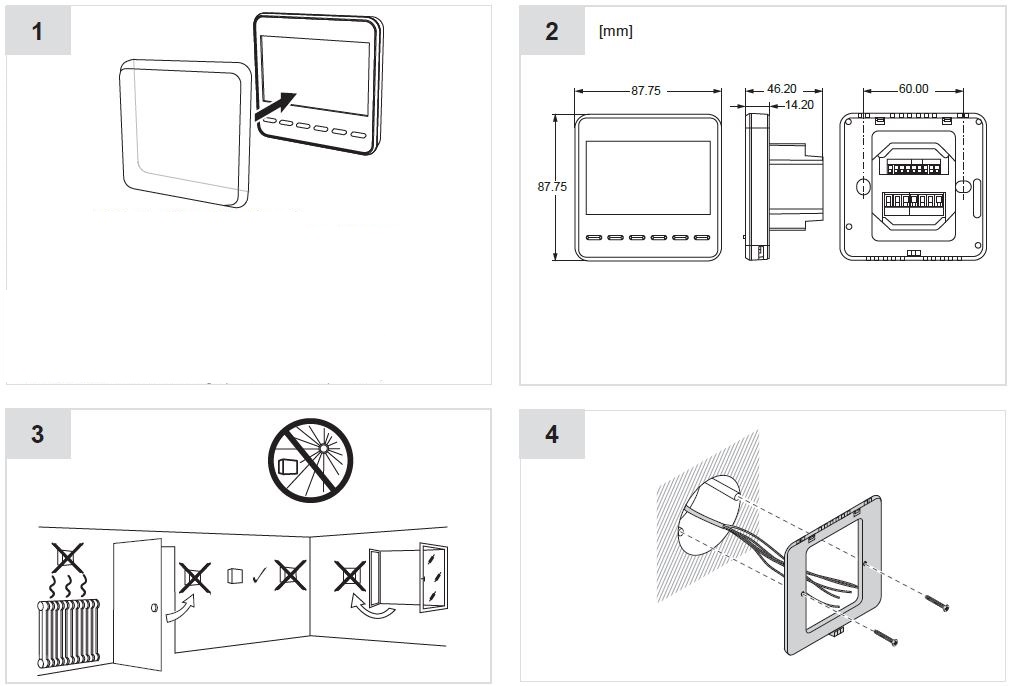

Fitting instructions for the electrician
Danger of electrocution!
- The removal of this cover exposes parts which carry mains voltage.
- The unit should be opened only by a qualified electrician or by the manufacturer‘s service personnel.
- Before starting any work on the electrical connections, separate the unit from the mains power supply.
- Do not apply power to the unit until it has been completely reassembled and the housing has been closed.
- To prevent access by unqualified persons and, in particular, children, do not leave the opened unit unattended.
- Do not insert any objects, or allow any objects to fall, into the housing‘s slits.
- Disconnect any damaged devices from the mains power supply.

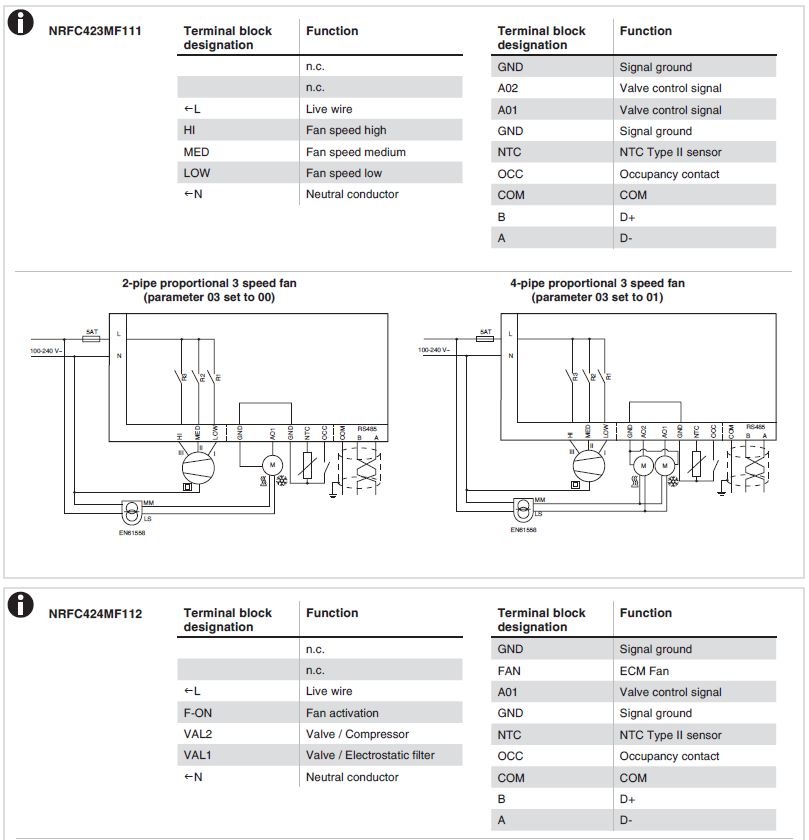

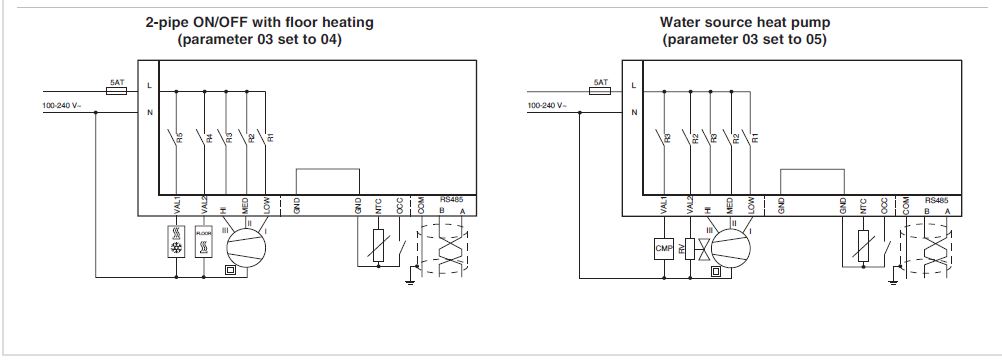

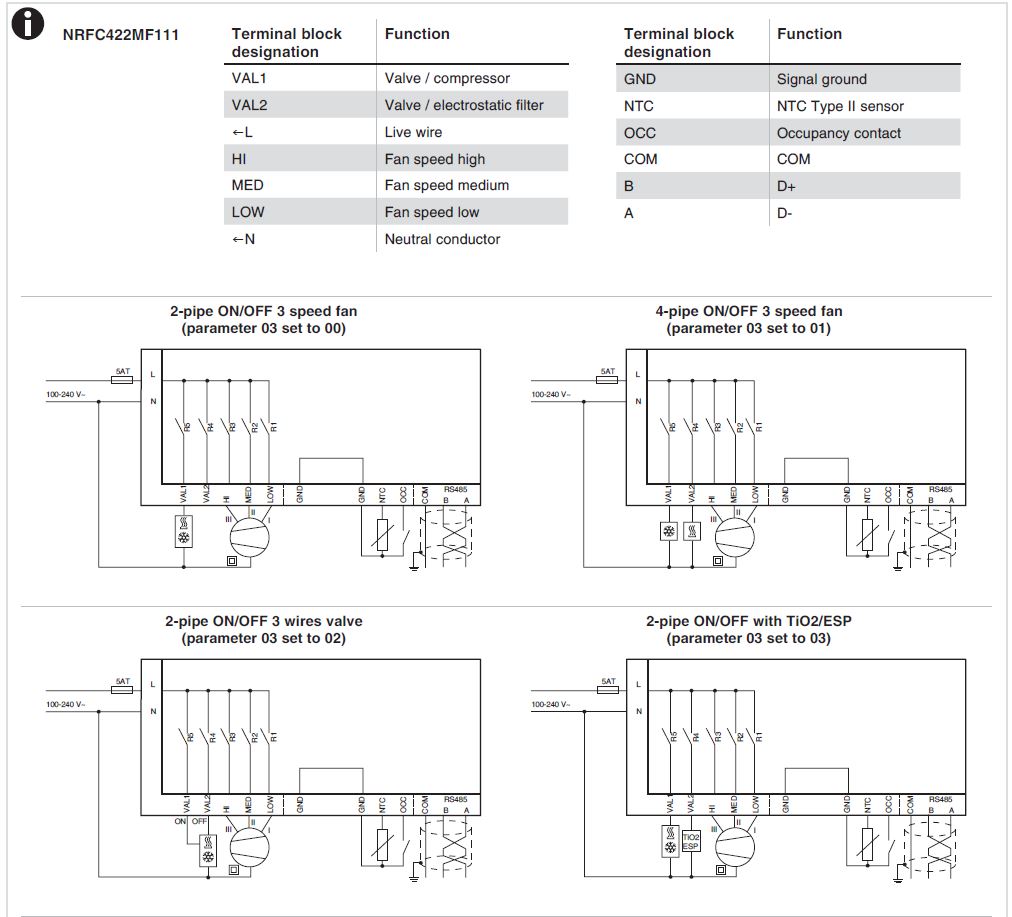

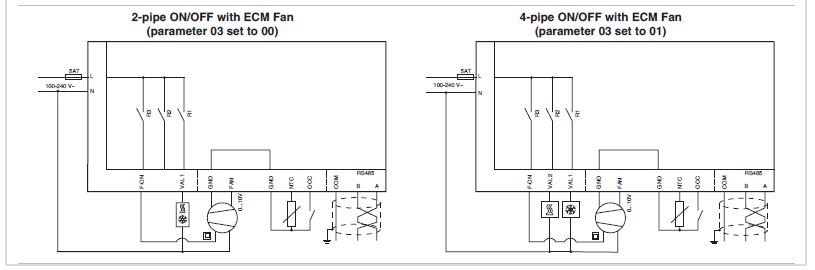

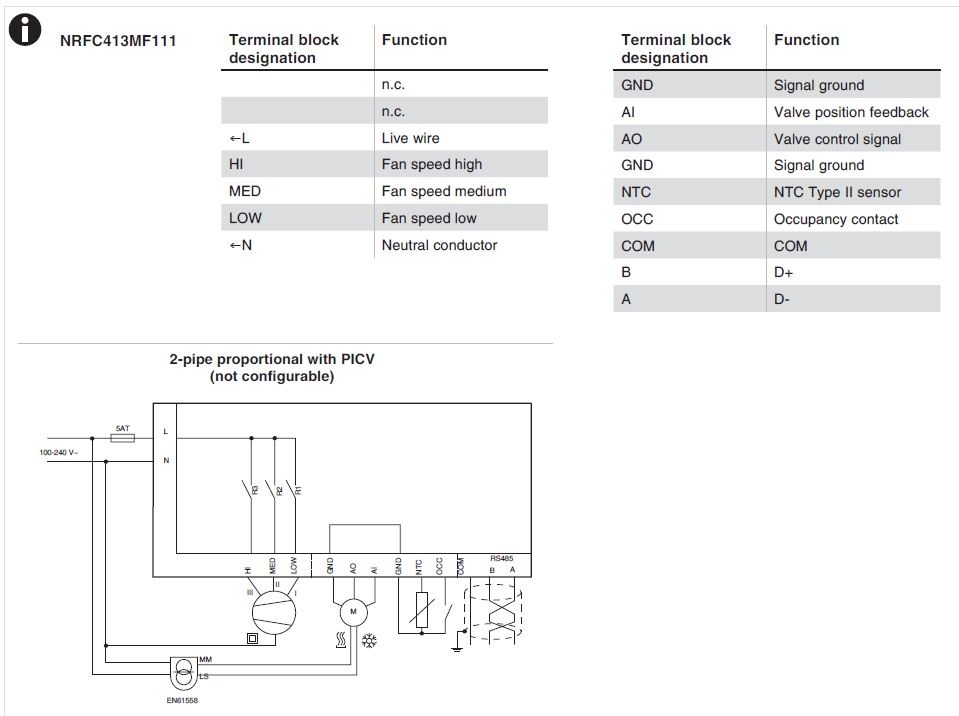

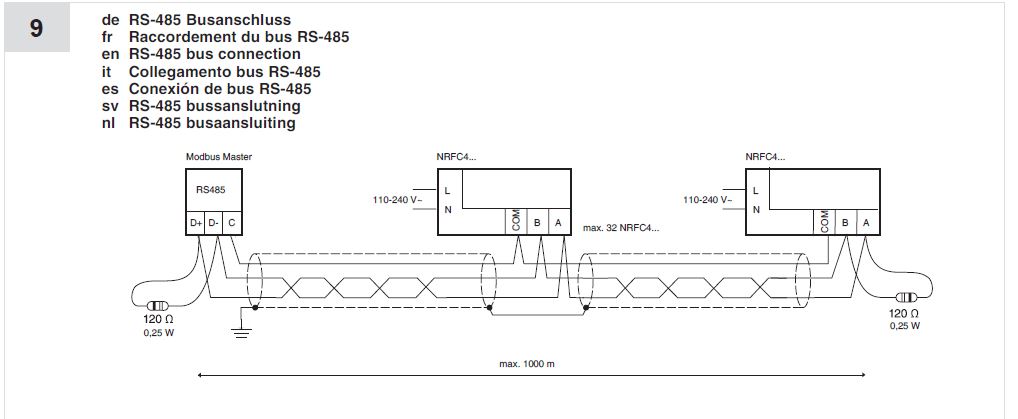

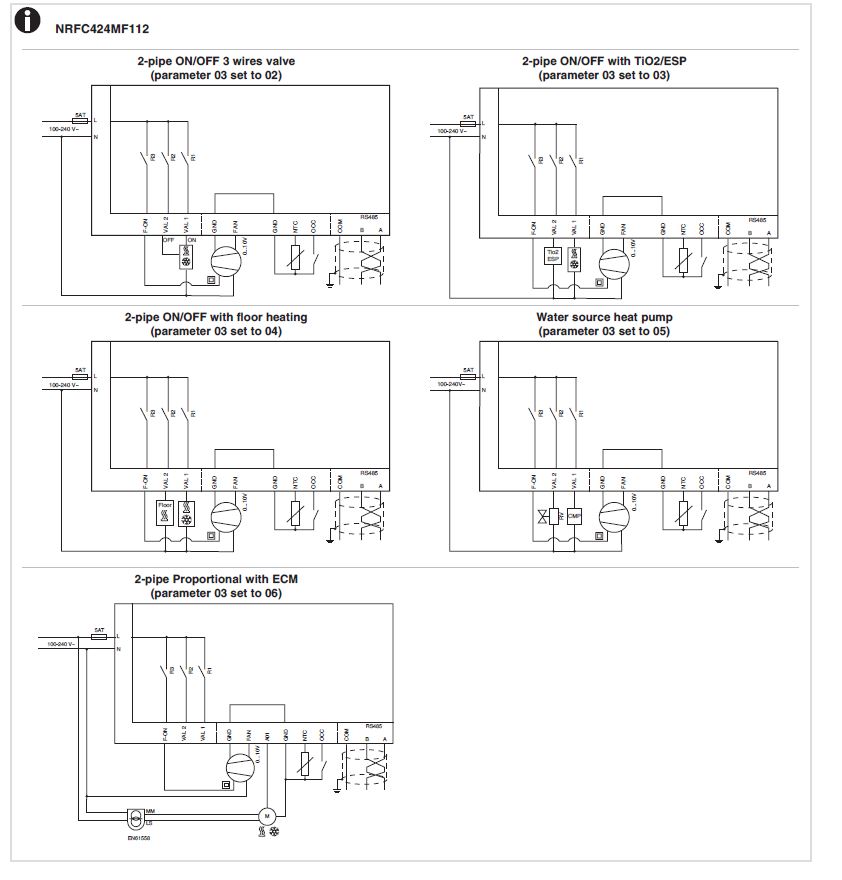

WIRING DIAGRAM
SAUTER
- Fr. Sauter AG
- Im Surinam 55
- CH-4058 Basel
- Tel. +41 61 – 695 55 55
Fax +41 61 – 695 55 10 - www.sauter-controls.com
- [email protected]
- www.sauter-controls.com
