Sangamo PR1n Programmable Thermostat

Sangamo PR1n Programmable Thermostat   PRO

Benefits

The Choice PR1 is a single channel programmer, designed primarily for timed control of your heating and hot water. Ideal for use with a combination (combi) boiler. The programmer can be configured for 24 hour, 5/2 day or 7 day operation with the flexibility of up to three on/off timings per day.

  • Pre-programmed but can easily be changed to suit your particular lifestyle
  • Large and clear to read illuminated display
  • Attractive modern design that will suit all contemporary homes
  • Ideal for use with “Combination” Boilers with only one heating zone
  • Can also be used in conjunction with an existing programmer to control additional heating zones or for when additional hot water cylinder control is required

Features

  • 24 hour, 5/2 day and 7 day selectable
  • 2 or 3 ON/OFF periods selectable
  • 1,2 or 3 hour boost
  • Advance to next programmed event
  • Automatic Summer/Winter time change
  • Holiday feature
  • Program options – ON, OFF, All day or Auto
  • Mains powered with battery backup
  • Standard wall plate – simple plug in and replace

Applications

  • Any simple time switch application up to the stated rating.
  • Domestic heating systems where both heating and hot water services are required to switch ON/OFF at the same time.
  • Controlling a “Combi” or “Combination Boiler”

Technical Data

  • Power Supply: 230V AC, 50Hz
  • Operating Temperature: 0°C to 40°C
  • Total Switch Rating: 230V AC, 2(1)Amp
  • Contact Type: 1B , Micro-Disconnection (Voltage Free)
  • Battery Type: Lithium Cell CR2032
  • Enclosure Protection: IP30
  • Plastics: Thermoplastic, flame retardant
  • Insulation Class: Double
  • Wiring: For fixed wiring only
  • Backplate: Industry standard
  • Dimensions: 140mm x 87mm x 37mm
  • Clock: 12 hour am/pm, 1 minute resolution, accuracy +/- 1.5 sec/day
  • BST/GMT time change: Automatic
  • Program Cycle: 24hr, 5/2day or 7day selectable.
  • Program On/offs per day: 2on/off, 3on/off selectable,
  • Program resolution: 10mins
  • Program Selection: Auto, On all day, On constant, off
  • Program Override: 1, 2 or 3 hour, Advance
  • Heating System: Pumped
  • Complies with : EN60730-1, EN60730-2.7, EMC Directive 2004/108/EC,
  • LVD Directive 2006/95/EC

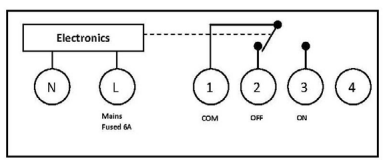

Electrical Connections

Internal Wiring DiagramSangamo PR1n Programmable Thermostat   1

Sangamo

Contact Us: 01475 745131

CUSTOMER CARE POLICY
As part of Sangamo’s continuous improvement program, the Company operates a Customer Care Policy. This means that we welcome your comments and complaints, as it can only help us to improve our services to you, our customer.Sangamo
