SALUS SC102ZB Wireless Fan Coil Thermostat Product Specification Sheet

SALUS klogo

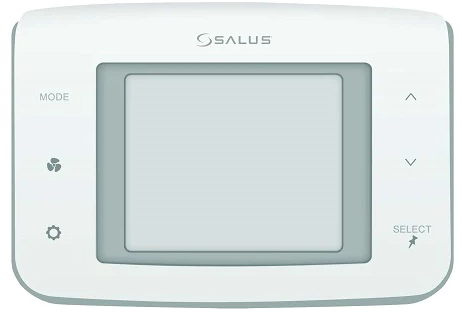

SALUS SC102ZB Wireless Fan Coil Thermostat

SALUS- SC102ZB- Wireless- Fan -Coil- Thermostat- pro

Introduction

The SALUS Wireless Fan Coil System provides a robust wireless solution for controlling fan coil units locally and remotely with optional internet connectivity

  • Remote sensor to control the temperature where you need it in the home
  • Desk stand or wall mount options for the Remote
  • Supports manual, seasonal, or automatic heat/cool changeover
  • Supports 2-pipe or 4-pipe fan coil units
  • Control fan speed and use auxiliary output contacts for humidity controlor energy recovery ventilation
  • Easy setup with a local display and convenient remote for effortless access

Description and Features

  • Built-in wireless communication support
    • Standalone wireless system operation or
    • Web connected using a SG888ZB Gateway
  • Supports 2-pipe or 4-pipe fan coil units
    • Manual, seasonal, or automatic heat/cool changeover
  • Auxiliary heat output
  • Input for remote setback contact or timer (NO or NC)
  • Test and installer modes
    • Displays external & pipe sensor temperatures
    • Set fan speed, accessory mode and other options
  • Keylock function
  • Mounts on 2 x 4 junction box
  • External antenna input to address radio shadows (SC102ZB Controller)
  • Manual override

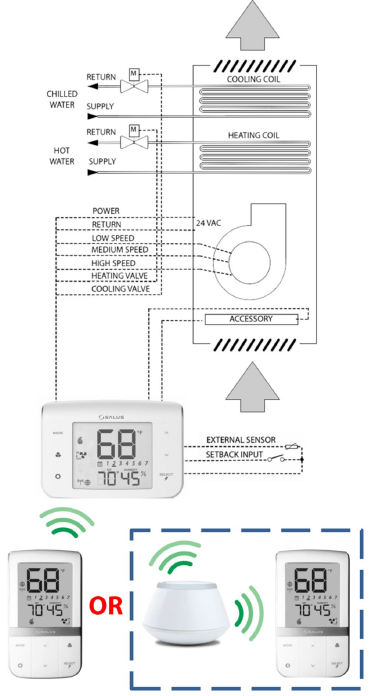

System Overview

SALUS- SC102ZB- Wireless- Fan -Coil- Thermostat- 1

Specifications

Specifications
Controls
Mode Fan Settings Select Up/Increment Down/Decrement
Indicators
Heat/Cool/Off Icons Room Temperature

Local Wireless Connection Day of Week

Humidity

Fan Speed, On/Auto Setpoint Temperature Internet Connection Time

Low battery (ST103ZB Remote)

Mechanical
SC102ZB Controller – Weight – 0.8 lbs / 350 g

L x W x H – 4.7” x 3.3 “ x 1.2”/12 cm X 8.3 cm X 3.0 cm

ST103ZB Remote

L x W x H – 4.8” x 2.6 “ x 1.1”/12.2 cm X 6.6 cm X 1.1 cm

Power
SC102ZB Wireless Fan Coil Control – 24 vac / 60 hz ST103ZB Wireless Fan Coil Remote – 2 x AA Battery
Radio
802.15.4 (2.4 GHz), Zigbee HA1.2-based protocol
Environmental
Operating: 32 – 122°F, 0 – 50°C, < 95% RH, non-condensing Storage: -4 – 140°F, -20 – 60°C, < 95% RH, non-condensing
Agency Compliance
FCC, Industry Canada
Compatible Devices
SG888ZB Basic Gateway

Order Details

Wireless Fan Coil Controller
Model Single Unit UPC Carton GTIN
SC102ZB 817989021564 10817989021561
Wireless Fan Coil Remote
Model Single Unit UPC Carton GTIN
ST103ZB 817989021557 10817989021554
