SALUS RT520RF Boiler Plus Compliant Thermostat User Manual

SALUS RT520RF Boiler Plus Compliant Thermostat

Introduction

Product Compliance
This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com.

Safety Informations

• Before starting installation work and before using the product, read the entire manual.
• The information contained in the instructions is essential for proper functioning.
• To avoid accidents resulting in personal injury and material damage, please follow all safety precautions, specified in this manual.
• The device should not be used by people with limited mental, sensory or mental abilities, without experience, of insufficient knowledge as well as children.
• Do not use an unassembled device (eg without a cover).
• The device may only be opened by a qualified person.
• Keep electrical devices out of the reach of children and ensure that they do not play with it. Children should not be left unattended. If necessary, disconnect the control system for the entire room.
• Do not leave the packaging, cabinet, or any loose parts of the device unattended, as they pose a risk to children.

WARNING!

• Installation must be carried out by a qualified person with appropriate electrical qualifications in accordance with standards and regulations in force in the given country and in the EU.
• Never try to connect the device other than as described in the manual.
• Before assembly, repair or maintenance as well as during any connection works it is absolutely necessary disconnect the mains supply and make sure that the terminals and electric wires are not live.
• The device may not be exposed to extreme temperatures, strong vibrations or subjected to mechanical shock.
• The device should not be used in unfavorable environmental conditions or in rooms where there is a concentration of flammable gases, fumes or dust.
• There may be additional protection requirements for the entire installation that the installer is responsible for maintaining.

Care for the natural environment is of paramount importance to us. The awareness that we manufacture electronic devices obliges us to dispose of used electronic components and devices safely. Therefore the company has received a registration number issued by the Chief Inspector for Environmental Protection. The crossed out symbol the trash can on the product means that the product must not be disposed of with ordinary waste containers. Sorting waste for recycling helps to protect the environment. It is the user’s responsibility to surrender used equipment to a designated collection point for recycling waste from electrical and electronic equipment.

Product Overview

The RT520RF room thermostat simply switches the heating system on and off as necessary. It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.
Turning a room thermostat to a higher setting will not make the room heat up any faster. How quickly the room heats up depends on the design of the heating system, for example, the size of boiler and radiators. Neither does the setting affect how quickly the room cools down. Turning a room thermostat to a lower setting will result in the room being controlled at a lower temperature, and saves energy.
The heating system will not work if a time switch or programmer has switched it off.
The way to set and use your room thermostat is to find the lowest temperature setting that you are comfortable with, and then leave it alone to do its job. The best way to do this is to set the room thermostat to a low temperature – say 18⁰C – and then turn it up by one degree each day until you are comfortable with the temperature.
You won’t have to adjust the thermostat further. Any adjustment above this setting will waste energy and cost you more money.
If your heating system is a boiler with radiators, there will usually be only one room thermostat to control the whole house. But you can have different temperatures in individual rooms by installing thermostatic radiator valves (TRVs) on individual radiators. If you don’t have TRVs, you should choose a temperature that is reasonable for the whole house. If you do have TRVs, you can choose a slightly higher setting to make sure that even the coldest room is comfortable, then prevent any overheating in other rooms by adjusting the TRVs.
Room thermostats need a free flow of air to sense the temperature, so they must not be covered by curtains or blocked by furniture. Nearby electric fires, televisions, wall or table lamps may prevent the thermostat from working properly.
Thermostat is compatibile with OpenTherm OT+ 4.0 version. The OpenTherm protocol is an open standard communication protocol used in central heating systems for two-way communication between a central heating boiler and a room thermostat. Thanks to the communication protocol, the boiler power is modulated, which can significantly increase the energy efficiency of the heating system while maintaining the set temperature in the room. OpenTherm modulation, compared to standard communication (ON / OFF), occurs by setting the desired temperature of water from the boiler (boiler power), and not by its cyclical switching on and off.

PLEASE NOTE!
Make sure your gas combi boiler is compatible with OT + 4.0 communication protocol. The list of compatible boilers is on the next page.

Product advantages:

• set is factory-paired and ready to work
• option to choose Hysteresis or built-in TPI algorithm for all types of heating
• works with time schedules
• service mode protected by a PIN code
• maximum / minimum temperature limitation
• can temporarily change the temperature (overwriting until the next program change)
• has unique transmission codes
• operates at 868 MHz – a stable and noise-resistant signal

Example of boilers compatible with the OpenTherm OT+ 4.0 protocol

COMPANY	MODEL
Alpha Heating	E-Tec S E-tec Plus E-tec Evoke Intec GS
Atag	iC iC Economiser iS
Baxi	100 Combi 200 Combi 400 Combi 600 Combi
Daikin	D2CND 24Kw D2CND 28kw D2CND 35kw
Ferroli	i25 Condensing Combination Boiler i29 Condensing Combination Boiler
Ideal	Independent + Combi Independent Combi Independent System Logic Combi+ Combi C Logic Combi C24, C30, C35 (via a separate bundle set) Logic Code Combi (via a separate bundle set) I-mini C24, c30 (via a separate bundle set) Vogue Combi C26,C32, C40 Logic + System Logic + Heat
Intergas	Intergas Rapid Intergas Rapid Plus Combi Compact, Compact Range ECO RF Xtreme Xclusive
Main	Eco Compact Combi 25-30
Navien	Navien NCB
Ravenheat	Avanta, Quinta Ace Quinta Pro Gas 110 Eco
Vokera	Evolve C Evolve S Linea One (przez OpenTherm Kit Part_1221179) Vision Combi (requires a control interface 294501430 Compact A (requires a control interface 29450143) Verve (only heating mode) Mynute I (only heating mode) Vision System (only heating mode) Unica I Vibe Vision C

COMPANY	MODEL
Vokera	Linea HE Mynute A Mynute HE Unica HE
Viessmann	Vitodens 100W Typ WB1A (Connection: X3.3 and X3.4) Vitodens 100W Typ WB1B (Connection: X21.1 and X21.2) Vitodens 100WTyp WB1C (Connection: X21.1 and X21.2) Vitodens 200-W WB2B 26+ 35 kW (via Expansion Mo- dule OT and OT-A8 + _Terminal -10 and +10 are on the extension of the A8 boiler) Vitodens 200-W WB2C, B2HA,B2JA, B2LA (via icm Expander OpenTherm)
Vaillant (via Vaillant VR33 module)	Ecotec Pro Ecotec Plus Ecotec Exclusive Ecofit Pure
Worcester Bosch (via Nefit EMS-OT OpenTherm converter)	EMS capable boilers Greenstar i Greenstar i Junior (Made in July 2013) Greenstar Si Compact Greenstar CDi Compact Greenstar CDi Classic (Made after 16.01.2007 with CF12.10 software version and newer) Greenstar Highflow CDi Greenstar 12i System – 24i System (On condition that an optional integrated diverter valve manufactured after February 2011 is installed) Greenstar 27i System – 30i System (Provided the optio- nal Integrated Changeover Valve is installed Greenstar CDi Classic System (provided the optional Integrated Changeover Valve manufactured after 02/16/2007 with software version CF12.10 and above is installed))

Montage

Package content

1. RT520RF thermostat
2. Thermostat bracket
3. RXRT520 receiver
4. 2x AA batteries
5. Short instruction
6. Mounting screws



Proper thermostat location

Please note:
The ideal position to thermostat mounting is about 1,5m under floor level far from heating or cooling sources. Thermostat can’t be exposed to sunlight or any extreme conditions like for example draft.
Because of fire and explosion risk there is not allowed to use thermostat in atmosphere of explosive gases and flammable liquids (eg coal dust). In case if any of listed dangers occur you have to use additional protection measures – anti-dust and explosive gases (tight cover) or prevent their formation. Furthermore, thermostat can’t be used in condensation of water vapor conditions and be exposed to water action.

RXRT520 receiver

The thermostat communicates wirelessly with the RXRT520 receiver. The receiver should be supplied with 230VAC, the maximum load of the receiver is 16A. Avoid installing the device in places directly exposed to water, moisture and air condensation. The RXRT520 receiver can operate in two different modes – AUTO (automatic) and MANUAL (manual). To select a specific mode, use the buttons on the front of the receiver.

Receiver’s switches description

	TOP SWITCH
1.	ON – Manual mode – receiver ON
2.	OFF – Manual mode – receiver OFF
	BOTTOM SWITCH
3.	AUTO – Receiver works in AUTO mode (according to the thermostat’s command)
4.	MANUAL – Receiver works in manual mode (according to the top switch)

REMEMBER:
For the receiver to work with the thermostat, set the switches to the ON / AUTO position.

LED indications in the receiver
The status of the RXRT520 receiver is indicated by two LEDs. These are LEDs with the following colors:

1. red (upper one),
2. green (lower one).

A detailed explanation of the meaning of the LEDs can be found in the table below:

	MEANING
The red LED lights up	The receiver is connected to the 230V power supply and is paired with the thermostat.   The receiver can be thermostat-enabled if it is in automatic mode when the lower switch is in the AUTO position. The receiver can be started manually when the lower switch is in the MANUAL position.
The red LED flashes	The receiver is in the pairing mode and is looking for a signal from the thermostat (then you must activate the “PAIRING” option in the thermostat)   (or)   The receiver was paired but lost communication with the thermostat due to out of range or low battery in the thermostat. The receiver starts flashing after one hour of time when it does not receive a signal from the thermostat.
The red diode is off	The receiver is disconnected from the 230V power supply or the upper switch is in the OFF position.
The green diode lights up	In automatic mode, the receiver received a heating signal from the thermostat.   The receiver was started in manual mode (upper ON switch, lower MANUAL switch)
The green diode is off	The receiver does not send a heating signal.

Wall mounting of the receiver

Wall mounting the receiver: drill two ø6 mm holes in the wall. Insert the plugs and, by putting the plate to the wall (included in the set), put the two screws through the holes and then screw them in. Connect the necessary cables to the receiver. Next, hang the receiver on the board using the handles designed in the receiver, marked in the picture below.

Connection description

I A – Boiler connection

I B – Pump / Valve connection

Legend:

• Boiler
  Boiler connection* – Boiler’s contacts for ON/OFF thermostat (according to the boiler’s instructions)
• Pump
• Valve

Symbols explanation:

• L, N – power supply 230V
• NO, COM, NC – voltage-free output
• A, B – OpenTherm Communication Wire
• fuse

Before you start (first power up)

LCD icon description

1. Text Bar
2. Temperature Unit
3. Day of the week (numeric)
   Day of the week (alphabetic)
4. Clock
5. AM / PM
6. Cooling Mode On
7. Holiday Mode On
8. Manual Mode On
9. Heating Mode On
10. Low battery status
11. Wireless connection with the receiver
12. Service Mode On
13. Temperature measured / set
14. Program number
15. Settings
16. Program indicator
17. Boost function

Button description

1. MENU / RETURN – enter the menu options, press and hold for 3 sec to return to main screen or to deactivate Boost or Manual modes.
2. SELECT – confirm changes and enter menus.
3. DOWN – decrease the temperature and move through the menus.
4. UP – increase the temperature and move through menus.
5. BOOST – activate Boost Mode.
6. MANUAL – press once to activate / press and hold for 3 sec to deactivate Manual Mode.

PLEASE NOTE! The LCD screen can be activated by using any button.

First power up sequence and configuration

Please make the receiver connections and power the receiver before inserting the batteries into the thermostat.

TPI (Time Proportional & Integral) is a self-learning, time-proportional algorithm. TPI type of regulation ensures economical system operation through more accurate temperature maintenance during controlling process and limits overload conditions. In addition to the exact and stable room temperature, the advantage of this system is the minimization of energy consumption and significant savings. RT520RF offers 3 types of TPI control: 1. for radiator (6CPH); 2. for underfloor heating (3CPH); 3. for electric heating (9CPH).

Span is the temperature difference, between which thermostat operates and keeps setpoint temperature. For example, if you set setpoint temperature to 20°C and if the hysteresis is ± 0.5°C, heating will be turned on when the room temperature drops to 19.5°C and turned off when the room temperature reaches 20.5°C.

The optimization function is an energy-saving algorithm for the effective control of the heating device, ensuring better thermal comfort at certain times of the day. When the OPTIMUM START function is active, the thermostat sends a heating signal to the heat source beforehand so that the preset temperature in the room is reached at the time specified in the schedule.

When the OPTIMUM STOP function is active, the thermostat, taking into account the inertia of the system, switches off the heat source earlier, keeping the temperature set in the schedule.

OpenTherm – Hot Water configuration
RT520RF can be configured in Hot Water OPENTHERM system. To configure it follow steps below:

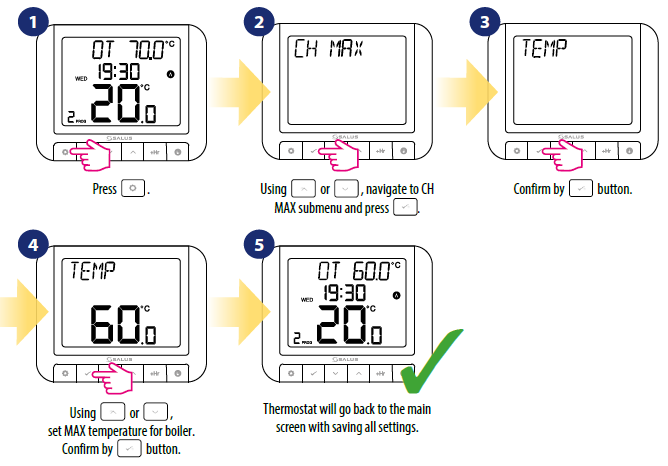

Max boiler temperature settings
In this chapter you will learn how to set max temperature for connected boiler. Follow steps below:

User settings

Manual mode
In manual mode, the thermostat maintains a constant temperature set by the user. To exit mode, press and hold button for 3 seconds. A hand icon is displayed when manual mode is active.

Schedule mode – programming schedule
In this mode, user can set the schedules for thermostat (temperature setpoints for specific periods of time). Programmed schedules should use all time periods.

Switching between manual and schedule mode
In this option, user can switch between manual and schedule mode by using button. To do that please follow steps below:
TO SWITCH FROM AUTOMATIC MODE TO MANUAL MODE:

TO SWITCH FROM MANUAL MODE TO AUTOMATIC MODE:

BOOST mode – hourly temperature override (+Hr)
The function is available in automatic and manual mode. Used to change the temperature to the desired value for a specified number of hours (up to 9 hours). After the elapsed time, the thermostat returns to the previous operating mode.

How to stop BOOST mode:

Control and Heat/Cool settings
This function enables the selection of the controller operating mode:
HEAT – thermostat controls heating installations,
COOL – thermostat controls cooling installations.
Thermostat is set to heating mode by default. To change the parameter follow the steps below:

OFFSET temperature calibration
In this chapter you will learn how to properly calibrate the temperature in the RT520RF thermostat. Calibration is possible in the range from -3.5°C to 3.5°C (in steps of 0.5°C). To calibrate temperature please follow steps below:

Landlord settings

Landlord settings is a pin code protected feature that allows the landlord to set a service reminder on the thermostat that will warn the tenant when the boiler is due its annual service.

PIN code setting

Service reminder / notification setting
In this chapter you will learn how to set the service notification / reminder for the boiler using the SERVICE parameter. You can set a specific date and time when a reminder is to be displayed before the upcoming boiler service. The option also allows you to set the temperature that the boiler is to maintain after exceeding the date on which the boiler service was to be performed.

Maximum / Minimum setpoint temperature setting
MAX_MIN seeting allows you to define maximum and minimum temperature setpoint which could be set by the thermostat. Please see the steps below:

Receiver’s operation setting
If the thermostat parameter “RECEIVER” is set to “ON MANUAL”, the receiver switch “AUTO-MANUAL” is active. The AUTO setting causes the receiver to react to signals sent by the thermostat. However, the MANUAL setting causes that the receiver ignores the thermostat signals and its operation depends only on the position of the top ON-OFF switch.
If the “RECEIVER” thermostat parameter is set to “OFF MANUAL”, the receiver switch “AUTO-MANUAL” is locked (disabled). Then the receiver will always react to signals sent by the thermostat.

Time/Date

To set time/date follow steps below:

Holiday mode
Holiday mode is a special program temperature setpoint which thermostat will maintain for specified days. How to set HOLIDAY MODE:

Language
To choose language follow steps below:

RT520RF thermostat pairing with the receiver

The word PAIRING in the user settings means the function of synchronizing the transmitter with the receiver again, if it has been removed.

WARNING!
IN THE SET RT520RF THE THERMOSTAT IS FACTORY PAIRED WITH THE RECEIVER!
In order to pair the devices correctly, you must first prepare the receiver for synchronization!

Test the pairing process

It is important to place the receiver and transmitter in places where nothing interferes with the radio signal. The range of communication between the transmitter and the receiver in an open area is up to 60m. The radio transmission is influenced by many factors that can shorten the working distance, such as thick walls, drywall covered with aluminum foil, metal objects such as cabinets, general radio interference, etc. However, the range is sufficient for most domestic use. It is recommended to test the radio transmission between devices before mounting the regulator on the wall. The test can be performed by changing the set temperature, i.e. by activating or deactivating the heating.

LOSTLINK monit

When the transmitter (thermostat) loses connection with the receiver, i.e. is too far away or not paired, the message LOSTLINK will appear on the main display. In this case, bring the thermostat closer to the receiver, so that it is within range, or pair the devices again. Then the message will disappear and each device will communicate properly with each other.

Factory Reset

To RESET RT520RF thermostat to it’s factory default settings please follow steps below:

Error codes

Thermostat will display errors only when it’s connected to the boiler by OPENTHERM terminals (A / B). Please refer then to boiler manual. Each boiler can have different error codes.

Battery change

Turn the thermostat over so that the back is in front of you. Now look at the picture below:

Cleaning and Maintenance

The RT520RF thermostat requires no special maintenance. Periodically, the outer casing can be wiped clean using a dry cloth (please DO NOT use solvents, polishes, detergents or abrasive cleaners, as these can damage the thermostat). There are no user serviceable parts within the unit; any servicing or repairs could only be carried out by Salus Controls or their appointed agents.

Technical Information

Power supply	2 x AA batteries
Receiver rating max	16 (5) A
Output signal	OpenTherm or voltage free COM/NO
Temperature range	5 – 33.0°C
Display temperature accuracy	0.1°C or 0.5°C
Control algorithm	TPI or Hysteresis: ±0.25°C or ±0.5°C
Communication	Wireless, 868Mhz
Dimension [mm]	Transmitter: 118 x 95 x 26 Receiver: 96 x 96 x 27

Warranty

SALUS CONTROLS warrants this product to be free from any defects in material or workmanship and to perform as specified for a period of five years from the date of installation. SALUS CONTROLS reserves the sole responsibility for breach of this warranty by repairing or replacing the defective product. This product includes software that matches the distributor’s identification at the time of sale. The manufacturer / distributor provides a guarantee covering all functions and specifics of the product in accordance with this marking. The distributor’s warranty does not cover the correct operation of the functions and features available as a result of a product software update.
The full warranty conditions are available at www.salus-controls.eu

IMPORTER:
QL CONTROLS Sp. z o.o. Sp. k.ul. Rolna 4, 43-262 Kobielice

PRODUCER:
Salus Limited
6/F, Building 20E, Phase 3, Hong Kong Science Park, 20 Science Park East Avenue, Shatin, New Territories, Hong Kong
www.salus-controls.eu
SALUS Controls is a member of the Computime Group.
Maintaining a policy of continuous product development SALUS Controls plc reserves the right to change the specification, design, and materials of products listed in this brochure without prior notice.
