SALUS BTRP230 Pure White Room Thermostat UP Electronic Digital
Contents of the box
Icons used in this manual:
WHAT IS IN THE BOX
Product Compliance and Safety Info
- Product Compliance
SALUS Controls hereby declares that the product complies with the essential requirements of the following EC Directives: 2014/30/EU, 2014/35/EU, and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com. - Safety Information
Use in compliance with safety regulations. The unit is to be used for the control of room temperature inside the house. - Installation
This accessory must be fitted by a competent person, and installation must comply with the guidance, standards and regulations applicable to the city, country or state where the product is installed. Failure to comply with the relevant standards could lead to prosecution.
Product Description

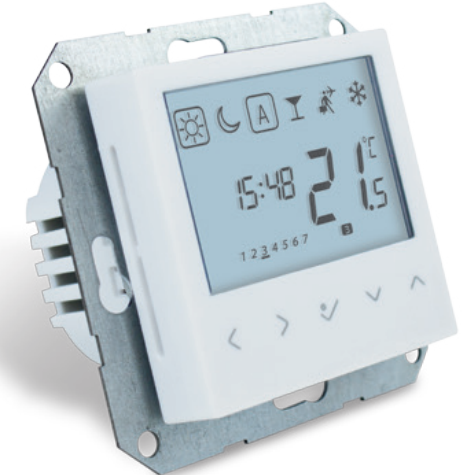

Thank you for purchasing the SALUS BTRP230 Thermostat. This thermostat is a device that lets you customize the heating and cooling of your home as needed. The BTRP230 device from SALUS Controls is a stylish and accurate digitial programmable room thermostat for flush mount and designed for Bezel 55mm range. It thermostat that is fitted with a large easy-to-read LCD screen and one-touch buttons. You can now simply adjust your home temperature as desired in order to create a comfortable home environment.
We hope you enjoy our product.
Installing the unit
Install the BTRP230 digital room thermostat roughly about 1.5m above floor level. It should be mounted in a location where the thermostat is easily accessible and away from direct sunlight. You can mount the thermostat directly on the wall or you can install it on top of a wall box.
Mounting the Thermostat
Terminal Connection
Note: You can wire the thermostat directly to the KL08NSB wiring center or to an actuator (purchased separately).
Thermostat Icons
Button Functions
Note: LCD backlight is activated by pressing any key.
Setting Date and Time
When you first power up your device you will have to set up the date and time.
Setting Your Programs
You can customise your programs by long pressing
when on the program screen.
Note: If you want to select another Program Profile (from the available 5), please enter in Installer Mode, choose option d17 and after that select the desired program.
You can select and customise any of the following programs:
- Program Profile 1
5 days (Monday to Friday) Program Program Time Heat set point Cool set point 1 6:00 Sunny Sunny 2 9:00 Moon Moon 3 16:00 Sunny Sunny 4 23:00 Moon Moon 5 –:– –:– –:– 6 –:– –:– –:– 2 days (Saturday to Sunday) Program Program Time Heat set point Cool set point 1 7:00 Sunny Sunny 2 23:00 Moon Moon 3 –:– –:– –:– 4 –:– –:– –:– 5 –:– –:– –:– 6 –:– –:– –:– - Program Profile 2
5 days (Monday to Friday) Program Program Time Heat set point Cool set point 1 6:00 Sunny Sunny 2 22:30 Moon Moon 3 –:– –:– –:– 4 –:– –:– –:– 5 –:– –:– –:– 6 –:– –:– –:– 2 days (Saturday to Sunday) Program Program Time Heat set point Cool set point 1 7:00 Sunny Sunny 2 23:00 Moon Moon 3 –:– –:– –:– 4 –:– –:– –:– 5 –:– –:– –:– 6 –:– –:– –:– - Program Profile 3
5 days (Monday to Friday) Program Program Time Heat set point Cool set point 1 5:00 Sunny Sunny 2 8:00 Moon Moon 3 14:00 Sunny Sunny 4 22:00 Moon Moon 5 –:– –:– –:– 6 –:– –:– –:– 2 days (Saturday to Sunday) Program Program Time Heat set point Cool set point 1 7:30 Sunny Sunny 2 22:30 Moon Moon 3 –:– –:– –:– 4 –:– –:– –:– 5 –:– –:– –:– 6 –:– –:– –:– - Program Profile 4
5 days (Monday to Friday) Program Program Time Heat set point Cool set point 1 6:00 Sunny Sunny 2 9:00 Moon Moon 3 15:00 Sunny Sunny 4 22:30 Moon Moon 5 –:– –:– –:– 6 –:– –:– –:– 2 days (Saturday to Sunday) Program Program Time Heat set point Cool set point 1 7:30 Sunny Sunny 2 23:00 Moon Moon 3 –:– –:– –:– 4 –:– –:– –:– 5 –:– –:– –:– 6 –:– –:– –:– - Program Profile 5
5 days (Monday to Friday) Program Program Time Heat set point Cool set point 1 6:00 Sunny Sunny 2 10:00 Moon Moon 3 16:00 Sunny Sunny 4 23:00 Moon Moon 5 –:– –:– –:– 6 –:– –:– –:– 2 days (Saturday to Sunday) Program Program Time Heat set point Cool set point 1 7:30 Sunny Sunny 2 23:30 Moon Moon 3 –:– –:– –:– 4 –:– –:– –:– 5 –:– –:– –:– 6 –:– –:– –:–
How to reset the thermostat
Installer Mode
Functions explained
| dxx | D setting function | Parameter/ Values | Definition | Default value |
|
d01 |
Heating Control |
0 | PWM (Pulse-width modulation) |
0 |
| 1 | ON-OFF: 0.5C (± 0.25ºC) | |||
| 2 | ON-OFF: 1.0C (± 0.5ºC) | |||
| d02 | Room temp. offset | -3.0oCto+3.0oC | Offset room temp measuring error (in 0.5ºC) | 0.0ºC |
| d03 | OUT sensor probe (S1/S2) | 0 | Out sensor probe not connected | 0 |
| 1 | Out sensor probe connected | |||
|
d04 |
Air sensor or Floor sensor |
0 | A: if d03 = 0, IN sensor controls Tr
A: if d03 = 1, IN disabled and OUT controls Tr |
0 |
| 1 | F: if d03 = 0, IN sensor controls Tr
F: if d03 = 1, IN disabled and OUT controlsTr Floor Protection |
|||
| d05 | Cooling Control | 1 | ON-OFF: 0.5ºC (± 0.25ºC) | 2 |
| 2 | ON-OFF: 1.0ºC (± 0.5ºC) | |||
| d07 | Valve Protection | 0/1 | 0 = VP disabled 1 = Enable | 1 |
| d08 | Frost Setpoint | 5ºC-17ºC | 5.0ºC |
| d09 | 12/24 Hour Format | 0 | 12hr | 1 |
| 1 | 24hr | |||
| d11 | Daylight Saving Time
(DST) |
0
1 |
Off | 1 |
| On | ||||
| d12 | Maximum limitation of
heating setpoint |
5ºC – 35ºC | 35ºC | |
| d13 | Maximum limitation of
cooling setpoint |
5ºC – 40ºC | 5ºC | |
| d14 | Floor sensor protection limit
(heating high limit-HL) |
11ºC – 45ºC | Turn off relay output when floor sensing temp >
protecting limit, step is 0.5ºC |
27ºC |
| d15 | Floor sensor protection limit
(heating low limit-LL) |
6ºC – 40ºC | Turn on relay output when floor sensing temp <
protecting limit, step is 0.5ºC |
10ºC |
| d16 | Floor sensor protection limit
(cooling) |
6ºC – 45ºC | Turn off relay output when floor sensing temp <
protecting limit, step is 0.5ºC |
6ºC |
|
d17 |
Preset program selection |
1-5 |
Select one of these 5 default programs. Once selected, default program will overwrite present program. Selected default program can be edited by the user in
the User Setting Mode. |
1 |
| d18 | Heat/Cool Mode Selection | 0 or 1 | 0: No connection 1: Connection | 0 |
| d19 | Cooling Blocked | 0 or 1 | 0: Cooling allowed
1: Cooling disabled |
0 |
| d20 | Actuators loading selection for different temperature
compensation. |
1 to 5 |
1: x 1 actuator loading 2: x 2 actuators loading
3: x 3 actuators loading 4: x 4 actuators loading 5: x 5 actuators loading |
1 |
Cooling Blocked
When the thermostat is set on Cooling Disabled (d19–>1) it will block the cooling function for single rooms until the device will receive the heating command. During the periods of cooling blocked no special indicator will be displayed on the LCD screen. Ice flake will also be turned off.
Note: d19 will be available only if d18 is set on 1 (Heat/Cool Mode selection Connected).

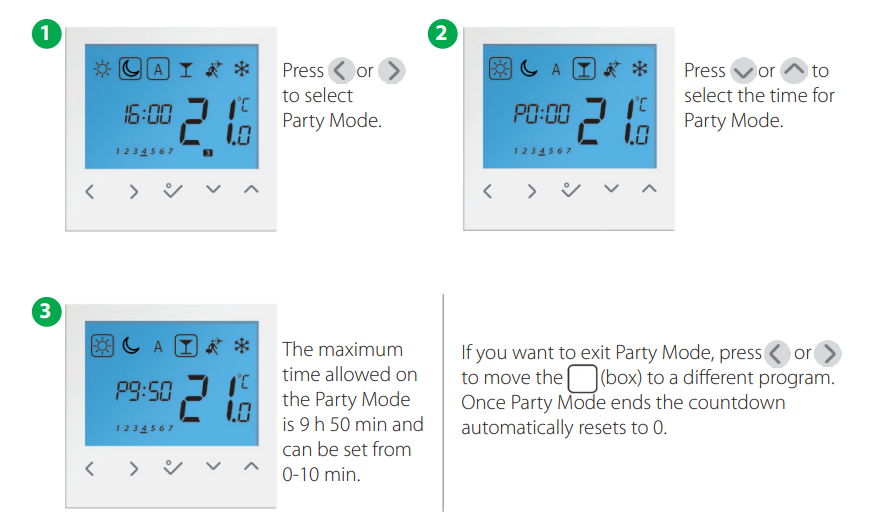

Party Mode
Vacation Mode
Note: Vacation Modes ends when it reaches day 0. After that the device goes back to Auto Mode.
Frost Mode
Temperature Offset
Technical Specification
| Model: | BTRP230 |
| Voltage | 230 V AC, +-10%, 50/60 Hz |
| Operating performance | 230 V: 1,8 W / 0.5A Max load |
| Temperature setback | Adjustable |
| Temperature range | 5°C – 35°C |
| Span | +/- 0,5°C |
| Storage temperature | -20°C to +60°C |
| Ambient temperature | 0 °C up to 45 °C |
| Degree of protection | IP 30 |
| CE conformity according to | Class II ( EN60730 ) |
| Housing material | PC, V2 |
| Color | RAL 9010 pure white |
| Connection | Screw terminal |
| Weight | 130g net / 175g gross |
| Puls-wide-modulation (PWM) | Yes |
| Clock, Timer | Yes, programmable |
| Profile Modes | 3 ( Sun, Moon, Automatic) |
| Heating and Cooling | Yes, on CO contact Input
(0V= Heatmode ; 230V Cooling mode) |
| Parameter adjustment | Yes, in Installer Mode |
| Dimensions | front : 55 x 55 x 17mm
Back: dia.: 55mm x 30mm |
Warranty
SALUS Controls warrants that this product (BTRP230) will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of five years from the date of installation. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
- Customer Name: …………………………………
- Customer Address: ………………………………
- Post Code: …………………………………………..
- Tel No: ……………………………………………….
- Email: ………………………………………………..
- Engineers Company: …………………………..
- Tel No: ………………………………………………
- Email: ……………………………………………….
- Instalation Date: ………………………………..
- Engineers Name: ……………………………….
- Engineers Signature: …………………………..
SALUS Controls plc
SALUS House Dodworth Business Park South, Whinby Road, Dodworth, Barnsley S75 3SP, UK.
Sales: T: +44 (0) 1226 323961
E: [email protected]
Technical: T: +44 (0) 1226 323961
E: [email protected]
www.salus-controls.com
SALUS Controls is a member of the Computime Group
Issue Date: Feb 2016 00188
For a PDF Installation guide please go to www.salus-manuals.com
Maintaining a policy of continuous product development SALUS Controls plc reserves the right to change the specification, design, and materials of products listed in this brochure without prior notice.
