Robertshaw RS5110 2-Day Thermostat Programmable
Comfort Control With Energy Savings
The Robertshaw® RS5000 thermostat family is Simply the Right Choice™ when it comes to programmable temperature controls that can save energy and money. With the comfort, convenience, and efficiency features that homeowners and contractors want, the RS5000 family provides high end features for an affordable price.
- Fully programmable with soft touch keys to easily set four events per day AND 5-2 day scheduling.
- Pop-up Wizard to customize thermostat settings with an instant start-up menu.
- Vacation setpoint override to reduce energy use while away from home.
- The RS5000 thermostats are fully compatible with all standard 24V AC heating and cooling systems.
- Additional compatibility with multi-stage gas/electric furnaces and heat pump systems is available in the RS5220 model.
- Add in easy installation, Contractor ID option, and quality you can depend on, and you have the
- Robertshaw RS5000 thermostat family – Simply the Right Choice™.
Features and Benefits
- Universal Control up to 2 Heat / 2 Cool – RS5220 only
- Operates on both multi-stage gas/electric furnaces and heat pumps means less inventory.
- Auto Changeover
- Switches automatically between heating and cooling for constant home comfort.
- Pop-Up Wizard
- Launches instant installation menu to quickly enter the settings for programmed thermostat functions.
- Bigger Brighter Backlight with Nightlight Option
- Makes viewing and setting the temperature easier any time of the day.
- Worry-Free Memory Retention
- Maintains set point and programmed parameters, even during power outages.
- Easy Change Battery Access
- Provides drop down removable compartment for quick battery replacement.
- Circulating Fan
- Maintains optimal air circulation between demand cycles for improved comfort with minimal energy use.
- Adjustable Temperature Differential and Upstaging
- Provides for full selection of parameters to deliver maximum comfort or energy savings.
- High and Low Setpoint Limits
- Protects the heating and cooling systems by limiting temperature settings.

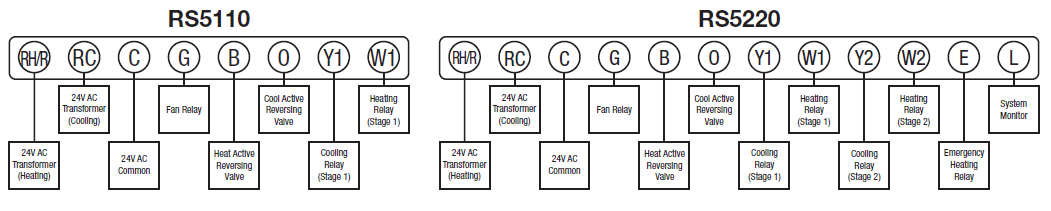

Terminal Designations

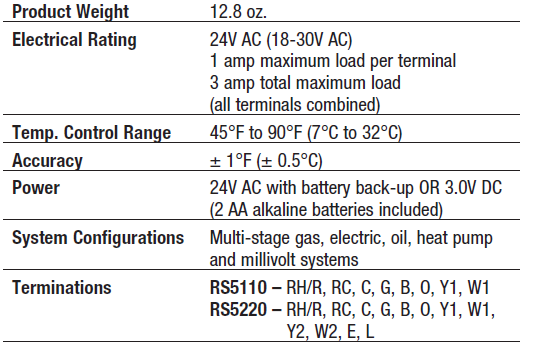

Technical Specifications
| RS5110 | |
| Robertshaw® | 9600, 9610 |
| Braeburn® | 5000, 5050 |
| Lux | TX500E |
| Honeywell | T8002, T8112, T8132, TH2110D,
TH4110D |
| White-Rodgers | 1F78-151,1F78H-151,
1F80-0471 |
| RS5220 | |
| Robertshaw® | 9615, 9620 |
| Braeburn® | 5100, 5200 |
| Lux | HP2110, PSPA722E |
| Honeywell | T8001, T8024, TH2210D,
TH4210D |
| White-Rodgers | 1F85-0471 |
| RS5110 | |
| Robertshaw® | 9600, 9610 |
| Braeburn® | 5000, 5050 |
| Lux | TX500E |
| Honeywell | T8002, T8112, T8132, TH2110D,
TH4110D |
| White-Rodgers | 1F78-151,1F78H-151,
1F80-0471 |
| RS5220 | |
| Robertshaw® | 9615, 9620 |
| Braeburn® | 5100, 5200 |
| Lux | HP2110, PSPA722E |
| Honeywell | T8001, T8024, TH2210D,
TH4210D |
| White-Rodgers | 1F85-0471 |
Replacement Chart
Shipping Specifications
- Individual Carton Dimensions 6.75” x 4.375” x 1.625”
- Master Carton Quantity 6
- Master Carton Dimensions 9.25” x 5.625” x 7.625”
- Master Carton Weight 5 lbs.
- Pallet Quantity 1170
- Pallet Dimensions 40” x 48” x 48
Robertshaw
Robertshaw® is a trademark of Robertshaw, its subsidiaries and/or affiliated companies. All other brands mentioned may be the trademarks of their respective owners
- www.robertshaw.com
- ©2020 Robertshaw
- 02/20 – 150-2090 Rev F
Customer Service
- (Americas) +1.800.304.6563
- Customer Service Facsimile +1.800.426.0804
- [email protected]
For Technical Service
- Telephone +1.800.445.8299
- [email protected]
