Robertshaw 9610 PROGRAMMABLE THERMOSTAT
Affordable Comfort Control
The Robertshaw 9610 programmable thermostat is the perfect solution to keeping your home comfortable year-round. Not only that, setting back your thermostat twice each day can reduce energy costs up to 25%. Set it and save.
Today’s busy lifestyle demands hands-free temperature control, and with a programmable thermostat, you’ve got it. In QuickSetTM mode, set seven daily programs for summer and winter all at once. Individual days can be customized to match any lifestyle. You will always come home to a comfortable setting, and you’ll save energy without even thinking about it. The 9610 is compatible with all standard 24 Volt AC heating and cooling systems, including single-stage heat pump systems. When you select a Robertshaw thermostat, you’ve made the choice of an industry partner that’s been making quality products for 100 years. Come home to affordable comfort. Come home to RobertshawSM.
Features and Benefits
- Automatic Compressor Short Cycle Protection
A system safeguard. Reduces wear and tear of HVAC equipment. - 7 Day Programming
Seven separate daily programs with four time and
temperature changes per day allow maximum flexibility. - QuickSetTM
Allows 7 days to be programmed all at once. - Adjustable Temperature Differential
Maintains optimal customer comfort. - Temporary Program Override
Allows for manual temperature adjustment. - Low-Temperature Protection
Heat turns on when the temperature goes below 40˚F.
Protects pipes from freezing. - Toll-Free Assistance
The Toll-Free Technical Service number printed right on the thermostat provides immediate assistance. - O & B Terminals
Greater system flexibility, zoning compatibility. - Quick Wire Terminal Block
Fast and easy installation. Uses sturdy wire clamps – no wrap-around of screws.
Technical service available: 1-800-445-8299
M-F 7:30 a.m. – 5:30 p.m. CST

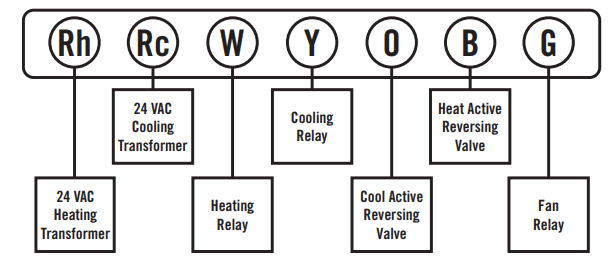

Terminal Designations
THE ROBERTSHAW 9610 REPLACES:
Verify specific application requirements before substitution.
Specifications
- Electrical rating: 24 Volt AC (18-30 VAC)
1 amp maximum load per terminal
3 amp total maximum load (all terminals combined) - Temperature control range: 45°- 90°F (7°- 32°C)
- Accuracy: +/-1°F (+/-.5°C)
- DC power: 3.0 VDC (2 “AA” alkaline batteries included)
- System configurations: 2-7 wire single-stage gas, oil or electric systems (including single stage heat pump systems)
- Terminations: Rh, Rc, W, Y, B, O, G
Shipping Information
- Indiv. Ctn. Dim.: 6.75″ x 4.375″ x 1.625″
- Master Ctn. Qty.: 6
- Master Ctn. Dim.: 9.25″ x 5.625″ x 7.625″
- Master Ctn. Cu. Ft.: 0.23
- Master Ctn. Wt.: 4.0 lbs.
- Max. Pallet Qty.: 1170
- Max. Pallet Dim.: 40″ x 48″ x 48″
- Max. Pallet Cu. Ft.: 53.33
- Max. Pallet Wt.: 835 lbs.
Other Single-Stage Heat / Cool Thermostats
- 988-1: Mechanical
- 9200: Mercury-Free Deluxe Mechanical
- 9500: Digital, Non-Programmable
- 9600: Programmable, 5-2 Day
- 9701i: Deluxe Programmable, 7 Day
Climate Controls Americas 515 South Promenade Avenue
Corona California 92879-1736 USA
Telephone +1 800 951 5526 Facsimile +1 630 260 7299
[email protected]
Technical Service Telephone +1 800 445 8299
Technical Service Facsimile +1 630 260 7243
[email protected]
www.icca.invensys.com
©2004 Climate Controls Americas 5/04 – #150-1402D
