Robertshaw 9515 Non-Programmable Thermostat
IMPORTANT INSTRUCTION
WARNING:
- Always turn off power at the main power source by unscrewing fuse or switching the circuit breaker to the off position before installing, removing, cleaning or servicing the thermostat.
- Read all of the information in this manual before installing or programming this thermostat.
- This is a 24V AC low-voltage thermostat. Do not install on voltages higher than 30V AC.
- All wiring must conform to local and national building and electrical codes and ordinances.
- Do not short (jumper) across terminals on the gas valve or at the system control to test installation. This will damage the thermostat and void the warranty.
Features
- Multi stage heating and cooling control
- Zone system compatible as a master thermostat
- Auxiliary heat
- Fahrenheit/Celsius display option
- Adjustable from 45°F (7°C) to 90°F (32°C)
- Accuracy within ± 1 degree
- Adjustable 1st stage temperature differential: 1°-3°, 2nd stage temperature differential: 2°-6° F
- Automatic heating shutdown if temperature exceeds 90°F (32°C)
- Battery free memory storage
- Replacing Existing Thermostat
- Turn off power to heating and cooling system.

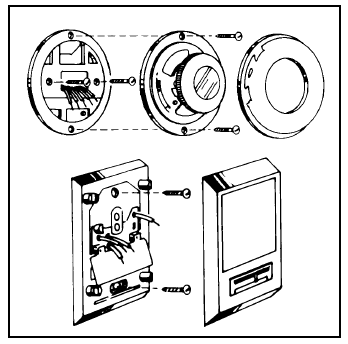

- Remove cover of old thermostat to expose wires.
- Do not disconnect wires (Figure 1).
- Label wires per Table 1.
Table 1
| Table 1 | ||
| Old Label | New Label | Description |
| R, V-VR or VR-R | R | 24 VAC, Return |
| Y, Y1 or M | Y1 | 1st Stage Cooling Circuit |
| O or R | O | Reversing Valve, (Cooling Mode) |
| B | B | Reversing Valve (Heating Mode) |
| F or G | G | Fan Control Relay |
| Y2 | Y2 | 2nd Stage Cooling Circuit |
| W2 or W-U | W2 | 2nd Stage Heating Control |
| C, X or B | C | 24 VAC, Transformer Common Side |
| W1 or W | W1 | 1st Stage Heating Circuit |
- After labeling wires, remove wires from terminals.
- Remove existing thermostat base from wall.
- Refer to the following section for instructions on how to install thermostat.
Installation
Installing Model 9515 Thermostat
- Turn power off to the heating and cooling systems.

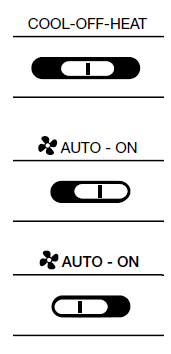

- Place COOL-OFF-HEAT in OFF position.
- Place

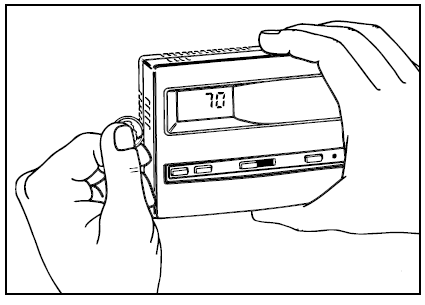

AUTO-ON switch into AUTO position. - Remove the cover using a coin or screwdriver (Figure 2).
- Place thermostat against the wall at desired location. Make sure wires will feed through opening on base of the thermostat.

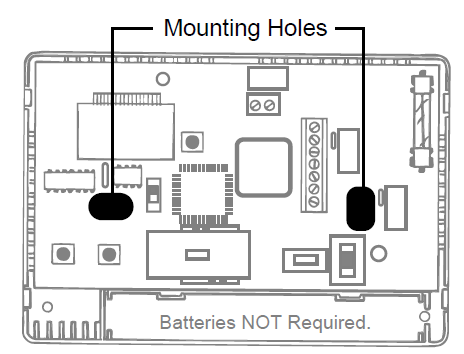

- Mark placement of mounting holes (Figure 3). Set base aside
- Drill the marked holes using a 3/16″ drill bit. NOTE: Enclosed plastic anchors do not require a drilled hole for drywall.
- Tap plastic anchors into the wall.
- Align base with plastic anchors and feed wires through opening.
- Secure base to wall with supplied screws
- Connect wires to terminal strip (refer to wiring diagrams).
- Make sure wire connections are secure.

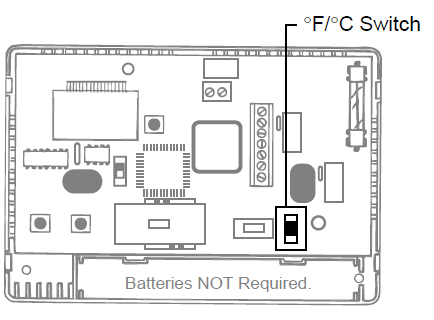

- Set the °F/°C switch to either °F for Fahrenheit display or °C for Celsius display readout (Figure 4).
- Set the GAS/ELEC switch to either GAS for a gas/oil heating system or ELEC for an electric heating system.
- Replace cover onto thermostat by snapping into place.
- Turn on power to system. Test thermostat as described in the following section
Operation
Setting or Changing the Setpoint Temperature

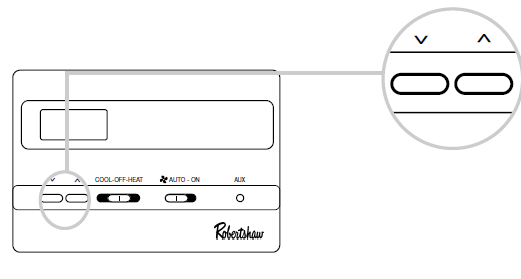

- Press either the
button. - The display will show the current temperature setpoint.
- Press either the button to adjust the temperature setting either up or down
Changing Temperature Differential
- Fahrenheit from the temperature setting, the system will turn on. If the system turns on too often, increase the temperature differential.

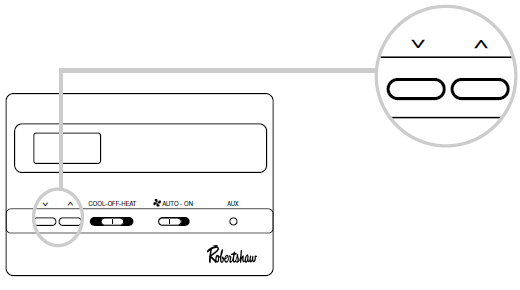

- Press both buttons at the same time and hold for one second.
- Press either the or button to adjust the 1st stage temperature differential up or down.
- After 5 seconds DIFF will begin to flash on the display indicating 2nd stage differential value.
- Press either the button to adjust the 2nd stage temperature differential up or down
To Test Thermostat
- Place the COOL-OFF-HEAT switch into the COOL position.
- Press the
button until the temperature setting is at least - degrees below the room temperature. The air conditioning system should turn on within a few seconds.
- NOTE: When in the COOL mode once the thermostat turns off, a built in 5- minute delay prevents the system from turning on again.
- This protects the compressor. No additional time delay relay is required. To override the 5- minute delay for installation, press the RESET button.
- Put the COOL-OFF-HEAT switch into the OFF position. The air conditioning system should turn off.
- Put the COOL-OFF-HEAT switch into the HEAT position.
- Press the
button until the temperature setting is at least - degrees above room temperature. The heating system should turn on. The fan may not turn on immediately, depending upon the fan delay built into the furnace.
- Put the COOL-OFF-HEAT switch into the OFF position. The heating system should turn off. The fan may continue to run for a short period of time.
- Put the AUTO-ON switch to the ON position. The blower fan should turn on.
- Put the AUTO-ON switch to the AUTO position. The blower fan should turn off.
Changing Fahrenheit (F) to Celsius (C)
- The thermostat is preset to display the temperature in degrees Fahrenheit.
- You may change the display readout to Celsius if desired.
- Move the manual switch marked F (Fahrenheit) and C (Celsius) located at the center of the circuit board to the desired setting (page 5).
- Press RESET button located to the right of the LCD display to register the change.
- The display will change to show the temperature in your desired temperature scale. To return the thermostat to its original setting, repeat steps 1 and 2 above.
Note: Pressing the RESET button resets the 1st and 2nd stage differential to factory preset conditions.
LED Indicator
The LED indicator illuminates during a call for second stage heating or cooling. The auxiliary stages are used to maintain comfort during extremes in weather conditions. If the LED is illuminated too frequently during periods of moderate temperature, check the differential settings (page 6).

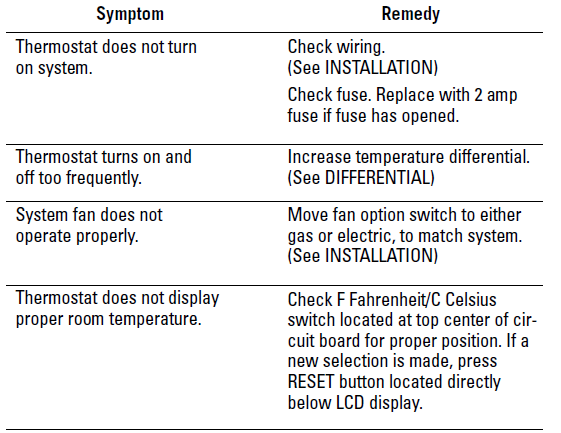

Troubleshooting
If problems with thermostat cannot be solved, call:
- Technical Support: (800) 445-8299
Monday-Friday 7:30-5:30 CST - For warranty returns, send thermostat, shipping prepaid to:
- Uni-Line North America
- Warranty Claims Department
- 515 S. Promenade
- Corona, CA 91719

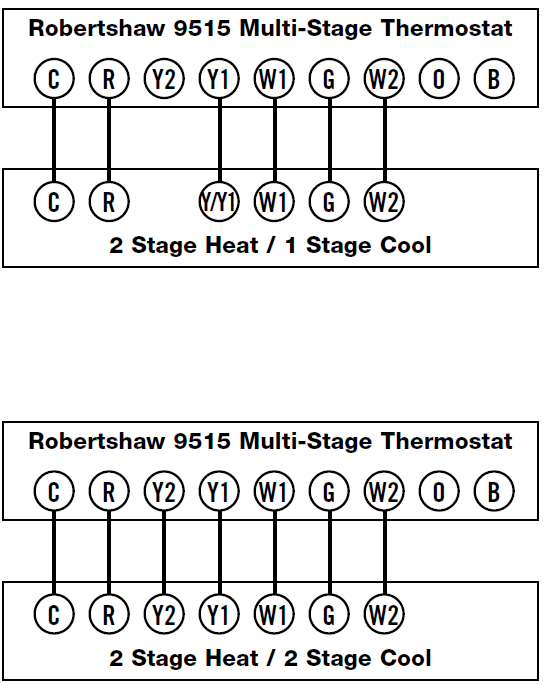

Wiring Diagrams
The following is just a sample of the most common types of HVAC systems. Refer to your system’s installation manual for wiring information.
Warranty
Five Year Limited Warranty
Maple Chase Company warrants to the original contractor installer, or to the original consumer user, each new Maple Chase thermostat to be free from defects in materials and workmanship under normal use and service for a period of five (5) years from date of purchase. This warranty and our liability does not apply to batteries or merchandise that has been damaged, caused by misuse, neglect, mishandling, alterations, improper installation, or use in a way other than in accordance with Maple Chase Company recommendations and instructions. Maple Chase Company agrees to repair or replace at its option any thermostat under warranty provided it is returned within the warranty period, postage prepaid, with proof of the date of purchase. Cost of thermostat removal or reinstallation is not the responsibility of Maple Chase Company. Repair or replacement as provided under this warranty is the exclusive remedy of the consumer. Maple Chase Company shall not be liable for any incidental or consequential damages for breach of any express or implied warranty on this product, or under any other theory of liability. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose on this product is limited to the duration of this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
