Rheem EcoNet RETST700SYS Smart Thermostat
Specification
- Built-In WiFi
- 4.3″ LCD TouchScreen
- Local Weather – Current conditions plus a 6-day forecast
- 5 Operating Modes – Heat, Cool, Auto, Emergency Heat, and Fan Only
- 7-Day Programmable Schedule – Offers comfort without thought
- One-Touch Away – Quickly switch to your energy-saving away preferences
- Vacation Scheduling – Allows you to save while you’re away and come home to comfort
- Motion Sensor – Automatically wakes the screen as you approach
- Standby Screen – Displays indoor temperature and current weather
Installation / Setup Features
- 4-Wire Configuration
- Custom Push Buttons for Tool-Free Wiring
- Automatic Equipment Configuration – Automatically detects equipment and configures equipment with optimal settings for hassle-free installation
- Contact Info Sync – Keeps contractor contact information ready when it’s needed
- Equipment Information – Displays software version, model number, and serial number of connected equipment
- Automatic Brand Display – Changes the screen logo based on the equipment model number
- Remote Room Sensor1 – Supports wired remote temperature sensor

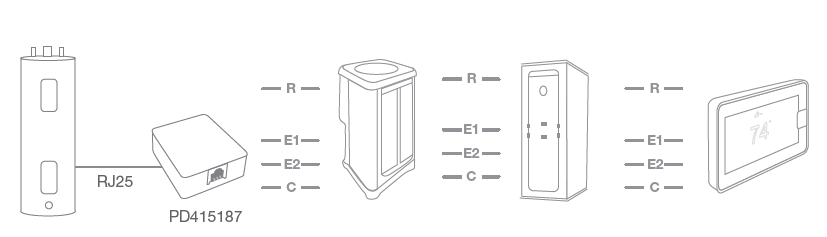

| Terminal | Function |
| R | Power – 24VAC |
| C | Common / Ground – 24VAC |
| E1 | EcoNet Communications Bus Wire 1 |
| E2 | EcoNet Communications Bus Wire 2 |
Operational Features
- Automatic Changeover – Transitions between heating and cooling automatically to keep the house comfortable
- Integrated Water Control – Enables easy water heater management
- Smooth Arrival – Prompts the system to start ahead of schedule to ensure the home is at the desired temperature at the scheduled time
- Humidity Control – Supports humidifier accessories or over-cool-based dehumidification
- Detailed Operating Status – View pertinent equipment status information and run times
- Continuous Fan – Offers 5 speeds (Low, Medium Low, Medium, Medium High, High)
- Short-Cycle Protection – Avoids damage to equipment from short-run cycles
Monitoring & Remote Control Features
- • Active Monitoring – Alerts to problems that need immediate attention
• Remote Control – Allows adjusting of comfort and settings from anywhere using a mobile device
• Service Alerts – Sends routine maintenance reminders
• Air Filter Monitoring – Detects when it’s time to replace the air filter
• Alarm History – Displays time-stamped alarm codes with clear descriptions
Limited Warranty
- 5-Year limited parts warranty (from date of installation)
- If installed as part of a Rheem® system, the EcoNet Smart Thermostat will be covered under the applicable product parts warranty. Refer to the manufacturer’s product warranty card for specific details.
| Heating & Cooling | ||||||||||
| Models | Gas Furnaces | Air Handlers | Air Conditioners | Heat Pumps | ||||||
| R802V | R96V | R97V | R98V | RHMV | RH2T | RA20 | RA17* | RP20 | RP17 | |
| RETST700SYS | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Water Heating | |||
| Electric Tank – EC2 Models | Hybrid Tank – HB50 Models | Gas PD Tank Models | Tankless Gas – E Models |
| ✔ | ✔ | ✔ | ✔ |
Supported Accessories
- Adapter Plate – RETSTWPL700
- Remote Temperature Sensor – APRILAIRE 8051
