Reliance TIME100001 240V Wired and RF Programmable Thermostat

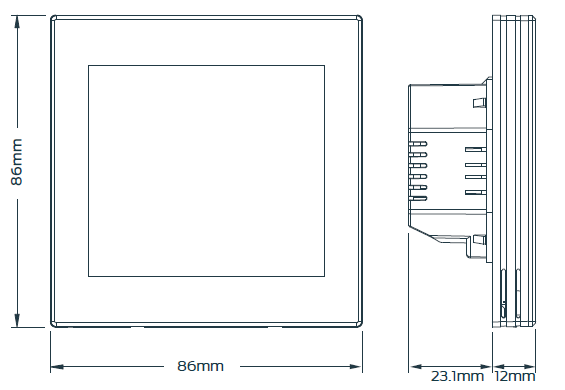

Reliance-TIME100001-240V-Wired-and-RF-Programmable-Thermostat-fig-25

Specification

Power source: 100-240VAC 50/60Hz
Load current output: 250VAC 3(2)A
Storage temperature: -10~60°C, 0~90%RH
Ambient temperature: 0~50°C, 0~80%RH

Important safety information

Read all of the information in this manual before installing this thermostat. removing, cleaning, or servicing this thermostat. Only a professional contractor should install this thermostat. All wiring must conform to local and national building and electrical codes and regulations. If the system is not operating properly, check the wiring and replace the fuse if necessary. Use this thermostat only as described in this manual.

Display

Reliance-TIME100001-240V-Wired-and-RF-Programmable-Thermostat-fig-2

ON/OFF/Boost
Time setting
Menu button
Lower temperature setting Raise temperature setting Reset

Reliance-TIME100001-240V-Wired-and-RF-Programmable-Thermostat-fig-2

If the icon is not shown then Wi-Fi is not connected If the signal is lost after connection the icon will flash
Day of week
Time display
Programming periods display (4 separate periods per day)
ON/OFF
Key lock
Holiday Mode
AM/PM
Boost function
Mode: ON / ALL DAY / AUTO / OFF / ADV

ON: Continuously on
ALL DAY: On for 1 period a day, from Program 1 ON to Program 4 OFF
AUTO: Automatic program control
OFF: Continuously off
ADV: When the device is in AUTO/ALL DAY mode, press and hold ‘ ’ to switch to ADV mode, and the device will move the unit to the next program, When the ADV function ends the device will return to the normal program. Press’ cancel ADV.

When in Auto mode selecting ADV, the thermostat will simply toggle the current auto setting (ON or OFF). If the program is set as:
08:00 ON 09:00 OFF 10:00 ON 11:00 OFF
Selecting ADV between 8:00 and 8:59 will change the output to OFF, from 9:00 onwards back to AUTO(which is also OFF). Selecting ADV between 9:00 and 09:59 will change the output to ON, from 10:00 onwards back to AUTO(which is also ON). If the ADV puts the relay On then the boost would apply immediately at the next OFF change, if the ADV puts the relay OFF then the boost would apply immediately and turn the relay ON.
08:00 OFF 10:00 ON 12:00 OFF 14:00 ON
If ADV occurs at 08:30 and the relay is On from 08:30 to 12:00. During this period if at 08:45 +1Hr (Boost) is pressed, the relay will be ON from 08:30 to 12:00.Boost is applied immediately ie from 08:45 to 09:45 at the next change, ie. 12:00. If ADV occurred at 10:30 the relay will be ON from 10:00, OFF from
10:30(ADV) to 14:00 if no +1Hr Override. During ADV, if at 10:45 +Hr (Boost) is pressed, the delay will go ON again at 10:45 (boost starts), OFF at 11:45 (Boost ends) until ends at 14:00, then On again at 14:00.

ON/OFF button
Press and hold up for 3 seconds to power off, displaying OFF: In power off, press Reliance-TIME100001-240V-Wired-and-RF-Programmable-Thermostat-fig-2 to power on the device.

Mode option ON/ALL DAY/AUTO/OFF
Press’ ‘ to switch mode, it will display the mode you select.

Holiday mode
In power on, press ‘ Reliance-TIME100001-240V-Wired-and-RF-Programmable-Thermostat-fig-2 ‘ switch from ON/ALL DAY/AUTO/OFF/Holiday mode. After selecting holiday mode display ‘‘ and keep off output until you press
‘‘ button to end holiday mode.

Boost function
Press ‘ Reliance-TIME100001-240V-Wired-and-RF-Programmable-Thermostat-fig-2 to activate the boost function in power on status. When the display shows ‘+0 ‘ press ‘‘ ‘ to select boost hour. Based on setting the time of boost to heat and count back displayed until the Boost function ends. Press ‘‘ to cancel the boost function when it is in active status.

Key lock
Press and hold ‘ Reliance-TIME100001-240V-Wired-and-RF-Programmable-Thermostat-fig-12 ” at the same time to activate or cancel the key lock. When activated the timer will display ‘‘

Backlight mode
With the thermostat turned off, press and hold ‘ Reliance-TIME100001-240V-Wired-and-RF-Programmable-Thermostat-fig-2 ‘ to enter the backlight setting interface. Press ‘ ‘ ‘ ‘ to adjust the parameters. 1: Backlight is always bright; When the button is pressed, a backlight is bright for 15 seconds; 3: backlight is off

Program setting
When the thermostat is on, press and hold ‘ ’ to enter the programming mode, and press ‘ ’ or ‘ ’ to select the programming week (5+2, 5+1+1, or 7 individual days optional). Press ‘ ’ to 1st ON time setting mode. Press ‘ ’ or ‘ ’ to select time, and press ‘ ’ to 1st OFF time setting mode. Press ‘ ’ or ‘ ’ to select the time. When you have finished setting the four time periods press ‘ ’ to save and exit. If no buttons are pushed for 10 seconds, the thermostat will exit the program setting automatically.

Default programming

1st		2nd		3rd		4th
ON	OFF	ON	OFF	ON	OFF	ON	OFF
0:00 am	0:00 am	6:00 pm	7:00 pm	12:00 pm	12:00 pm	4:00 pm	5:00 pm

Time setting
Press and hold ‘ ’ for 4 seconds, press ‘ Reliance-TIME100001-240V-Wired-and-RF-Programmable-Thermostat-fig-2 ’ to select the year, month, day, time scale, and time, press ‘ ’ ‘ ’ to adjust the setting, and press ‘ ’ to confirm. If there are no actions for 10 seconds, the thermostat will return to the temperature display mode. Press ‘ Reliance-TIME100001-240V-Wired-and-RF-Programmable-Thermostat-fig-2 ’ to check the time, year, month, and day.

Setting the date and time for the initial start-up
Plug in the power supply. Press ‘ Reliance-TIME100001-240V-Wired-and-RF-Programmable-Thermostat-fig-12 ’ or ‘ ’ to set the year, press ‘ ’ to set the month, day, time scale, and time, and press ‘ ’ ‘ ’ to adjust the setting.
