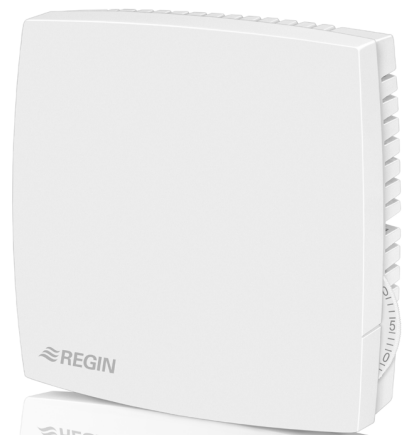

REGIN TM1-50 Electronic Room Thermostat
Function
TM1-50 is an electronic room thermostat for wall mounting. The thermostat has settable hysteresis and a change-over relay output. It uses 230 V AC supply voltage.
Applications
TM1-50 is suitable for controlling cooling coils, fan heaters, fans, DX cooling, solenoid valves, fan-coil units, etc. It is especially well suited for the control of ventilation fans in elevator motor rooms, as well as in transformer rooms where adjustable hysteresis is often required.
External sensor
An external sensor from Regin´s NTC series can be connected if the thermostat cannot be mounted at the desired location. Visit Regin’s website at www.regincontrols.com. for a suitable sensor
Setpoint
The set point is set using the wheel on the side of the thermostat. In order to prevent tampering, the setpoint wheel can be locked by means of a locking screw under the cover.
Mounting
- The thermostat has a hinged lid which is opened by pressing the locking torque at the bottom using a screwdriver.
- The thermostat has 60 mm screw pockets to enable mounting over an inset wall socket

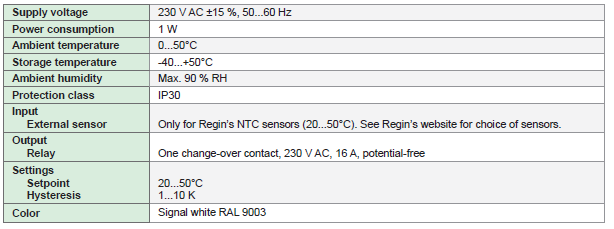

Technical data

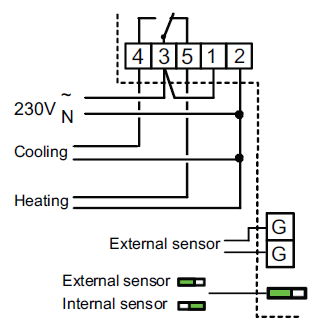

Wiring
CE
This product carries the CE mark. More information is available at www.regincontrols.com.

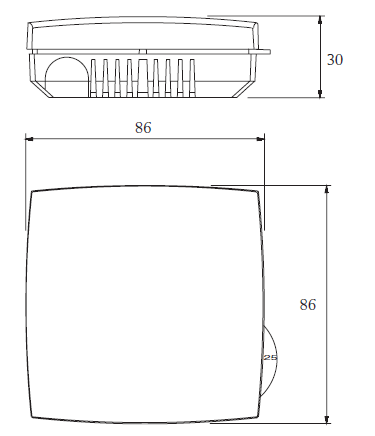

Dimensions
Product Documentation
The product documentation can be downloaded from www.regincontrols.com
HEAD OFFICE SWEDEN
- Phone: +46 31 720 02 00
- Web: www.regincontrols.com
- E-Mail: [email protected]
