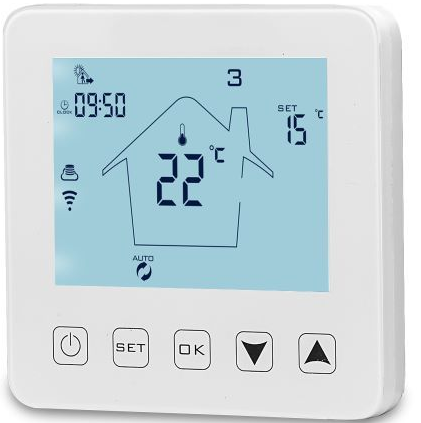

Rayotec HY03-WE Digital Touchpad Thermostat
Product Specifications
- Power: AC 200-240Vac 50/60HZ
- Display accuracy:：0.5°C
- Contact capacity: 16A
- Range of temperature display:：0~99°C
- Probe sensor:：NTC(10k)1%
Before installation
- Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
- Check the ratings given in the instructions and on the product to make sure it is suitable for your application.
- Installer must be a trained and qualified Electrician
- After installation is complete check operation as per these instructions
Display

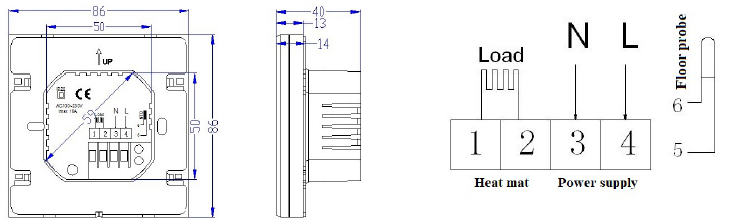

Wiring Diagram
Connect the heating mat to 1 & 2, connect the power supply to 3 & 4 and connect the floor probe to 5 & 6. If you connect it incorrectly, there will be a short circuit and the thermostat may become damaged and the warranty will be invalid.You must always install the floor probe sensor. If you are installing the thermostat in a bathroom or wet room, then the thermostat needs to be placed outside the room and the floor probe needs to be inside. Always check that the temperature limit for the floor probe is set to a suitable temperature for your flooring (typically 27℃). This can be done in the advanced setting menu 2 (OSV) Always test the floor probe before installing. Use a multi meter or mega tester with the setting turned to kOhms. The reading should be between 10-12 Ohms.

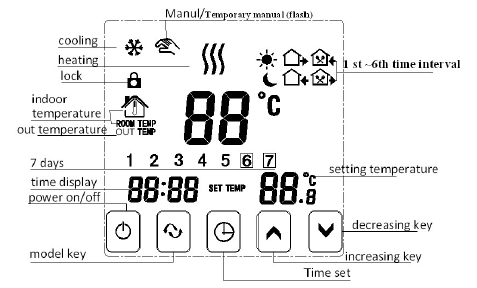

Description of icon
Manual control when hand is solid, temporary manual control when flashing.
System is heating
1st time schedule active
3rd time schedule active
5th time schedule active
Frost mode active
2nd time schedule active
4th time schedule active
6th time schedule active

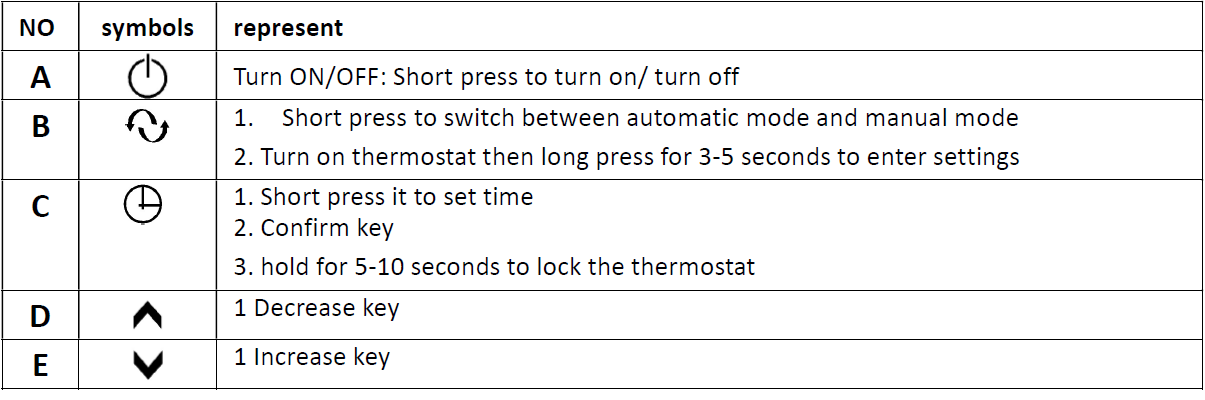

Operation Key
Step 1: Setting time and date
When you turn on the thermostat for the first time you will need to set the time and the number that corresponds to the current day of the week (1-7 starting from Monday). This can be done by following the steps below:
- Press the
button and the time in the left corner will start flashing. - Press
to get to the desired minute and then press - Press to get to the desired hour and then press
- Press to change the day number. 1=Monday 2=Tuesday 3=Wednesday 4=Thursday 5=Friday 6=Saturday 7=Sunday – Once you have selected the day press to confirm
- You will now be ready to set the temperature. This can be done by pressing . The set temperature is displayed in the right corner.
Step 2 – Programming heating schedule

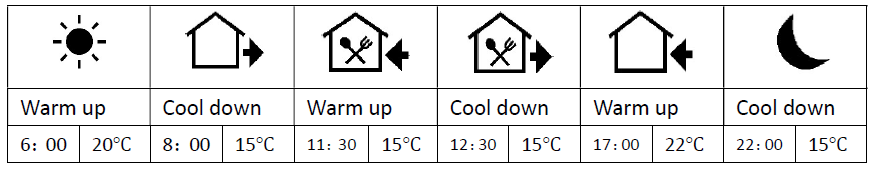

Each day is divided into 6 periods. Wake up, sleep and 4 periods in between. When you are at home, set the period at a “comfort” temperature (typically 18C-21C). When you are out of the property or asleep, set the temperature of the period much lower (typically 15C-16C). This will help to reduce your energy costs. It is recommended that you set the thermostat to come on 30 minutes prior to your required time in order to give it time to heat up the system.
To programme the timings do the following:
- When power is on, long press
for 5-10 seconds to enter programming mode. - “Loop” will appear on the bottom of the screen. Press to enter the settings
- The temperature will now flash. Press to adjust temperature.
- Press the and the hour will now flash. Press to adjust the hour.
- Press the and the minutes will now flash. Press to adjust the minutes.
- Once you have set the time and temperature press to go to the next set of times and repeat steps 3-5 for each of the 6 time periods
- When you have set all the time periods press to return to the main screen
Sensor fault display
Please choose correct setting of built-in and external sensor, if chosen wrongly or if there is a sensor fault (breakdown) then error “E1” or “E2” will be displayed on the screen. Thermostat will stop heating until the fault is eliminated. If this occurs ask the electrician to redo the probe tests to ensure the cable was not damaged during installation.
Advanced options
When the thermostat is off, press + for 3-5 seconds to access advanced setting. Short press to choose the option, and adjust data with , short press to switch to the next option.
| NO | Setting Options | Data Setting Function | Factory Default |
|
SEN |
Sensor Selection |
0: Air sensor only (do not use) 1: Floor probe only
2: Air sensor and Floor probe |
2 |
|
OSV |
Floor probe temperature limit | 5-99℃ |
27℃ |
| dIF | Floor probe switching
differential |
1-9℃ | 2℃ |
| SVH | Upper temperature limit | 5-99℃ | 35℃ |
| SVL | Lower temperature limit | 5-99℃ | 5℃ |
| Adj | Temperature measuring
accuracy |
Measure temperature and calibrate. | 0.1℃ Precision |
| FrE | Anti-freezing function | 00: Anti-freezing function shut down
01: Anti-freezing function open |
00 |
| POn | Power on memory | 00: Power on no need memory
01: Power on need memory |
00 |
| FAC | Reset to factory default | 00: Restore to default
08: No meaning just display purposes |
08 |
Warranty
We offer a warranty of 12 months, from the day of purchase. Beyond the warranty period we will charge for the after-sale service.
