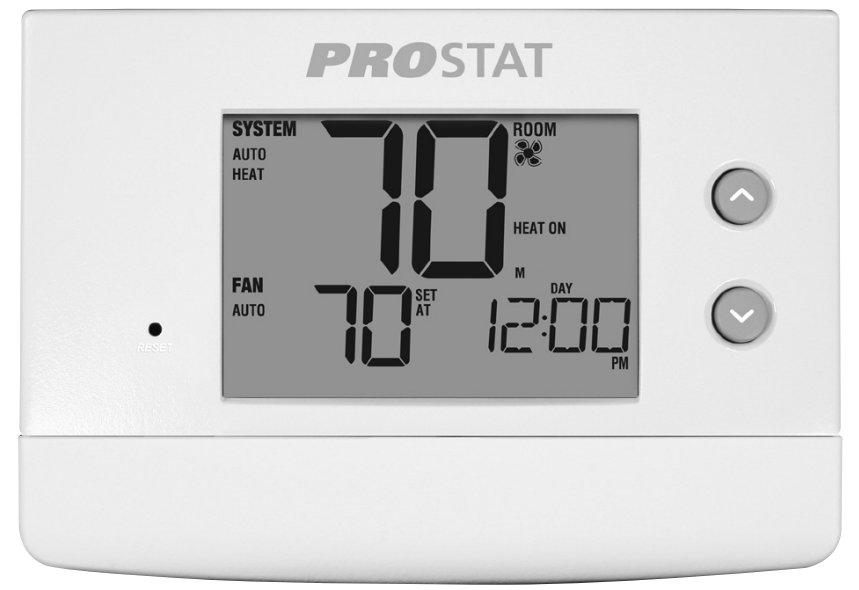

Prostat PRS6110 Programmable Thermostats
Product Features
- 7 Day, 5-2 Day or Non-Programmable
- Large 5 Sq. In. display with bright blue backlight
- Auto or manual changeover
- Adjustable temperature limits
- Indoor or outdoor remote sensing
- SpeedSet® programming mode
- Hardwire or battery powered
- Multi-level keypad lockout
- Auxiliary heat fossil fuel option
- Separate user and installer reset buttons
- Programmable and circulating fan modes
- Adaptive Recovery Mode (ARMTM)
- Temporary override limits
- Residential or commercial modes
- Compatible with 2 or 3 wire hydronic zone systems
- ROHS Compliant

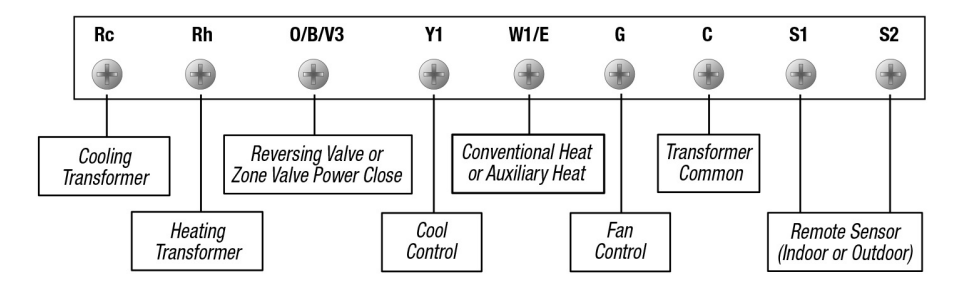

Terminal Designations
Architectural Specifications
The universal auto changeover thermostat shall be a PROSTAT model number PRS6110, 3.86” high x 5.11” wide x 1.42” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer, and program settings. The thermostat shall be compatible with low voltage single stage gas, oil, or electric heating or cooling systems, and single-stage heat pumps with auxiliary heat. Also compatible with 250mv – 750mv millivolt heating-only systems and 2 or 3-wire hydronic zone systems. The thermostat shall have a bright blue backlight display, separate sub-base, and a multi-level keypad lockout. Temperature control range shall be between 45° and 90° F (7° and 32° C), with an accuracy of +/- 1° F (+/- .5° C), and operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, permanent non-volatile memory to retain user settings, filter, UV and humidifier pad check monitor, adaptive recovery mode (ARM™), programmable fan mode, residual cooling fan delay, and indoor or outdoor remote sensor capability. A front reset button will return user settings to default values when pressed.
Product Specifications
| Dimensions: | 3.86” x 5.11” x 1.42” |
|
Electric Rating: |
24 Volt AC (18-30 Volt AC)
1 amp maximum load per terminal 3 amp total maximum load (all terminals) |
| AC Power: | 18-30 Volt AC |
| DC Power: | 3.0 Volts DC
(2 “AA” Alkaline batteries included) |
|
Compatibility: |
Single stage gas, oil or electric systems Single stage heat pumps with or without auxiliary heat
250mv – 750mv millivolt heating systems |
| Control Range: | 45° to 90° F (7° to 32° C) |
| Display Range: | 40° to 99° F (5° to 37° C) |
| Accuracy: | +/- 1° F (+/- .5° C) |
| Temperature Differential: | .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C) |
| Storage Temperature: | 14° to 140° F (-10° to 60° C) |
| Operating Humidity: | 5% to 95% Relative Humidity |
| Terminations: | Rc, Rh, O/B/V3, Y1, W1/E, G, C, S1, S2 |
Shipping Information
| Individual Carton | |
| Dimensions: | 5.0” x 6.3” x 2.0” |
| Weight: | .92 lbs. |
| Master Carton | |
| Quantity: | 6 |
| Dimensions: | 6.4” x 13” x 5.6” |
| Cubic Feet: | .27 |
| Weight: | 6 lbs. |
Prostat PRS6110 Replaces*
| Brand | Model |
| Honeywell® | TH611OD, TH621OU, TH622OD |
| Emerson® | 1F80-0471, 1F85-0422, 1F85U-22PR |
| Pro1® | T805 |
| *Verify specific application requirements. All trademarks are the property of their respective owners. | |
Accessories
| Model | Sensor |
| PRS6390 | Remote Indoor Sensor |
| PRS6490 | Remote Outdoor Sensor |
Goodman Manufacturing Company, L.P., reserves the right to discontinue or change at any time, specifications, or designs without notice or without incurring obligations. ©2018 Goodman Manufacturing Company, L.P.
Houston, Texas
Printed in the USA.
www.propartshvac.com
Technical Support: 1-855-445-2466
