PROSELECT PSTSL11NP 1H/1C Non-programmable Thermostat
Model Numbers
- PSTSL11NP – 1 Heat / 1 Cool Conventional or 1 Heat / 1 Cool Heat Pump
- PSTSL21NP – Up to 2 Heat / 1 Cool Conventional and Heat Pump
Product Features
- Dual Powered – Hardwired or Battery
- Large Display with Bright Blue Backlight
- Adjustable Temperature Set Point Limits
- Non-Volatile Memory Retains User Settings
- Separate O & B Terminals
- Compressor Short Cycle Protection
- Low Battery Indication
- Separate Heating and Cooling
Set Point Temperatures - ESD Guard™ Electronic Circuitry
- Front Access Reset Button
- F° / C° Switch
- Gas / Electric Fan Switch
- Mount to Horizontal Box
- Adjustable Temperature Differential(s)
- Quick Reference Instruction Card
NON-PROGRAMMABLE LARGE DISPLAY THERMOSTATS
Architectural Specifications
The digital non-programmable thermostats shall be PROSELECT® model numbers PSTSL11NP and PSTSL21NP, 3.62” high x 4.72” wide x 1.38” deep, powered independently with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with single stage gas, oil or electric heating or cooling systems including single stage heat pumps and 250mv – 750mv millivolt heating systems. The thermostat shall have a bright blue backlight display, adjustable temperature limits and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7° and 32°C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory to retain user settings. Thermostat shall have low battery indication and a front reset button will return user settings to default values when pressed. The thermostat can be mounted to a horizontal junction box.
Product Specifications
- Dimensions: 3.62” x 4.72” x 1.38”
- Electric Rating: 24 Volt AC (18-30 Volt AC)
- 1 amp maximum load per terminal
- 3 amp total maximum load (all terminals)
- AC Power: 18 – 30 Volt AC
- DC Power: 3.0 Volts DC (2 “AA” Alkaline batteries included)
- Compatibility: Gas, oil or electric systems
- Heat pump systems :250mv – 750mv millivolt heating systems
- Control Range: 45° to 90° F (7° to 32° C)
- Display Range: 40° to 99° F (4° to 37° C)
- Accuracy: +/- 1° F (+/- .5° C)
Temperature
- Differential: 1st Stage: .5°, 1°, or 2° F (.25°, .5°, or 1° C)
- 2nd Stage: (PSTSL21NP Only) 2°, 3°, 4°, 5° or 6°F (1°, 1.5°, 2°, 2.5° or 3°C)
- Storage Temperature: 14° to 140° F (-10° to 60° C)
- Operating Humidity: 5% to 95% Relative Humidity

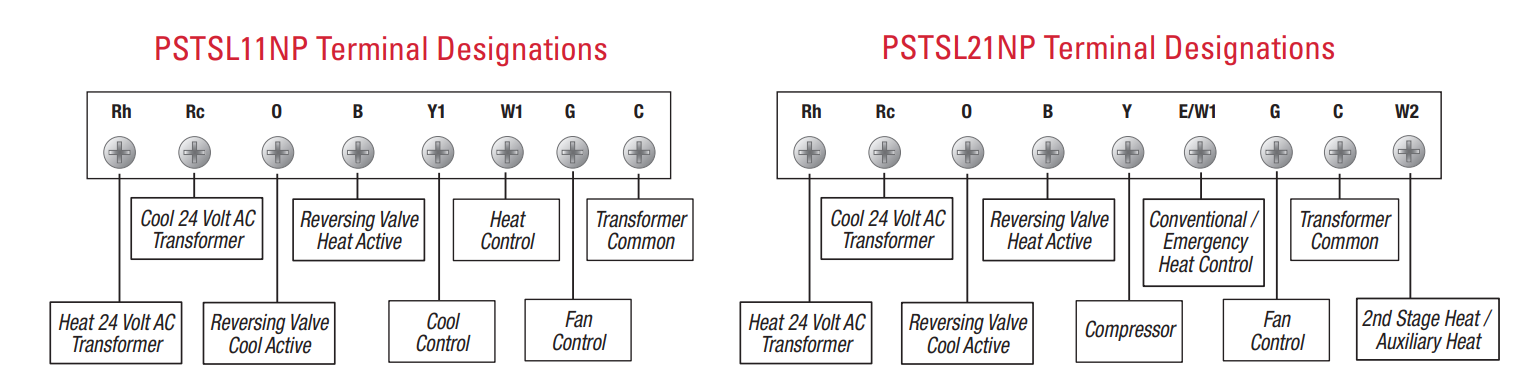

- Terminations: Rc, Rh, B, O, Y1, W1, G, C (PSTSL11NP) Rh, Rc, O, B, Y, E/W1, G, C, W2 (PSTSL21NP)
Shipping Information
INDIVIDUAL CARTON
- Dimensions: 3.8” x 5.8” x 1.6”
- Weight: .70 lbs.
MASTER CARTON
- Quantity: 12
- Dimensions: 11” x 11.7” x 4.3”
- Cubic Feet: .32
- Weight: 9.2 lbs.
PROSELECT PSTSL11NP Replaces*
- Honeywell® T87F, T834, TH1110, TH3110, T8400C, T8401C, T8034C
- White-Rodgers® 1D56, 1E56, 1E78-145, 1F56, 1F78-144
- Braeburn® 1000NC, 1020NC
- Robertshaw® RS2110, 8400, 8401, 9200H/V, 9400, 9401, 9500
- ICM® SC2000, SC2000L, SC2000N, SC2001, SC2001L,
- SC2001N, SC2010
- LuxPro® PSD011W, PSD011B, PSD111, PSM400SA
PROSELECT PSTSL21NP Replaces*
- Honeywell® TH1210, TH3210, T8411, T8424C
- White-Rodgers® 1F73-174, 1F79-111
- Braeburn® 1200NC, 1220NC
- Robertshaw® RS2210, 8425-1, 9415, 9420, 9515, 9520
- ICM® SC2200, SC2201, SC2201L, SC2201N, SC2210,
- SC2300, SC2301
- LuxPro® PSDH121, PSD152
*Verify specific application requirements. All trademarks are the property of their respective owners.
