Pro1 T705 Programable Thermostat Operation Manual

Pro1 T705 Programable Thermostat

Congratulations on purchasing a new thermostat. This thermostat was designed to the highest reliability and ease of use standards. Thank you for choosing Pro1.

Caution
Equipment damage hazard Do not operate the cooling system if the outdoor temperature is below 50˚ F (10˚ C) to prevent possible compressor damage.

Need Help?
For assistance with this product please visit http://www.pro1iaq.com or call Pro1 Customer Care toll-free at 888-Pro1iaq (776-1427) during normal business hours (Mon-Fri 9 AM – 6 PM Eastern)

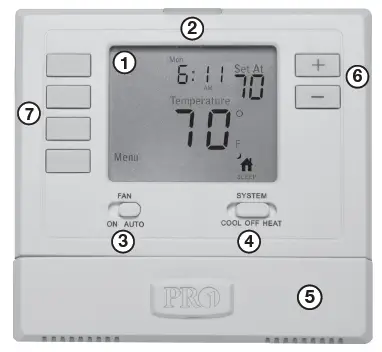

Getting to know your thermostat

1. LCD
2. Glow in the Dark Light Button
3. Fan Switch
4. System Switch
5. Easy Change Battery Door
6. Setpoint Buttons
7. User Buttons

Important
The low battery indicator is displayed when the AA battery power is low. If the user fails to replace the battery within 21 days, the thermostat display will only show the low battery indicator as a final warning before the thermostat becomes inoperable.

Battery door information

THERMOSTAT OPERATION

Easy-to-use controls

Caution:
When the battery icon appears replace your batteries immediately. Failure to do so may result in your heating & cooling system becoming inoperable.

1. LCD Display:
   See page 2 for details about this display read out and icons.
2. Glow in the Dark Light Button:
   The glow-in-the-dark light button will self-illuminate for several hours after exposure to ambient light. This button turns on the display light when pressed.
3. Fan Switch:
   Select ON or AUTO. ON will run
   the fan continuously. AUTO will cycle the fan on only when the heating or cooling system is on.
4. System Switch:
   Selects the operation mode of your HVAC system. Selecting HEAT turns on the heat mode. Selecting COOL turns on the air conditioning mode. Selecting OFF turns both heating and cooling off.
5. Temperature Setpoint Buttons:
   Press the + or – buttons to select the desired room temperature.
6. User Buttons:
   Use these buttons to set up your programming options. Refer to the next page for instructions.

Set Time

Follow the steps below to set the current time:

1. Press MENU
2. Press SET TIME
3. The day of the week will be flashing. Use the key to select the current day of the week.
4. Press NEXT STEP
5. The current hour is flashing.
   Use the key to select the current hour. When using 12-hour time, make sure the correct a.m. or p.m. choice is selected.
6. Press NEXT STEP
7. Minutes are now flashing.
   Use the key to select current minutes.
8. Press DONE when completed

Important:
You will see a TECH SET option after the MENU key is pressed.
This TECH SET key is for installer configuration and should NOT be changed unless you consult your Professional Heating and Air Conditioning Technician.

  Set Program Schedule

To customize your program schedule, follow these steps on Weekdays:

1. Select HEAT or COOL from the system switch.
   Note: You have to program heat and cool each separately.
2. Press MENU
3. Press SET SCHED. Note: Monday-Friday is displayed and the WAKE icon is shown. You are now programming the wake time period for the weekday setting.
4. Time is flashing. Use the key to make your time selection for the weekday WAKE time period.
5. Press NEXT STEP
6. The setpoint temperature is flashing. Use the key to make your setpoint selection for the weekday wake period.
7. Press NEXT STEP
8. Repeat steps 4 through 7 for the weekday LEAVE time period, for the weekday RETURN time period, and for the weekday SLEEP time period.
   Saturday:
9. Repeat steps 4 through 7 for Saturday WAKE time period, for Saturday, LEAVE time period, for Saturday RETURN time period, and for Saturday SLEEP time period.
   Sunday:
10. Repeat steps 4 through 7 for Sunday WAKE time period, for Sunday, LEAVE time period, for the Sunday RETURN time period, and for the Sunday SLEEP time period.

PROGRAMMING THE THERMOSTAT

Filter Change Reminder
If your installing contractor has configured the thermostat to remind you when the air filter needs to be changed, you will see FILT in the display when your air filter needs changed. FILT will be shown in the display after your system has run long enough to require an air filter change.
Resetting the filter change reminder: When FILT reminder is displayed, you should change your air filter and reset the reminder by holding down the second button from the top left side of the thermostat for 3 seconds.

Temporary and Permanent Hold Feature

Temporary hold: The thermostat will display HOLD and RUN SCHED on the left of your screen when you press the key. If you do nothing, the temperature will remain at this setpoint temporarily until the next program period begins. Your program setpoint will then replace your temporary setpoint.
Permanent hold: If you press HOLD, you will see HOLD appear below the setpoint temperature in the display. The thermostat will now permanently stay at this setpoint and can be adjusted using the keys.
To return to the program: Press RUN SCHED to exit either temporary or permanent hold.

CONTACT US AND WARRANTY INFORMATION

Contact Us Information

Pro1 IAQ Inc.
1111 S. Glenstone
Suite 2-100
Springfield, MO 65804
Toll-free: 1-888-Pro1iaq (776-1427)
Toll Number (Outside the USA): 330-821-3600
Web: http://www.pro1iaq.com
Hours of Operation: Monday – Friday 9 AM – 6 PM Eastern

Warranty Registration:
Your new Pro1 thermostat has a 5-year limited warranty. You must register your warranty within 60 days of installation. You can register your new thermostat in 2 ways.

1. Go to www.pro1iaq.com, select warranty registration and fill out a short registration form. -or
2. Complete the form below and mail it to the address shown.

Pro1 IAQ Warranty Registration:

• Name:
• Address:
• City:
• State:
• Zip:
• Thermostat Model:
• Date Installed:

Complete form and mail to

Pro1 IAQ Inc.
1111 S. Glenstone Suite 2-100
Springfield, MO 65804
