Pro1 Technologies Z260W Thermostat
Damper Module(s)
- The Damper Module is designed to operate with 24VAC 2-wire and 3-wire zone dampers.
- The Damper Module(s) must be hardwired with 24VAC connected to R and C.

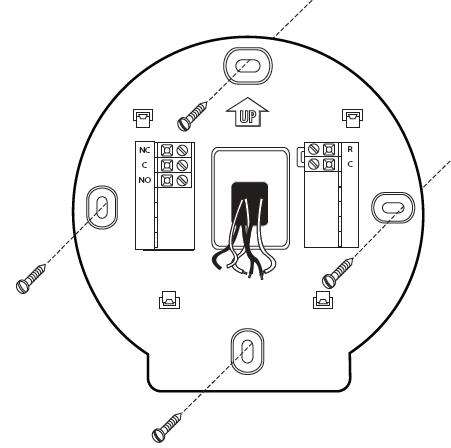

- The zone damper will be connected to the NC, C, and NO terminals on the left side of the subbase.
- The Master Thermostat will transmit the required damper position to the Damper Modules.
- When the damper position is open, the ZONE LED will be flashing. 24VAC will be supplied to NC and C terminals.
- When the damper position is closed, the ZONE LED will be solid. 24VAC will be supplied to NO and C terminals.

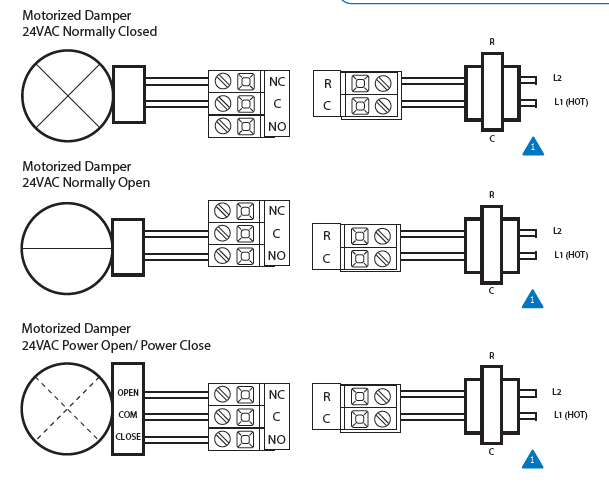

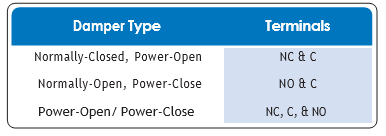

- Wire the terminals according to the damper type used. (See page 3 for instructions)
WIRING
ESTABLISHING COMMUNICATION
Remember

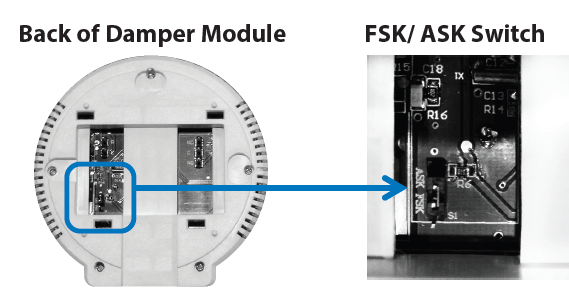

This Wireless Zoning System contains selectable wireless communication. Each component has a jumper switch labeled FSK and ASK. Default setting: FSK. All components must be set to the same position for wireless communication. This selectable communication option is available to you in case you have a device you are pairing with that only has the ASK option.
Establishing Communication between Master Thermostat and Damper Module
- If you only need one Damper Module to control the Master Zone1, it is already factory linked to the Master Thermostat, out of the box.
- If you need multiple Damper Modules to control a single zone, they all need to be linked to that particular zone with the same procedure.
- Each Damper Module will open and close the damper(s) for the zone that it is configured to control.
- Each Damper Module will indicate the Zone Number it is configured for by using the Zone 1-5 LED indicators.
Linking Procedure

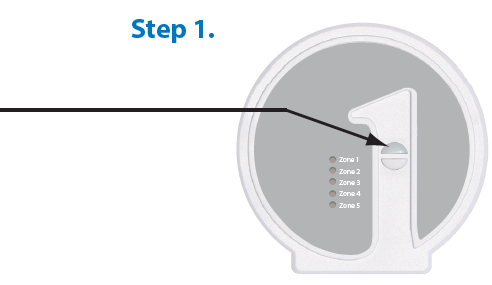

- To put the Damper Module(s) in learn mode; Hold the Learn Button until it’s communication LED begins flashing steady. Note all parts must have power to perform linking procedure

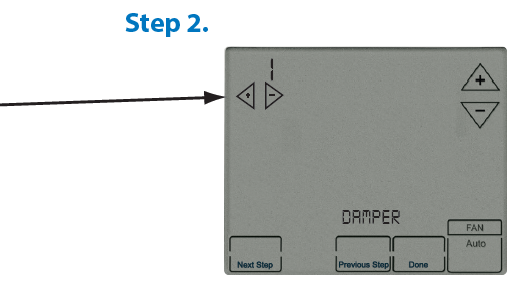

- With the Master Thermostat enter Tech Setup Mode, then proceed to the Link Damper Module Step (See page 16 of the Master Thermostat Installation Manual). This step connects the Master Module to the Damper Module(s). Use the to select the Zone Number, Zone 1-5

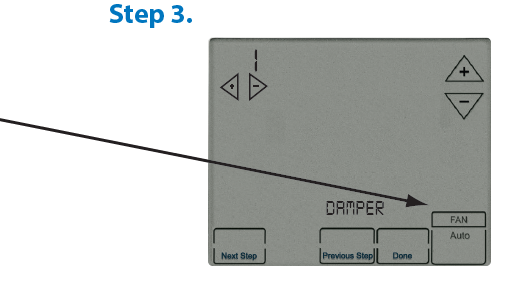

With the desired Zone Number selected on the Master Thermostat and the Damper Module(s) in Learn Mode (LED flashing), press and hold the FAN key on the Master Thermostat to Link and Configure the Damper Module for the Zone Number shows the Master Thermostat
Specifications
- Load rating 3 amps per terminal/3 amps total
- Power source 18 to 30 VAC, NEC Class II, 50/60 Hz
- Operating ambient 32ºF to +105ºF (0º to +65ºC)
- Operating humidity 90% non-condensing maximum
This manual is used to setup damper modules
- Z260W
- (Requires Z955W for Master
- Zone (zone 1) and RZ251W for additional zones)
Congratulations on purchasing our Wireless Zoning System.
This Damper Module was designed to the highest reliability and ease of use standards. Thank you for choosing our quality products.
Pro1 Technologies, Inc.
- PO Box 3377
- Springfield, MO 65804
- Toll-Free: 888-776-1427
- Web: www.pro1iaq.com
- Hours of Operation: M-F 9AM – 6PM Eastern
