Pro1 Technologies T955S Non-Programmable Thermostat Installational Manual

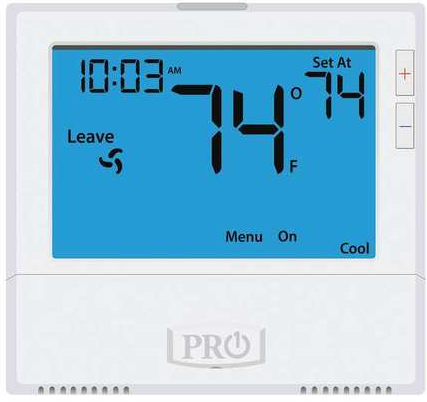

Pro1 Technologies T955S Non-Programmable Thermostat

Pro1 Technologies
P.O. Box 3377
Springfield, MO 65808-3377
Toll-Free: 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9 AM – 6 PM Eastern

Thermostat Application Guide

Power Type

• Battery Power
• Hardwire (Common Wire)
• Hardwire (Common Wire) with Battery
• Backup

A trained, experienced technician must install this product. Carefully read these instructions. You could damage this product or cause a hazardous condition if you fail to follow these instructions.

Installation Tips

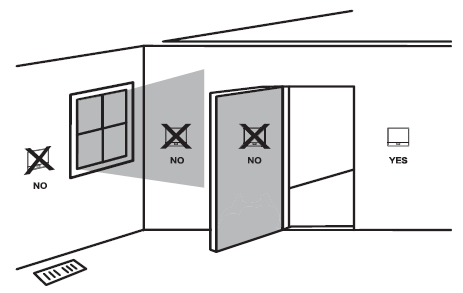

Wall Locations
The thermostat should be installed approximately 4 to 5 feet above the floor. Select an area with average temperature and good air circulation.

Do not install thermostats in these locations:

• Close to hot or cold air ducts
• That is in direct sunlight
• With an outside wall behind the thermostat
• In areas that do not require conditioning
• Where there are dead spots or drafts (in corners or behind doors)
• Where there might be concealed chimneys or pipes

Installation Tip
Pick an installation location that is easy for the user to access. The temperature of the location should be representative of the building.

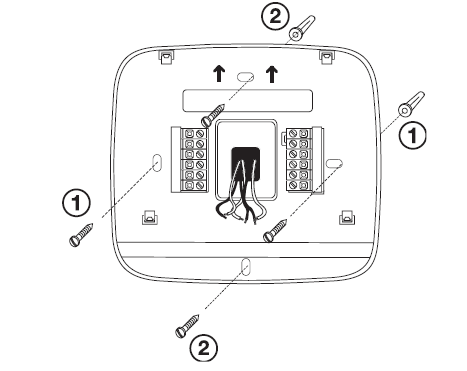

Subbase Installation

1. Horizontal Mount For horizontal mount put one screw on the left and one screw on the right.
2. Vertical Mount For vertical mount put one screw on the top and one screw on the bottom.

Installation Tip: Electrical Hazard
Failure to disconnect the power before beginning to install this product can cause electrical shock or equipment damage.

Mercury Notice
All of our products are mercury-free. However, if the product you are replacing contains mercury, dispose of it properly. Your local waste management authority can give you instructions on recycling and proper disposal.

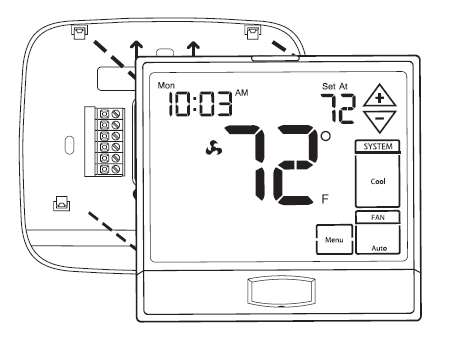

Mount Thermostat

Align the 4 tabs on the subbase with corresponding slots on the back of the thermostat, then push gently until the thermostat snaps in place.
Note: To ensure a solid fit between the thermostat and the sub-base:

1. 1. Mount the sub-base to a flat wall
2. Use the screws provided
3. Drywall anchors should be flush with the wall
4. Wires should be pushed into the wall

Thermostat Quick Reference

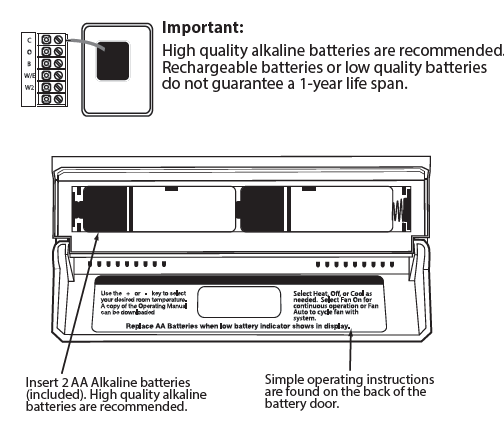

Battery Installation
Battery installation is recommended even if the thermostat is hardwired (C terminal connected). When the thermostat is hardwired and batteries are installed, the thermostat will activate a compressor delay of 5 minutes when it detects a power outage from the hardwired power supply.

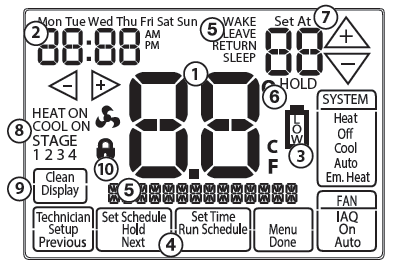

Getting to know your thermostat

1. Indicates the current room temperature
2. Time and day of the week
3. Low Battery Indicator: Replace batteries when this indicator is shown.
4. Program Menu Options: Show different options during programming.
5. Time Periods – Shows the 4 time Periods for Residential. 2 or 4 Commercial time periods Occupied/Unoccupied are shown in this text field.
6. HOLD is displayed when the thermostat program is permanently overridden. Setpoint: Displays the user-selectable setpoint temperature
7. System Operation Indicators: HEAT ON, COOL ON, and stages are shown when these systems are running. NOTE: The compressor delay feature is active if these icons are flashing. The compressor will not turn on until the 5-minute delay has elapsed.
8. Clean Display: Will disable the screen for 30 seconds to allow cleaning. A press and hold of clean also will reset filter change and other reminders.
9. Keypad Lockout Icon

Important
The low battery indicator is displayed when the AA battery power is low. If the user fails to replace the battery within 21 days, the screen will only show the low battery indicator but maintain all functionality. If the user fails to replace the batteries after an additional 21 days (days 22-42 since the first “low battery display) the setpoints will change to 55˚F (Heating) and 85˚F (Cooling). If the user adjusts the setpoint away from either of these, it will hold for 4 hours and then return to either 55˚F or 85˚F. After day 63 the batteries must be replaced immediately to avoid freezing or overheating because the thermostat will shut the unit off until the batteries are changed.

Caution: Electrical Hazard Failure to disconnect the power before beginning to install this product can cause electrical shock or equipment damage.

Warning: All components of the control system and the thermostat installation must conform to Class II circuits per the NEC Code.

1. If you are replacing a thermostat, make note of the terminal connections on the thermostat that is being replaced. In some cases the wiring connections will not be color coded. For example, the green wire may not be connected to the G terminal.
2. Loosen the terminal block screws. Insert wires then retighten the terminal block screws.
3. Place non-flammable insulation into the wall opening to prevent drafts. Do not overtighten terminal block screws, as this can damage the terminal block. A damaged terminal block can keep the thermostat from fitting on the sub-base correctly or cause system operation issues. Max Torque = 6in-lbs.

C Terminal
The C (common wire) terminal does not have to be connected when the thermostat is powered by batteries.

Wire Specifications
Use shielded or non-shielded 18-22 gauge thermostat wire.

Note:
In many heat pump systems with no emergency heat relay, a jumper can be installed between E and W2 to turn the thermostat into a single-stage control for Emergency Heat Operation.

Terminal Designations
This thermostat is shipped from the factory to operate a conventional heating and cooling system. This thermostat may also be configured for a heat pump system. See the “heat pump” configuration step on page 17 of this manual to configure the thermostat for heat pump applications.

Outdoor temperature sensors, Indoor temperature sensors, and Slab sensor wiring diagrams are located in the sensor manuals. See page 18 in tech setup.

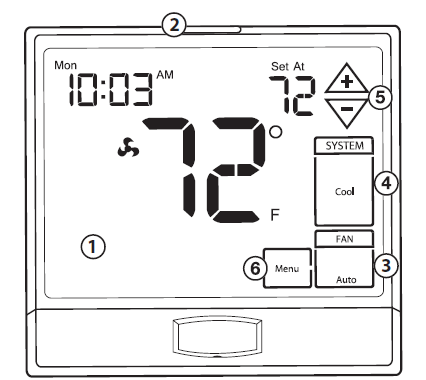

Thermostat Quick Reference

1. LCD Display
2. Glow in the dark light button
3. Fan Key
4. System Key
5. Setpoint buttons
6. Menu button

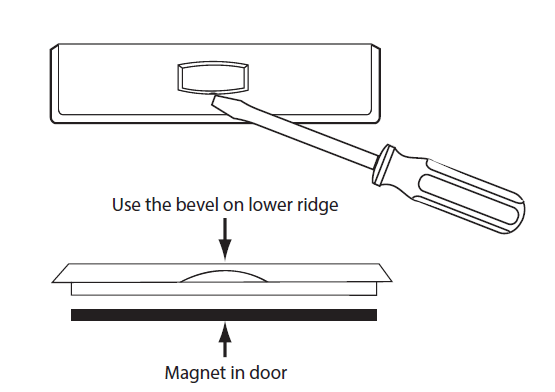

Private Label Badge
All of our thermostats use the same universal magnetic badge. Visit the company website to learn more about our free private label program.

Gently slide a screwdriver into the bottom edge of the badge. Gently turn the screwdriver counterclockwise. The badge is held on by a magnet in the well of the battery door. The badge should pry off easily. DO NOT USE FORCE.

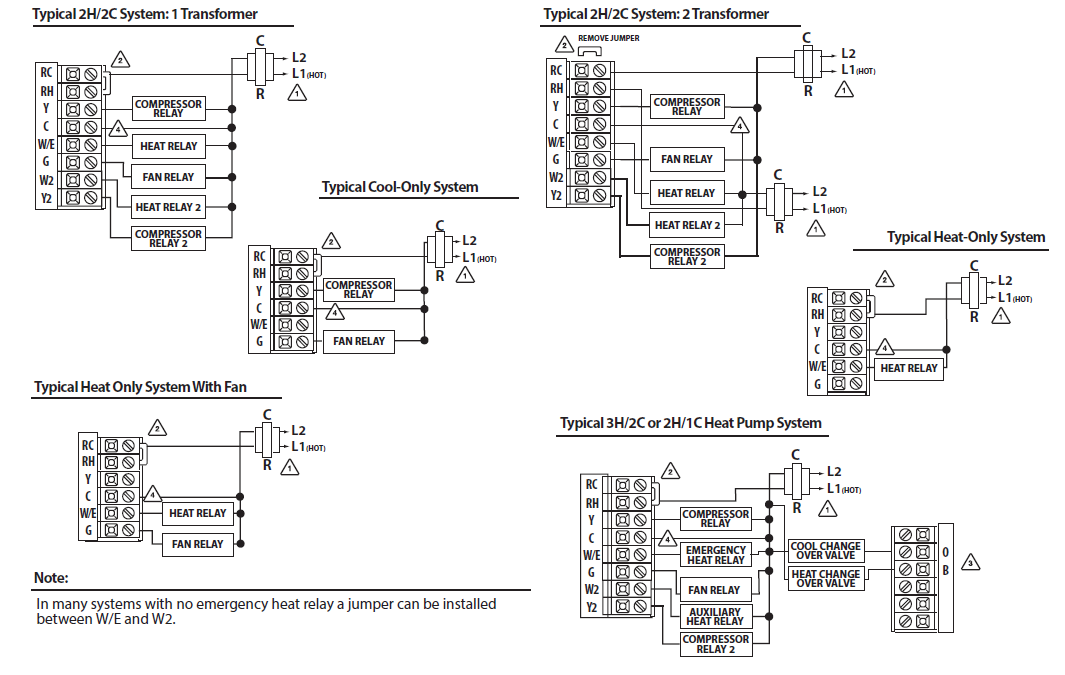

Wiring Diagrams

1. Power supply
2. Factory-installed jumper. Remove only when installing on 2-transformer systems
3. Use either O or B terminals for the changeover valve
4. Optional 24 VAC common connection when the thermostat is used in battery power mode

In many systems with no emergency heat relay a jumper can be installed between W/E and W2.

Technician Setup Menu

This thermostat has a technician setup menu for easy installer configuration. To set up the thermostat for your particular application:

1. Press the Menu button.
2. Press and hold the TECHNICIAN SETUP button for 3 seconds. This 3-second delay is designed so that homeowners do not access dentally access the installer settings.
3. Configure the installer options as desired using the table below. Use the or keys to change settings and the Previous or Next key to move from one step to another. Note: Only press the DONE key when you want to exit the Technician Setup options.
4. Press the DONE key to exit.

Keypad Lockout Note: The selected keypad lockout functionality must be activated after exiting the tech setup. If you do not perform this procedure, all keys will function freely. To lock the keypad hold down the and keys for 3 seconds. You will see a lock in the display. To unlock the display hold down the keys for 3 seconds.

Swing Setting Tip
The second stage will turn on at 2x the swing set. The second stage will turn off when 1x the swing is reached. For example, if the swing set is .5 degrees for heating and the thermostat is set at 70ËšF, the first stage will turn on at approximately 69.5. The second stage will turn on at 69ËšF. The second stage will turn off at 69.5ËšF and the first will turn off at 70.5ËšF. If the third stage is used, it will turn on at 68.5ËšF and turn off at approximately 69ËšF.

Contractor Call Number Note
If the contractor call number is selected ON, the phone number entered will show in the display if there has been a continuous call for heating or cooling for 24 hours or if the light button is held down for 3 seconds. To remove the phone number from the display, hold the light button down for 3 seconds.

A Note about IAQ Mode
This programmable/selectable mode will operate the fan 1-4 cycles per hour, 1-45 minutes per cycle. Once programmed in tech setup, to enable this mode select “IAQ” with the fan key. Disable this mode by selecting “ON” or “AUTO” with the fan key.
Reminders: Once a reminder has been turned on and set, the elapsed time can be checked by navigating to its tech setup step. The elapsed time will then appear in the text field. It can also be reset at that time by holding down the Clean key button for 3 seconds. Resetting an expired reminder can be done without entering tech setup, by holding down the Clean key button for 3 seconds from the home screen.
Staging Delay Note: This step will not appear if using an outdoor balance point temperature.

Programming

Follow the steps below to set the day of the week and current time:

1. Press the Menu button.
2. Press Set Time.
3. The day of the week is flashing. Use the or key to select the current day of the week.
4. Press Next.
5. The current hour is flashing. Use the or key to select the current hour. When using 12-hour time, make sure the correct a.m. or p.m. choice is selected.
6. Press Next.
7. Minutes are now flashing. Use the or key to select current minutes.
8. Press Done when completed.

(If using programming)
All our programmable thermostats are shipped with an energy-saving default program. You can customize this default program by following the instructions in the set program schedule section starting on page 24.

Programming
Your thermostat can be programmed to have each day of the week programmed uniquely (7 days), all the weekdays the same with a separate program for Saturday and a separate program for Sunday (5+1+1), or
non-programmable. For the 7-day and 5+1+1 programming modes, there are three-time period options.

1. “4” Residential (WAKE, LEAVE, RETURN, SLEEP)
2. “2C” Commercial (OCCUPIED, UNOCCUPIED)
3. “4C” Commercial (OCCUPIED 1, UNOCCUPIED 1, OCCUPIED 2, UNOCCUPIED 2) This thermostat has a programmable fan feature, which allows you to run the fan continually during any time period.

Select HEAT or COOL with the system key
Note: You have to program heat and cool each separately.

1. Press the Menu button (If the menu does not appear first press Run Schedule).
2. Press Set Schedule. Note: Monday-Friday is displayed and the WAKE/OCC1 icon is shown. You are now programming the WAKE/OCC1 time period for the weekday setting.
3. Use the or key to make your time selection for the weekday WAKE/OCC1 time period.
   Note: If you want the fan to run continuously during this time period, select ON with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the FAN key.
4. Then use the or key to make your setpoint selection for the weekday WAKE/OCC1 period.
5. Press Next.
6. Repeat steps 4 through 6 for the weekday LEAVE/UNOCC1 time period, the RETURN/OCC2 time period, and the weekday SLEEP/UNOCC2 time period. To customize your 5+1+1 Program schedule, follow these steps:

Weekday:
Repeat steps 4 through 6 for the Saturday WAKE/OCC1 time period, LEAVE/UNOCC1 time period, RETURN/OCC2 time period, and for the Saturday SLEEP/UNOCC2 time period.

Saturday:
Repeat steps 4 through 6 for the Sunday WAKEOCC1 time period, LEAVE/UNOCC1 time period, RETURN/OCC2 time period, and for the Sunday SLEEP/UNOCC2 time period.

Select HEAT or COOL with the SYSTEM key
Note: You have to program heat and cool each separately.

1. Press the Menu button (If the menu does not appear first, press Run Schedule).
2. Press Set Schedule. Note: Monday is displayed and the WAKE/OCC1 icon is shown. You are now programming the WAKE/OCC1 time period for that day.
3. Use the or key to make your time selection for that day’s WAKE/OCC1 time period.
   Note: If you want the fan to run continuously during this time period, select On with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the FAN key.
4. Then use the or key to make your setpoint selection for that day’s WAKE/OCC1 period.
5. Press Next.
6. Repeat steps 4 through 7 for that day’s LEAVE/UNOCC1 time period, for that day’s RETURN/OCC2 time period, and for that day’s SLEEP/UNOCC2 time period.

To customize your 7-day Program schedule, follow these steps:
(WAKE, LEAVE, RETURN, SLEEP or OCCUPIED 1, UNOCCUPIED1, OCCUPIED 2, UNOCCUPIED 2) Monday: Repeat steps 4 through 7 for the remaining days of the week. A Note About Auto Changeover:
In Auto, you have the ability to switch between Auto Heat or Auto Cool by pressing the system key. This can be done once the current mode has reached its set point. For example: if in Auto Heat, the heat setpoint must be satisfied before the thermostat will allow you to switch to Auto Cool. You can switch out of Auto by holding down the SYSTEM key. To get back into Auto, you must toggle the system key to Auto.

Repeat steps 4 through 7 for the remaining days of the week.
A Note About Auto Changeover:
In Auto, you have the ability to switch between Auto Heat or Auto Cool by pressing the system key. This can be done once the current mode has reached its set point. For example: if in Auto Heat, the heat setpoint must be satisfied before the thermostat will allow you to switch to Auto Cool. You can switch out of Auto by holding down the SYSTEM key. To get back into Auto, you must toggle the system key to Auto.

You can use the table on the next page to plan your customized program schedule if using 5+1+1.

Set Program Schedule For Two Time Periods

1. Select HEAT or COOL with the SYSTEM key.
   Note: You have to program heat and cool each separately.
2. Press the Menu button (If the menu does not appear first, press Run Schedule).
3. Press Set Schedule. Note: Monday-Friday is displayed and the OCCUPIED text is shown. You are now programming the OCCUPIED time period for the weekday setting.
4. Use the or key to make your time selection for the weekday OCCUPIED time period.
   Note: If you want the fan to run continuously during this time period, select On with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the fan key.
5. Then use the or key to make your setpoint selection for the weekday OCCUPIED period.
6. Press Next.
7. Repeat steps 4 through 7 for the weekday UNOCCUPIED time period.

To customize your 5+1+1 Program schedule, follow these steps:
Weekday: (OCCUPIED, UNOCCUPIED)

1. Select HEAT or COOL with the SYSTEM key.
   Note: You have to program heat and cool each separately.
2. Press the Menu button (If the menu does not appear first press Run Schedule).
3. Press Set Schedule. Note: Monday is displayed and the OCCUPIED text is shown. You are now programming the OCCUPIED time period for that day.
4. Time is flashing. Use the or key to make your time selection for that day’s OCCUPIED time period.
   Note: If you want the fan to run continuously during this time period, select On with the FAN key. If you want to use IAQ mode during this time period, select IAQ with the fan key.
5. Then use the or key to make your setpoint selection for that day’s OCCUPIED period.
6. Press Next.
7. Repeat steps 4 through 7 for that day’s UNOCCUPIED time period.

Monday:
Repeat steps 4 through 7 for the remaining days of the week. To customize your 7-day program schedule, follow these steps: Repeat steps 4 through 7 for the Saturday OCCUPIED time period and for the Saturday UNOCCUPIED time period.

Saturday: Repeat steps 4 through 7 for the Sunday OCCUPIED time period, and
for the Sunday UNOCCUPIED time period.

Sunday:
A Note About Programmable Fan: The programmable fan feature will run the fan continuously during any time period it is programmed to be on. This is the best way to keep the air circulated and to eliminate hot and cold spots in your building. If using IAQ mode, set fan to IAQ for any time period.

A Note About Programmable Fan:
The programmable fan feature will run the fan continuously during any time period it is programmed to be on. This is the best way to keep the air circulated and to eliminate hot and cold spots in your building. If
using IAQ mode, set fan to IAQ for any time period.

Features

Temporary Hold: The thermostat will display HOLD and Run Schedule on the bottom of the screen when you press the or key. If you do nothing, the temperature will remain at this setpoint temporarily for 4 hours. The program setpoint will then replace the temporary setpoint. Permanent Hold: With a temporary hold set, If you press the Hold key at the bottom of your screen, you will see Hold appear next to the setpoint temperature in the display. The thermostat will now permanently stay at this setpoint and can be adjusted using the or keys. To Return To the Program: Press the Run Schedule key at the bottom of the screen to exit temporary and permanent holds.

Filter Change & Other Reminders
If your installing contractor has configured the thermostat to remind you when the air filter needs to be changed, you will see a reminder in the display when your air filter needs to be changed. the reminder will be shown in the display after your system has run long enough to require an air filter change. Resetting the filter change reminder: When the reminder is displayed, you should change your air filter and reset the reminder by holding down the “Clean” key on the left side of the thermostat for 3 seconds. This thermostat also has other maintenance reminders ( Humidity Pad, UV Lamp, and IAQ Cell ), that are reset with the same procedure.

1. The displayed room temperature will display the average temperature of the thermostat and all remote sensors.
2. By pressing the lower left-hand corner of the screen, the average temperature of just the remote sensor(s) will be displayed briefly in the clock field.
