Pro1 Technologies T855iSH Non-Programmable Thermostat Product Specifications Guide

Pro1-Technologie-logo

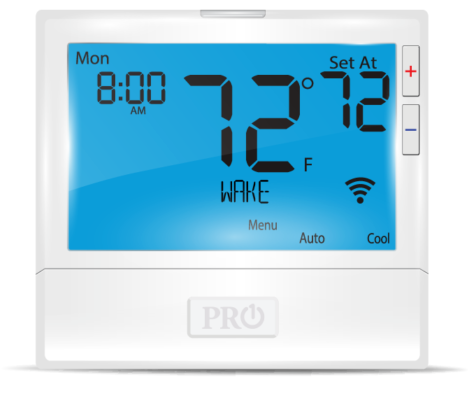

Pro1 Technologies T855iSH Non-Programmable Thermostat

Pro1-Technologies-T855iSH-Non-Programmable-Thermostat-PRODUCT

Universal – WIFI
Residential / Light Commercial
Up to 2 Heat, 3 Cool Conventional Up to 5 Heat, 3 Cool Heat Pump Hardwire Only
7 Day, 5/1/1 or Non-Programmable

This model features

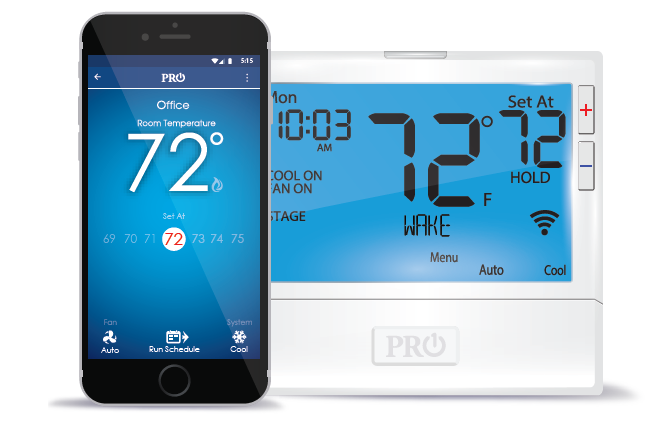

Pro1-Technologies-T855iSH-Non-Programmable-Thermostat-FIG-1

  • Universal – WIFI
  • Residential / Light Commercial
  • Up to 2 Heat, 3 Cool Conventional Up to 5 Heat, 3 Cool Heat Pump Hardwire Only
  • 7 Day, 5/1/1 or Non-Programmable
  • This model features:
  • Humidity and dehumidifying control
  • 5 Year warranty
  • Set dual fuel balance points (requires R250S)
  • Compatible with indoor remote sensors (R251S)
  • Ventilation control
  • IAQ fan settings
  • Advanced pre-occupancy purge
  • Auto changeover
  • Customizable staging logic

Specifications

  • Application  Up to 2 heat, 3 cool conventional / Up to 5 heat, 3 cool heat pump
  • Programmability 7-day, 5/1/1 or Non-programmable
  • Changeover System Switch
  • Display Range 44°F to 90°F (7°C to 32°C)
  • Control Range 41°F to 95°F (5°C to 35°C)
  • Display Accuracy +/- 1°F
  • Heat Swing Adjustable from 0.2°F to 2.0°F
  • Cool Swing  Adjustable from 0.2°F to 2.0°F
  • Terminals Rc, Rh, G, Y, Y2, S1, S2, C , O, B, W/E, W2
  • Load Rating 1 amp per terminal, 1.5 amp maximum all terminals combined
  • Power Source 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire)
  • Operating Ambient 32°F to +105°F (0°C to +41°C)
  • Operating Humidity 90% non-condensing maximum
  • Mounting Wall or Junction Box
  • Dimensions 4.7”W x 4.4”H x 1.1”D (119mm W x 112mm H x 28mm D)
  • Warranty 5-year warranty

Wired Indoor Remote Sensor
Compatable with T855SH and T855iSH

Pro1-Technologies-T855iSH-Non-Programmable-Thermostat-FIG-2

This model features:

  • Move the sensing location away from the thermostat
  • Use up to 16 sensors for a system average

Specifications

  • Operating Temperature 32°F to 105°F (0°C to +41C)
  • Operating Humidity 90% non-condensing maximum
  • Dimensions of Sensor 1.5”W x 2.75”H x 0.75”D
  • Resistance Range Up to 300 feet

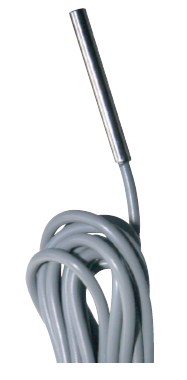

Wired Outdoor Or Slab Sensor

  • Compatible with T755S, T855SH and T855iSHPro1-Technologies-T855iSH-Non-Programmable-Thermostat-FIG-2

This model features

  • Set dual fuel balance points
  • Displays outdoor temperature on the thermostat
  • Selectable dual-fuel balance point
  • Slab sensor for radiant heat
  • Stainless steel weatherproof case

Specifications

  • Temperature range -4°F to 140°F (-20°C to 60°C)
  • Temperature accuracy  +/- 1°F
  • Transmission Constant resistance
